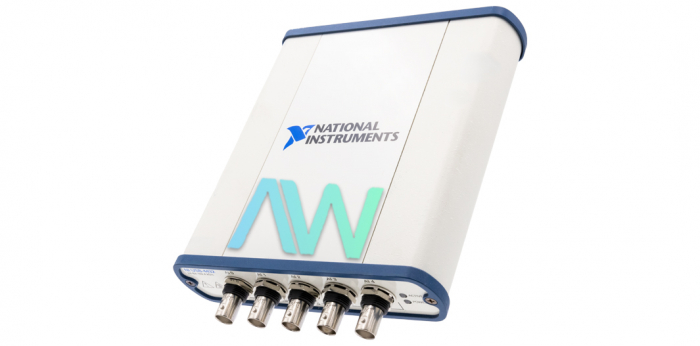

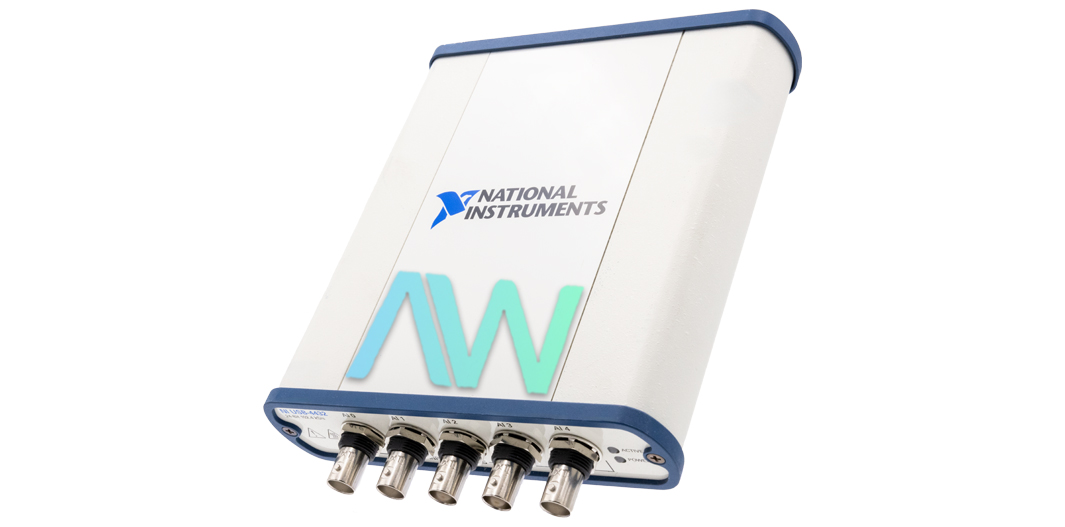

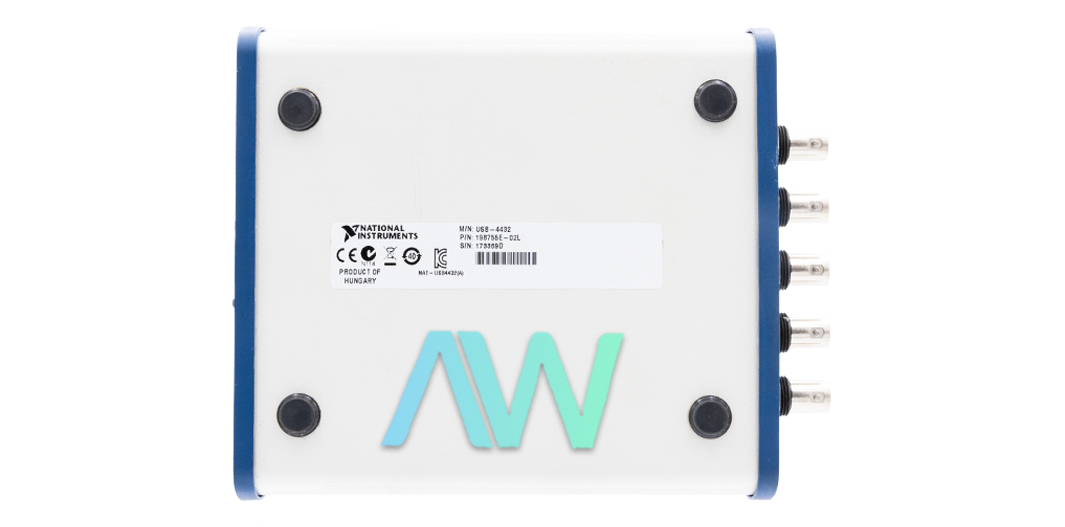

National Instruments USB-4432 Sound and Vibration Device
The USB-4432 (Part Number: 780421-01) is a Sound and Vibration Device from National Instruments. This model has five differential analog input channels and does not have any analog output channels. The input channels offer 24-bit measurements. This impressive Signal Acquisition Module is used for making measurements from IEPE sensors. The USB-4432 buffers and pre-filters each signal. This process is executed by a 24-bit delta-sigma ADC (analog-to-digital converter). This device can read and write TEDS Class 1 sensor.
The National Instruments NI USB-4432 device also features a dynamic range of 100 dB. The device’s voltage range is -40V and +40V. The device also has ±60V overvoltage protection. The USB-4432 includes three modes of measurement operations which are software-selectable. Two modes with AC-coupling are IEPE-on mode and IEPE-off mode. The third mode is the IEPE-off mode with DC coupling. The NI USB-4432 uses delta-sigma modulation. This is a method of converting signals from analog form to digital form. This method rejects the out-of-band signals and only provides the most accurate and desirable signals.
The NI DAQ USB 4432 has a built-in antialiasing filter, which can easily differentiate between different types of signals. This Sound and Vibration Device is ideal for noise analysis applications, along with vibration analysis applications. This device includes many helpful features like distortion analysis and noise measurements. Another useful feature is sound quality analysis. The NI USB-4432 provides one BNC input connector per channel. This model performs well in extensive working environments.
| Model | USB-4432 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 780421-01 |
| Type | Sound and Vibration Device |
| Analog Input Channels | 5 |
| Maximum Sample Rate | 102.4 kS/s |
| Analog Input Coupling | AC/DC |
| Dimensions | 5.6 in. × 7.1 in. × 1.5 in. |
| Weight | 1.5 lbs. |
| Warranty | 2-3 Year Warranty |
| USB-4432 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for USB-4432:
National Instruments USB-4432 Frequently Asked Questions
Question: What is the high-pass filter cutoff frequency for the NI USB-4432?
Answer: The high-pass filter cutoff frequency is 0.1 Hz.
Question: Does the USB-4432 have software-selectable IEPE signal conditioning?
Answer: Yes, the NI DAQ has software-selectable IEPE signal conditioning on four of the five channels.
Question: What is the FIFO buffer size of the Sound and Vibration Device?
Answer: The FIFO buffer size of the USB-4432 is 1,023 samples.
Question: What is the resolution of the sample rate?
Answer: The sample rate of the USB-4432 has a resolution of less than or equal to 2.10 mS/s.
