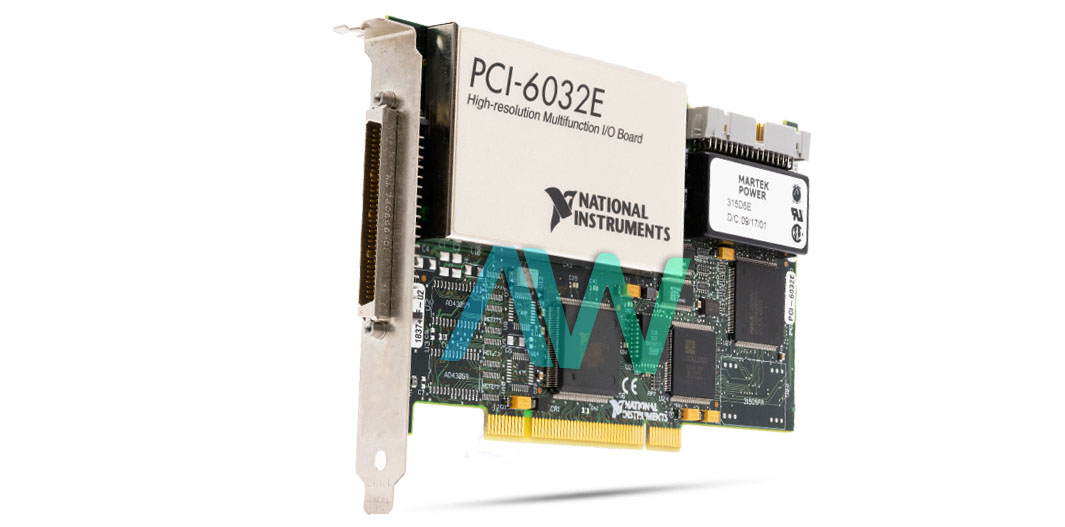

777422-01 PCI-6032E Multifunction DAQ | Apex Waves | Image

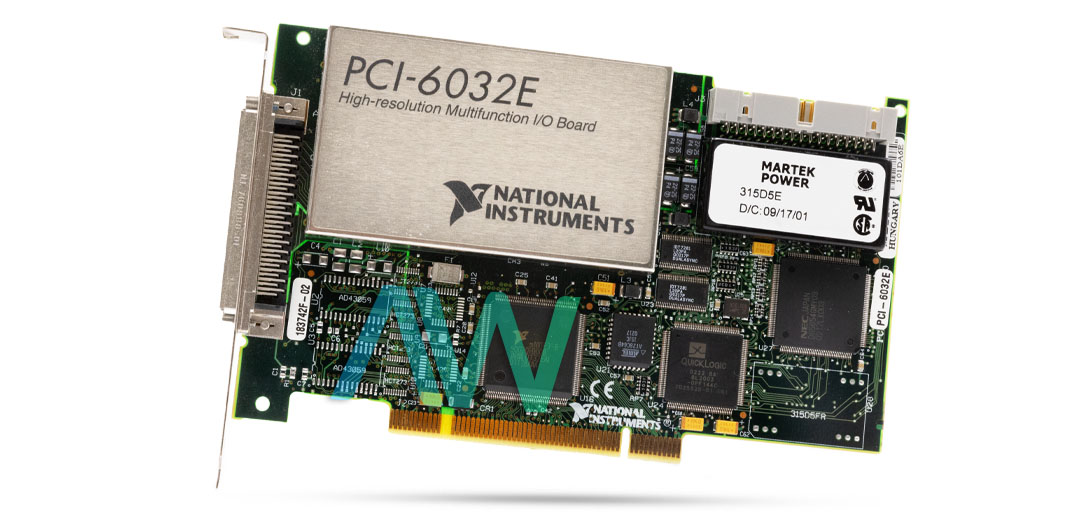

777422-01 PCI-6032E Multifunction DAQ | Apex Waves | Image
777422-01 New
777422-01 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

777422-01 PCI-6032E Multifunction DAQ | Apex Waves | Image
777422-01 PCI-6032E Multifunction DAQ | Apex Waves | Image
777422-01 New
777422-01 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments 777422-01 Multifunction DAQ

National Instruments part number 777422-01 is an identifying part number for the PCI-6032E, a Multifunction DAQ device from E series with 68-pin Male SCSI-II I/O Connector, 16 single-ended analog input channels and 8 Digital I/O channels. The NI 777422-01 Multifunction DAQ features an onboard self-calibration mechanism controlled entirely through software, requiring no manual adjustments. For enhanced resolution, it includes a specially designed noise floor.

To ensure accuracy in harsh environments, the device is built with components that mitigate the effects of temperature changes on measurement results. An onboard temperature sensor monitors the device's operating temperature, ensuring it remains within the correct range. Additionally, the DAQ supports up to 15 input ranges for signals smaller than 50 mV, DC input coupling, and has built-in overvoltage protection on its channels set at ±25 V. The input range for the NI 777422-01 is ±0.1 to ±10 V.

 It does not have analog outputs but supports both analog and digital triggers. This DAQ device features two 24-bit timers or counters. It includes a channel scaling function that allows users to convert their measurement data, typically voltage, into other engineering units. For convenient synchronization with other instruments, the device comes with a dedicated RTSI bus. This device is compatible with various operating systems including Windows, Real-Time, Linux, and Mac OS. It supports LabVIEW RT and features onboard memory of 512 samples. The device has a maximum source frequency of 20 MHz and a minimum input pulse width of 10 ns.

Part Number777422-01
Model NamePCI-6032E
Part TypeMultifunction DAQ
Number of Channels16 Analog Inputs (16-Bit, 100 kS/s) or 8 differential
8 Digital Inputs/Outputs (5 V/TTL Compatibility)
2 Counter/Timer I/O (24 bits, 20MHz)
I/O Connector68-pin Male SCSI-II type
Power Requirements+5 VDC - 1.5 A
Driver SoftwareNI-DAQ7
Sample Rate100 kS/s
Onboard memory512 samples
Input Current FlowSinking, Sourcing
