Modular Systems > National Instruments > E Series

AT-MIO-16E-2 Request for Availability

AT-MIO-16E-2, 2 Analog Output, 12 bits, Multifunction I/O Device

Rated 4.7/5 | 20 ratings

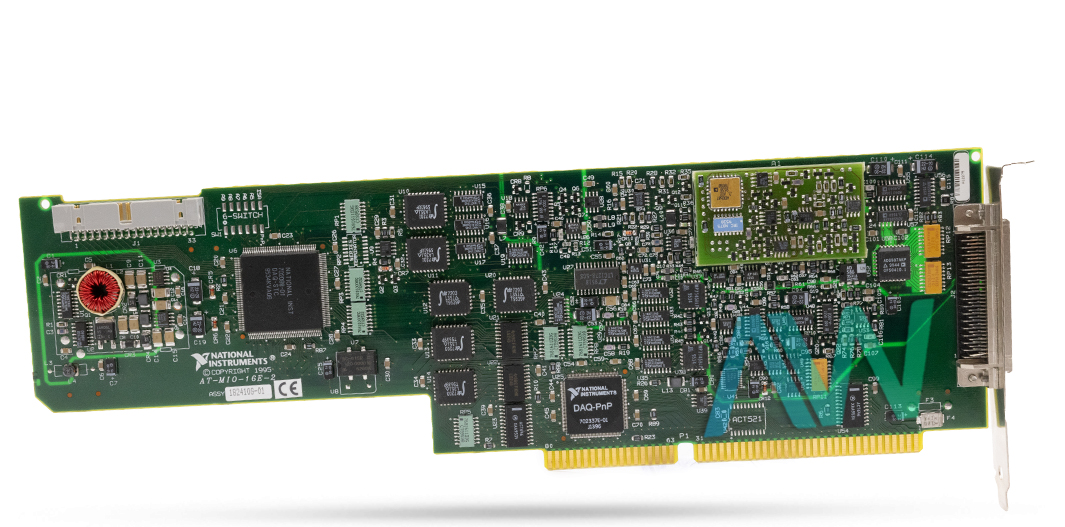

AT-MIO-16E-2 National Instruments Multifunction I/O Device | Apex Waves | Image

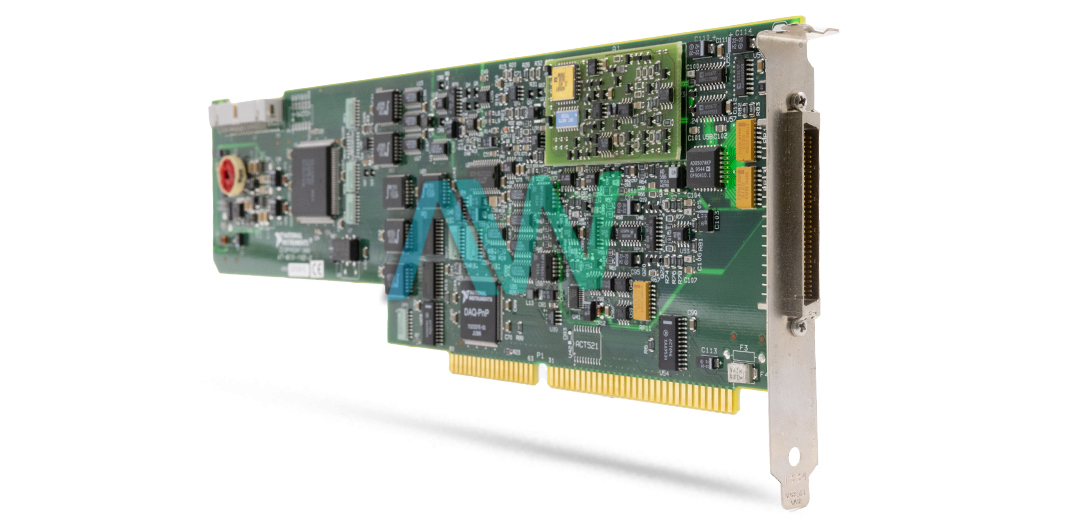

AT-MIO-16E-2 National Instruments Multifunction I/O Device | Apex Waves | Image
AT-MIO-16E-2 New
AT-MIO-16E-2 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

AT-MIO-16E-2 National Instruments Multifunction I/O Device | Apex Waves | Image
AT-MIO-16E-2 National Instruments Multifunction I/O Device | Apex Waves | Image
AT-MIO-16E-2 New
AT-MIO-16E-2 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments AT-MIO-16E-2 Multifunction DAQ

The AT-MIO-16E-2 (Part Number: 776791-01) is a Multifunction Data Acquisition Device by National Instruments. The AT-MIO-16E-2 is a member of the E Series data acquisition (DAQ) devices. The AT-MIO-16E-2 can render high performance and achieve DAQ capabilities for NI devices. The NI AT-MIO-16E-2 can be installed on multiple types of application software like LabView, Measurement Studio, and VI Logger. The supported driver software of this Multifunction DAQ is NI-DAQ. This driver software is compatible with Windows 2000/NT/Me/9x.

The NI AT-MIO-16E-2 is specifically designed to enhance the sampling rate up to 500 kS/s. This Multifunction DAQ has 16 single-ended or 8 differential analog inputs. These analog inputs have voltages up to ±10V. The AT-MIO-16E-2 comes with special characteristics like analog and digital triggering capabilities. The AT-MIO-16E-2 is designed with two 12-bit analog outputs. The voltage range of the output terminals of the device is ±0.05 to ±10 V. The 12-bits of resolution is used for both analog inputs and analog outputs.

This Multifunction DAQ also incorporates 8 TTL digital lines and two 24-bit counter/timers. The AT-MIO-16E-2 has a sampling rate of 500 kS/s and an output rate of 1 MS/s. The AT-MIO-16E-2 is operated on an ISA bus type. This device can be NIST calibrated to ensure specifications are accurate. There are more than 70 signal conditioning options for this Multifunction DAQ. The NI AT-MIO-16E-2 offers a FIFO buffer scheme for analog output data.

AT-MIO-16E-2 Obsolete Status has been announced by National Instruments, but the multifunction DAQ will still be available for purchase and repairs by Apex Waves.

ModelAT-MIO-16E-2
ManufacturerNational Instruments
Part Number776791-01
SeriesAT-MIO/AI E Series
TypeMultifunction I/O Device
Analog Input Channels16 SE/8 DI
Analog Output Channels2
FIFO Buffer Size2,048 samples
Digital I/O8 input/output
I/O Connector68-pin male SCSI-II type
Dimensions13.3 by 3.9 in.
Warranty2-3 Year Warranty
AT-MIO-16E-2 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for AT-MIO-16E-2:

National Instruments AT-MIO-16E-2 Frequently Asked Questions



Question: Which accessories are recommended for use with the AT-MIO-16E-2?



Answer: The AT-MIO-16E-2 can be used with the SCB-68 (Part Number: 776844-01) and the SH6868-EP (Part Number: 184749-01) cable.



Question: How often should the NI AT-MIO-16E-2 be calibrated?



Answer: The NI AT-MIO-16E-2 should be calibrated every year.



Question: What is the input range of the AT-MIO-16E-2?



Answer: The input range of the AT-MIO-16E-2 is ±0.05 to ± 10 V.
