Modular Systems > National Instruments > E Series

AT-MIO-16XE-50 Request for Availability

AT-MIO-16XE-50, 16 Analog Inputs, 2 Analog Outputs, Multifunction DAQ

Rated 4.79/5 | 10 ratings

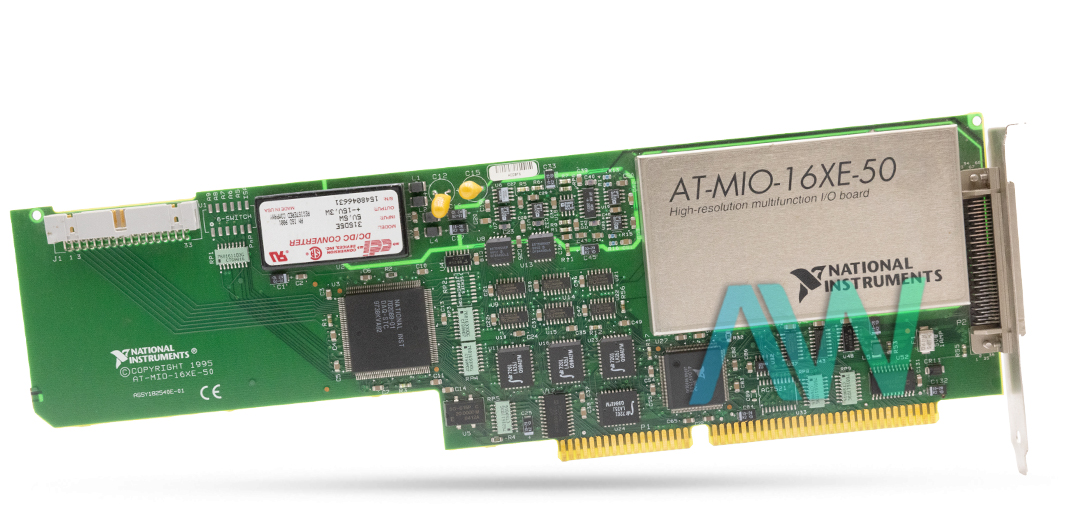

AT-MIO-16XE-50 National Instruments Multifunction DAQ | Apex Waves | Image

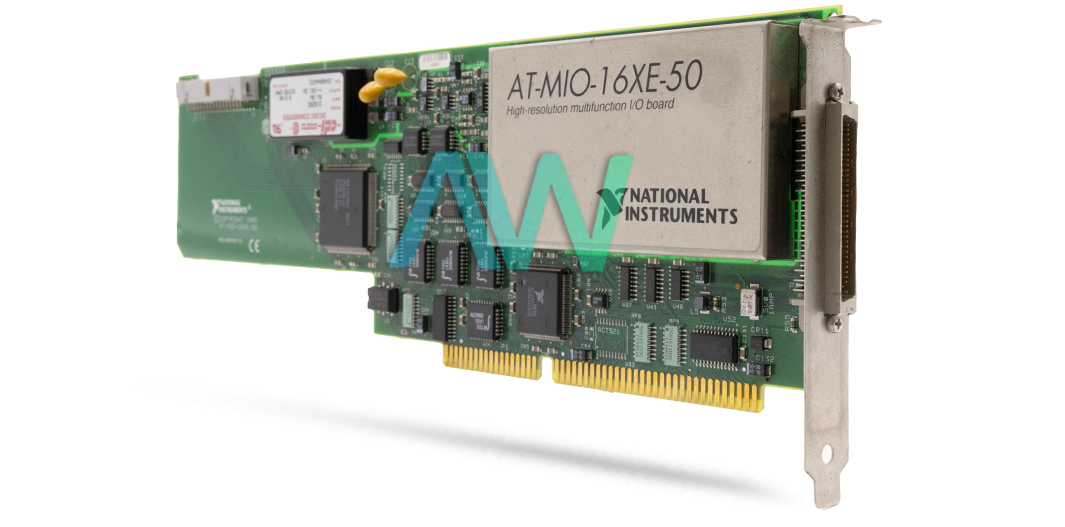

AT-MIO-16XE-50 National Instruments Multifunction DAQ | Apex Waves | Image
AT-MIO-16XE-50 New
AT-MIO-16XE-50 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

AT-MIO-16XE-50 National Instruments Multifunction DAQ | Apex Waves | Image
AT-MIO-16XE-50 National Instruments Multifunction DAQ | Apex Waves | Image
AT-MIO-16XE-50 New
AT-MIO-16XE-50 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments AT-MIO-16XE-50 Multifunction DAQ

The NI AT-MIO-16XE-50 (Part Number: 776910-01) utilizes E Series technology to provide dependable data acquisition features which meet a variety of application standards. This instrument can stream to disk at a maximum rate of 20 kS/s, depending on the user’s hard drive. There are two 24-bit counter/timers, 8 digital I/O channels, two 12-bit analog outputs, and a digital triggering feature on this device. The device has 16 single-ended or 8 differential analog input channels with a resolution of 16 bits. This high-performance Multifunction Device is designed for the PC AT series computers. This device comes with traditional NI-DAQ (Legacy) driver software and can be programmed with software packages or application development environments (ADEs) such as LabVIEW, LabWindows/CVI, and Measurement Studio for VB and VS .NET.

The AT-MIO-16XE-50 can be swiftly calibrated and configured with software since it does not have potentiometers, jumpers, or DIP switches. The DAQ-PnP bus interface chip links this device to the AT I/O bus, making this device switchless and jumperless. The DAQ-PnP utilizes the Plug and Play ISA Specification so the DMA, base I/O addresses, and interrupts can be configured via software. This feature enables the user to modify the AT-MIO-16XE-50 Multifunction Device’s configuration without needing to take it out of the computer. This device can be used for the following applications: effortlessly modifying the sampling rate, buffered pulse creation, and equivalent time sampling. It is equipped with a 68-pin male SCSI-II type I/O connector.

With the NI AT-MIO-16XE-50, the user can interface to an SCXI system, so the user can obtain more than 3,000 analog signals from thermocouples, strain gauges, current sources, RTDs, and voltage sources. The user can additionally obtain or create digital signals for communication, as well as control. The multifunction device has a power requirement of +5 VDC at 0.75 A, and the power available at the I/O connector is +4.65 VDC to +5.25 VDC at 1 A.

The NI device measures 13.3 x 3.9 in. in physical dimensions. It has a recommended operating temperature range of 0 to 55° C, a storage temperature range of –55 to 150° C, and a non-condensing relative humidity range of 5% to 90%.

Apex Waves specializes in legacy NI hardware. While the AT-MIO-16XE-50 is no longer available from the manufacturer National Instruments, the Multifunction DAQ will remain available for both purchase or repairs services with Apex Waves in perpetuity!

ModelAT-MIO-16XE-50
ManufacturerNational Instruments
Part Number776910-01
TypeMultifunction DAQ
Analog Input Channels16 Single-Ended or 8 Differential
Analog Input Resolution16 Bits
FIFO Buffer Size512 Samples
Dimensions13.3 by 3.9 in.
I/O Connector68-Pin Male SCSI-II type
WarrantyThree Year Warranty
AT-MIO-16XE-50 ManualUser Manual and Maintenance Manual Available for Download
PriceRequest a Quote Today for Pricing Information

Associated part numbers for AT-MIO-16XE-50:

National Instruments AT-MIO-16XE-50 Frequently Asked Questions



Question: Can dither be deactivated on the AT-MIO-16XE-50?

Answer: No, the user cannot deactivate dither since the resolution of the ADC is so fine that the ADC and the PGIA generate 0.5 LSB rms of noise. This is equal to having a dither circuit that is always activated.



Question: What is the analog output range?

Answer: The NI AT-MIO-16XE-50 has an analog output range of ±10 V.



Question: What types of data transfers does the AT-MIO-16XE-50 have available?

Answer: The Multifunction DAQ has DMA, programmed I/O, and interrupts for data transfers.



Question: What is the configuration memory size on the NI AT-MIO-16XE-50?

Answer: The configuration memory size is 512 words.
