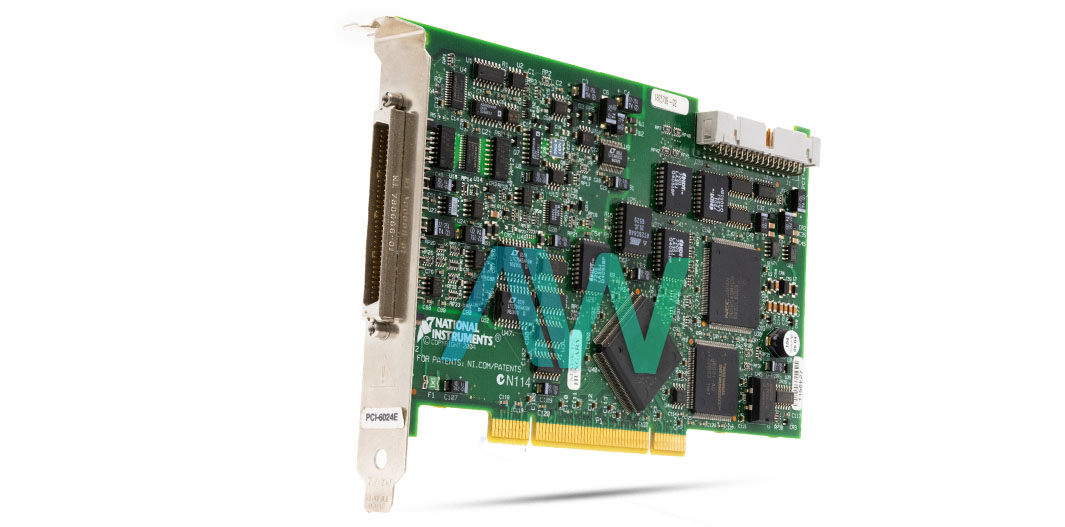

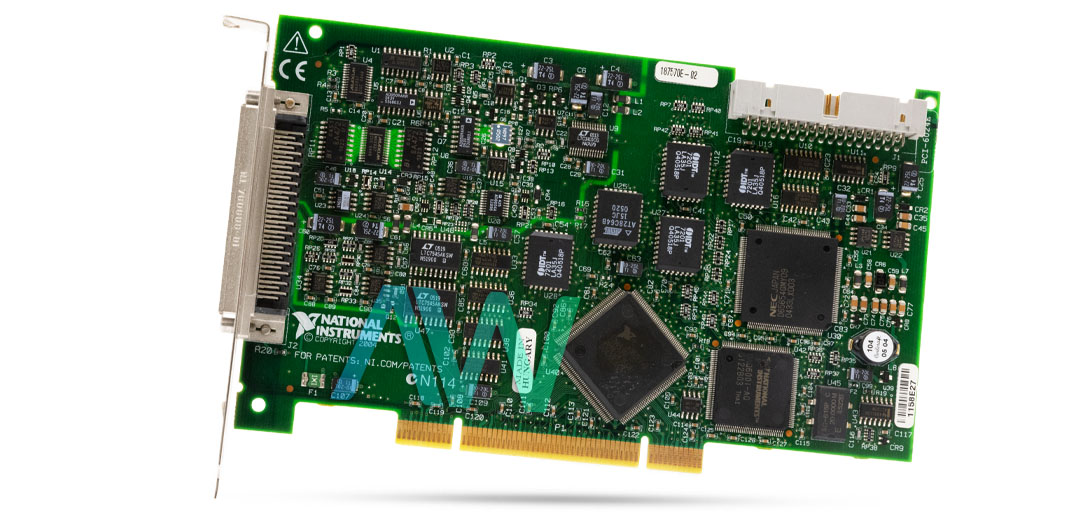

National Instruments PCI-6024E Multifunction DAQ

The PCI-6024E (Part number: 777743-01) is an efficient and reliable Multifunction DAQ in the affordable E Series from National Instruments. The PCI 6024E Multifunction DAQ offers sixteen single-ended input channels or eight differential analog input channels, along with two voltage analog output channels. The user can select any channel with the help of the software interface. The instrument comes with a built-in analog to digital converter, which enables the device for successive approximation for various measurement requirements. The NI PCI 6024E DAQ Card offers a resolution of twelve bits and two counters of 24 bits.

The device is run using the NI-DAQ driver software. The hardware can be programmed using software packages/application development environments (ADEs) such as LabVIEW, Measurement Studio, or VirtualBench – using any of the aforementioned 3 greatly increases the speed of development time.

The National Instruments PCI 6024E provides a sample rate for real-time measurements. This sample rate enables the user to complete quick and accurate analysis, with the value of 200 kS per second. The output rate is 10 kS per second. This helps improve the efficiency of the measurement system in tough industrial environments. The instrument also incorporates an input coupling mechanism for DC terminals and has a valuable overvoltage protection feature for the user’s safety. This model does not come with a FIFO buffer. Other features of this Multifunction DAQ include a self-calibration feature, temperature drift protection circuitry, and an onboard temperature sensor.

The PCI 6024E DAQ utilizes the Real-Time System Integration (RTSI) bus to synchronize multiple measurement functions to one timing or trigger event. The user can route trigger and timing signals between multiple functions on a maximum of five DAQ instruments in a PCI system. The NI PCI 6024E also incorporates a 68-pin male SCSI-II I/O connector. The PCI-6024E Card has +4.65 to +5.25 VDC at 1 A power available at the I/O connector. The device weighs 4.1 oz., and measures 6.9 x 4.2 in. in physical dimensions.

The PCI-6024E has reached End of Life Status and is no longer available from National Instruments, but the Multifunction DAQ will still be available for purchase and repairs with Apex Waves in perpetuity.

Model	PCI-6024E
Manufacturer	National Instruments
Part Number	777743-01
Series	E Series
Type	Multifunction DAQ
Analog Input Channels	16 Single Ended / 8 Differential
Analog Output Channels	2
Dimensions	6.9 in. × 4.2 in.
Weight	4.1 oz.
Warranty	Three Year Warranty
PCI-6024E Manual	User Manual and Maintenance Manual Available for Download
Price	Submit a Quote Request for Pricing Info

Associated part numbers for PCI-6024E:

National Instruments PCI-6024E Frequently Asked Questions

Question: What are some optional connectors that mate to the I/O connector on the PCI-6024E?

Answer: The user manual for the Multifunction DAQ recommends the either the Honda 68-position (solder cup, female connector) and the Honda backshell as optional connectors to mate with the I/O connector.

Question: Where can I find the PCI-6024E pinout?

Answer: The pinout can be found in the official user manual from NI, which can be freely downloaded from the "Manuals & PDFs" tab.

Question: What is the name of the NI Driver used by the PCI-6024E?

Answer: The driver used by the DAQ device is NI-DAQ 7.

Question: What does the sample rate on the PCI-6024E card signify?

Answer: On the card, the sample rate of 200 kS/s means that this is the quickest the user can obtain information on the device while still reaching a precise outcome.
