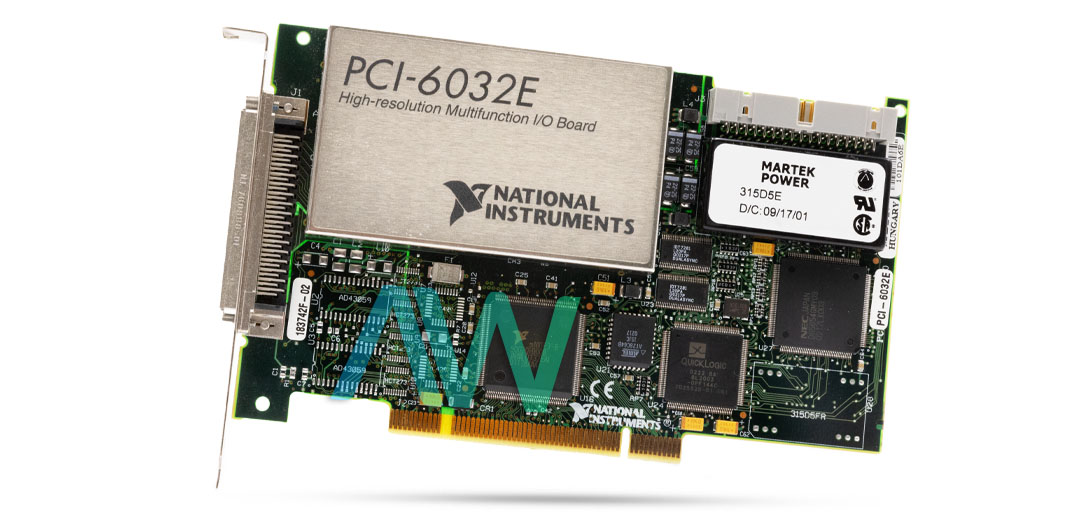

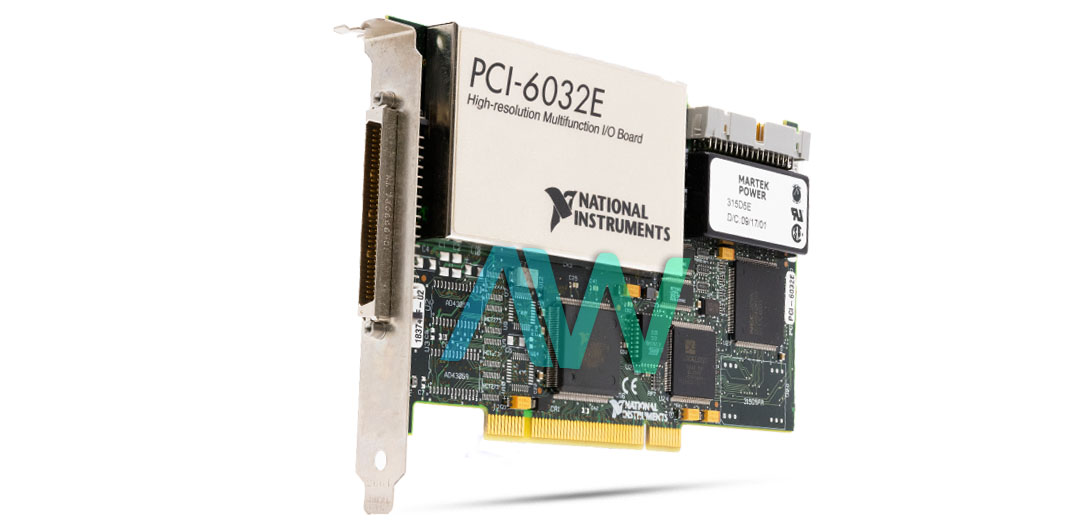

National Instruments PCI-6032E Multifunction DAQ
The National Instruments PCI-6032E (Part Number: 777422-01) is a Full-Featured, Multifunction DAQ Device from the E Series. This PCI bus based device comes with 16 SE or 8 DI Analog Inputs, 16-bits Input Resolution, and a sampling rate as fast as 100 kS/s. The input range is ±0.1 to ±10 V. The NI PCI-6032E has no analog outputs, but it supports analog as well as digital triggers. This DAQ device features two 24-bit timers or counters as well. The channel scaling function incorporated in this model allows the user to scale their measurement data (usually voltage data) into other engineering units. For convenient synchronization with other instruments, this model comes with a dedicated RTSI bus.
The National Instruments PCI-6032E features an onboard temperature sensor that can be used for the monitoring of the device’s operating temperature, ensuring that it is working within the correct temperature range. Another notable feature of this DAQ is its tendency to provide up to 15 input ranges for signals smaller than 50 mV. This model supports DC input coupling and has built-in overvoltage protection on its channels (set at ±25 V).
The National Instruments PCI-6032E Multifunction DAQ comes equipped with a unique internal mechanism for onboard self-calibration. The self-calibration function requires no adjustments and the process is controlled entirely through software. For better resolution performance, this module comes equipped with a specially designed noise floor. To ensure accurate results in harsh environments, the NI PCI 6032E is designed with parts that encounter the impact of temperature changes on measurement results.
| Model | PCI-6032E |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 777422-01 |
| Series | E Series |
| Type | Multifunction DAQ |
| Analog Input Channels | 16 Analog Inputs or 8 Differential |
| Analog Input Resolution | 16 Bits |
| Input Sampling Rate | 100 kS/s |
| Digital I/O Channels | 8 |
| Compatibility | 5 V/TTL |
| Counter/Timers | 2 |
| Counter/Timer Resolution | 24 Bits |
| I/O Connector | 68-Pin SCSI Type |
| Power Requirements | +5 VDC - 1.5 A |
| Dimensions | 6.9 × 4.2 in. |
| Weight | 6.5 oz. |
| Driver Software | NI-DAQ7 |
| Warranty | 2-3 Year Warranty |
| PCI-6032E Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PCI-6032E:
National Instruments PCI-6032E Frequently Asked Questions
Question: Does the PCI-6032E have analog outputs?
Answer: No, there are analog inputs and digital I/O channels, but the DAQ does not have analog outputs.
Question: What are the power requirements for the NI PCI-6032E?
Answer: The power requirements are 1.5 A at +5 VDC (±5%) and +4.65 to +5.25 VDC, 1 A power available at the I/O connector.
Question: Which type of I/O connectors are on the PCI-6032E?
Answer: The I/O connector has 68-pin mae SCSI-II type I/O connectors.
Question: What is the input range of the Multifunction DAQ?
Answer: The input range of the NI PCI-6032E is ±0.1 to ±10 V.
