Modular Systems > National Instruments > E Series

PCI-6035E Request for Availability

PCI-6035E, 200 kS/s, 16-Bit, 16-Channel, Multifunction DAQ

Rated 4.8/5 | 13 ratings

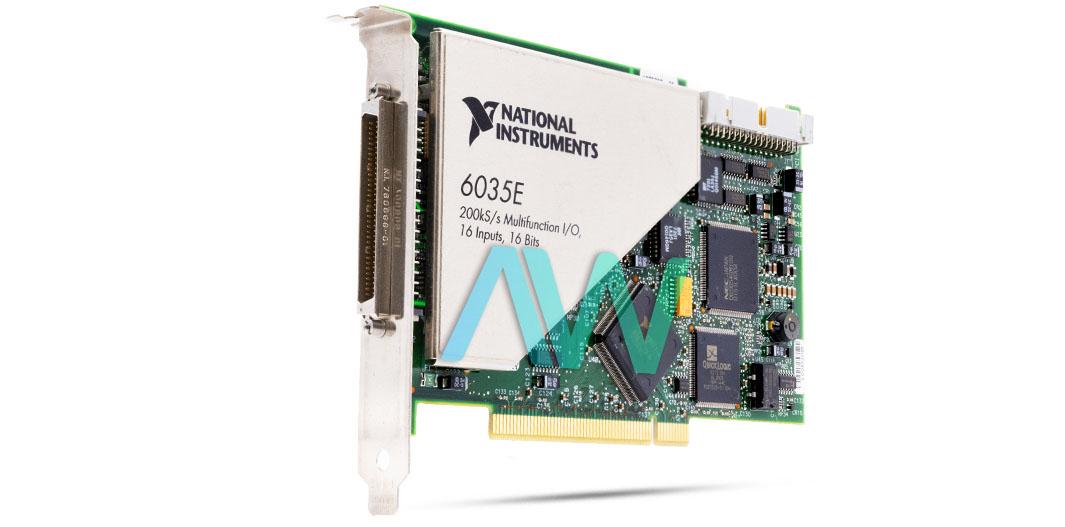

PCI-6035E National Instruments Multifunction DAQ | Apex Waves | Image

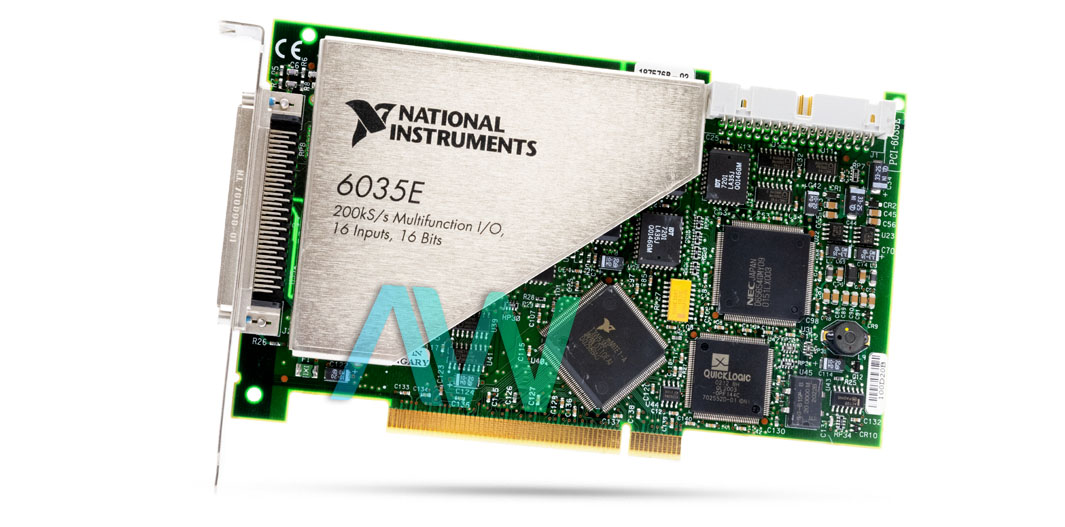

PCI-6035E National Instruments Multifunction DAQ | Apex Waves | Image
PCI-6035E New
PCI-6035E Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

PCI-6035E National Instruments Multifunction DAQ | Apex Waves | Image
PCI-6035E National Instruments Multifunction DAQ | Apex Waves | Image
PCI-6035E New
PCI-6035E Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PCI-6035E Multifunction DAQ

The NI PCI-6035E (Part Number: 778026-01) minimal effort DAQ board uses E Series developments to pass on tried and true estimations in a broad assortment of employments. The user can achieve up to 200 kS/s sample rate and 16-bit resolution with 16 single-ended or 8 differential channels. The PCI-6035E furthermore incorporates two 12-bit straightforward outputs. Dependent upon the user’s hard drive, the PCI-6035E can stream to plate at rates up to 200 kS/s. It has 8 digital I/O lines with a TTL/CMOS compatibility. A ground-referenced banner source is related by one means or another to the building structure ground and is, in this way, viably connected with a common conviction point in regard to the NI PCI-6035E device, expecting that the PC is associated with a comparative power system. Non-separated outputs of instruments and contraptions that interface with the building power structure fall into this class. The device is equipped with a 68-pin male SCSI-II I/O connector.

The PCI-6035E comes with input multiplexers on the device. The PGIA changes more than two data signals to a banner that is the qualification between the two data signals expanded by the gain setting of the device. This model comes with an A/D converter or ADC that estimates the output voltage when it plays out A/D changes. For greater source impedances, this affiliation leaves the differential signal route generally out of change. The output voltage of this model is located to the ground for the gadget. For greater source impedances, this affiliation leaves the differential signal route generally out of change. In this model, the commotion is related to the ground, so it will couple electrostatically onto the positive and will not couple onto the negative line.

The NI device weighs 5.8 oz, and measures 6.9 x 4.2 in. in physical dimensions. It has a recommended operating temperature range of 0 to 55 °C, a storage temperature of –20 to 70 °C, a non-condensing relative humidity range of 10 to 90%.

PCI-6035E End of Life Status has been announced by National Instruments, but will still be available for purchase and repairs by Apex Waves.

ModelPCI-6035E
ManufacturerNational Instruments
Part Number778026-01
TypeMultifunction DAQ Device/Module
Analog Input Channels16 (16-Bit, 200 kS/s) or 8 differential
Analog Output Channels02 (12-Bit)
Digital Input/Output08 (TTL/CMOS Compatibility)
Timing I/O02 Counter/Timer I/O (24 bits, 20MHz )
I/O Connector68-pin male SCSI-II type
Power Requirements+5 VDC - 0.9 A
Dimensions6.9 × 4.2 in.
Weight5.8 oz.
Driver SoftwareNI-DAQ
WarrantyThree Year Warranty
PCI-6035E ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PCI-6035E:

National Instruments PCI-6035E Frequently Asked Questions



Question: Is the PCI-6035 the same card as the PCI-6035E?

Answer: Yes, NI changed the name of the PCI-6035 to the PCI-6035E.



Question: How do I fix error 88705 on the NI PCI-6035E?

Answer: Error 88705 on the NI PCI-6035E is related to the NI Device Loader not starting. To fix the error, you should log in as an administrator or as a user with administrator privileges. Navigate to Start » Control Panel » System and Security » Administrative Tools »Services. Right click on the NI Device Loader service and click Properties in the menu. Ensure the service is Started; if not, click Start.



Question: What is the amplifier input impedance of the PCI 6035E?

Answer: The amplifier input impedance of the PCI 6035E is 100 GΩ in parallel with 100 pF when powered on and 820 Ω when powered off or for overload.



Question: What is the FIFO buffer size of the NI PCI 6035E?

Answer: The NI PCI 6035E does not have a FIFO buffer.
