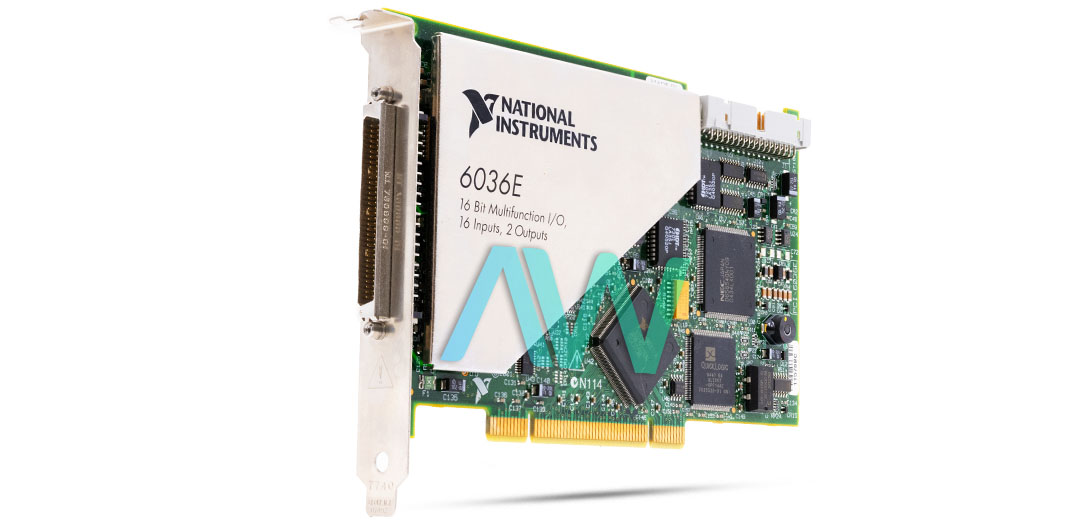

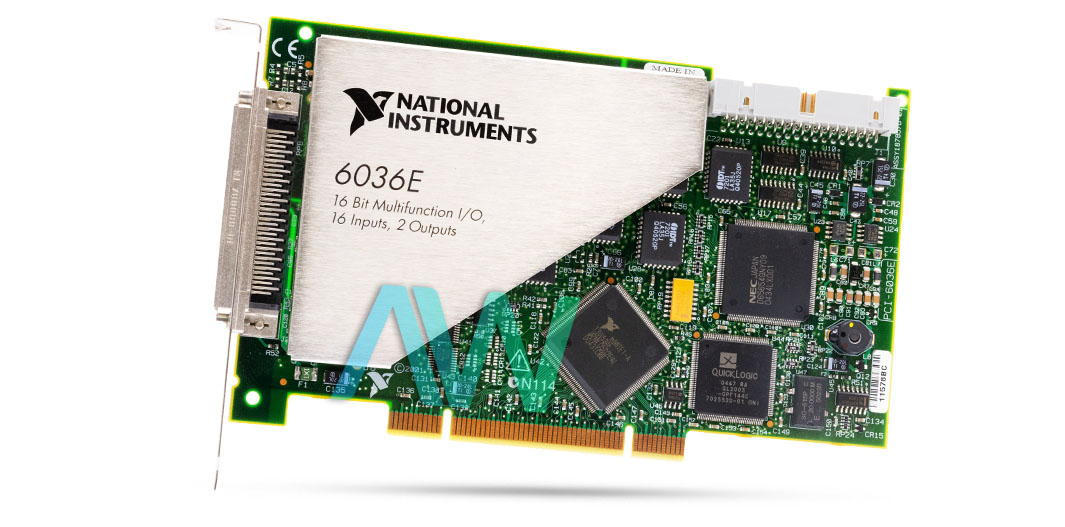

National Instruments PCI-6036E Multifunction DAQ
The NI PCI-6036E (Part number: 778465-01) is a low-cost Multifunction DAQ Device that uses E Series innovation to convey dependable, 16-bit securing for an extensive variety of applications. The PCI 6036E has sixteen single-ended or 8 differential input channels (with a 16-bit resolution) and two 16-bit output channels. This device additionally has 8 computerized I/O lines and two 24-bit, 20 MHz counter/clocks. The NI PCI-6036E can stream at a sampling rate of 200 kS/s or an output rate of 10 kS/s. Utilizing NI equipment and driver programming alternatives, the user has adaptable OS, application advancement condition, and application programming decisions. The user can finish their DAQ framework with NI signal molding to quantify any sort of sensor and voltage.
Utilizing software, the user can arrange the channels for two unique sorts of single-ended associations: RSE setup and NRSE design. The RSE setup is utilized for floating signal sources. For this situation, the DAQ PCI 6036E gives the reference ground point to the outer signal. The NRSE input arrangement is utilized for ground-referenced signal sources. For this situation, the outer signal supplies its own reference ground point and the PCI 6036E National Instruments does not need to supply one. The device is run using the NI-DAQmx driver softwatre.
The NI PCI-6036E has an onboard self-calibration feature, which is a precision voltage reference for calibration and measurement preciseness. The self-calibration feature is fully controlled by software and does not entail altering potentiometers. The calibration procedure for this device writing values to onboard calibration DACs or CalDACs. This E Series Multifunction DAQ can also be externally calibrated and has a recommended calibration interval of one year. The external calibration reference is between 6 and 10 V. It has a recommended warm-up time of 15 minutes. The NI device weighs 4 oz, and measures 6.9 x 4.2 in. in physical dimensions. It has a recommended operating temperature range of 0 to 55 °C, and a storage temperature range of –20 to 70 °C.
PCI-6036E End of Life Status has been announced by National Instruments, but the device will still be available for purchase and repairs at Apex Waves.
| Model | PCI-6036E |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 778465-01 |
| Series | E Series |
| Type | Multifunction DAQ |
| Analog Input Channels | 16 Single-Ended or 8 Differential |
| Analog Input Resolution | 16 Bits |
| Dimensions | 6.9 in. × 4.2 in. |
| Weight | 4.0 oz. |
| Warranty | Three Year Warranty |
| PCI-6036E Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PCI-6036E:
National Instruments PCI-6036E Frequently Asked Questions
Question: What is the voltage output range?
Answer: The voltage output range of the NI PCI-6036E is ±10 V.
Question: What is the maximum working voltage of the DAQ?
Answer: The maximum working voltage of the is ±11 V, Installation Category I.
Question: Which accessories are recommended for use with the PCI-6036E?
Answer: The PCI-6036E can be used with the SCC signal conditioning accessories, the shielded SCB-68 Terminal Block and SH6868-EP cable, the shielded TB-2075 Terminal Block and SH6868-EP cable, or the CB-68LP Terminal Block and R6868 cable.
Question: How many RTSI trigger lines does the PCI-6036E have?
Answer: The Multifunction DAQ has seven RTSI trigger lines.
