PCI-6040E, 16-Channel, 12-Bit Multifunction DAQ

Rated 4.68/5 | 18 ratings

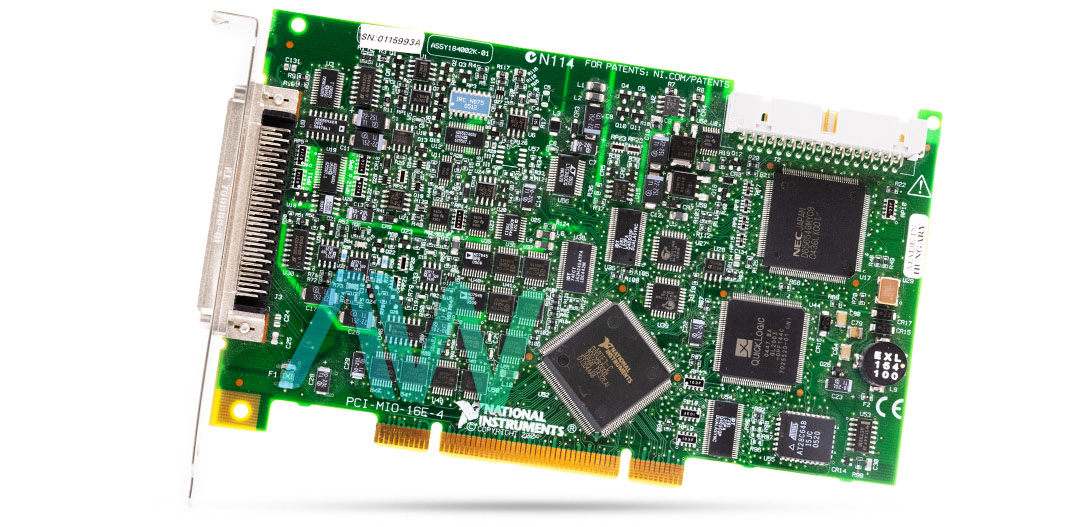

PCI-6040E National Instruments Multifunction DAQ | Apex Waves | Image

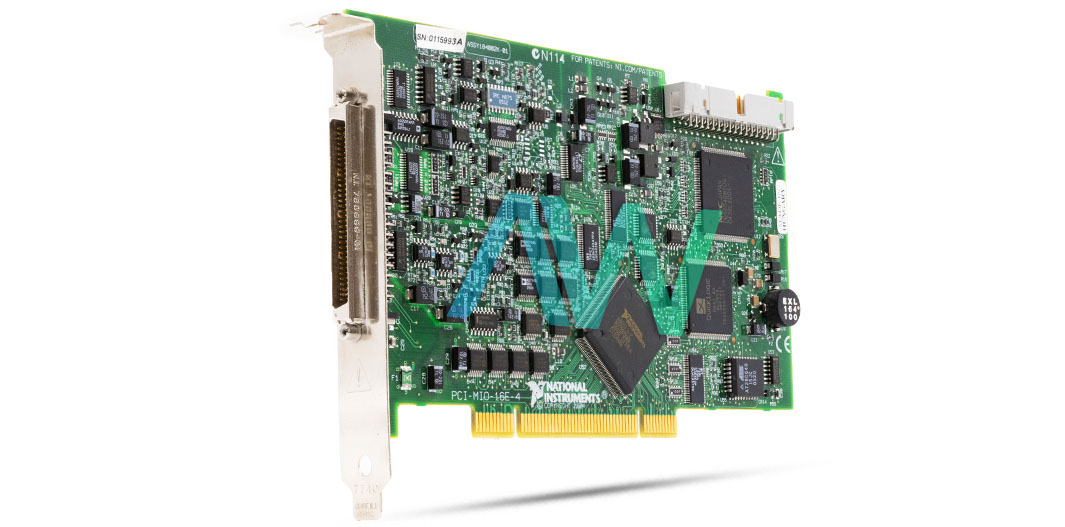

PCI-6040E National Instruments Multifunction DAQ | Apex Waves | Image
PCI-6040E New
PCI-6040E Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

PCI-6040E National Instruments Multifunction DAQ | Apex Waves | Image
PCI-6040E National Instruments Multifunction DAQ | Apex Waves | Image
PCI-6040E New
PCI-6040E Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PCI-6040E Multifunction DAQ

The NI PCI-6040E (Part number: 777383-01) allows the user to get up to 500 kS/s (1-channel, 250 kS/s multichannel), 12-bit resolution on 16 single-ended or 8 differential analog input channels. Contingent upon the user’s hard drive type, the PCI-6040E can stream to circle at rates up to 250 kS/s. It has 2 analog output channels with a 12-bit resolution and a data transfer rate of 1 MS/s. Additionally, it has 8 digital I/O lines with a 5 V TTL/CMOS compatibility, and 2 counter/timer I/O lines (with a 24-bit resolution and a frequency of 20 MHz).

The National Instruments PCI-6040E comes with SCANCLK, which is an output signal that creates a pulse with the main edge happening around 50 to 100 ns after an A/D transformation starts. The extremity of this output is programming selectable yet is commonly arranged with the goal that a low-to-high driving edge can clock outside simple input multiplexers showing when the information signal has been inspected and can be evacuated. This signal has a 400 to 500 ns beat width and is programming empowered. On the other hand, EXTSTROBE is an output signal that creates either a single pulse or an arrangement of eight pulses in the equipment strobe mode. An outside gadget can utilize this signal to hook signals or to trigger events. In the single-beat mode, programming controls the level of the EXTSTROBE signal. A 10 µs and a 1.2 µs clock are accessible for producing a grouping of eight pulses in the equipment strobe mode. The device is equipped with a 68-pin male 0.050 D-type I/O connector.

The NI PCI 6040E Multifunction DAQ offers two 12-bit simple outputs, 8 digital I/O lines, two 24-bit counter/clocks, real-time execution with a dedicated 700 MHz Pentium III locally available processor, 32 MB of DRAM for client characterized programs and 32 MB locally available CompactFlash, and 26 kHz maximum single PID circle rate. The NI device weighs 4.1 oz, and measures 6.9 x 4.2 in. in physical dimensions.

PCI-6040E End of Life Status has been announced by National Instruments, but it will still be available for purchase and repairs by Apex Waves.

ModelPCI-6040E
ManufacturerNational Instruments
Part Numbers777383-01
SeriesE Series
TypeMultifunction DAQ
Analog Input Channels16 (12-Bit, 500 kS/s) or 8 differential
Analog Output Channels02 (12-Bit, 1 MS/s)
Digital Input/Output08 (5 V/TTL/CMOS Compatibility)
Timing I/O02 Counter/Timer I/O (24 bits, 20MHz )
I/O Connector68-pin male 0.050 D-type
Power Requirements+5 VDC - 1.0 A
Dimensions6.9 × 4.2 in.
Weight4.1 oz.
Driver SoftwareNI-DAQ 7
WarrantyThree Year Warranty
PCI-6040E ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PCI-6040E:

National Instruments PCI-6040E Frequently Asked Questions



Question: Does the PCI 6040E need to be calibrated? If so, how often?



Answer: Yes, the PCI 6040E needs to be calibrated every year.



Question: Is the PCI-MIO-16E-4 card the same as the PCI-6040E card?



Answer: Yes, it is the same card. The PCI-MIO-16E-4 card was renamed to the PCI-6040E.



Question: Which driver do I use with the NI PCI-6040E?



Answer: NI-DAQ driver software should be used with the NI PCI-6040E.



Question: What is the overvoltage protection for the NI PCI 6040E?



Answer: The overvoltage protection for the NI PCI 6040E is ±25 V while powered on and ±15 V while powered off.
