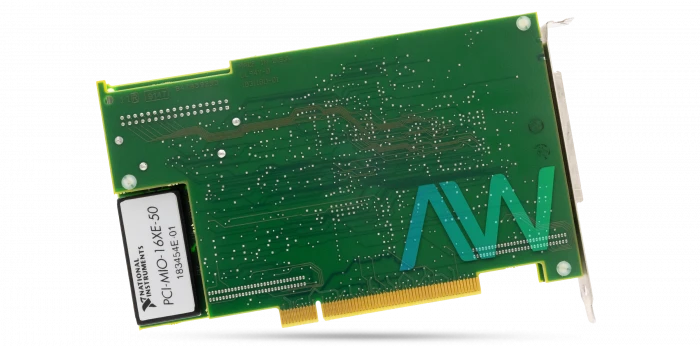

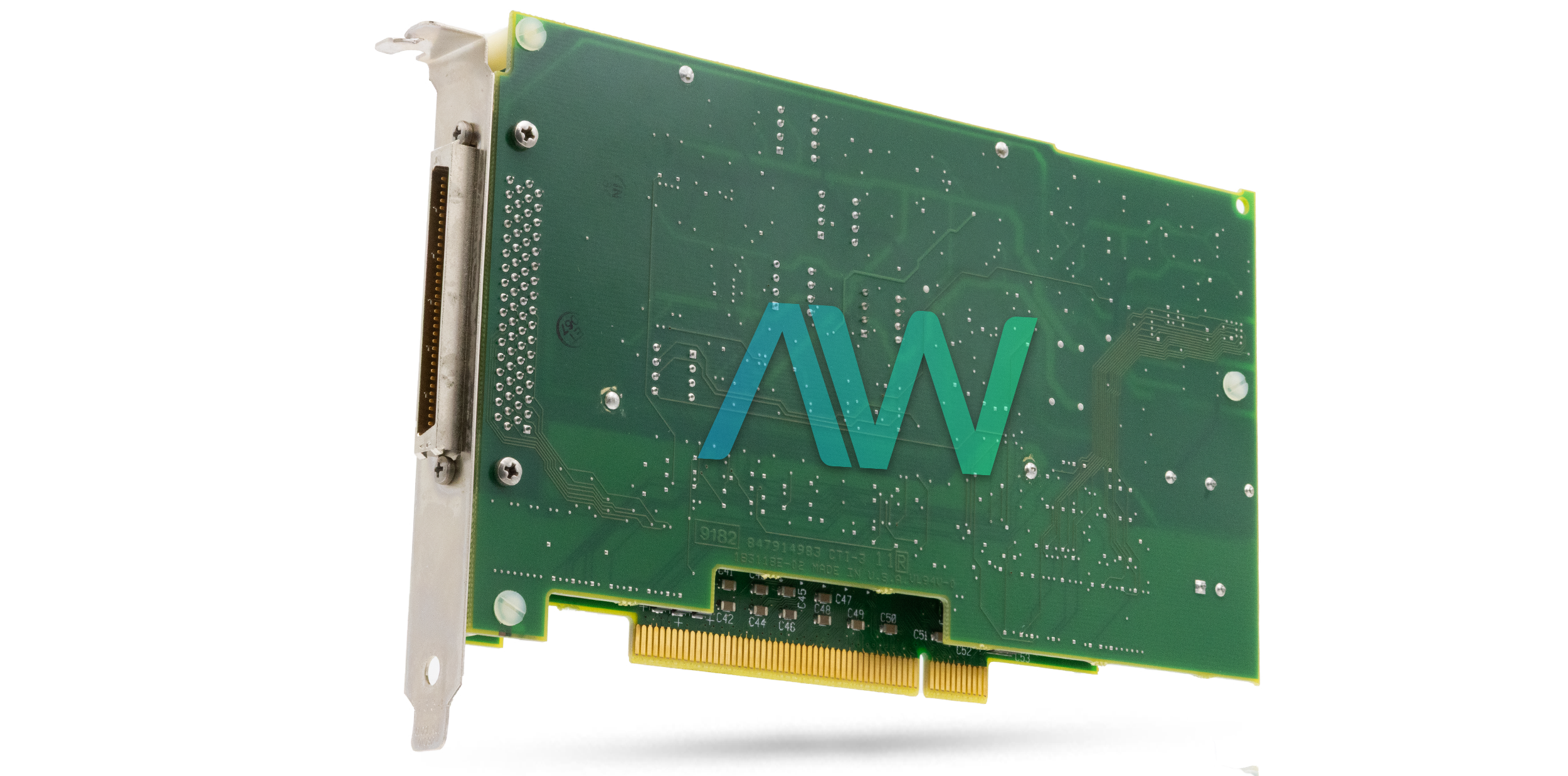

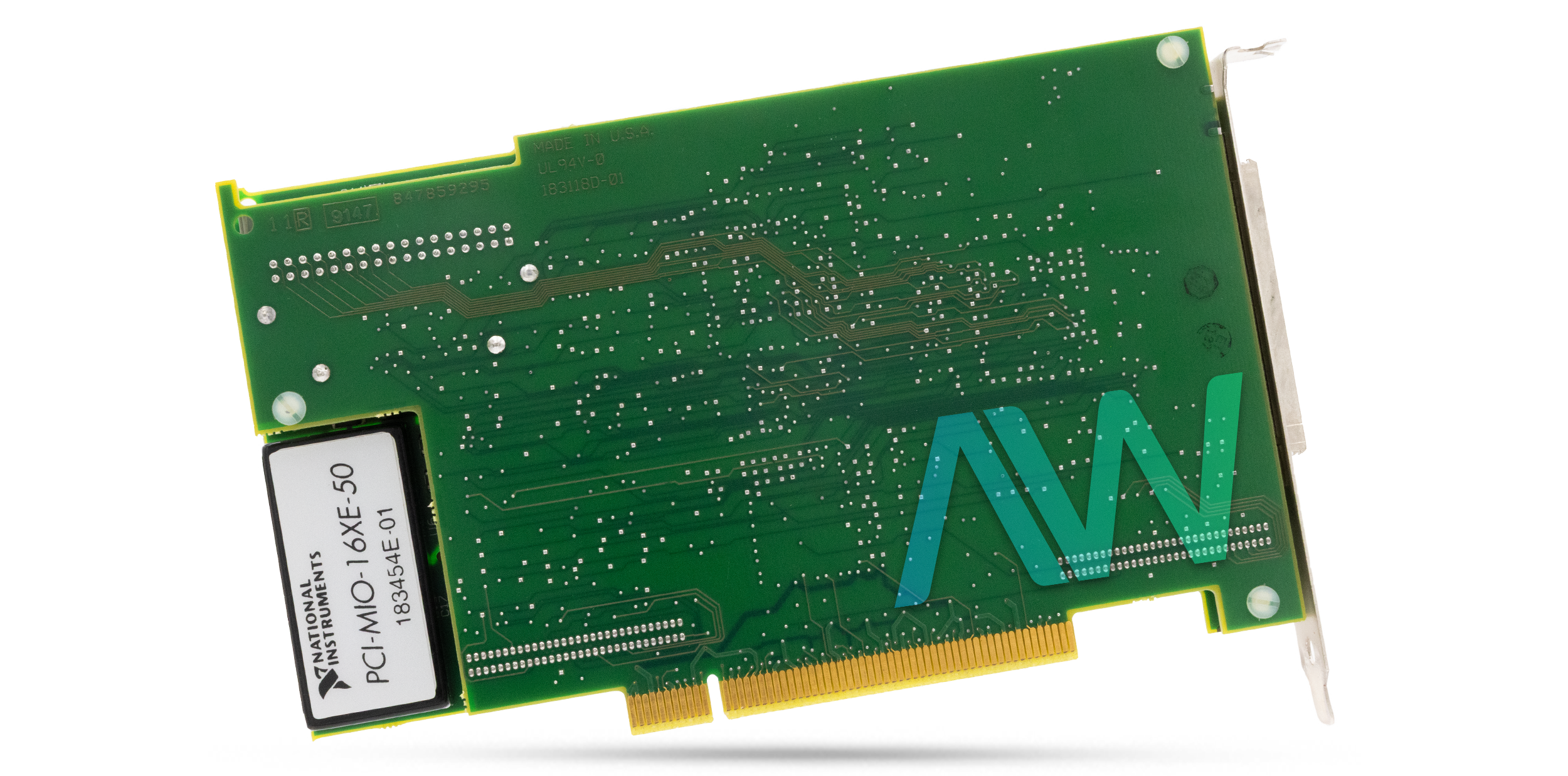

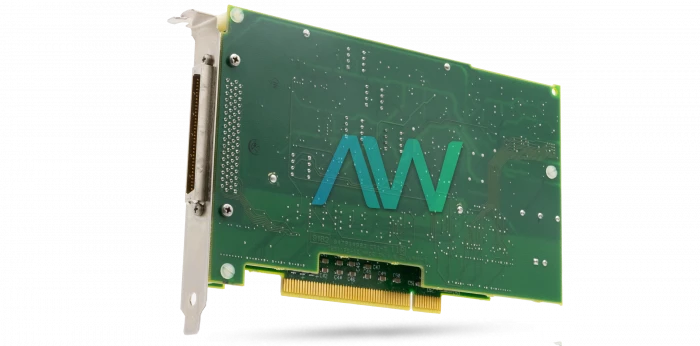

National Instruments PCI-MIO-16XE-50 Multifunction DAQ

Featured with 20 kS/s (guaranteed) sampling rate and successive approximation type of analog-to-digital converter the National Instruments PCI-MIO-16XE-50 (Part Number: 777385-01) is a Multifunction DAQ. This device is a multifunction digital, analog, and timing I/O board that is compatible with PCI bus computers. The NI PCI-MIO-16XE-50 has 16 single-ended or 8 differential analog input channels–with a 16 bit resolution and a maximum sampling rate of 20 kS/s. It has 2 analog output channels with a 12 bit resolution and a maximum update rate of 20 kS/s, and 3 DMA channels. The two voltage channels are equipped with double-buffered, multiplying digital-to-analog converters.

The interface circuitry of this DAQ consists of a digital control logic chip and a PCI interface chip. The PCI interface chip enables the unit to communicate with the host PCI bus. The digital control logic chip facilitates communication between the rest of the board and the PCI interface chip. The NI PCI-MIO-16XE-50 is easy to configure since it comes without switches and jumpers. Because it is a PCI Specifications 2.0 compliant device, the interrupt level and the base memory address remain stored inside the PCI interface chip.

The device is run using the NI-DAQmx driver software which is compatible with software packages/application development environments (ADEs) such as LabVIew, LabWindows, or Measurement Studio. It is equipped with a 68-pin male SCSI-II type connector.

This plug-and-play data acquisition device comes equipped with a programmable gain instrumentation amplifier or PGIA. The PGIA amplifies the analog input signal by applying gain. In addition, this feature enables the user to select the input signal’s polarity. The National Instruments PCI-MIO-16XE-50 comes equipped with a dedicated timing core for its two analog output channels. Each analog output channel comes with a 12-bit DAC, an onboard voltage reference, and an amplification stage. Moreover, the analog output channels have a reference source, programmable polarity, FIFO buffer, and re-glitching circuitry. The device weighs 9.8 oz., and measures 6.9 x 4.2 in. in physical dimensions.

PCI-MIO-16XE-50 Obsolete Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.

ModelPCI-MIO-16XE-50
ManufacturerNational Instruments
Part Number777385-01
SeriesE Series
TypeMultifunction I/O Device
Analog Inputs16 SE/8 DI
Input Resolution16 bits
Maximum Sampling Rate20 kS/s
DMA Channels3
Analog Outputs2
Output Resolution12 bits
Maximum Update Rate20 kS/s
FIFO Buffer SizeNone
Type of D/A ConverterDouble-buffered, multiplying
Driver SoftwareNI-DAQ 7
Dimensions6.9 by 4.2 in.
Weight9.8 oz.
WarrantyThree Year Warranty
PCI-MIO-16XE-50 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PCI-MIO-16XE-50:

National Instruments PCI-MIO-16XE-50 Frequently Asked Questions



Question: Does the NI PCI-MIO-16XE-50 work with LabVIEW 2010?



Answer: Yes, the NI PCI-MIO-16XE-50 will work with LabVIEW 2010.



Question: Can the National Instruments PCI-MIO-16XE-50 generate square and sine waves?



Answer: The National Instruments PCI-MIO-16XE-50 can generate square and sine waves. If you are using LabVIEW, examples can be found at Search Examples->I/O Interfaces->Data Acquisition->Analog Output->Multiple Point (buffered) Analog Output. If you are using a different software language, examples can be found at C:Program FilesNational InstrumentsNI-DAQexampleVisualCAO.



Question: Which type of I/O connector is on the PCI-MIO-16XE-50?



Answer: The PCI-MIO-16XE-50 has a 68-pin male SCSI-II type I/O connector.



Question: Which accessories are required for the NI PCI-MIO-16XE-50?



Answer: The NI PCI-MIO-16XE-50 requires a connector block such as the SBC-68 (Part Number: 776844-01) and a shielded cable like the SH68-68-EP Cable (Part Number: 184749-02).
