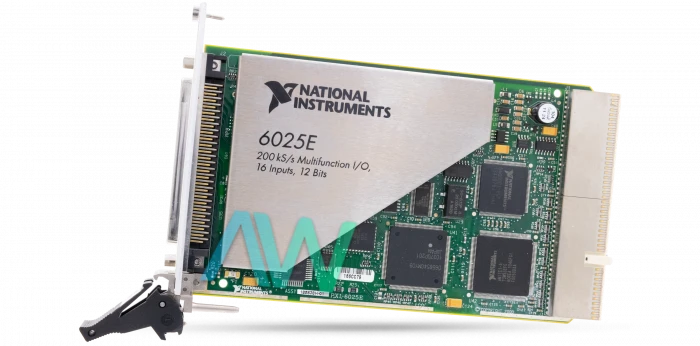

PXI-6025E National Instruments Multifunction I/O Module | Apex Waves | Image

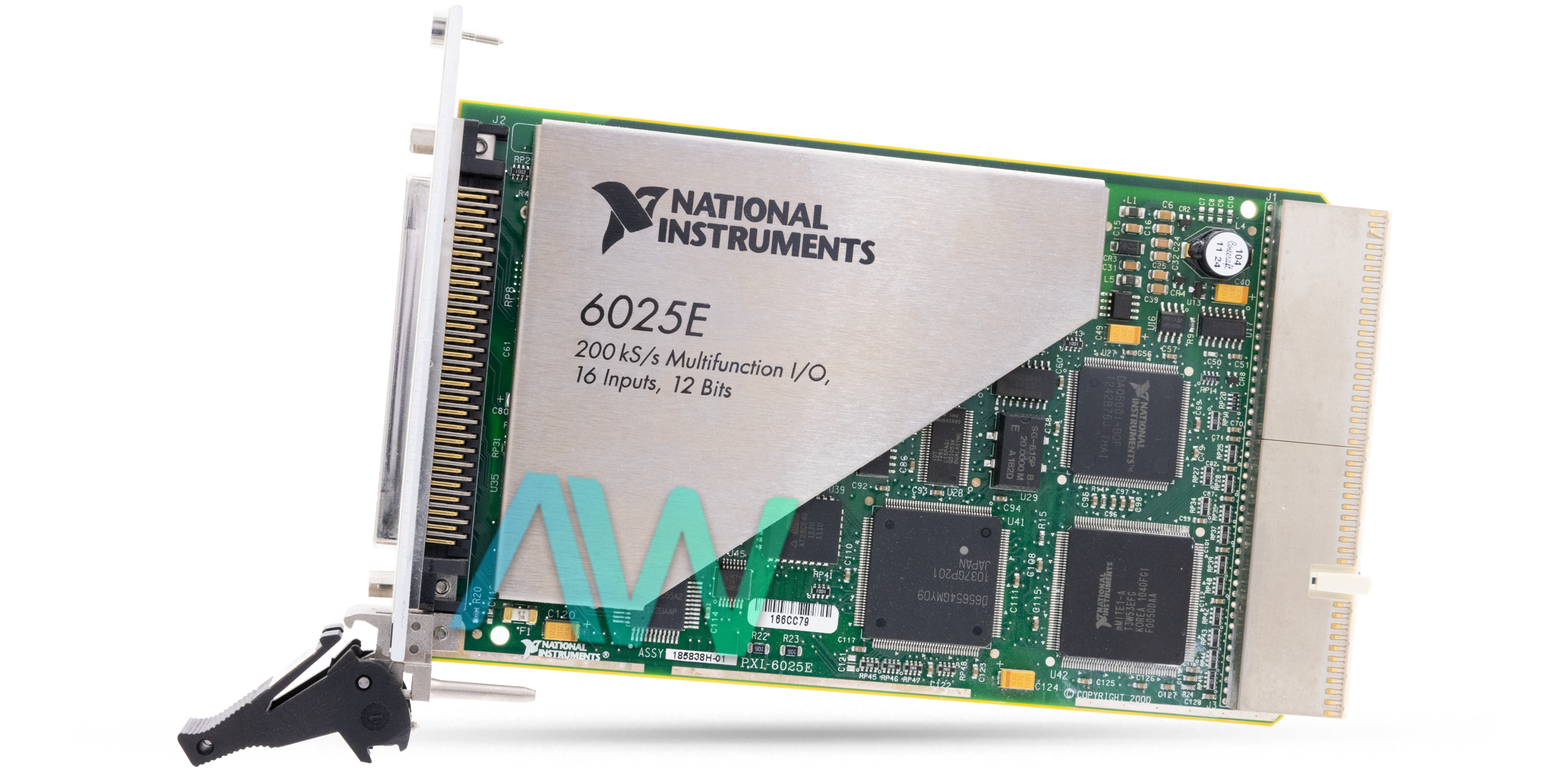

PXI-6025E National Instruments Multifunction I/O Module | Apex Waves | Image
PXI-6025E New
PXI-6025E Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

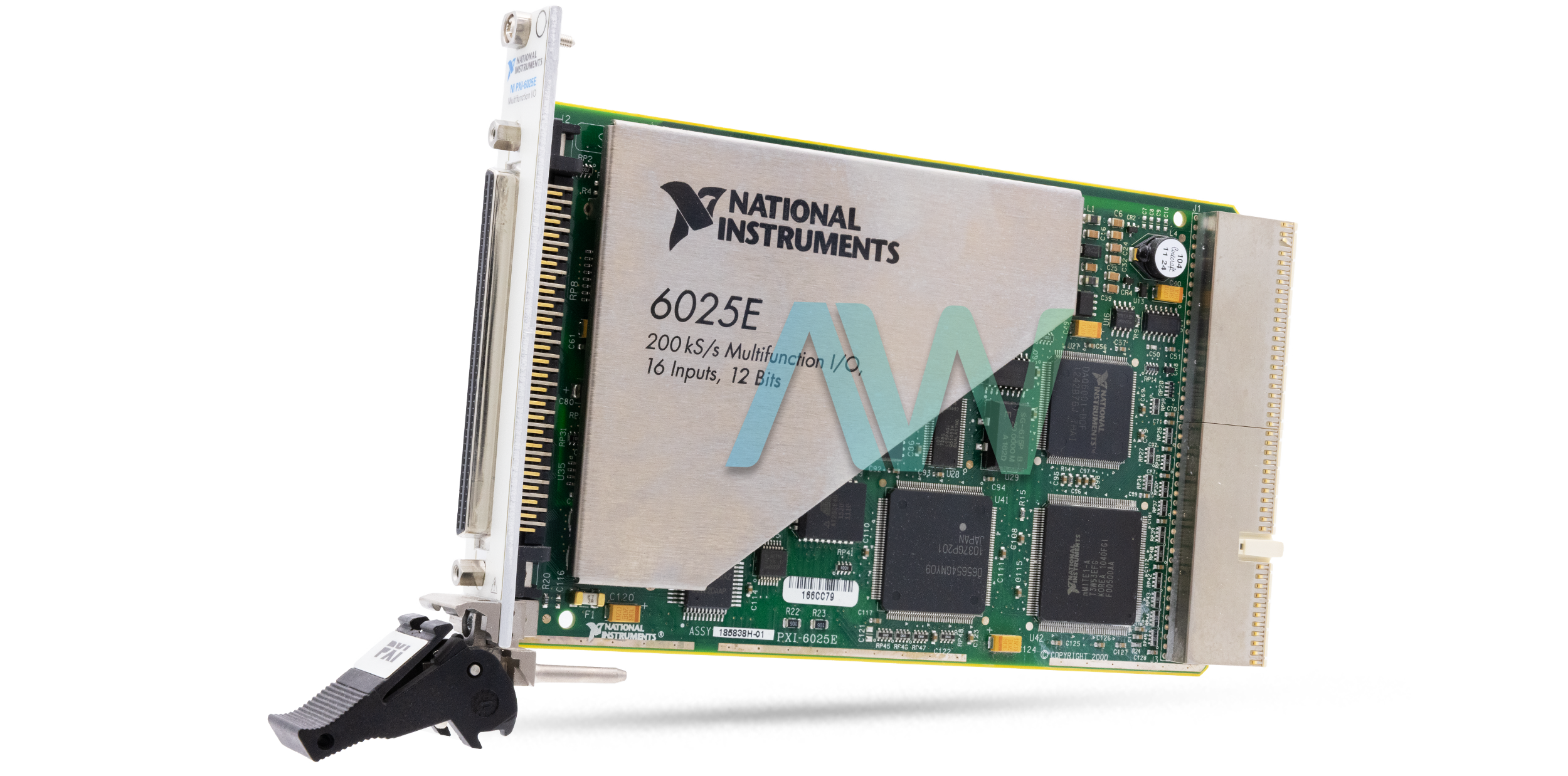

PXI-6025E National Instruments Multifunction I/O Module | Apex Waves | Image

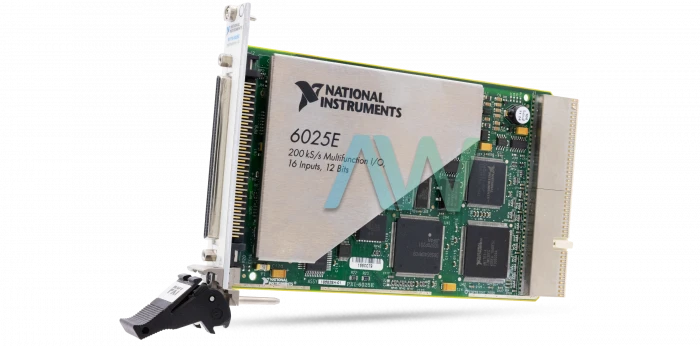

PXI-6025E National Instruments Multifunction I/O Module | Apex Waves | Image
PXI-6025E New
PXI-6025E Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PXI-6025E PXI Multifunction I/O Module

The National Instruments PXI-6025E (Part Number: 777798-01) is a Multifunction I/O Module featuring two 24-bit counters, 32 Digital I/O channels, 2 Analog Output channels, 16 single-ended or 8 differential Analog Input channels; and has a maximum sample rate of 200 kS per second. This affordable module offers true DAQ capabilities in a broad range of applications, such as laboratory, automation, design, research, manufacturing, verification, etc. With this module, the user can also add high-voltage measurement and sensor capability to their device through SCXI or SCC signal conditioning modules. The device has 1 DMA channel, with a scatter-gather DMA mode.

The NI PXI-6025E can be used with the NI-DAQmx driver software, which has a user-friendly configuration to help simplify measurements and operating. The device is compatible with software packages/application development environments (ADEs) such as LabVIEW, LabWindows/CVI, Measurement Studio, Visual C++, Microsoft Visual Basic, ComponentWorks, and VirtualBench. For time-related functions, this Multifunction I/O Module utilizes the NI DAQ-STC system timing controller. The PXI-6025E module requires two CB-50LP Connector Blocks for the standard configuration. This module comes featured with a 100-pin connector. A SH100100 Shielded Cable can be used for connecting the NI PXI-6025E to 100-pin accessories and an SH1006868 Shielded Cable for connecting the module to 68-pin accessories. In addition, an R1005050 Ribbon Cable can be utilized for connecting to 50-pin signal accessories.

This module offers a bipolar input range that modulates with the programmed gain. With this module, the user can program each channel with a unique gain of 0.5, 1, 10, or 100 to maximize the 12-bit ADC resolution. As far as its measurement precision capabilities are concerned, the NI PXI-6025E offers 24.41 µV precision while operating within an input range of –50 to +50 mV at 100.0 gain. The National Instruments PXI-6025E can be operated in one of three different input modes, which includes: differential (DIFF) input, referenced single-ended (RSE), and no referenced single-ended (NRSE). The device is equipped with DC input coupling with a maximum working voltage of ±11 V.

The PXI-6025E is considered Obsolete by National Instruments, but the Multifunction I/O Module will still be available in perpetuity for both purchase and repairs with Apex Waves!

ModelPXI-6025E
ManufacturerNational Instruments
Part Number777798-01
SeriesE Series
TypePXI Multifunction I/O Module
Analog Input Channels16 Single-Ended or 8 Differential
Analog Output Channels2
I/O Connector100-Pin Female 0.05D Connector Type
Power at I/O Connector+4.65 to +5.25 VDC at 1 A
Power Requirement.0.7 A
Operating Temperature0 to 55 °C
Storage Temperature–20 to 70 °C
Dimensions6.3 by 3.9 in. (16.0 cm × 10.0 cm)
Weight7.1 oz (202 g)
DriverNI-DAQ 7
Warranty2-3 Year Warranty
PXI-6025E ManualUser Manual and Maintenance Manual Available for Download
PriceRequest a Quote Today for Pricing Information

Associated part numbers for PXI-6025E:

National Instruments PXI-6025E Frequently Asked Questions



Question: What is the maximum sample rate of the NI PXI-6025E?

Answer: The maximum sample rate is 200 kS/s.



Question: How many analog outputs does the I/O module have?

Answer: The PXI-6025E has 2 analog outputs.



Question: Are any accessories required for the module?

Answer: Two CB-50LP connector blocks are required for the PXI-6025E’s regular configuration.



Question: Which driver software should be used with the NI PXI-6025E?

Answer: NI-DAQ 7 driver software should be used with the Multifunction I/O Module.
