PXI-6031E In Stock | Ships in 3-5 Days

Q: What is the input range of the PXI-6031E?

The Multifunction DAQ has an input range of ±0.1 to ±10 V.

Q: What is the measurement sensitivity of the device?

The NI PXI-6031E has a measurement sensitivity of 0.0023 mV.

Q: How many analog input channels does the PXI-6031E have?

The PXI-6031E has 64 single-ended or 32 differential analog input channels.

PXI-6031E, 8 Digital I/O Channels, 100 kS/s Sample Rate, Multifunction DAQ Device

Rated 4.5/5 | 15 ratings

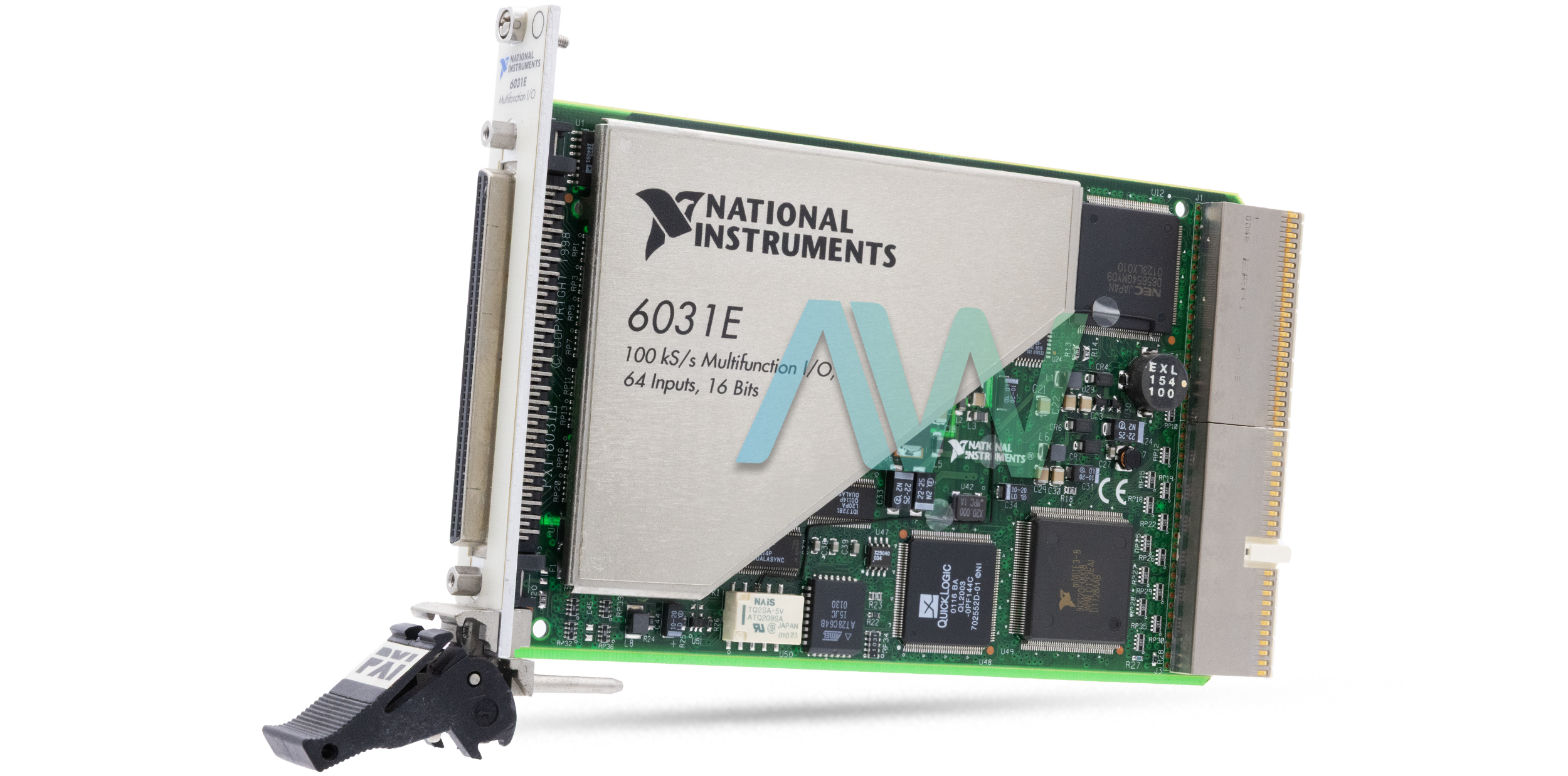

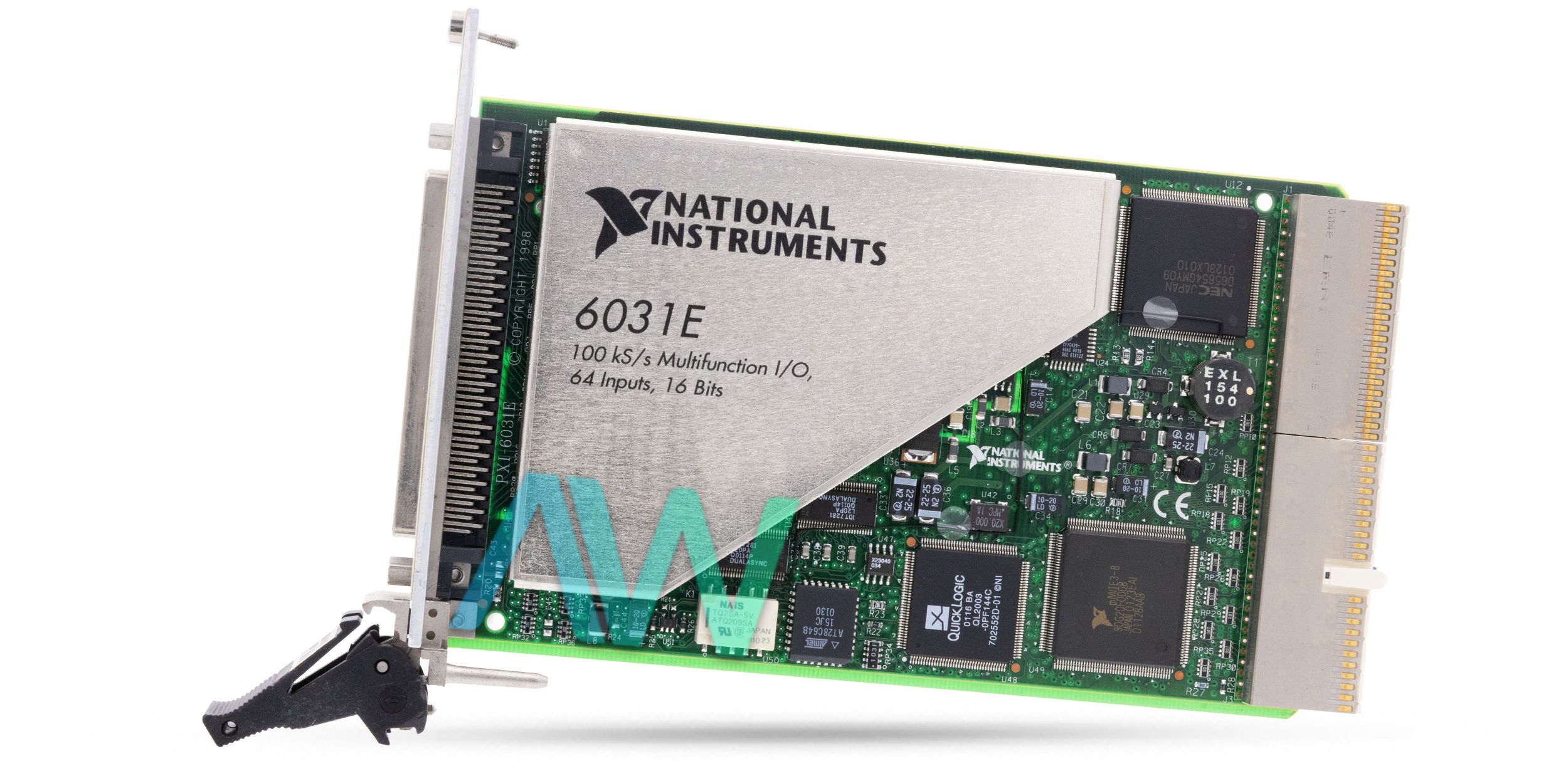

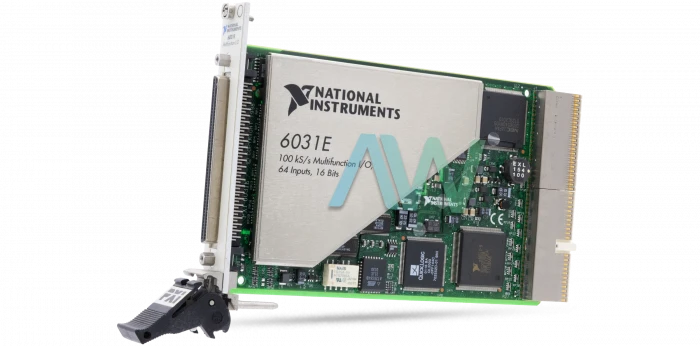

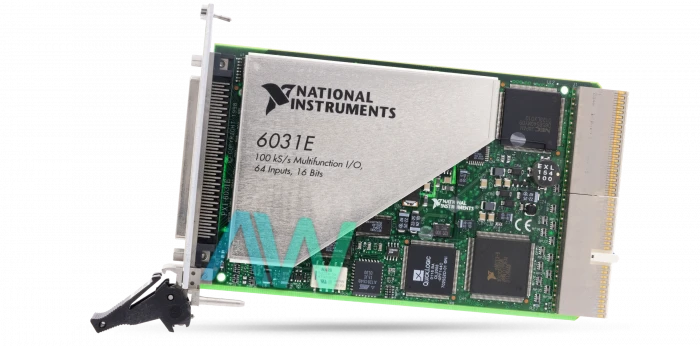

NI PXI-6031E Multifunction DAQ | In Stock Ships Today! | Image

❮ ❯

Actual item may vary if no part number is provided on quote request.

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Anonymous Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

Name*

Email Address*

Model Name

Part Number

Qty

+Add more parts

Additional Info - Calibration, Expedited Shipping or Other Notes

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to: 1-919-809-5227

Carol Zimme**** Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

National Instruments PXI-6031E Multifunction DAQ

The NI PXI-6031E (Part Number: 777636-01, 184808E-01) is an E Series Multifunction Data Acquisition (DAQ) with 64 single-ended or 32 differential Analog Input channels, 16-bit resolution, and 100 kS/s maximum sample rate. The input voltage range of the PXI-6031E device is ±0.1 to ±10 V. This device has 14 input ranges, a FIFO buffer size of 1,024 samples, and an onboard memory capable of handling 512 samples. The NI PXI-6031E comes featured with two output channels with 16 bit output resolution, a FIFO buffer size of 2,048 samples, and 100 kS per second output rate.

The NI PXI-6031E is suitable for ongoing high-speed data logging, control applications, and high voltage signal or sensor measurements when utilized with National Instruments signal conditioning accessories. This device has an onboard temperature sensor to keep track of the operating temperature of the instrument to guarantee it is functioning in the stated range. The PXI-6031E also has the capability to set a trigger based on the level of an analog signal, as well as the capability to trigger off an edge of a digital signal.

The PXI-6031E DAQ offers eight Bidirectional Digital I/O Channels with software-controlled timing and TTL logic levels. This device is capable of handling sinking and sourcing inputs and outputs at 0 V - 5 V maximum digital input and output voltage range. The National Instruments PXI-6031E supports DC input coupling only at ±11 V maximum working voltage. It is equipped with 2 counter/timer I/O channels with a resolution of 24 bits, and base clocks of 20 MHz and 100 kHz with an accuracy of ±0.01%. Additionally, the device has 1 frequency generator with a 4 bit resolution, and base clocks of 10 MHz and 100 kHz.

This Multifunction DAQ has three DMA channels and can be operated in scatter-gather DMA mode. With these DMA channels, the user can choose from various data sources/destinations, such as analog input, analog output, counter/timer 1, etc. The PXI-6031E DAQ has a 0.05 D-type, 100-pin female connector and +4.65 to +5.25 VDC at 1 A power remains available through the I/O connector. The device measures 6.3 x 3.9 in. in physical dimensions.

The PXI-6031E is now considered Obsolete and is no longer available from National Instruments, but the Multifunction DAQ will remain available in perpetuity for purchase and repairs with Apex Waves!

Model	PXI-6031E
Manufacturer	National Instruments
Part Number	777636-01, 184808E-01
Series	E Series
Type	Multifunction DAQ
Analog Input Channels	64 SE/32 DI
Input Resolution	16 Bits
Bus Connector	Master, Slave
I/O Connector	100-Pin Female 0.05 D-type Connector
Power at I/O Connector	+4.65 to +5.25 VDC at 1 A
Operating Temperature	6.3 x 3.9 in.
Storage Temperature	6.3 x 3.9 in.
Dimensions	6.3 x 3.9 in. (16.0 cm × 10.0 cm)
Weight	7.4 oz (211 g)
Calibration Interval	1 year
Warranty	Three Year Warranty
PXI-6031E Manual	User Manual and Maintenance Manual Available for Download
Price	Request a Quote Today for Pricing Info
