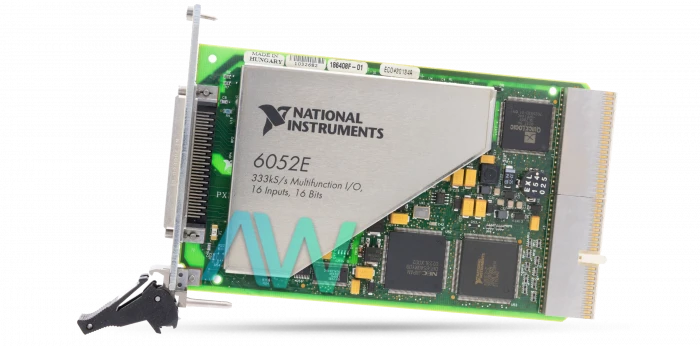

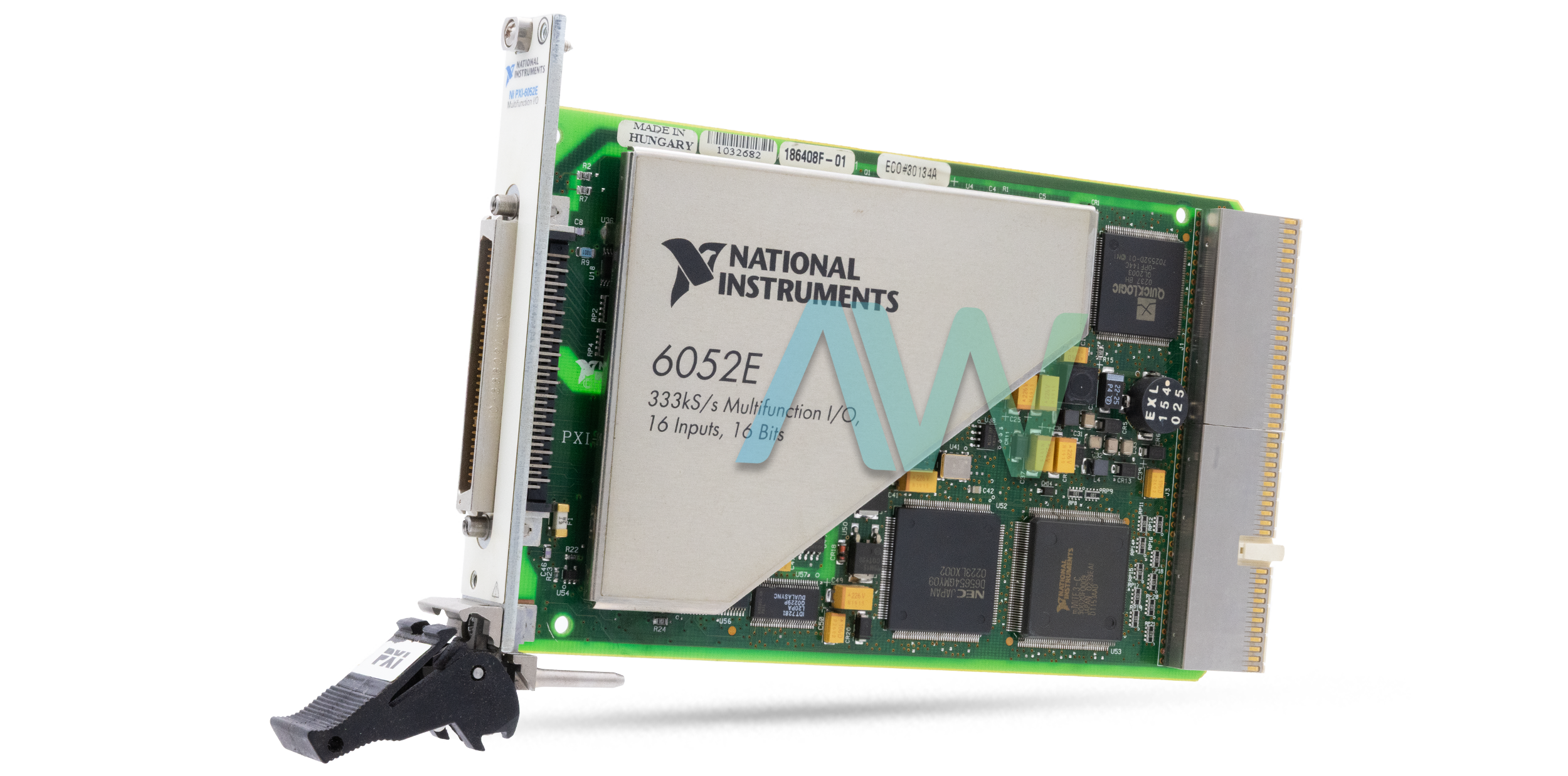

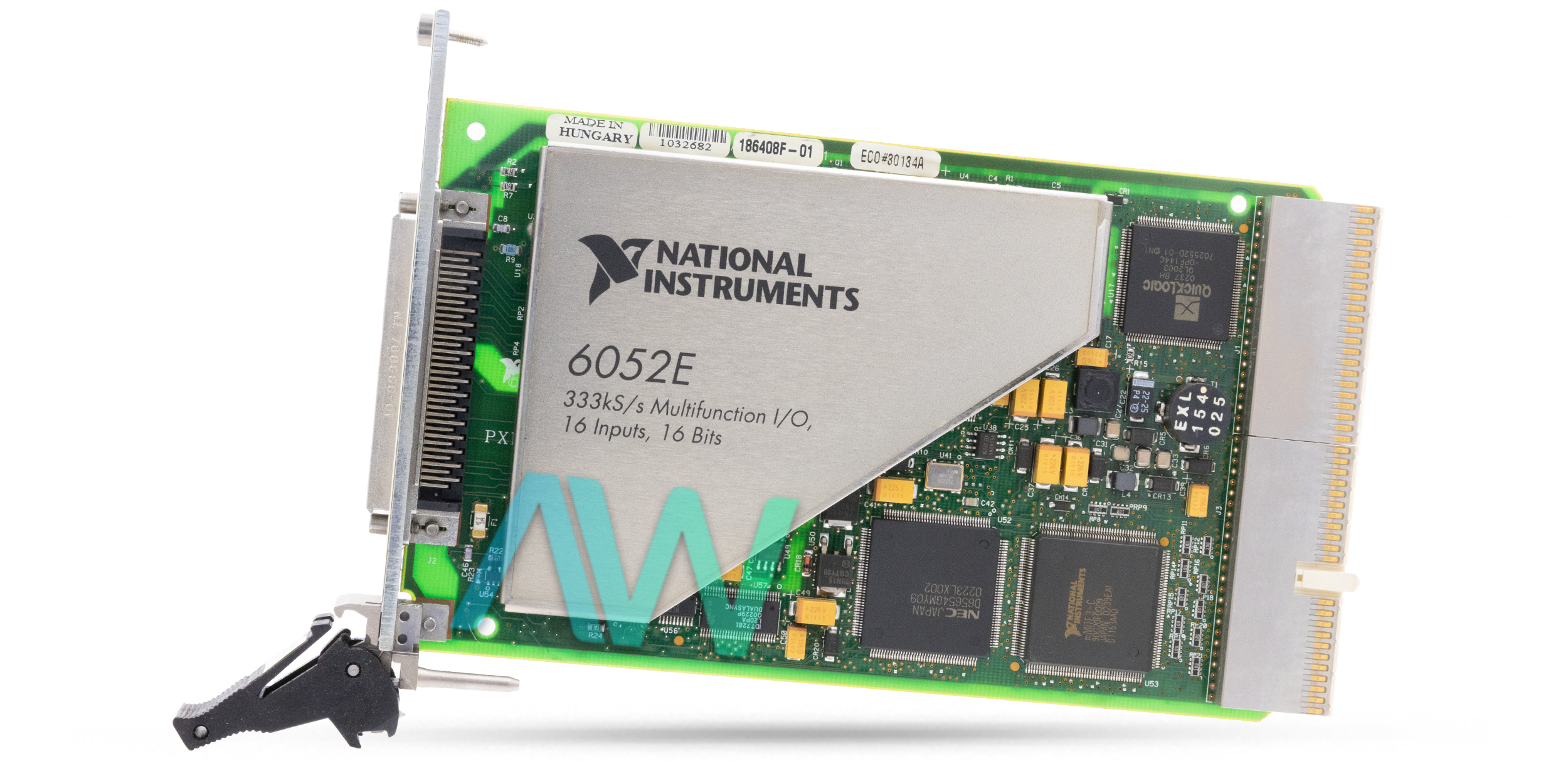

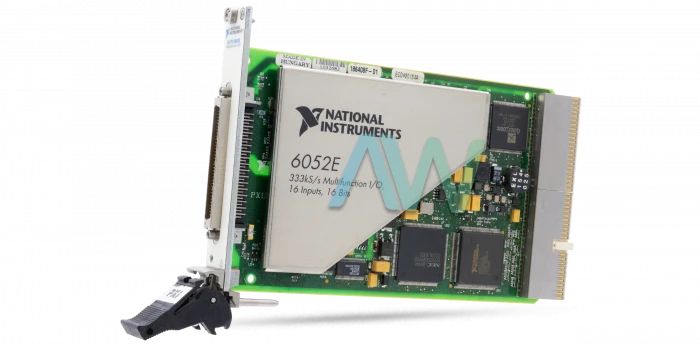

National Instruments PXI-6052E Multifunction DAQ
The National Instruments PXI-6052E (Part Number: 777962-01, 186408E-01) is a 16-Channel, 16-Bit Resolution Multifunction DAQ, which is a member of the full-featured E Series. This single-slot PXI module features two Analog Outputs, Analog/Digital Triggering, eight digital I/O lines, 15 analog input signal ranges, and two 24-bit counters/timers. The NI PXI-6052E offers real-time performance with LabVIEW, and is fully compatible with other software packages/application development environments (ADEs) such as VI Logger, Measurement Studio, and Visual Basic, C#, and C/C++. This Multifunction DAQ can be configured and programmed with the NI-DAQ 7 driver software. To utilize the NI PXI-6052E, the user needs NI-DAQ, a computer, the DAQ device, and either LabVIEW or Measurement Studio (optional).
The National Instruments PXI-6052E offers 16 single-ended or 8 differential channels (software selectable per channel) and 333 kS per second maximum sampling rate. While operating with 20 V range selected, this model offers ±10 V bipolar input range. However, at 100 mV (the lowest software selectable range) the PXI-6052E provides ±50 mV bipolar input range and 0 to 100 mV unipolar input range. As far as its transferring characteristics are concerned, this model offers ±1.5 (typical) and ±3 (maximum) LSB. This DAQ also comes equipped with one Frequency Scaler. The DC coupled device has 6 trigger lines with 1 star trigger, and is equipped with 3 DMA channels.
The resolution of its counter/timers and frequency scalar is 24 bits and 4 bits respectively; they are 5 VTTL/CMOS compatible. The recommended warm-up time for this Multifunction DAQ is 15 minutes. The calibration interval is one year. The NI PXI-6052E comes equipped with a male SCSI-II type, 68-pin male SCSI-II I/O connector. This model also supports external input for analog or digital trigger (PFI 0/AI START TRIG) at 10 kΩ, with DC coupling. The device weighs 7.2 oz., and has the dimensions: 6.3 x 3.9 in. It has a recommended operating temperature of 0 to 55 °C, and a storage temperature of –20 to 70 °C.
The PXI-6052E is no longer available from National Instruments, but the Multifunction DAQ Device will remain available in perpetuity for purchase and repairs with Apex Waves!
| Model | PXI-6052E |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 777962-01, 186408E-01 |
| Series | E Series |
| Type | Multifunction DAQ |
| Analog Input Channels | 16 Single-Ended / 8 Differential |
| Input Resolution | 16 Bits |
| I/O Connector | 68-Pin Male SCSI-II Connector Type |
| Bus Interface | Master, Slave |
| Input Coupling | DC |
| Operating Temp Range | 0 to 55 °C |
| Storage Temp Range | –20 to 70 °C |
| Dimensions | 6.3 in. × 3.9 in. (16 cm × 10 cm) |
| Weight | 7.2 oz (206 g) |
| Calibration Interval | 1 Year |
| Warranty | Three Year Warranty |
| PXI-6052E Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote Today for Pricing Information |
Associated part numbers for PXI-6052E:
National Instruments PXI-6052E Frequently Asked Questions
Question: Which type of I/O connector does the NI PXI-6052E have?
Answer: The Multifunction DAQ has a 68-pin male SCSI-II type I/O connector.
Question: Which cable should be used with the PXI-6052E?
Answer: The SH68-68-EP cable is ideal for use with the DAQ Device.
Question: What is the maximum output rate of the PXI-6052E?
Answer: The maximum output rate is 333 kS/s.
Question: What is the value for the power available at the I/O connector on the NI PXI-6052E?
Answer: The Multifunction DAQ has +4.65 VDC to +5.25 VDC at 1 A power available at the I/O connector.
Question: How many DMA channels are on the device?
Answer: The PXI-6052E is equipped with 3 DMA channels.
