Q: What is the bandwidth of the PXI-6070E?

The Multifunction DAQ has a bandwidth (-3 dB) of 1 MHz.

Q: What type of triggers does the device have?

The PXI-6070E has both analog and digital triggers.

Q: Which software is suggested for use with the PXI-6070E?

Recommended software for the Multifunction DAQ includes: VI Logger, LabVIEW, Measurement Studio, and LabWindows/CVI.

PXI-6070E, 8 Digital I/O, 512 S FIFO Buffer Size, Multifunction DAQ Device

Rated 5/5 | 8 ratings

NI PXI-6070E Multifunction DAQ Device | In Stock Ships Today! | Image

❮ ❯

Actual item may vary if no part number is provided on quote request.

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Anonymous Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

Name*

Email Address*

Model Name

Part Number

Qty

+Add more parts

Additional Info - Calibration, Expedited Shipping or Other Notes

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to: 1-919-809-5227

Carol Zimme**** Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

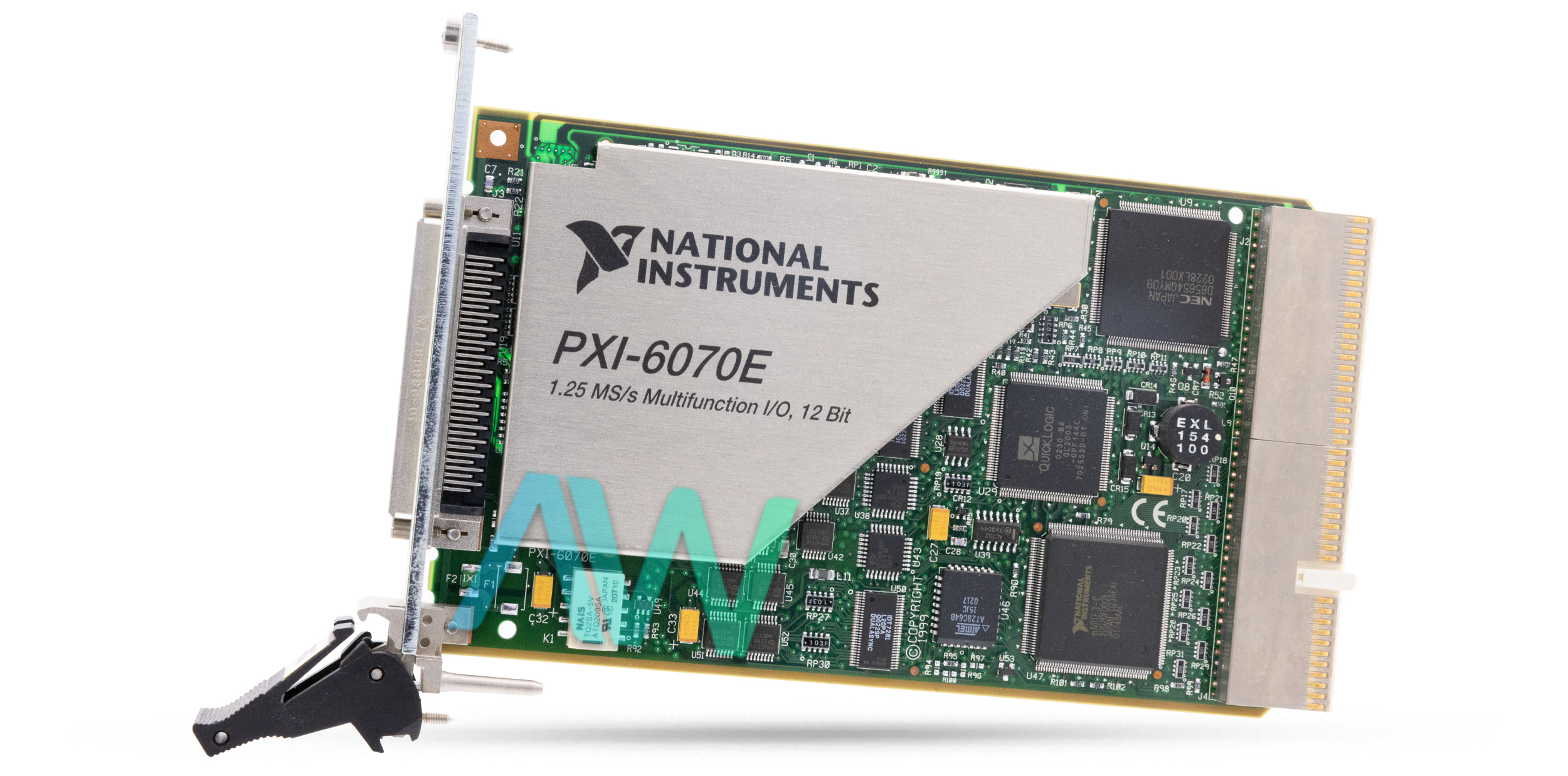

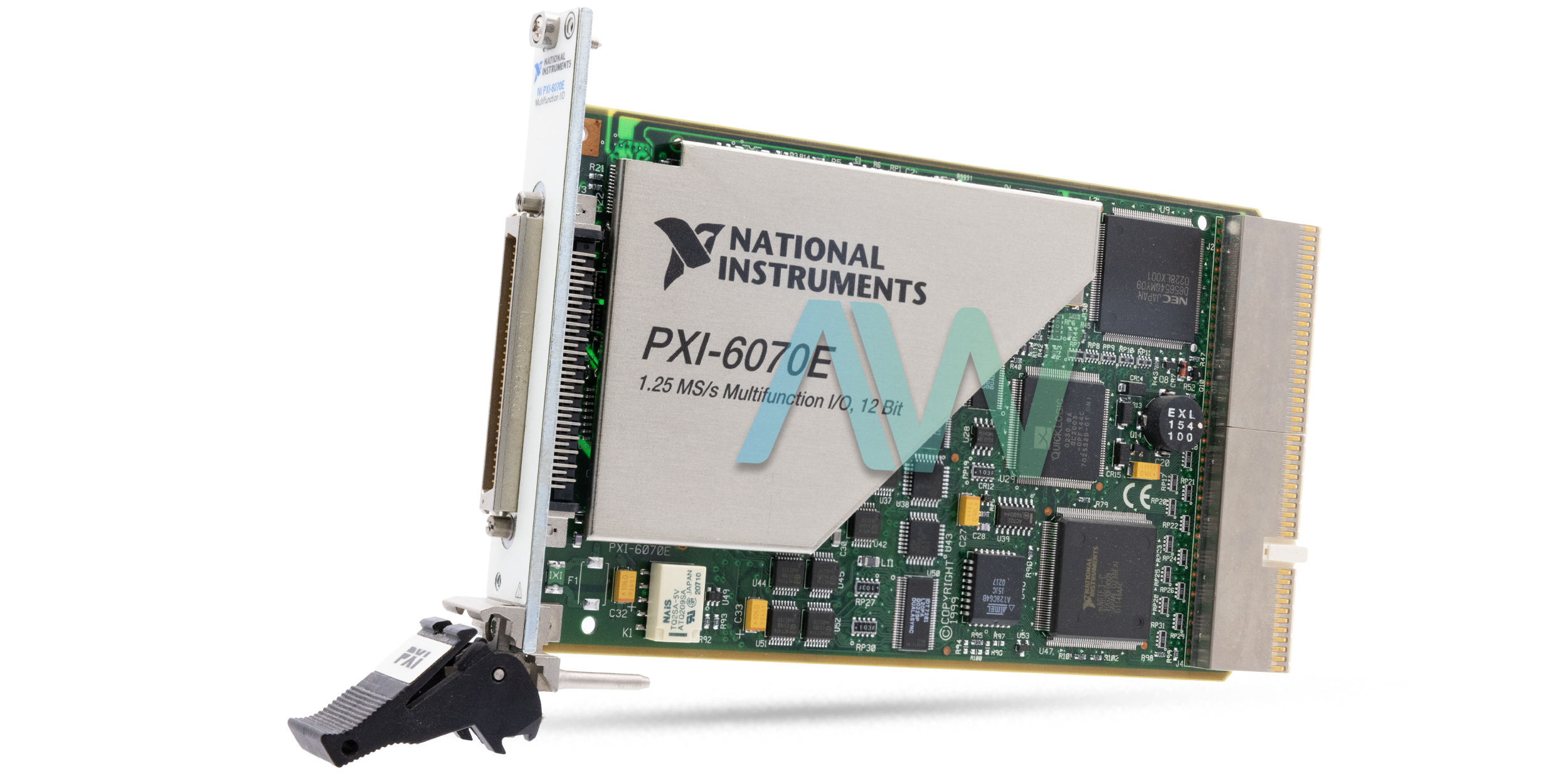

National Instruments PXI-6070E Multifunction DAQ

The NI PXI-6070E PXI Multifunction Data Acquisition Device (Part Number: 777060-01) utilizes E Series innovation to deliver elite and dependable data acquisition abilities to meet an extensive variety of necessities. The user can achieve up to 1.25 MS/s, 12-bit execution over different bus frameworks, and can choose from either 16 or 64 single-ended analog inputs. Depending on the hard drive type, the PXI-6070E can stream to a disk at rates up to 1.25 MS/s. This E Series gadget highlights both analog and digital triggering abilities, along with two 12-bit analog outputs, two 24-bit, 20 MHz counter/timers, and eight computerized I/O lines. It is equipped with a 68-pin male 0.050 D-type I/O connector.

The NI PXI-6070E incorporates the DAQPad PXI-6070E for IEEE 1394, which is accessible in two distinct arrangements. The two designs highlight 250 V of functional isolation from the PC and a low-profile package that fits under a laptop. The mass termination version highlights a 68-pin shielded connector to associate signals either from the SCC Series modular signal conditioning items or from a CA-1000 custom-network enclosure. The BNC termination version highlights shielded BNC connectors for eight differential-terminated analog inputs, two analog outputs, and five assistant lines. The user can gain access to different signals through built-in screw terminal connections. It is perfect for applications where portability and quick availability are required, such as in-vehicle car testing or research center estimations.

The PXI-6070E is run using the NIDAQmx driver software which is compatible with software packages or application development environments (ADEs) such as LabVIEW, LabWindows/CVI, or Measurement Studio. It has a recommended warm-up time of 15 minutes, and should be calibrated at least once a year.

The NI device weighs 7.1 oz, measures 6.3 x 3.9 in. in physical dimensions. It has a recommended operating temperature range of 0 to 55 °C, a storage temperature range of –20 to 70 °C, and a non-condensing relative humidity range of 10 to 90%. The Multifunction DAQ is designed to comply with the following electrical safety standards: IEC 61010-1, EN 61010-1, UL 61010-1, among others.

The Obsolete Status of the PXI-6070E has been announced by National Instruments, but the Multifunction DAQ will still be available for purchase and repairs by Apex Waves in perpetuity.

Model	PXI-6070E
Manufacturer	National Instruments
Part Number	777060-01
Series	Legacy E Series
Type	Multifunction DAQ
Analog Input Channels	16
Analog Input Resolution	12 bit
Maximum Sample Rate	1.25 MS/s
FIFO Buffer Size	512 S
Data Transfers	DMA, Programmed I/O, Interrupts
Digital I/O Transfer Rate	50 kwords/s
Bus Requirement	1.1 A at +5 VDC
Dimensions	6.3 x 3.9 in. (16 cm × 10 cm)
Weight	7.1 oz (203 g)
Warranty	Three Year Warranty
PXI-6070E Manual	User Manual and Maintenance Manual Available for Download
