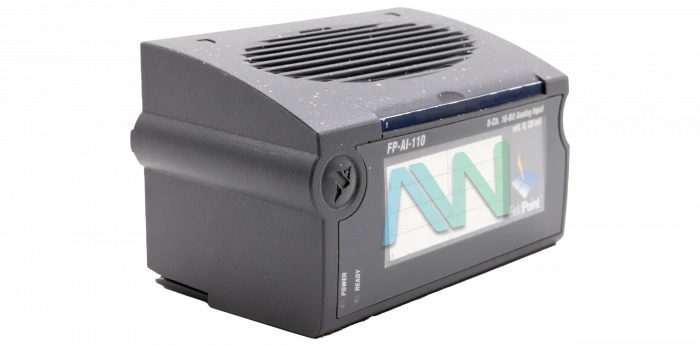

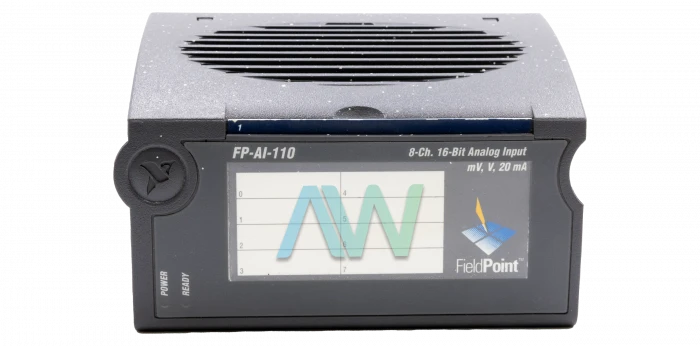

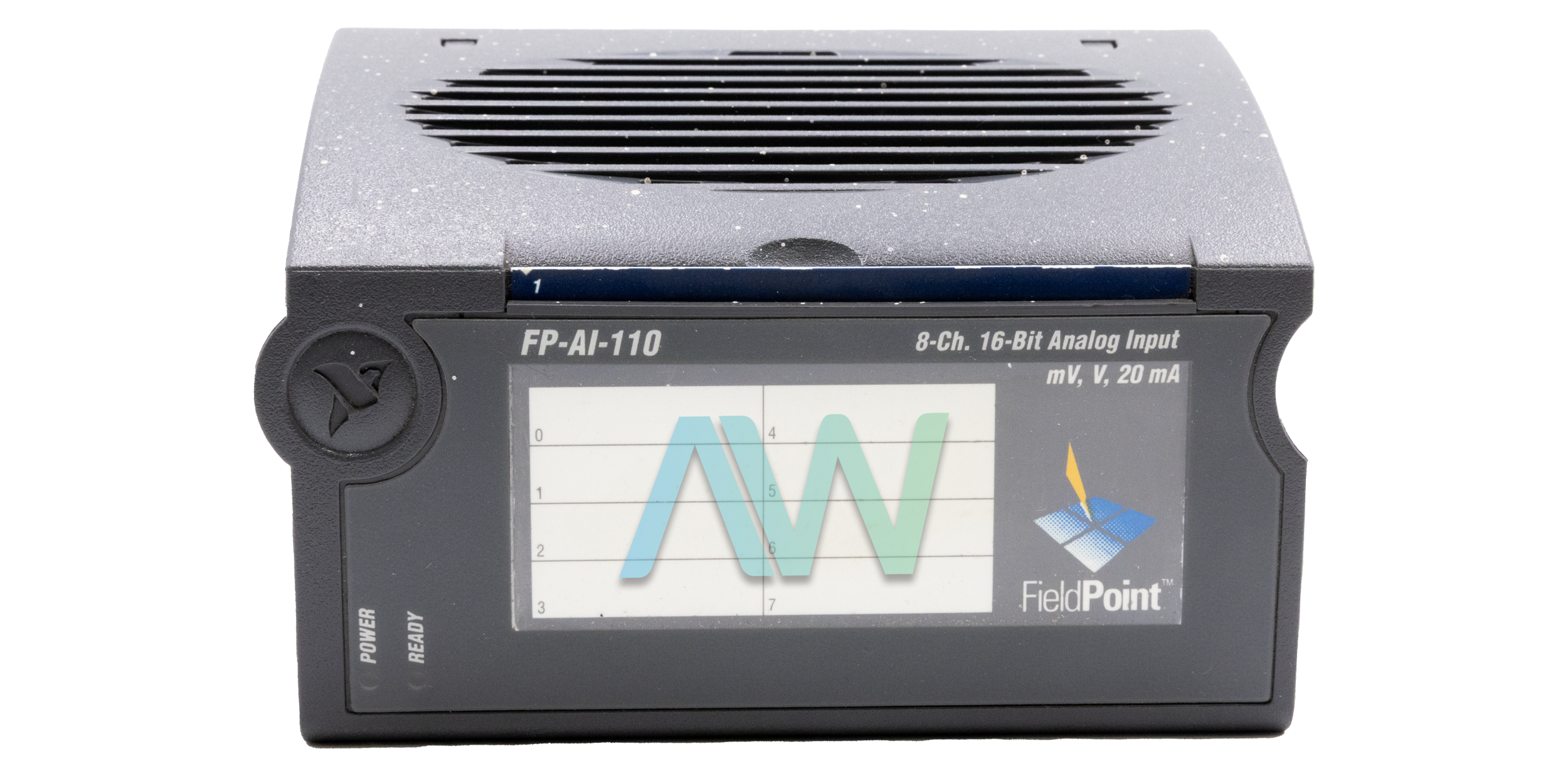

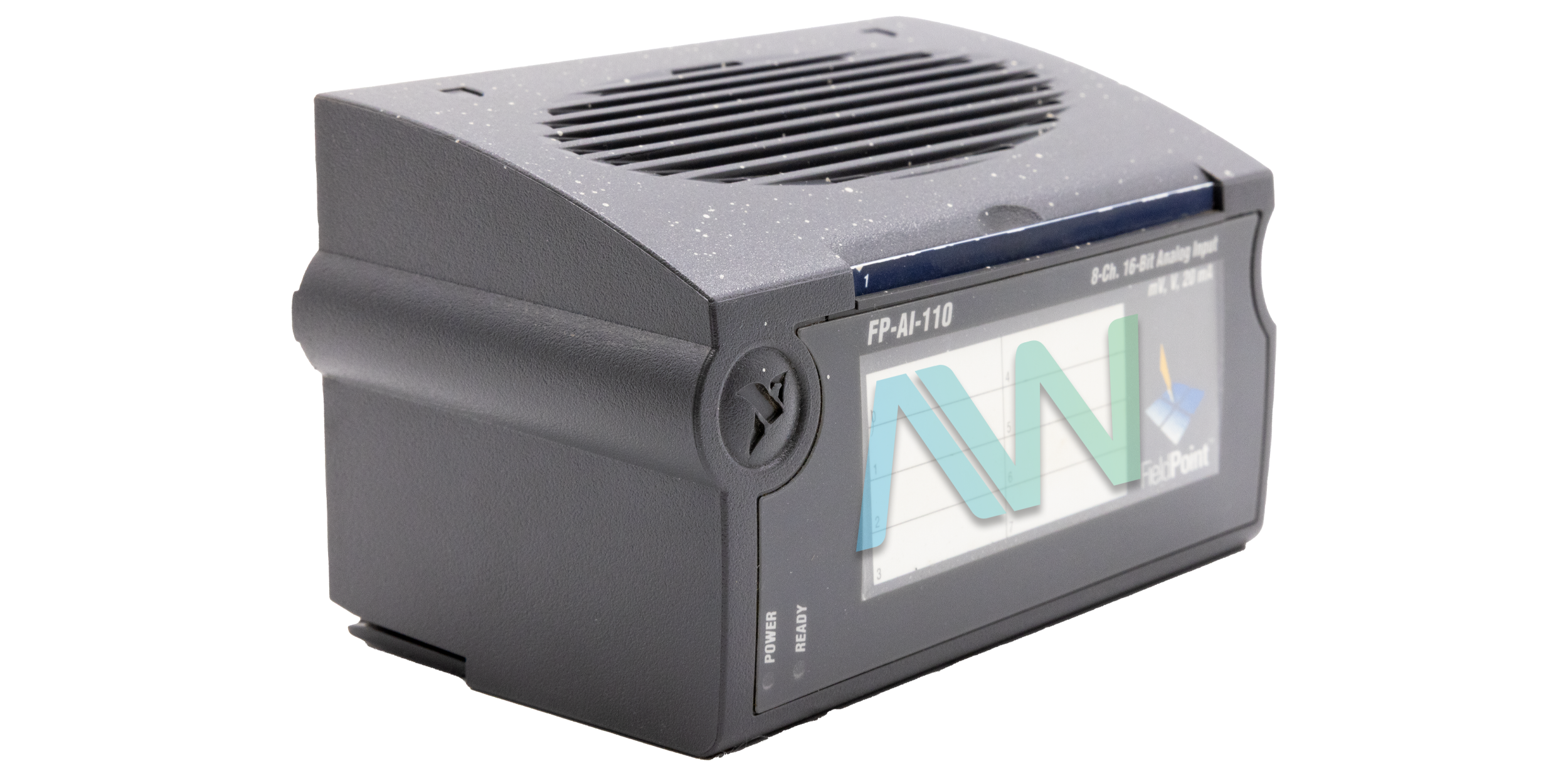

National Instruments FP-AI-110 Analog Input Module
The NI FP-AI-110 (Part Number: 777518-110) is an 8-Channel, single-ended, FieldPoint Current and Voltage Analog Input Module. This model can measure milliampere and millivolt signals and offers a software-configurable input filter and input range per channel. When all eight channels are set to the same filter setting, the update rates are either 1.470 s, 1.230 s, or 0.173 s for 50 Hz, 60 Hz, or 500 Hz respectively. With this module, the user will be able to connect and measure signals from a variety of transmitters and sensors directly. The device has 8 voltage input ranges: 0–1 V, 0–5 V, 0–10 V, ±60 mV, ±300 mV, ±1 V, ±5 V, and ±10 V; and 3 current input ranges of: 0–20, 4–20, and ±20 mA.
Designed for reliability and productivity, the FP-AI-110 National Instruments offers filtered analog inputs at 16-bit resolution. This module comes with several unique features, such as over-ranging, onboard diagnostics, and plug-and-play operation. This module can calibrate, filter, and scale raw signals to appropriate engineering units. To look for problems with the wiring or the module, it conducts various self-diagnostics. The FieldPoint FP-AI-110 comes equipped with a delta-sigma type ADC (analog-to-digital) converter that measures a resolution of 16 bits at 50 or 60 Hz and 10 bits at 500 Hz. . An adjustable low-pass filter is also provided on each channel.
The availability of 16-bit ADC on the module allows the user to achieve instrument-grade measurements on a distributed embedded system. While operating with voltage inputs and current inputs, the NI FieldPoint FP-AI-110 offers 100 Ω input impedance. In addition, the device safegaurds against damage with ±25 V of overvoltage protection. While operating at the fundamental frequency, the FP-AI-110 applies 95 dB of rejection. The filter setting of this module defines the rate at which it samples the input. This module draws 350 mW of power from the host network module and is hot swappable. It has a recommended operating temperature range of –40 to 70 °C.
The NI FieldPoint FP-AI-110 has reached Obsolete Status with National Instrument's Product Lifecycle, but the Analog Input Module will remain available in perpetuity with Apex Waves!
| Model | FP-AI-110 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 777518-110 |
| Type | Analog Input Module |
| Channels | 8 |
| Resolution | 16-Bit |
| ADC Type | Delta-Sigma |
| Update Rate (all channels) | 5 Hz to 0.66 Hz |
| Overvoltage Protection | ±40 V (Voltage), ±25 V (Current) |
| Power from Network Module | 350 mW |
| Operating Temp Range | –40 to 70 °C |
| Storage Temp Range | –55 to 85 °C |
| Dimensions | 4.3 by 4.3 by 3.6 in. |
| Weight | 4.8 oz. (140 g) |
| Warranty | Three Year Warranty |
| FP-AI-110 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote for More Information |
Associated part numbers for FP-AI-110:
National Instruments FP-AI-110 Frequently Asked Questions
Question: What are the voltage input ranges for the FP AI 110 National Instruments?
Answer: The voltage input ranges are: 0–1 V, 0–5 V, 0–10 V, ±60 mV, ±300 mV, ±1 V, ±5 V, and ±10 V.
Question: What type of ADC does the FieldPoint FP-AI-110 have?
Answer: The Analog Input Module has a Delta-Sigma ADC.
Question: Does the NI FieldPoint FP-AI-110 have channel-to-channel isolation?
Answer: The module does not support channel-to-channel isolation.
