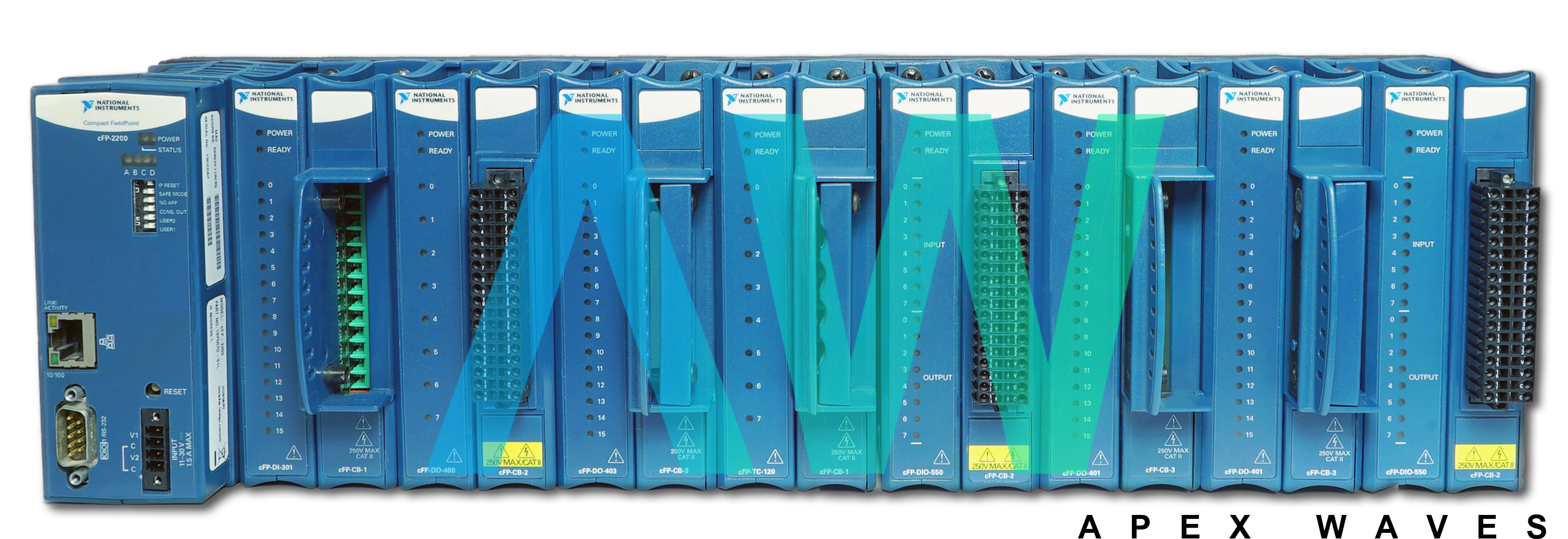

FP-DI-AC120 National Instruments Discrete Input Module | Apex Waves | Image
FP-DI-AC120 National Instruments Discrete Input Module | Apex Waves | Image
FP-DI-AC120 New
FP-DI-AC120 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

FP-DI-AC120 National Instruments Discrete Input Module | Apex Waves | Image
FP-DI-AC120 National Instruments Discrete Input Module | Apex Waves | Image
FP-DI-AC120 New
FP-DI-AC120 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments FP-DI-AC120 Discrete Input Module

The FP-DI-AC120 is a high-performance Discrete Input Module. The developer of this module is National Instruments. The module can be ordered with the designated part number 778071-01 assigned by NI for easy identification. The module consists of two optically isolated input channels. Both channels can be used when the user needs channel-to-channel isolation. This Discrete Input Module contains two status indication lights in order to identify the running information of each channel. If the indication is lit, the channel is in the ON state; otherwise it is in the OFF state. The individual channels of this module are isolated. Hence, the user has the liberty to use the module either for sourcing or sinking devices as needed.

The NI FP-DI-AC120 is designed for the wide range of voltage from 0 to 140 VAC/VDC, while the nominal input voltage of the device is 120 VAC. The minimum ON state voltage of this device should be 90 VAC, while the maximum OFF state voltage must be 25 VAC. The input impedance of this Discrete Input Module is 22 kΩ, while the maximum delay time of this module is 20 ms.

The minimum current level for the NI FP-DI-AC120 during the ON state is 4.1 mA. The maximum current level during the OFF state is 1.1 mA. The maximum power requirement for this Discrete Input Module is 60 mW. The scan time for the module is 0.2 ms. The operating temperature of the FP-DI-AC120 ranges between -40° to 70° C.

ModelFP-DI-AC120
ManufacturerNational Instruments
Part Number778071-01
TypeDiscrete Input Module
Input Channels2
Voltage Range0 to 140 VAC/VDC
Input Impedance22 kΩ
Maximum Delay Time20 ms
Power Requirement60 mW
Warranty2-3 Year Warranty
FP-DI-AC120 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.
