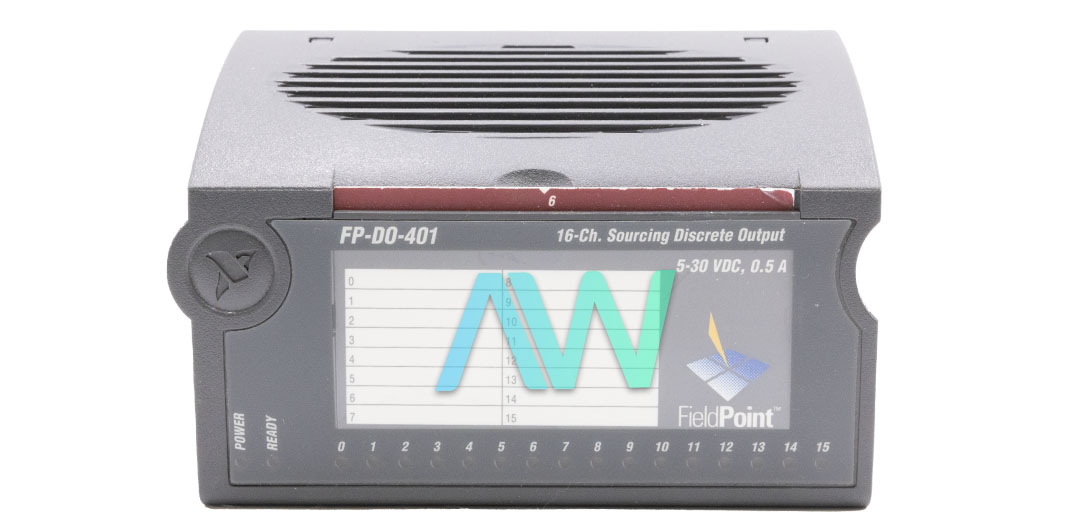

FP-DO-401 National Instruments Digital Output Module | Apex Waves | Image

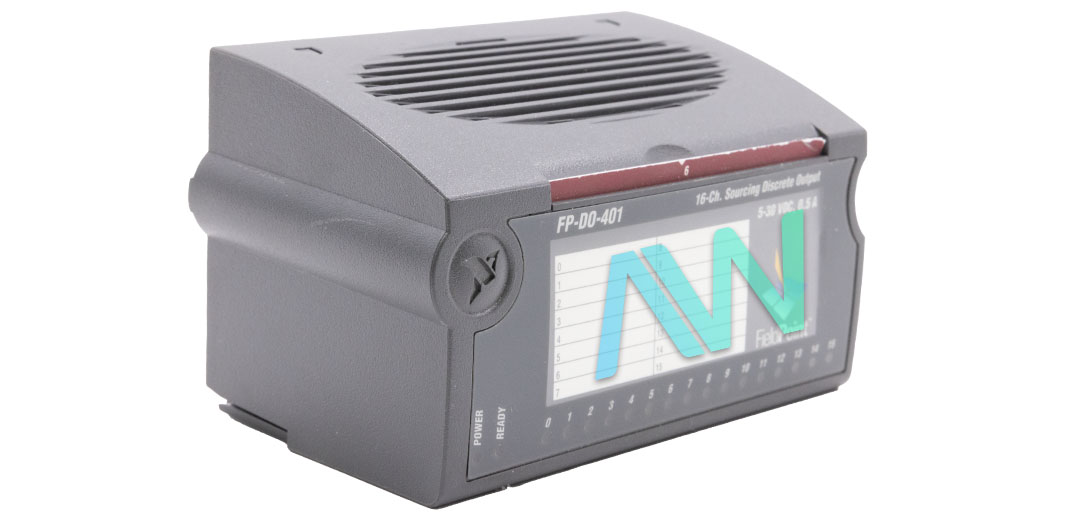

FP-DO-401 National Instruments Digital Output Module | Apex Waves | Image
FP-DO-401 New
FP-DO-401 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

FP-DO-401 National Instruments Digital Output Module | Apex Waves | Image
FP-DO-401 National Instruments Digital Output Module | Apex Waves | Image
FP-DO-401 New
FP-DO-401 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments FP-DO-401 Digital Output Module

The FP-DO-401 (Part Number: 777518-401) is a module that is ordinarily used to control marker lights, external exchanges, and CMOS and TTL contraptions. All the modules fuse locally accessible diagnostics to ensure bother free foundation and support. The FP-DO-401 modules give worked in module-to-module partition to guarantee the FieldPoint structure and controller or correspondence interface from high voltage levels. All the automated output modules use a mutual conviction plane for the propelled output channels. These modules are sourcing electronic output modules fit for offering up to 2 A for each channel. The device has 16 output channels with a voltage range of 5 to 30 VDC, an impedance of 0.3 Ω (at 10 to 30 V) and 2 Ω (at 5 to 10 V), and a power consumption of 730 mW from the network module.

The NI FP-DO-401 joins Ethernet capacities, so the user can without a doubt fitting knowledge and control inside a modern office or generation plant. Regardless, past the ability to proper estimation and control, FieldPoint is simple to use for Data Acquisition and offers a short range until the essential estimation. Both the game plan of the rigging and the Application Programming Interface (API) are clear and easy to utilize. Moreover, the equipment has worked in banner embellishment for fast and direct relationship of the sensors.

The FieldPoint Explorer handles hand through the dissemination of framework parameters, such as IP address and scan for the close-by subnet for FieldPoint Ethernet centers. The user can effortlessly plan I/O parameters as data ranges, start-up start states, clock states of security, or monitor hound while using normal window talked. The mechanical arrangement, programming designing, and the limits of LabVIEW control join to make FieldPoint an ideal stage for ceaseless introduced control.

The NI device weighs 5.2 oz. It has recommended operating and storage temperature ranges of –40 to 70 °C and –55 to 85 °C, a non-condensing relative humidity range of 10 to 90%, random and sinusoidal operating vibrations of 5 grms and 5 g respectively–all at a frequency range of 10 to 500 Hz. The FP-DO-401 is designed to comply with the following electrical safety standards: IEC 61010-1, EN-61010-1, UL 61010-1, CSA 61010-1.

ModelFP-DO-401
ManufacturerNational Instruments
Part Number777518-401
TypeDigital Output Module
Digital Output Channels16
Output TypeSourcing
Voltage Range5–30 VDC
Power from Network Module730 mW
Weight5.2 oz.
WarrantyThree Year Warranty
FP-DO-401 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for FP-DO-401:

National Instruments FP-DO-401 Frequently Asked Questions



Question: What is the output impedance of the FP-DO-401?

Answer: The output impedance of the FP-DO-401 is 2 Ω at 5 to 10 V.



Question: What is the all channel update rate for the NI FP-DO-401 module?

Answer: The all channel update rate for the Digital Output Module is 20 kHz.



Question: How many power links does the module have to power field instruments?

Answer: The NI FP-DO-401 has eight power links to power field instruments.



Question: What does it mean that the FP-DO-401 has sourcing output?

Answer: "Sourcing output" means that the device offers a path to a voltage supply.
