FP-DO-DC60, Dual, Isolated Output Channels, 4-200 VDC, Discrete Output Module

Rated 4.8/5 | 19 ratings

FP-DO-DC60 National Instruments Discrete Output Module | Apex Waves | Image
FP-DO-DC60 National Instruments Discrete Output Module | Apex Waves | Image
FP-DO-DC60 New
FP-DO-DC60 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

FP-DO-DC60 National Instruments Discrete Output Module | Apex Waves | Image
FP-DO-DC60 National Instruments Discrete Output Module | Apex Waves | Image
FP-DO-DC60 New
FP-DO-DC60 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

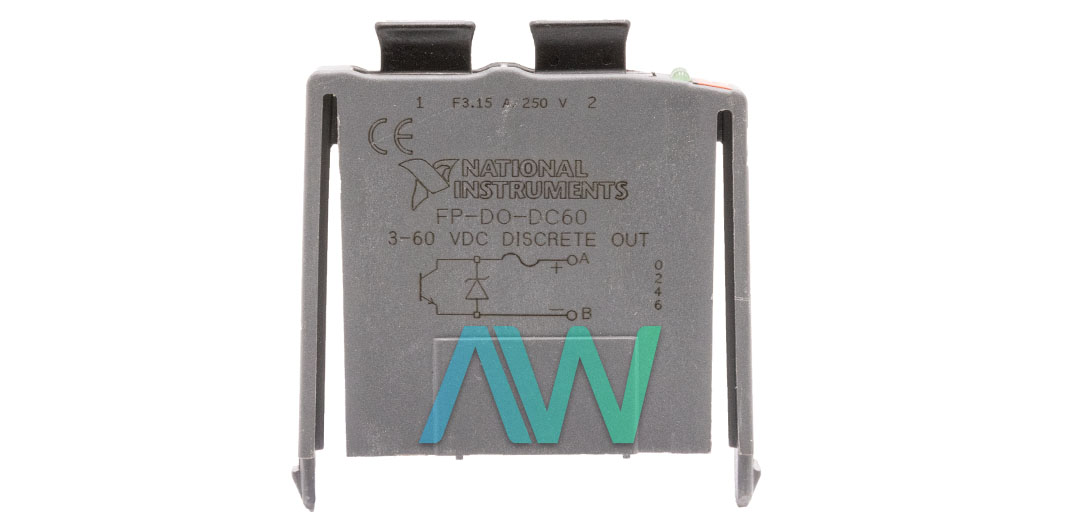

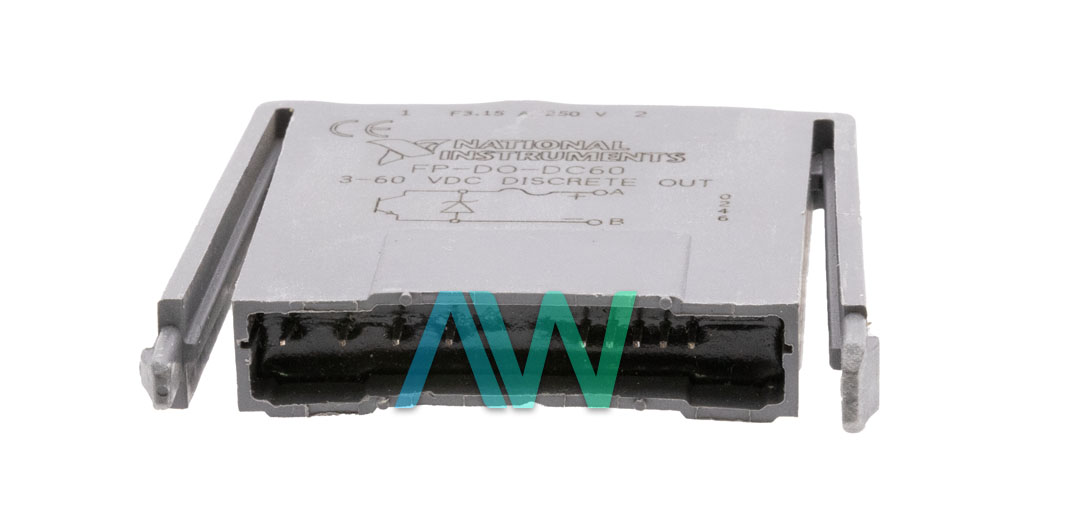

National Instruments FP-DO-DC60 Discrete Output Module

The FP-DO-DC60 is a FieldPoint Discrete Output Module. The NI FP-DO-DC60 is manufactured by National Instruments. This Discrete Output Module is available for order under part number 778071-13. The FP-DO-DC60 is well-suited for applications that require isolation between the channels because the module offers isolation between its output channels. This Discrete Output Module is compatible with sinking as well as sourcing devices.

The NI FP-DO-DC60 can be connected to the FP-TB-10 terminal base. The FP-TB-10 can mount up to six FP-DO-DC60 modules simultaneously. A single network interface module can facilitate up to 9 FP-TB-10 models. In addition, if your application does not need channel-to-channel isolation, then you can utilize the C and V terminals on the FP-TB-10 terminal base to bus-connect power supplies to your loads.

This Discrete Output Module is an efficient dual-channel module. The channels of the FP-DO-DC60 can bear up to 2500 V without breaking the isolation. The NI FP-DO-DC60 FieldPoint module supports the voltage range from 3 – 60 VDC. The corresponding current rating of the FP-DO-DC60 depends upon the ambient temperature. The device has a maximum output delay of 0.06 ms, a power requirement of 70 mW, and a voltage drop of 1.3 V at 0.75 A.

The National Instruments FP-DO-DC60 module features two LEDs. These LEDs specify the state of each channel. When a channel is in the active state, the corresponding LED will be lit up. The LEDs installed on this Discrete Output Module are green. The channels on the National Instruments FP-DO-DC60 are also equipped with two fuses. Each channel of the module has an independent fuse. The NI FP-DO-DC60 is a fast scanning module with a scan time of 0.2 ms.

The I/O module weighs 2.1 oz, and has a field-wiring diameter of 24 to 12 AWG. It has recommended operating and storage temperature ranges of -40 to 70 °C and -55 to 85 °C respectively, and a non-condensing relative humidity range of 10 to 90%. The NI device is designed to comply with the following electrical safety standards: IEC 61010-1, EN 61010-1, UL 3121-1, UL 61010C-1, and CAN/CSA C22.2 No. 1010.1.

ModelFP-DO-DC60
ManufacturerNational Instruments
Part Number778071-13
TypeDiscrete Output Module
Output Channels2
Voltage Range3 to 60 VDC
Maximum Output Delay0.06 ms
Power Requirement70 mW
Voltage Drop1.3 V at 0.75 A
WarrantyThree Year Warranty
FP-DO-DC60 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for FP-DO-DC60:

National Instruments FP-DO-DC60 Frequently Asked Questions



Question: Can the FP-DO-DC60 be used with both sinking and sourcing devices?

Answer: Yes, the FP-DO-DC60 sinks current into the “a” terminals and source current out of the “b” terminals.



Question: Does the FP-DO-DC60 have replaceable fuses?

Answer: Yes, the FP-DO-DC60 has two replaceable fuses—one for each channel



Question: What is the voltage range of the FP-DO-DC60?

Answer: The voltage range is 3 to 60 VDC.
