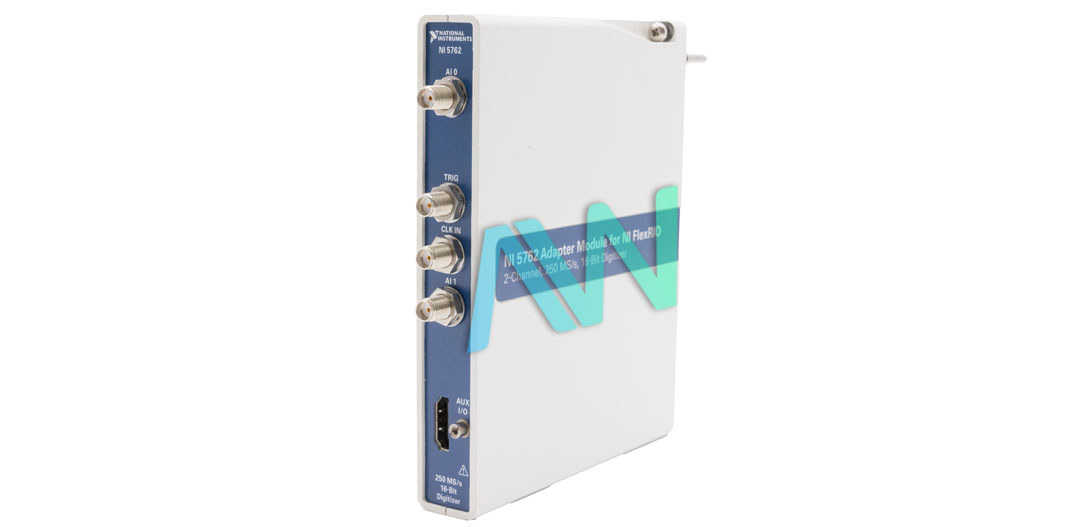

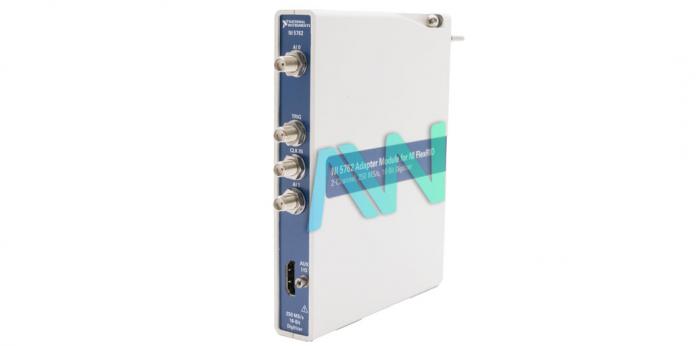

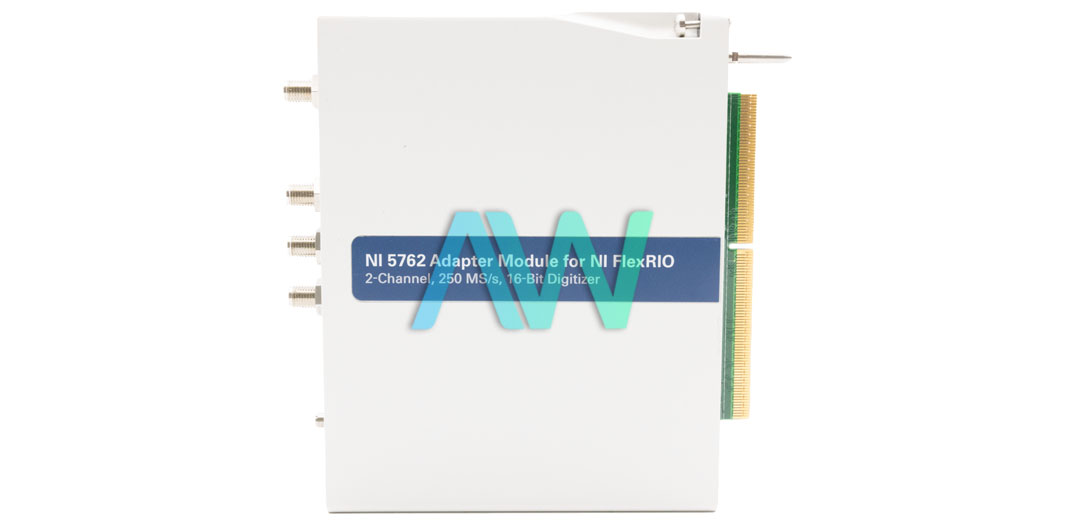

National Instruments NI-5762 Digitizer Adapter Module for FlexRIO
The National Instruments NI-5762 is a 2-Channel, 250 MS/s, 16-Bit Resolution, Digitizer Adapter Module for FlexRIO-based systems. When coupled with a compatible PXI FPGA Module, the NI-5762 works as a high-speed digitizer that can sample two channels simultaneously at up to 250 MS/s. This module provides two signal paths per channel: a filtered path (100 MHz elliptic filter) and an unfiltered path, enabling flexible signal acquisition.
This module is available in two variations:
-NI-5762 (-01) (Part Number: 781749-01) → AC-coupled with a 100 MHz elliptic filter.
-NI-5762 (-02) (Part Number: 781749-02) → AC-coupled, ideal for undersampling applications.
Both versions have AC input coupling and are fully compatible with Kintex-7 and Virtex-5 FPGAs.
The 781749-01 variation of the Digitizer Adapter Module includes a 100 MHz elliptic filter for its filtered signal path. In general, the front panel of the device features: 2 analog input connectors (SMA type), 1 external trigger input connector (SMA type), 1 CLK IN connector (SMA type, for external or reference input), 1 AUX I/O connector (HDMI type, not HDMI-compatible).
For HDL IP integration, the NI-5762 module offers Component-Level Intellectual Property (CLIP), supporting two types of CLIP: socketed and user-defined. This module ships with socketed CLIP items, allowing users to add module I/O to their LabVIEW projects. During typical operation, the NI-5762 consumes 5.3 W of power. Physically, the module weighs 332 g (11.7 oz.) and has dimensions of 12.9 × 2.0 × 12.1 cm (5.1 × 0.8 × 4.7 in.).
| Model | NI-5762 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 781749-01, 781749-02 |
| Type | Digitizer Adapter Module for FlexRIO |
| Voltage Input Channels | 2 |
| Maximum Sample Rate | 250 MS/s |
| Analog Input Resolution | 16 Bits |
| Dimensions | 7.3 × 0.8 × 5.1 in. (18.5 × 2.0 × 13.0 cm) |
| Weight | 332 g (11.7 oz.) |
| Input Coupling | AC-Coupled |
| Input Impedance | 50 Ω per Connector |
| Power Consumption | 5.3 W (typical) |
Associated part numbers for NI-5762:
National Instruments NI-5762 Frequently Asked Questions
Question: What are the differences between the two part numbers for the NI-5762?
Answer: Part number 781749-01 for the NI-5762 has an AC-coupled input with a 100 MHz elliptic filter, while part number 781749-02 is AC-coupled and optimized for undersampling applications. Both versions have the same peak-to-peak input range.
Question: What type of front panel connectors does the NI 5762 have?
Answer: The NI 5762 has SMA and HDMI front panel connectors.
Question: How many bidirectional digital I/O channels does the NI-5762 have?
Answer: The NI-5762 has 12 bidirectional digital I/O channels.
Question: Does the NI 5762 require any additional models or accessories to operate?
Answer: The NI-5762 requires a compatible NI FlexRIO FPGA module to operate.
