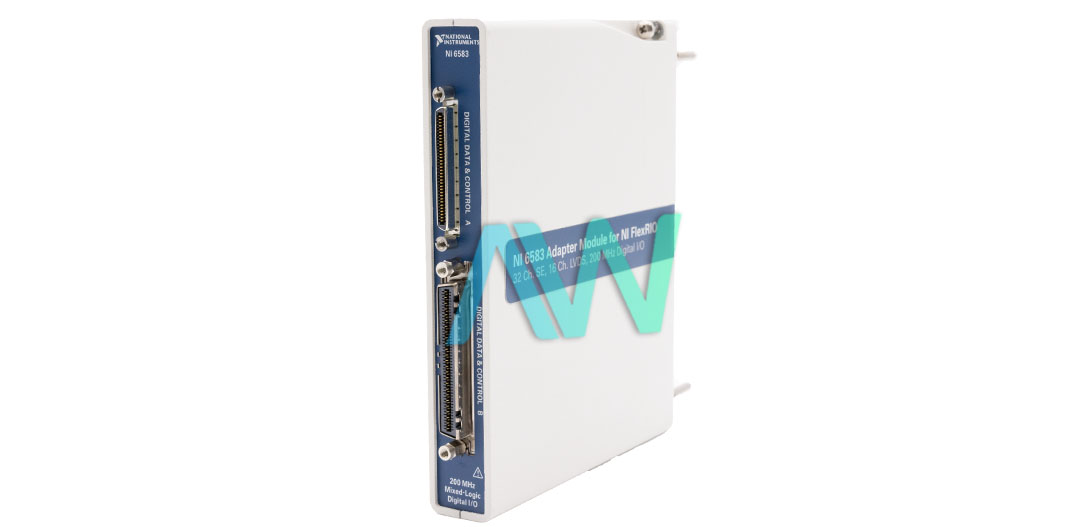

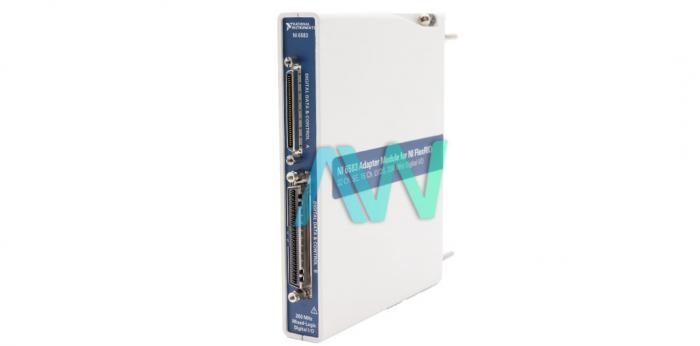

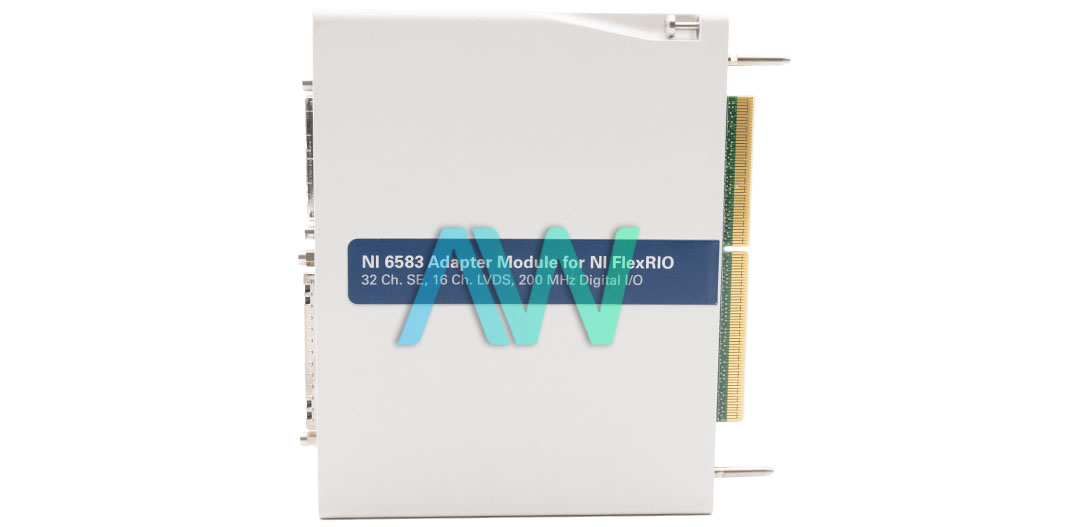

National Instruments NI-6583 Digital I/O Adapter Module for FlexRIO
The NI-6583 (Part Numbers: 781320-02, 781320-01, 199490C-01L and 199490B-02L) Digital I/O Adapter Module for FlexRIO is capable of testing computerized waveforms as huge as 200 MHz. This module has 16 LVDS channels and 32 single-finished channels. It incorporates bolster for selectable single-finished voltages from 1.2 to 3.3 Volts with 10-bit resolution and regular LVDS voltages. The NI SHC68-H1X38 link included is a single finished link that breaks out each single-finished signal into two 0.1-inch header containers, one repository, each for the signal and ground. The NI SHC68-H1X38 link gives a simple method to associate NI single-finished digital signals to different kinds of gadgets and circuits for interfacing, testing, or investigation.
The NI-6583 highlighted free single and differential channels are equipped for concurrent I/O. The single finished links and terminal squares must be utilized with the VHDCI connector, while the differential links and terminal squares must be utilized with the infini-band connector. Users can utilize a flying leads cable with the NI Separate links that should be bought for the single finished and the differential channels.
This model has 200 MHz of maximum clock rate (300 Mbit/s information rate in twofold information rate mode), 35 (32 + 3 PFI) single-finished channels with voltages in a range between 1.2-3.3V including 10 bit of resolution, 19 (16 + 3 PFI) LVDS or mLVDS bidirectional channels per-stick course control on every single channel that includes 10 ns state change time, and parallel activity of single finished and differential channels.
| Model | NI-6583 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 781320-02, 781320-01, 199490C-01L 199490B-02L |
| Type | Digital I/O Adapter Module for FlexRIO |
| Bidirectional Digital Channels | 32 |
| Maximum Clock Rate | 200 MHz |
| Maximum Data Rate | 300 Mbits/s |
| Direction Control of Digial I/O | Per Channel |
| Nominal Output Impedance | 50 Ω |
| Input Range | –1.4 V to +3.8 V |
| Operating Temp Range | 0 °C to 55 °C |
| Storage Temp Range | –20 °C to 70 °C |
| Front Panel Connectors | (1) 68-Pin VHDCI and (1) 73-Pin InfiniBand Connector |
| Dimensions | 5.1 x 0.8 x 4.7 in. (12.9 × 2.0 × 12.1 cm) |
| Weight | 10 oz. (284 g) |
| Warranty | Three Year Warranty |
| NI-6583 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for NI-6583:
National Instruments NI-6583 Frequently Asked Questions
Question: What is the digital I/O termination for the NI-6583?
Answer: The NI-6583 has 50 Ohm digital I/O termination.
Question: What is the difference between the two part numbers for the NI-6583?
Answer: The Digital I/O Adapter Module has two types of differential signals available: part number 781320-01 with low-voltage differential signals (LVDS) and part number 781320-02 with multipoint low-voltage differential signals (MLVDS).
Question: Which cables/accessories are not EMC-compliant for use with the module?
Answer: The following cables/accessories are not EMC-compliant for use with the NI-6583: the NI SHB12X-H3X24 differential flying-lead/LA cable for HSDIO, the NI CB-2162 single-ended digital I/O accessory, the NI SMA-2164 prototyping accessory for NI 656X, and the NI SHC68-H1X38 high-speed digital flying-leads cable accessory.
Question: What is the maximum cable length for the LVDS signal of the NI-6583?
Answer: There is not a maximum cable length specified for the LVDS signal of the NI-6583, but the cables NI suggests for the module are 1.5 m.
