National Instruments 77852-01 IMAQ Device

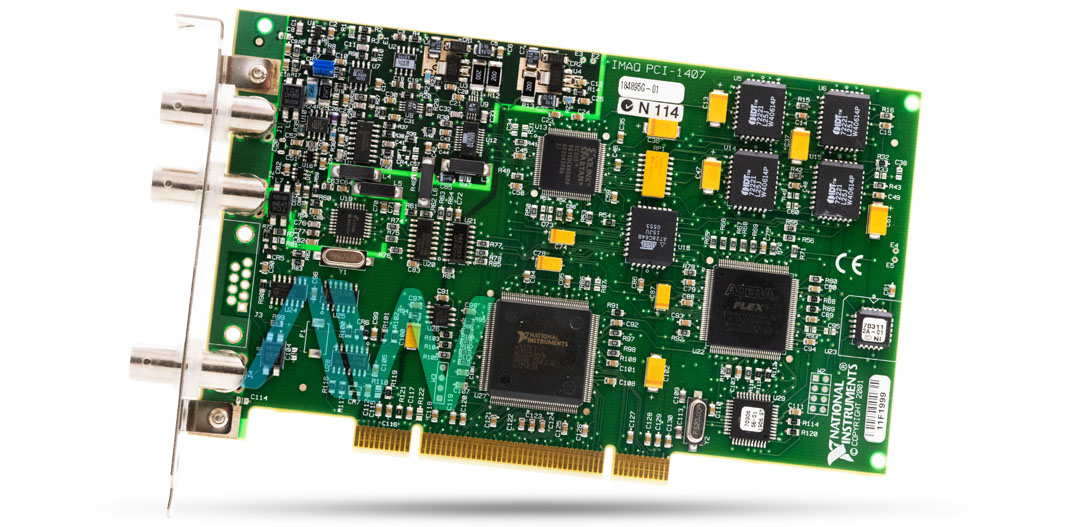

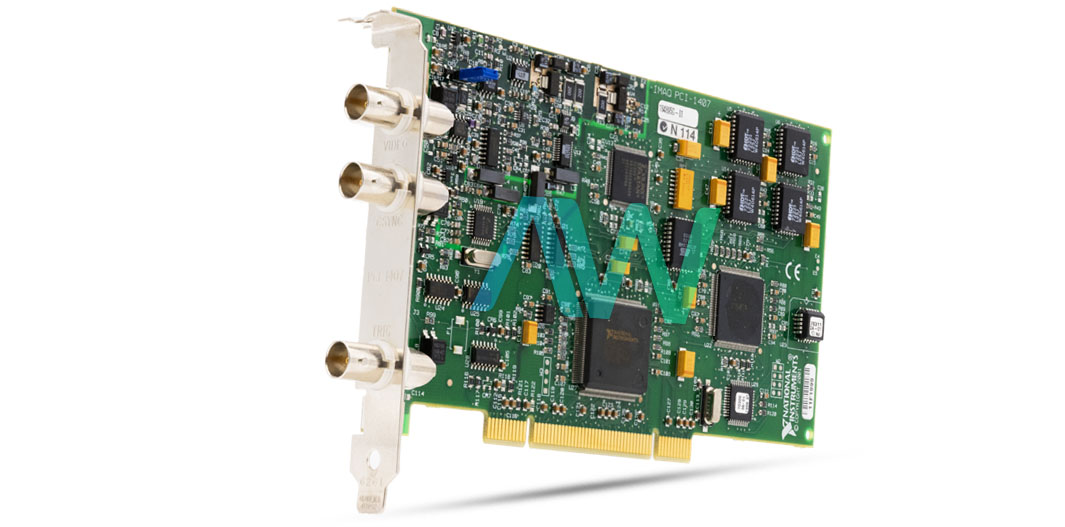

National Instruments part number 777852-01 is an identifying part number for the PCI-1407 a Monochrome IMAQ Device with 1 Video Input and 15 MHz Frequency Response. This part is designed for PCI chassis. It supports CCIR and RS-170 video standards and offers real-time frame acquisition with direct transfer to system memory. It device supports progressive scan formats and is equipped with an 8-bit analog-to-digital converter (ADC) to process video signals and convert them into digital form.

The 777852-01 delivers high accuracy, making it an excellent choice for scientific and industrial settings. This model supports one video source and one external I/O, serving as a stand-alone device. Both the video source and external device can function as a digital I/O line or trigger.

With a frequency response of 15 MHz (-3 dB) typical, the NI device supports progressive scans at rates of 25, 30, 50, and 60 frames per second. The PCI interface of this device features a 32-bit data path and operates exclusively at a voltage of 5 V. It is designed as a 32-bit half-size card, offering compatibility with systems requiring this form factor. Parity generation/checking and error reporting are supported functionalities, ensuring data integrity.

The target decode speed is classified as medium, operating at 1 clock speed for efficient processing. This user-friendly device offers easy configuration, enabling swift initiation of image acquisition using NI-IMAQ. With the PCI 1407 driver and NI-IMAQ, users can promptly launch applications without the need for programming or configuring the device at the register level. Additionally, the device can be programmed using popular application development environments such as LabVIEW, LabWindows/CVI, or Visual Basic.

Part Number777852-01
Model RangePCI-1407
Part TypeFrame Grabber
Frequency Response15 MHz (-3 dB) typical
Progressive Scan25, 30, 50, 60 frames/s
Formats SupportedRS-170 and CCIR
Video Inputs1
Input Impedance75 Ω (±1%), 1 Ω (±5%)
Sampling Rate11.7 to 31 MHz
Signal-to-ratio48 dB typical
