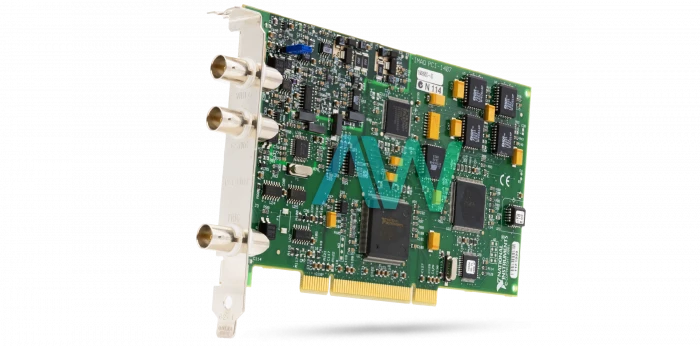

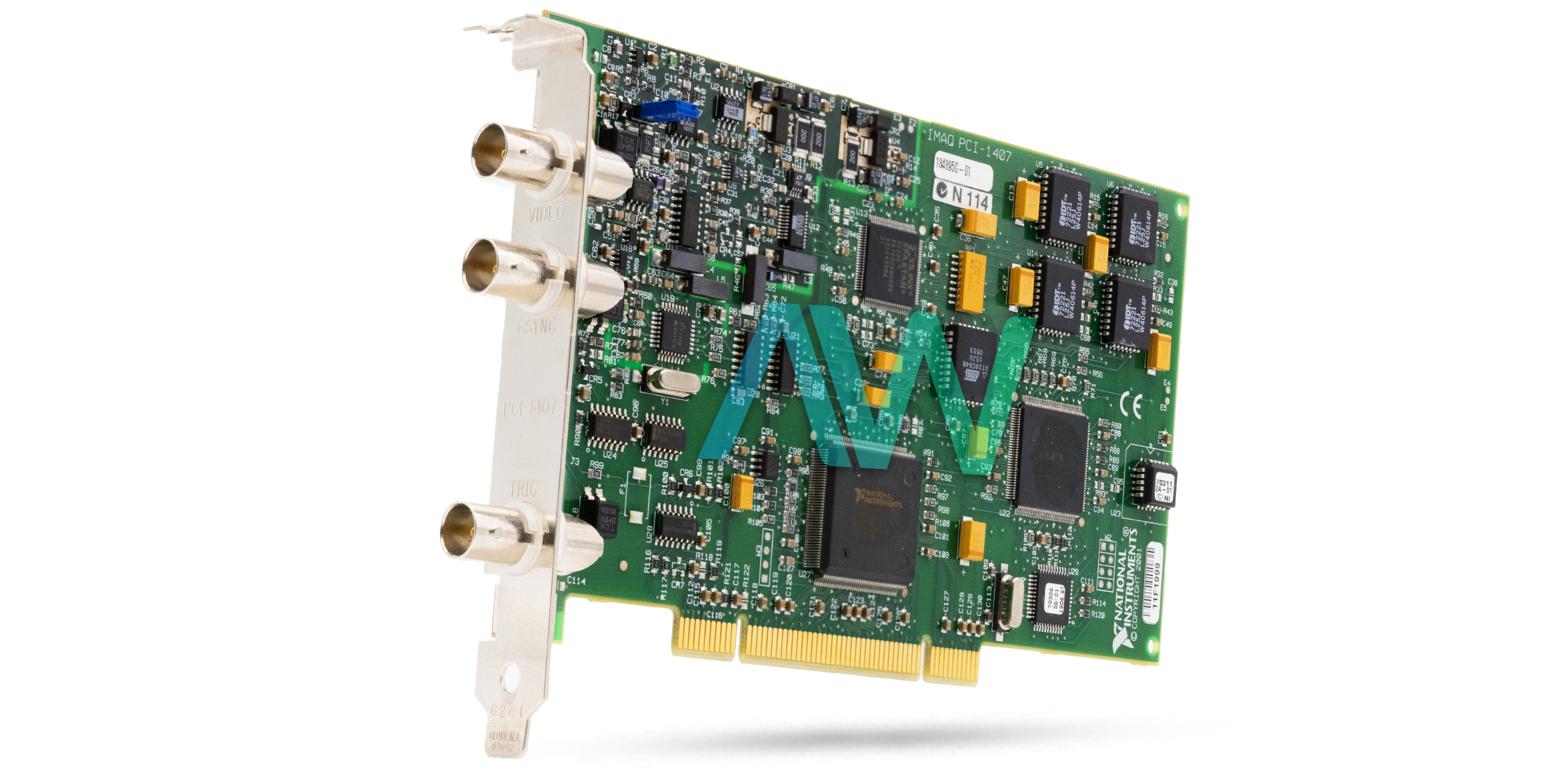

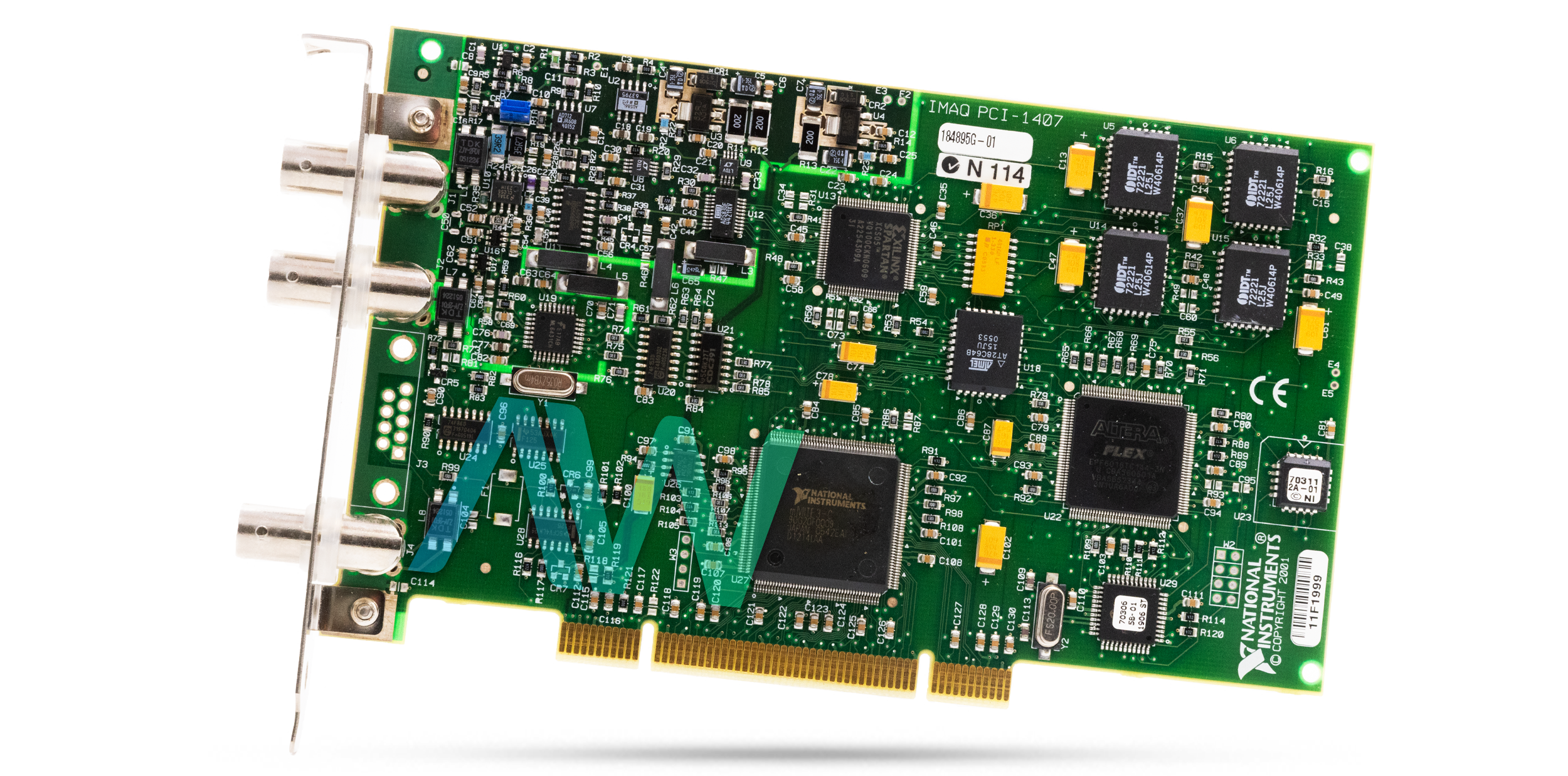

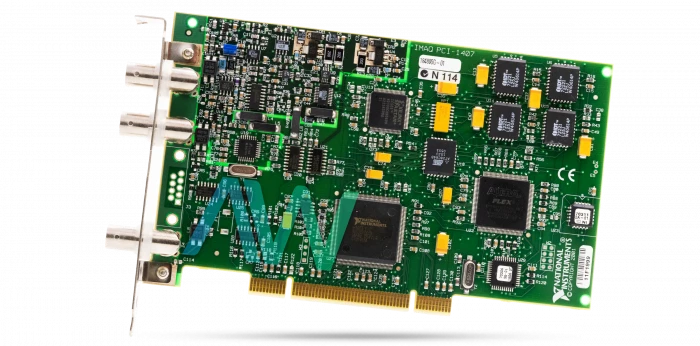

National Instruments PCI-1407 IMAQ Frame Grabber Device
The National Instruments PCI-1407 (Part Number: 777852-01) is a high-accuracy, industrial grade, monochrome IMAQ Device for PCI chassis that supports CCIR and RS-170 video standards. This module comes with an ability to acquire frames in real time and to transfer the acquired frames directly to system memory. The NI PCI 1407 also supports progressive scan formats and comes featured with an 8-bit analog-to-digital converter (ADC) that processes video signals and converts them into the appropriate digital form.
This simple to configure device allows the user to begin image acquisition quickly with the help of NI-IMAQ, which is a comprehensive image acquisition driver. With the PCI 1407 driver, NI-IMAQ, users will be able to start an application quickly without having to program or configure the device at register`s level. The device can be programmed using application development environments such as LabVIEW, LabWindows/CVI, or Visual Basic. The IMAQ PCI-1407 is a budget device that offers high accuracy at a low cost- an ideal solution to be considered for both scientific and industrial environments. This model supports one video source and one external I/O as a stand-alone device. The video source and external device can be used as a digital I/O line or trigger. The NI device has a frequency response of 15 MHz (-3 dB) typical, with progressive scans of 25, 30, 50, 60 frames per second.
If the user needs more sophisticated triggering or more I/O lines, then they can utilize the NI PCI-1407 with the DAQ product line by National Instruments. This device can be installed in an empty PCI expansion slot in a PC. However, consider leaving adequate space between the PCI-1407 and other installed boards to achieve optimum noise performance. This device comes equipped with offset and gain circuitry to optimize the ADC input signal range. Moreover, for high-speed data transfer, it also features a PCI interface.
The PCI-1407 weighs 0.28 lb, and measures 4.2 x 6.9 in.in physical dimensions. It has recommended operating and storage temperature ranges of 0 to 55 °C and –20 to 70 °C respectively, a non-condensing relative humidity range of 10 to 90%.
The PCI-1407 can no longer be found directly from the manufacturer National Instruments (NI), but the IMAQ Device will remain available in perpetuity with Apex Waves!
| Model | PCI-1407 |
|---|---|
| Manufacturer | National Instruments |
| Type | Frame Grabber |
| Video Inputs | 1 |
| Frequency Response | 15 MHz (-3 dB) typical |
| Formats Supported | RS-170 and CCIR |
| Progressive Scan | 25, 30, 50, 60 Frames/s |
| Dimensions | 4.2 x 6.9 in. |
| Weight | 0.28 lb. |
| Warranty | Three Year Warranty |
| PCI-1407 Manual | User Manual and Maintenance Manual Available for Download |
| Price | For Pricing, Request a Quote Today! |
Associated part numbers for PCI-1407:
National Instruments PCI-1407 Frequently Asked Questions
Question: How many DMA controllers does the PCI-1407 have?
Answer: The IMAQ Device has 3 DMA controllers.
Question: Which acquisition modes are available on the NI PCI-1407?
Answer: There are two acquisition modes: CSYNC external mode and standard mode.
Question: What is the maximum working voltage for the Frame Grabber?
Answer: The maximum working voltage for the NI PCI-1407 is 5 V, Installation Category I.
Question: What are the rates found on the PCI-1407?
Answer: The IMAQ Device has a rate of 30 frames/s for the RS-170 format and 25 frames/s for the CCIR format.
