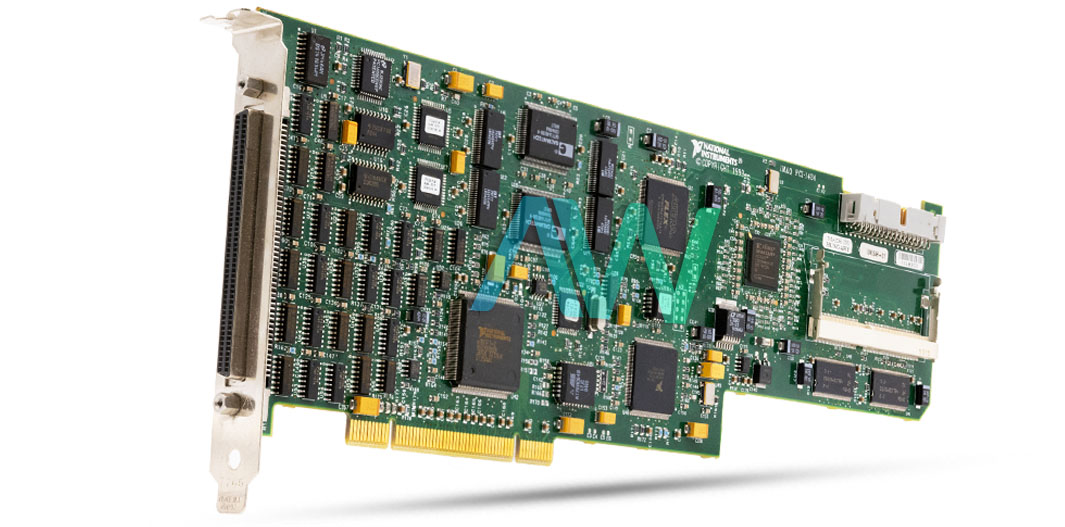

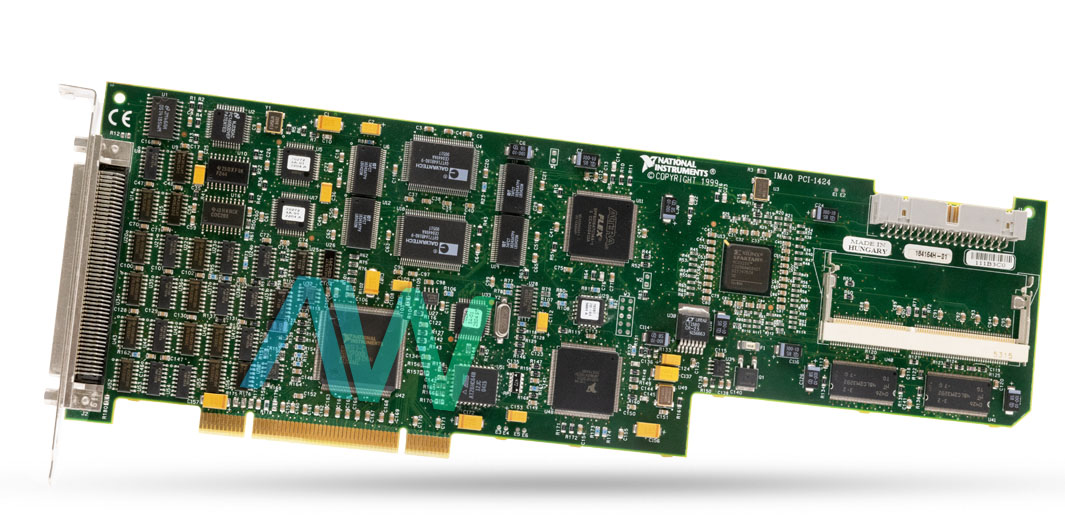

National Instruments PCI-1424 Digital Camera Image Acquisition Board
The NI PCI-1424 (Part Numbers: 777662-01 RS-422/TTL and 777662-02 LVDS/TTL) is a 32-Bit, Parallel Digital Frame Grabber Device. This device is designed to acquire color, as well as greyscale images and to control digital cameras. The NI PCI-1424 is an ideal device for capturing high-resolution digital images. This device features an internal memory where images are processed and stored initially at a clock speed of 50 MHz for an accumulative acquisition rate of 133 MB/s. The PCI-1424 Frame Grabber comes with 16 MB memory. However, the user can choose to utilize memory modules to increase the onboard memory. To achieve an increase in the overall throughput, the user can utilize the onboard memory, since it provides adequate buffering for large images before having them transferred to PC memory.
The NI PCI-1424 comes with the NI Vision Acquisition Software 8.0 or later, which is fully compatible with software packages/application development environments (ADEs) such as LabVIEW, LabWindows/CVI, Microsoft Visual Basic, NI Vision Builder for Automated Inspection, NI Vision Development Module, and Measurement Studio. NI Vision Acquisition Software comes with the NI-IMAQ driver. This Frame Grabber can be used with D100 series camera cables, but this is dependent on the user’s camera. The device has a 100-pin SCSI type I/O connector.
To control digital cameras, the PCI-1424 features an RS232 Serial Interface. The lines of the RS232 are incorporated on the 100-pin connector. Thus, this option can be used to control devices with a serial interface. For real-time mapping of the data from one value to another, the NI PCI-1424 has four 8-bit or two 10-to-16-bit LUTs (lookup tables). In addition, configuration of a rectangular ROI window can be accomplished for the reduction of overall data across the PCI bus. This device supports up to 4 external trigger I/O lines with a voltage range of 0 V to 5 V (TTL). It has a weight of 0.5 lbs., with the dimensions measuring 4.2 in. × 12.283 in. (10.668 cm × 31.2 cm).
The PCI-1424 Image Acquisition Board is no longer available from National Instruments, but Apex Waves will continue to Buy, Sell, and Repair EOL hardware in perpetuity! Request a quote today.
| Model | PCI-1424 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 777662-01 and 777662-02 |
| Series | Frame Grabbers |
| Type | Digital Camera Image Acquisition Board |
| External Trigger I/O Lines | 4 |
| Resolution | 32-Bit |
| Trigger Voltage Range | 0 to 5 V |
| Onboard Memory | 16 MB SDRAM |
| Theoretical Bandwidth | 133 MB/s |
| Polarity | Programmable |
| Operating Temp Range | 0° to 55 °C |
| Storage Temp Range | –20° to 70 °C |
| Dimensions | 4.2 in. × 12.283 in. (10.668 cm × 31.2 cm). |
| Weight | 0.5 lb. (1.1 kg) |
| Warranty | 2-3 Year Warranty |
| PCI-1424 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote for Information on Pricing |
Associated part numbers for PCI-1424:
National Instruments PCI-1424 Frequently Asked Questions
Question: Why are there two part numbers for the PCI-1424? What is the difference between the two models?
Answer: Part Number 777662-01 is compatible with RS422 and TTL digital cameras, while Part Number 777662-02 is compatible with LVDS and TTL digital cameras.
Question: What accessories are available for the NI PCI-1424?
Answer: The PCI-1424 has several accessories available for purchase, including: a 2 m 100-pin to 100-pn extension cable, a 4 m 100-pin to 100-pin extension cable, and a digital trigger accessory. Memory upgrades to 32 MB or 64 MB can also be purchased.
Question: Which driver software is included on the Digital Camera Image Acquisition Board?
Answer: The PCI-1424 comes with NI Vision Acquisition Software.
Question: How many clock outputs does the NI PCI-1424 have?
Answer: The board has two clock outputs.
Question: What is the acquisition rate for the PCI-1424?
Answer: The acquisition rate is 200 MB/s.
PCI-1424 PDF Manuals
PCI-1424-LETTER-OF-VOLATILITY.PDF
ARCHIVED--IMAQ-MEMORY-MODULE-INSTALLATION-GUIDE.PDF
ARCHIVED--KODAK-MEGAPLUS-ES-1.0-CAMERA-GUIDE.PDF
ARCHIVED--SETUP-AND-TEST-THE-PCI-1424.PDF
GETTING-STARTED-WITH-THE-NI-PCI-1424.PDF
IMAQ-SCB-100-CONNECTOR-BLOCK-AND-IMAQ-D100100-CABLE.PDF
