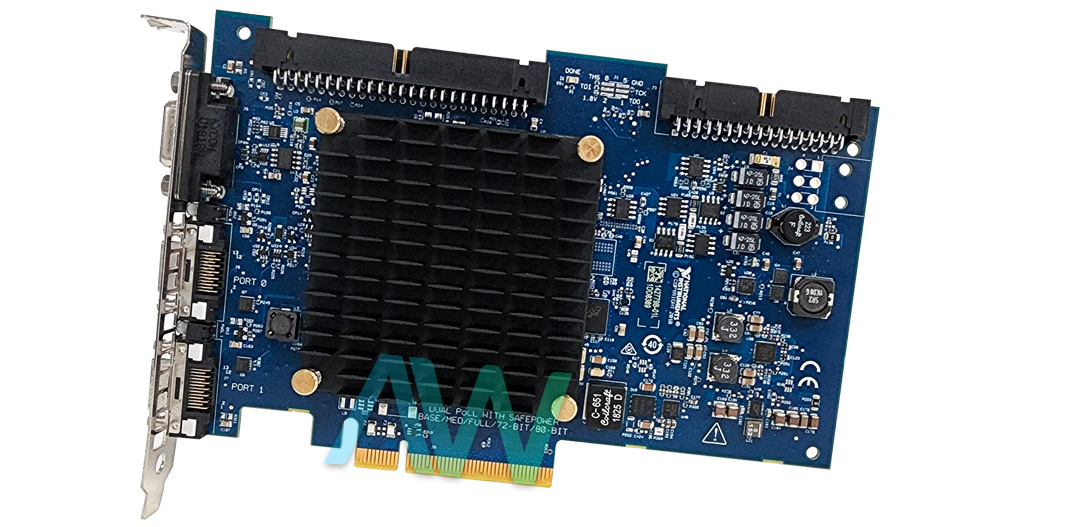

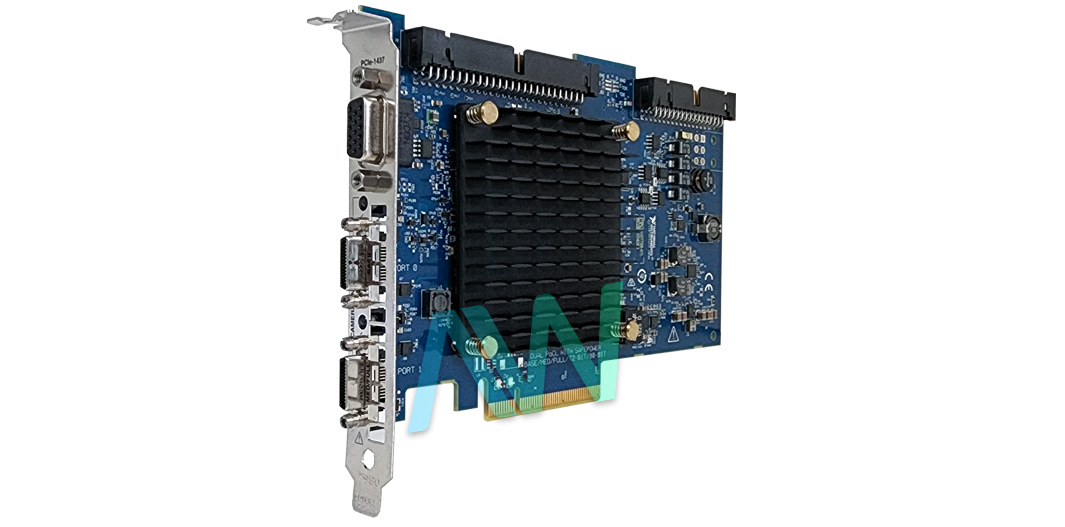

National Instruments PCIe-1437 Frame Grabber Device
Featured with camera link and an onboard FIFO, the NI PCIe-1437 (Part Number: 785605-01) is a Frame Grabber Device from National Instruments. This device is PoCL-compatible and designed for scientific imaging and machine vision applications where alleviated data throughputs are required. The FIFO integrated into the PCIe-1437 makes it capable of working with any full-, medium-, and base-configuration Camera Link imaging device or camera. This device is widely used across the industry for biomedical and industrial imaging applications.
The National Instruments PCIe-1437 Frame Grabber Device can power the attached camera through a PoCL-enabled cable, since it fully supports Power over Camera Link. This Frame Grabber Device comes with a PCI Express bus connector and can easily be deployed into any unoccupied PCIe slot of your desktop computer. The NI PCIe-1437 supports Camera Link version 2.1 and has two 26-pin SDR camera connectors. For general-purpose digital I/O connections, this device has a 15-pin female D-SUB connector.
The PCIe-1437 Frame Grabber Device can acquire images in a variety of pixel formats, including 16-bit, 14-bit, 12-bit, 10-bit, 8-bit, etc. This Frame Grabber Device is manufactured in accordance with the x8 PCIe form factor. The NI PCIe-1437 is compatible with both x16 and x8 PCIe slots. The PCIe-1437 can acquire images at astonishing rates because it comes with a 512 MB on-board memory buffer. The DDR3 SDRAM integrated memory enables this device to process and transmit images smoothly without any lag. This Frame Grabber Device supports communications over serial interface at different baud rates, such as 9.6 kb/s, 230.4 kb/s, 921.6 kb/s, and more.
| Model | PCIe-1437 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 785605-01 |
| Type | Frame Grabber Device |
| Camera Connectors | Two 26-pin SDR |
| General-Purpose Digital I/O Connectors | One 15-pin high-density female D-SUB |
| Supported Camera Standard | Camera Link 2.1 |
| Supported Configurations | Lite, Base, Medium, Full, 72-bit, 80-bit |
| Dimensions | 6.6 in. × 4.4 in. |
| Weight | 6.35 oz. |
| Warranty | 2-3 Year Warranty |
| PCIe-1437 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
