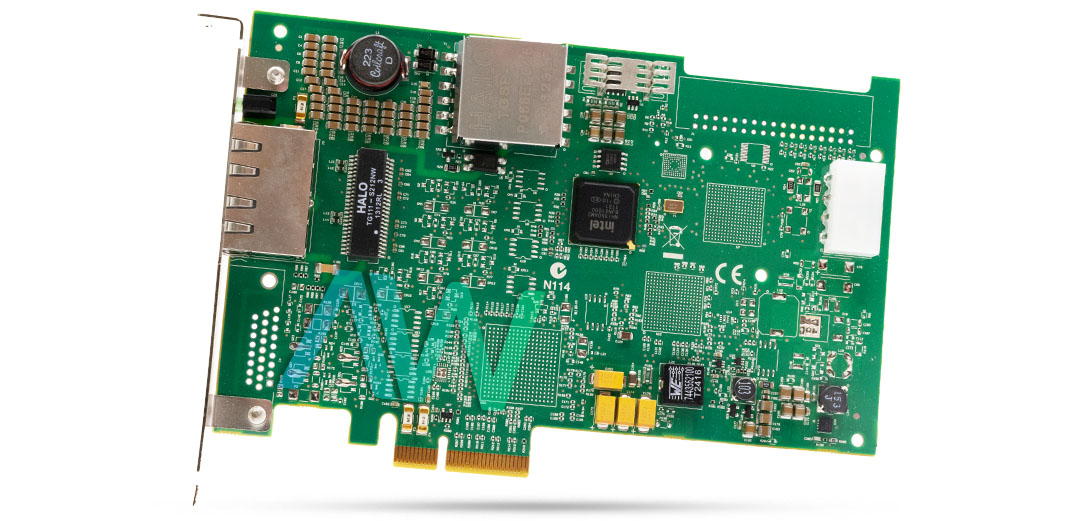

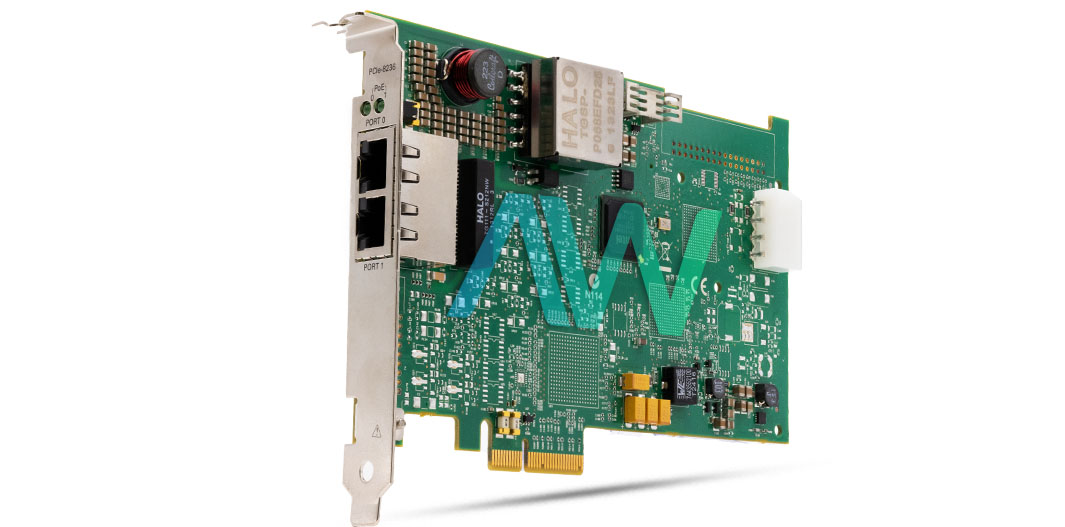

National Instruments PCIe-8236 Frame Grabber Device

The PCIe‑8236 (Part Number: 782524-01) has a GigE Vision capability that depends on GenICam™ to portray the highlights upheld by the camera. This portrayal appears as an XML gadget depiction record regarding the sentence structure characterized by the GenApi module of the GenICam determination. GenICam is a non-specific programming interface for a wide range of cameras. This model accomplishes the objective of coherency between different vision benchmarks.

Notwithstanding the physical interface characterized by the Gigabit Ethernet standard (among others), the particularly clear and consistent execution of the GigE Vision Standard is a simple combination in all picture handling programs by means of the utilization of programming "libraries". In addition, as long as the trading of GigE Vision perfect cameras can be performed without changing the application programming, new speculations and follow-up expenses can be assessed and very much arranged with cameras considering the GigE Vision Standard. The NI Vision Acquisition programming takes the full preferred standpoint of NI gigabit Ethernet interfaces, limiting CPU use for picture obtaining from GigE Vision cameras. With Basler cameras and NI Vision Acquisition programming, National Instruments gives every one of the devices the user requires for machine vision applications. NI Vision Acquisition programming incorporates every one of the capacities for counting and setting up the camera's abilities, such as programmable shade speed. It also gives a solitary API to help all GigE Vision and IEEE 1394 cameras. By utilizing NI Vision Acquisition programming capacities, the user can get pictures from GigE Vision or IEEE 1394 cameras without evolving.

ModelPCIe-8236
ManufacturerNational Instruments
Part Number782524-01
TypeFrame Grabber Device
Number of Ports2 Ports
FPGANo
Speed10, 100, 1000 Mbps
Camera InterfaceGigE Vision
StandardIEEE 802.3 10BASE-T, 100BASE-TX, 1000BASE-T
I/O ConnectorsRJ45
PCI Express Compliance1.1
Bus PowerPower over Ethernet (PoE) (IEEE 802.3af Compatible)
LEDs4 (Two LEDS per Ethernet port)
Power Requirements+12 V, +3.3 V - 0.34 A, 0.74 A
Dimensions4.4 in. × 6.6 in.
Weight0.33 lb.
Driver SoftwareNI-IMAQdx 4.1
NI Vision
Warranty2-3 Year Warranty
PCIe-8236 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PCIe-8236:

National Instruments PCIe-8236 Frequently Asked Questions



Question: Can I use the PCIe-8236 as a Conventional Ethernet Port to connect to a local area network?

Answer: Yes, the PCIe-8236 provides two standard Gigabit Ethernet ports, which you can use as a conventional Ethernet port to connect to a local area network.



Question: What is the benefit of using Power of Ethernet (PoE) technology on the PCIe-8236?

Answer: PoE used on the PCIe-8236 reduces the need for external power by providing power to the camera through the Ethernet bus.



Question: Is the NI PCIe-8236 Restriction of Hazardous Substances (RoHS) compliant?

Answer: Yes, the NI PCIe-8236 is RoHS compliant.
