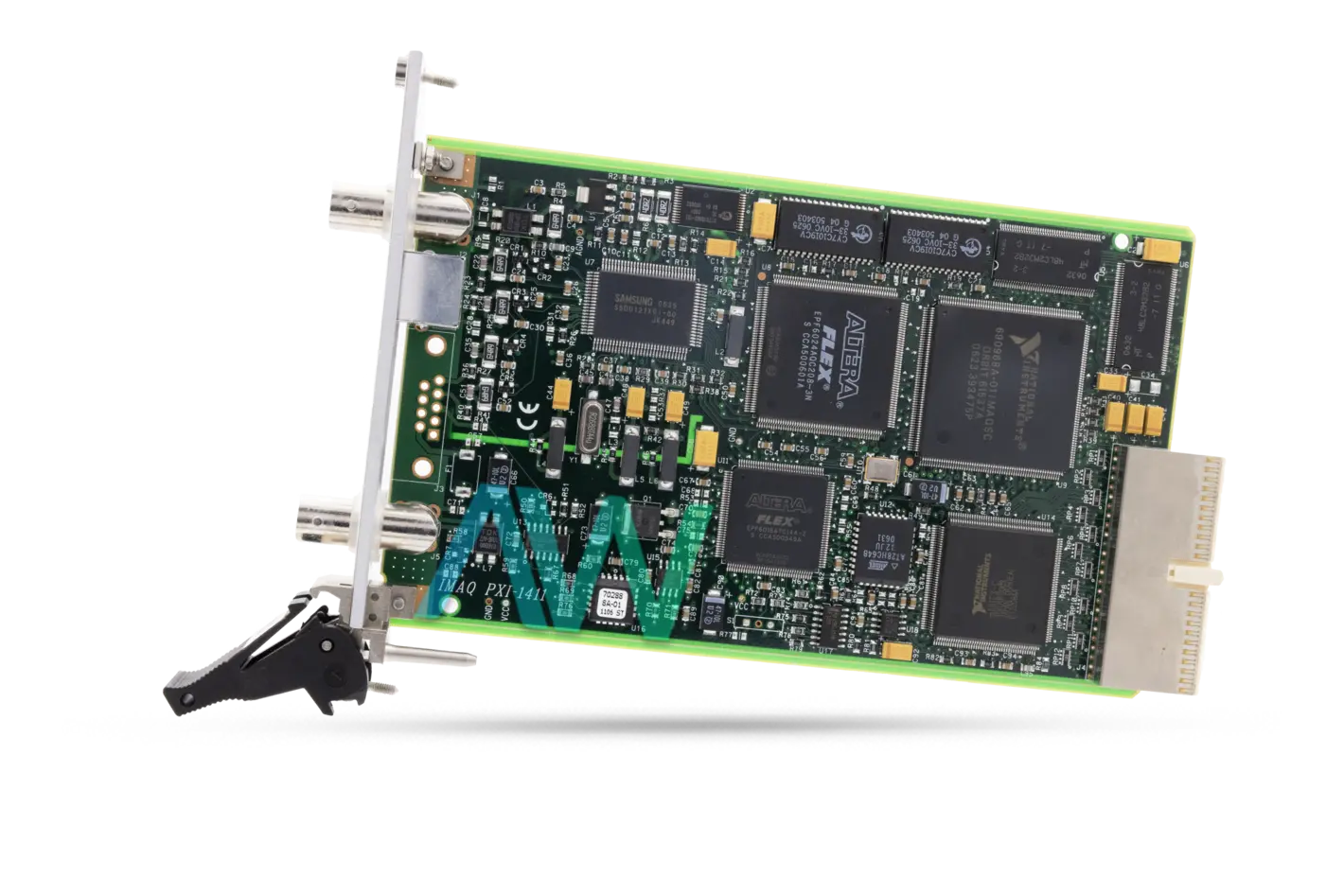

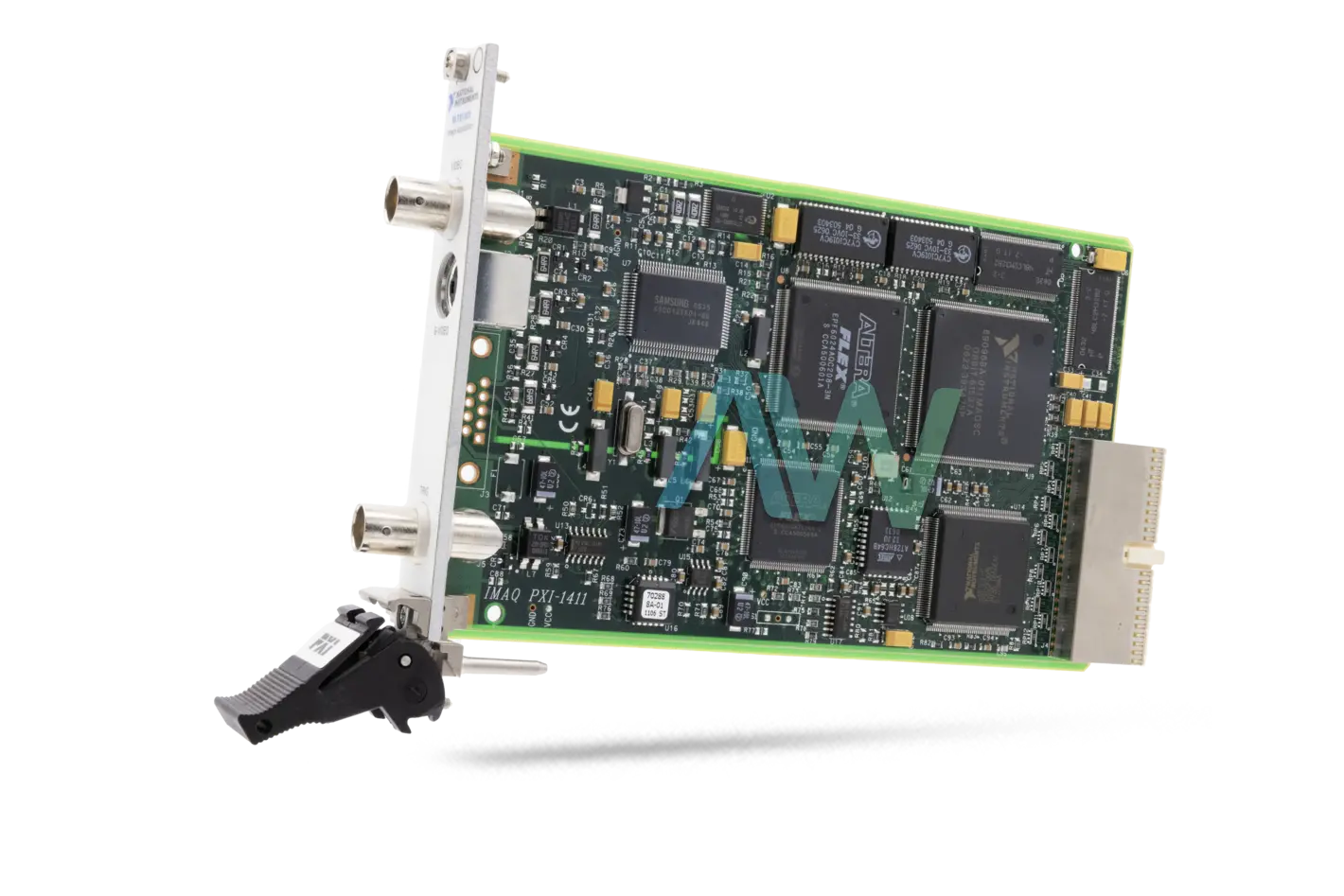

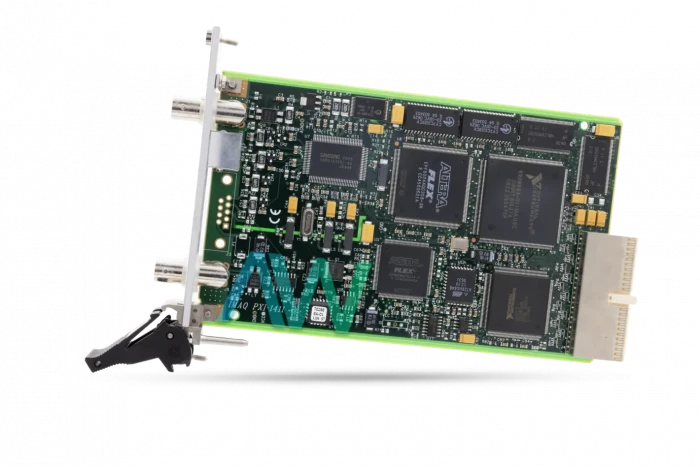

National Instruments PXI-1411 IMAQ Device
The PXI-1411 (Part Number: 778006-01) IMAQ Device comes with 16 MB of locally available fast synchronous dynamic RAM (SDRAM). The NI PXI-1411 can utilize the locally available RAM as a first-in first-out (FIFO) buffer, exchanging the image information as it is acquired or acquiring the image information into SDRAM and holding it for a later exchange to main memory. This model has a trigger control that screens and drives the outer trigger line. The user can arrange this line to begin an acquisition on a rising or falling edge and drive the line asserted or unasserted, like a computerized I/O line. The user can also map many of the PXI-1411 status signals to this trigger line and program the trigger line in polarity and direction.
The acquisition, scaling, and region of interest (ROI) circuitry screens the incoming video signals and routes the dynamic pixels to the SDRAM memory. The NI PXI-1411 can perform ROI and scaling on all video lines and edges. Pixel and line scaling exchange certain multiples (two, four, or eight) of pixels and lines to locally available memory. In a ROI acquisition, the user selects a region inside the acquisition window to exchange to the PCI bus.
Among the optional software packages included in this model, the user will find IMAQ Vision for LabView or Measurement Studio (LabWindows/CVI, Visual C++, Visual Basic), LabView, Measurement Studio (LabWindowsCVI, Tools for Visual Basic), and IMAQ Vision Builder.
If you are interested in this model and you want to learn more about its options, features, and specifications, you can read its manual, which is available on the ApexWaves.com website.
| Model | PXI-1411 (778006-01) |
|---|---|
| Manufacturer | National Instruments |
| Series | Frame Grabbers |
| Type | IMAQ Device |
| Video Inputs | 1 color |
| Video Input Impedance | 75 Ohms |
| Formats Supported | NTSC composite or S-video, PAL composite or S-video |
| Dimensions | 3.9 x 6.3 in. |
| Warranty | 2-3 Year Warranty |
| PXI-1411 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXI-1411:
National Instruments PXI-1411 Frequently Asked Questions
Question: What is the pixel sampling rate for the PXI-1411?
Answer: The PXI-1411 has a pixel sampling rate of 12.27 MHz for NTSC format and 14.75 MHz for PAL format.
Question: Which devices can the NI PXI-1411 be used with?
Answer: The NI PXI-1411 can be used with CompactPCI, PXI, and PCI Chassis that support many types of analog cameras.
Question: What is the maximum transfer rate of the PXI-1411?
Answer: The PXI-1411 has a maximum transfer rate of 132 Mbytes/s.
Question: Where can I find the NI PXI-1411 user manual?
Answer: The NI PXI-1411 user manual can be downloaded from apexwaves.com.
