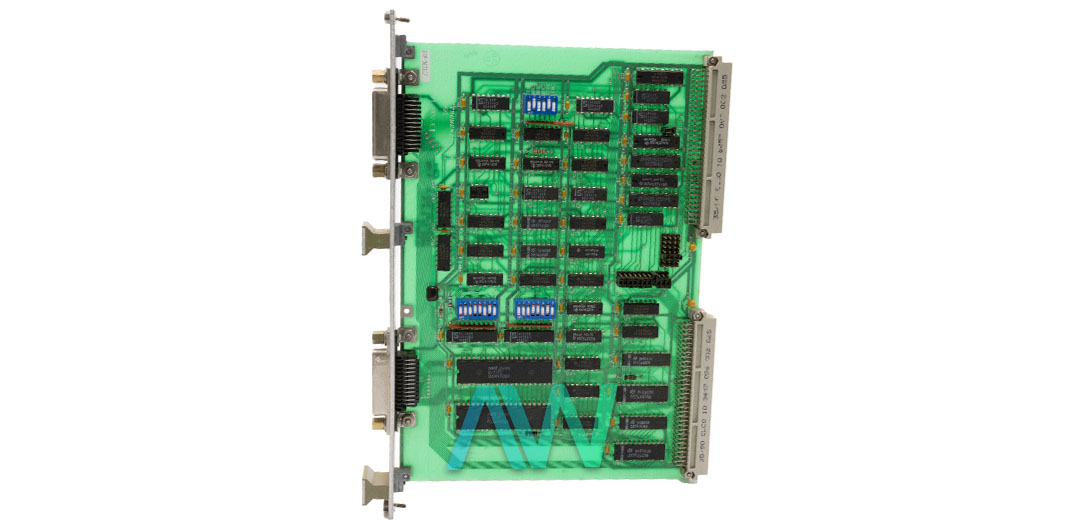

GPIB-1014D National Instruments GPIB Interface for VMEbus | Apex Waves | Image

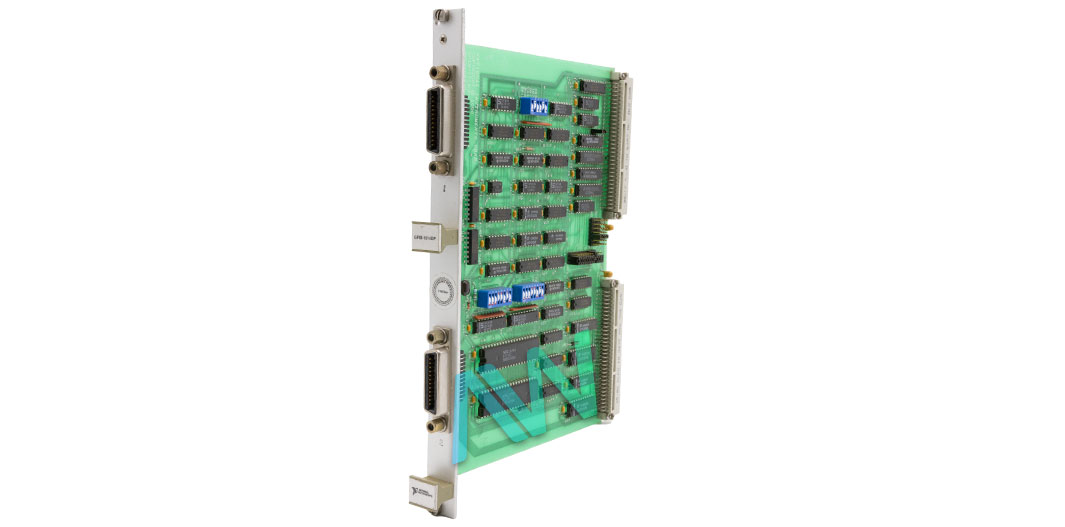

GPIB-1014D National Instruments GPIB Interface for VMEbus | Apex Waves | Image
GPIB-1014D New
GPIB-1014D Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

GPIB-1014D National Instruments GPIB Interface for VMEbus | Apex Waves | Image
GPIB-1014D National Instruments GPIB Interface for VMEbus | Apex Waves | Image
GPIB-1014D New
GPIB-1014D Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments GPIB-1014D GPIB Interface for VMEbus

The GPIB-1014D serves as a high-performance IEEE-488 GPIB Interface designed and developed for VMEbus. The device GPIB-1014D is created by National Instruments. If installed on a VMEbus based computer, the GPIB Interface can be used to control engineering, scientific, and medical instruments compatible with the IEEE-488 standard. The NI GPIB-1014D has the conformance certification against all the codes, conventions, and requirements of the ANSI/IEEE 1014-1987 standard.

The National Instruments GPIB-1014D includes dual independent interfaces of IEEE-488. The IEEE-488 interface has the ability to act as controller, listener, or talker. This capability is available on each IEEE-488 interface if two separate NEC µPD7210 GPIB TLC chips are used. The NI GPIB-1014D can monitor the status of all GBIP control lines for each interface. The only limiting factor in GBIP is the response time of the listener regarding the transfer speed. The transfer speed of this GPIB Interface can be increased up to 500 kbytes/s. The contributing factors of increasing the transfer rate of the interface include the VMEbus memory read response time, the response time of the GBIP listener, as well as the transfer mode. The power requirement for the NI GPIB-1014D is +5 VDC with a maximum current of 2.9 A.

The GPIB-1014D can be used in multiprocessor applications. The P1 and P2 connectors in VMEbus are used to interface between the GPIB Interface and VMEbus backplane. The National Instruments GPIB-1014D can be operated within a wide temperature range from 0° to 70° C.

ModelGPIB-1014D
ManufacturerNational Instruments
TypeGPIB Interface
Ports2
IEEE 488 CompatibilityCompatible with IEEE 488.1
Driver SoftwareESP-488
Programmed I/O Transfer RatesOver 80 kbytes/sec
DMA Transfer RatesOver 500 kbytes/sec
Dimensions6.3 in. by 9.2 in.
Warranty2-3 Year Warranty
GPIB-1014D ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.
