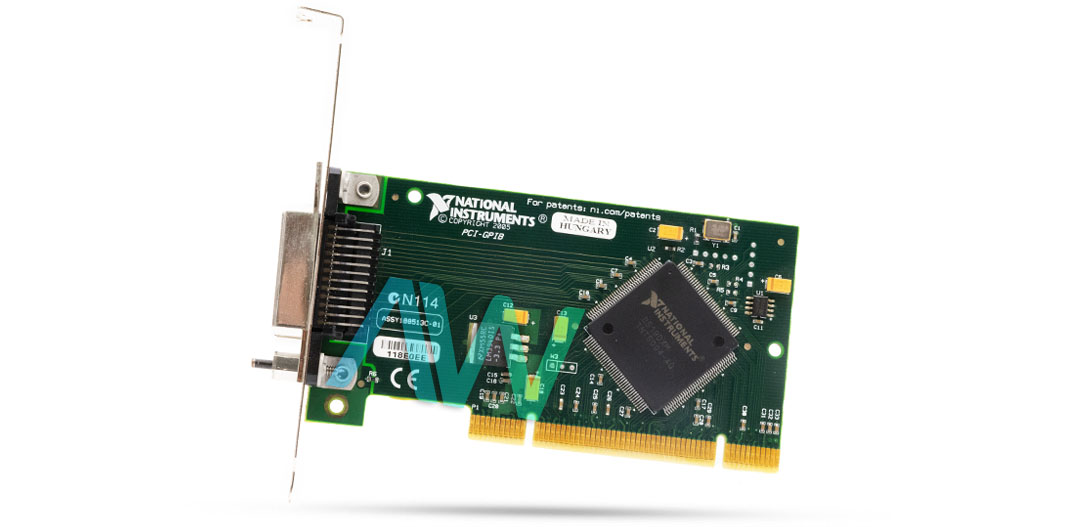

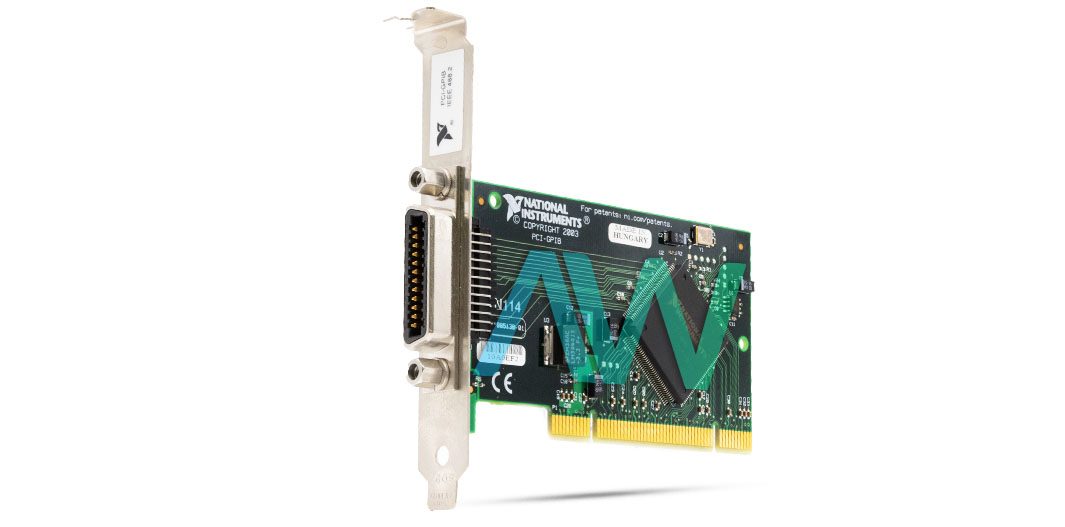

National Instruments PCI-GPIB GPIB Instrument Control Device
The PCI-GPIB (Part Numbers: 778686-01, 778032-01, 783007-01) can support information exchange rates of more than 1.5 MB/s utilizing the IEEE 488.1 three wire interlocked handshake. This device also actualizes the fast IEEE 488.1 non-interlocked handshake (HS488) for benchmarked information exchanges at more than 7.7 MB/s. The locally available DMA controller implies that there are no microchip interferences in information exchange. The device is equipped with an IEEE 488 standard 24-pin I/O connector.
A PCI-GPIB Board can be a Talker, Listener, and additionally Controller. As the name suggests, a Talker sends information to at least one Listener, A Listener acknowledges information from a Talker, and a Controller deals with the stream of data over the bus. A NI PCI-GPIB is a Listener when its information designs and ranges are set, then functions as a Talker when it sends its readings to the PC. The Controller is accountable for all interchanges over the bus. The Controller's activity is to ensure just a single gadget attempts to talk at once, while ensuring the right Listeners are focusing when the Talker talks. Each PCI GPIB Controller Card’s framework has a solitary framework controller. The framework controller is accountable for the transport and is in charge as the transport is fueled up.
The PCI-GPIB is an 8-bit parallel information exchange bus. The IEEE-488 bus features 8 data lines, 8 control lines, and 3 handshake lines. The rest of the standard 24 stick GPIB link is utilized for the link shield, signal grounds and returns. The link length between back to back gadgets cannot be longer than 4 meters, while normal link length must be 2 meters or less. Longer length frameworks are up to 20 m are possible with the utilization of a PCI-GPIB National Instruments extender card.
The NI device has the physical dimensions of 4.87 in. × 2.54 in. (12 cm × 6.44 cm). It has a recommended operating temperature range of 0 °C to 55 °C, and a storage temperature range of -20 °C to 70 °C.
| Model | PCI-GPIB |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 778686-01, 778032-01, 783007-01 |
| Type | GPIB Instrument Control Device |
| IEEE 488 Interlocked Handshake | 1.5 MB/s |
| Sampling Rate | 20 MHz |
| I/O Connector | IEEE 488 Standard 24-Pin |
| Bus Connector | PCI |
| Timestamp Resolution | 50 ns |
| Onboard GPIB Analyzer? | No |
| Dimensions | 4.87 in. × 2.54 in. (12 cm × 6.44 cm) |
| Operating Temperature Range | 0 °C to 55 °C |
| Storage Temperature Range | -20 °C to 70 °C |
| Warranty | Three Year Warranty |
| PCI-GPIB Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote for More Information |
Associated part numbers for PCI-GPIB:
National Instruments PCI-GPIB Frequently Asked Questions
Question: What is the difference between the three part numbers for the PCI-GPIB?
Answer: Part number 778686-01 is not a low-profile device and supports Linux. The next part number, 778032-01, is not a low-profile device and supports Windows. The last part number, 783007-01, is a low-profile device that supports Windows.
Question: What is name of the PCI-GPIB driver for Windows?
Answer: The Windows driver used with the device is GPIB Analyzer software.
Question: What is the rate of the IEEE 488 noninterlocked (HS488) handshake for the NI PCI-GPIB?
Answer: The rate for the GPIB Device is 7.7 MB/s.
Question: Does the PCI-GPIB National Instruments have a supported power input?
Answer: No, the Instrument Control Device does not have a supported power input.
