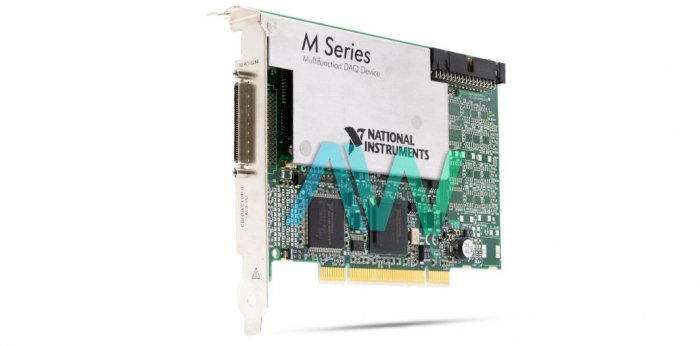

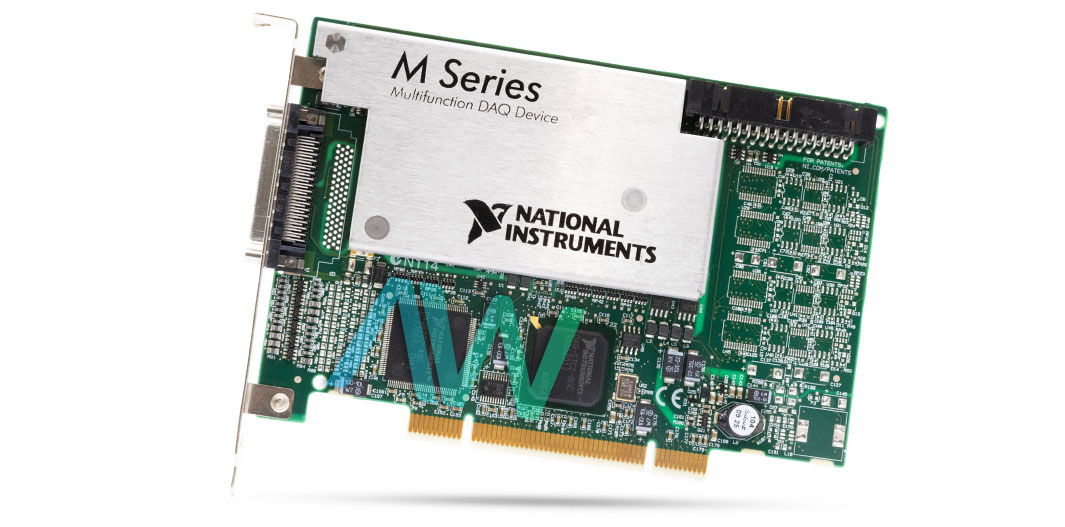

National Instruments 779108-01 Multifunction I/O Device
National Instruments part number 779108-01 is an identifying part number for the PCI-6280, a DIO PCI Multifunction I/O Module. The NI 779108-01 is a 16 Analog Inputs with 18-bit resolution and sample rate of 625 kS/s, 24 Digital Inputs/Outputs PCI Multifunction I/O Device. It serves as a cost-effective and dependable DAQ solution suitable for various applications, including laboratory automation, research, design verification/test, and manufacturing tests. Users can enhance sensor and high-voltage measurement capability by incorporating SCC or SCXI signal conditioning modules. Additionally, the included NI‑DAQmx driver and configuration utility streamline setup and measurements.
The part number 779108-01 offers versatile analog input with a single-channel maximum sample rate of 625 kS/s and a multichannel maximum sample rate of 500 kS/s when aggregated. Its input coupling is designed for direct current (DC) signals, making it suitable for a wide range of voltage measurements.
The input range spans from ±0.1 V to ±10 V, providing flexibility to accommodate various signal amplitudes. With this range, users can capture signals ranging from very low voltages to higher amplitude voltages with ease and precision. This makes the PCI-6280 well-suited for applications requiring accurate analog data acquisition across a diverse range of voltage levels.
The device boasts a total of 24 channels, categorized into two groups: 8 channels labeled as P0.<0..7> and 16 channels designated as PFI <0..7>/P1 and PFI <8..15>/P2. These channels support 5V TTL/CMOS compatible I/O, ensuring compatibility with a wide range of devices and systems. The ground reference for these channels is provided by the D GND connection. Additionally, each terminal offers individual programmability, allowing users to configure them as either input or output channels based on their specific application requirements. This flexibility enables tailored setups for various signal processing and control tasks.
| Part Number | 779108-01 |
|---|---|
| Model Name | PCI-6280 |
| Part Type | 16 AI (18-Bit, 625 kS/s), 24 DIO PCI Multifunction I/O Device |
| ADC Resolution | 18 bits |
| Number of Analog Input Channels | 8 differential or 16 single ended |
| Input Coupling | DC |
| Maximum Sampling Rate | 625 kS/s |
| Input Range | ±0.1 V, ±0.2 V, ±0.5 V, ±1 V, ±2 V, ±5 V, ±10 V |
| Input FIFO size | 2,047 samples |
| CMRR (DC to 60 Hz) | 110 dB |
