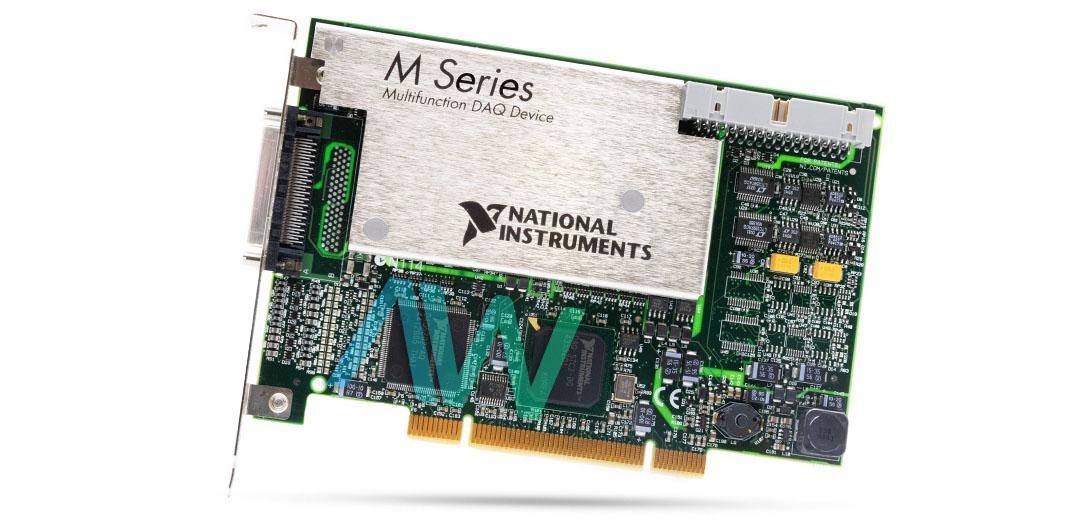

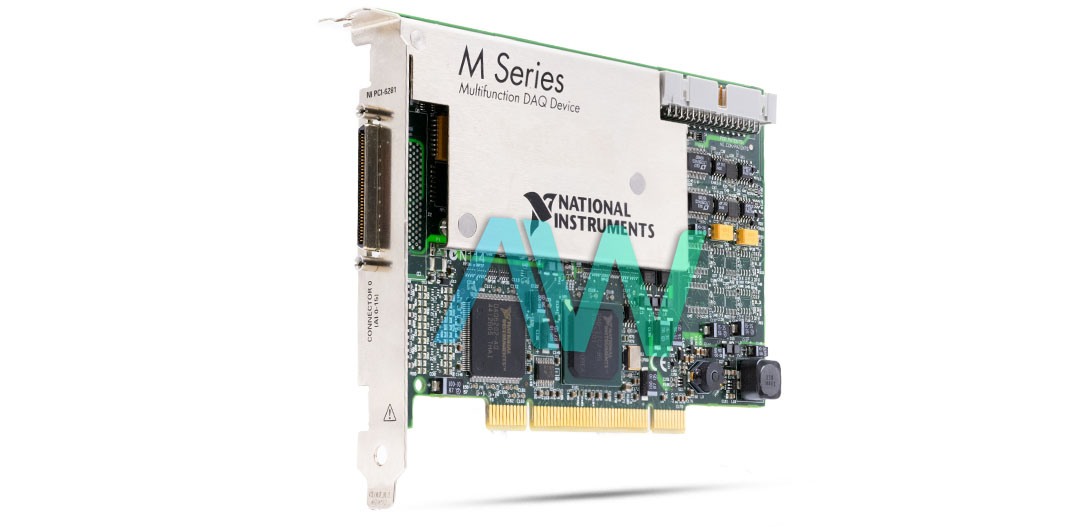

National Instruments 779109-01 Multifunction DAQ Device
National Instruments part number 779109-01 is an identifying part number for the PCI-6281, a Multifunction DAQ Device with 16 Analog Input, 2 analog output and 24 Digital Input/Output. This device excels in 18-bit analog input accuracy with a ±10 V voltage range, translating to 5-digit DC measurements. It includes a built-in low-pass filter system capable of operating at an adjustable 40 kHz frequency to reject high-frequency noise and prevent aliasing. This Data Acquisition is suitable for research, design testing, laboratory automation, and manufacturing tests. It supports SCC or SCXI signal conditioning modules for adding sensor and high-voltage measurement capabilities.
This Multifunction DAQ offers cost-effective and reliable DAQ capabilities across a wide range of applications. It operates using the NIDAQmx driver software, compatible with software packages like LabVIEW, LabWindows/CVI, or Measurement Studio. It can be configured and verified using the Measurement & Automation Explorer (MAX) tool. The device requires a recommended warm-up time of 15 minutes and should undergo calibration at least once every 2 years. Additionally, this Multifunction DAQ features a 68-pin VHDCI I/O connector and supports a maximum operating voltage of up to 11 V.
Each channel on this device achieves a sampling rate of 625 kS/s. It includes two counter/timers with 32-bit resolution operating at 80 MHz. Additionally, the device offers 24 digital I/O lines and supports seven programmable input ranges. The 779109-01 Multifunction DAQ weighs approximately 5.6 ounces and has physical dimensions of 4.2 x 6.1 inches. It operates within a recommended temperature range of 0 ºC to 55 ºC and can be stored in temperatures ranging from -20 ºC to 70 ºC. The device can withstand a non-condensing humidity range of 10% RH to 90% RH. It also handles operating and non-operating random vibrations of 0.3 grms and 2.4 grms, respectively, across a frequency range of 5 to 500 Hz.
| Part Number | 779109-01 |
|---|---|
| Model Range | PCI-6281 |
| Part Type | Multifunction DAQ Device |
| Analog Input Channels | 16 (18-Bit, 625 kS/s) or 08 differential |
| Analog Output Channels | 2 (16-Bit, 2.8 MS/s) |
| Digital Input/Output | 24 |
| Timing I/O | 2 Counter/Timer I/O (32 bits, 80 MHz) |
| I/O Connector | 1 68-pin VHDCI |
| Power Requirements | +5 V, +3.3 V, +12 V, -12 V - 0.03 A, 0.78 A, 0.40 A, 0.06 A |
| Frequency Generator Channels | 1 |
