Modular Systems > National Instruments > M Series

779624-01 Request for Availability

779624-01, 8 Analog Input, 2 Analog Output, Isolated, PXI-6238 Multifunction I/O Module

Rated 4.9/5 | 20 ratings

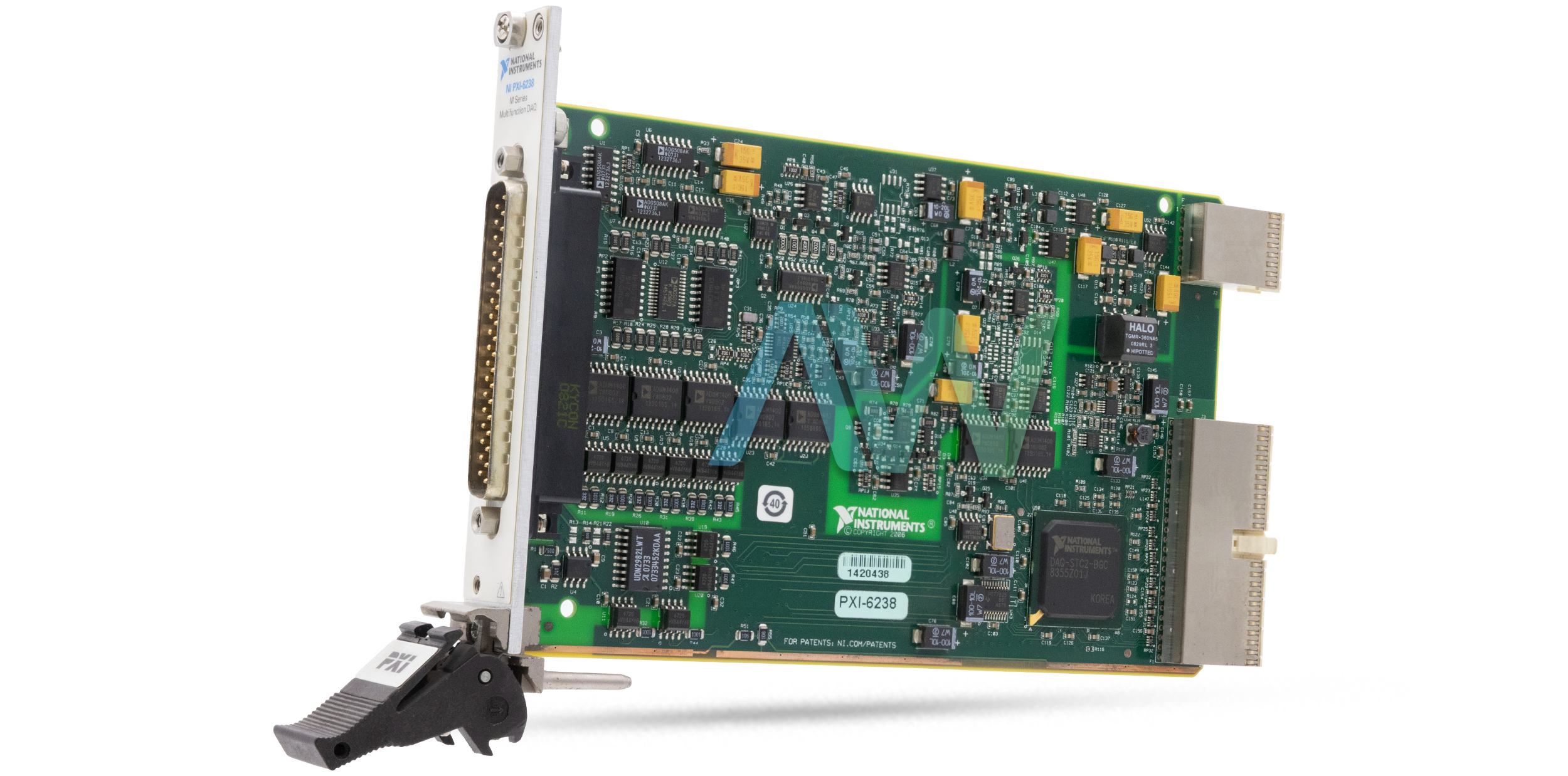

779624-01 PXI-6238 Multifunction I/O Module | Apex Waves | Image

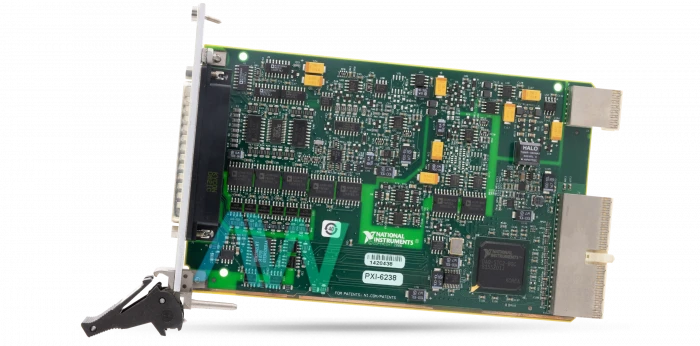

779624-01 PXI-6238 Multifunction I/O Module | Apex Waves | Image
779624-01 New
779624-01 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

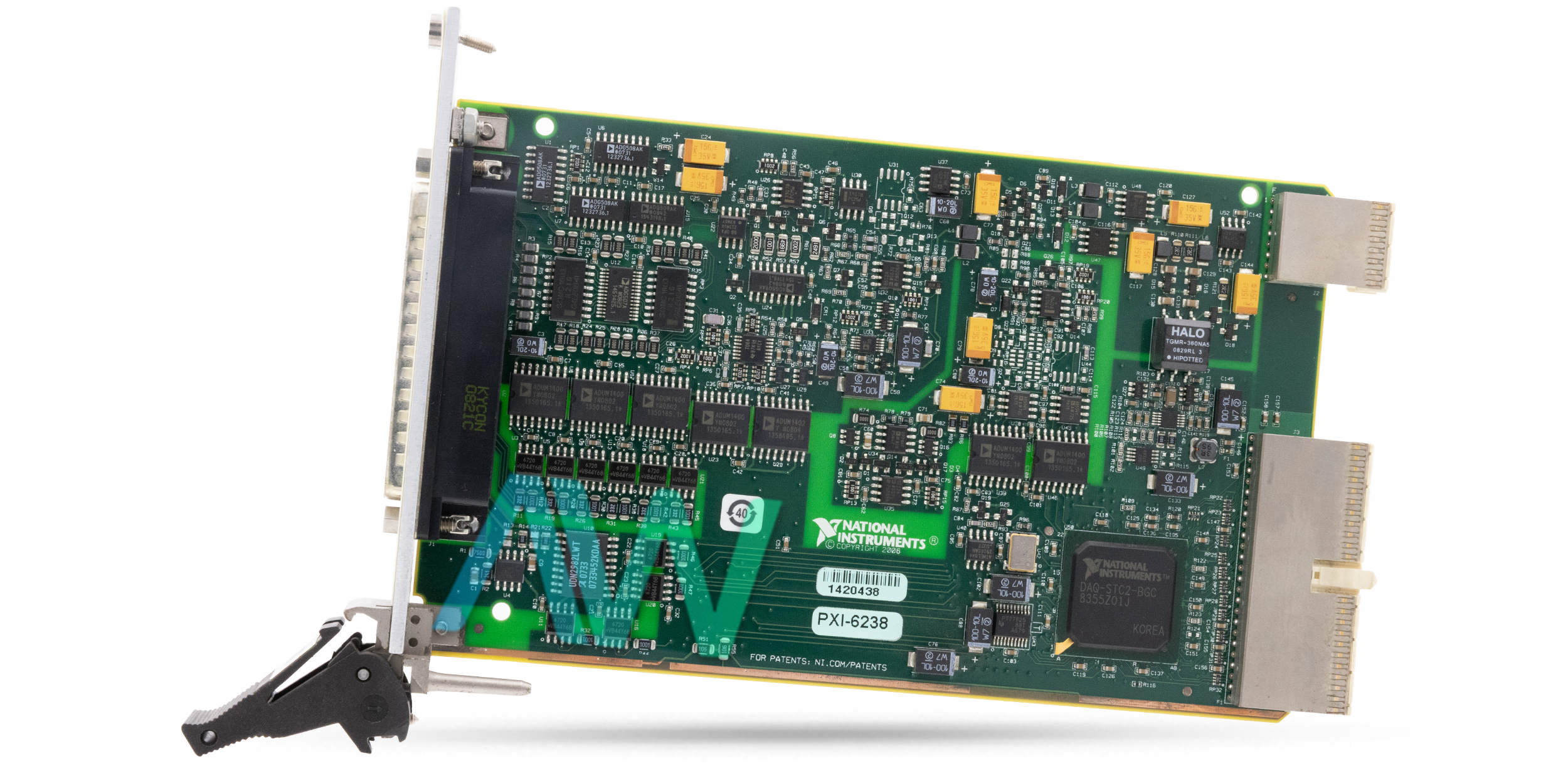

779624-01 PXI-6238 Multifunction I/O Module | Apex Waves | Image

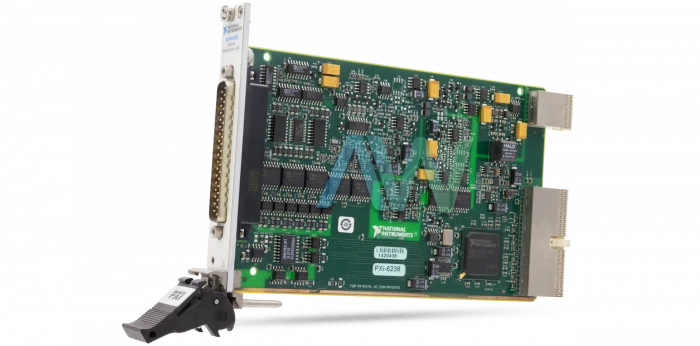

779624-01 PXI-6238 Multifunction I/O Module | Apex Waves | Image
779624-01 New
779624-01 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments 779624-01 Bank-Isolated Multifunction I/O Module

National Instruments part number 779624-01 is an identifying part number for the PXI-6238 Multifunction I/O Module. The 779624-01 features bank isolation and 16 analog inputs that are each equipped with 16 bits of resolution and a rate of 1.25 MS/s. In addition, the module is equipped with 2 analog outputs, 6 digital inputs, and 4 digital outputs.

This module can auto-calibrate to correct displacement and adjust errors. Additionally, users can align the device to minimize analog input errors caused by time and temperature drift during operation. No external circuit is necessary for this module; an internal reference ensures high accuracy stability over time and through temperature changes. It features 8 differential current input channels, each with a ground reference (AI GND) and a 16-bit ADC resolution, accommodating an input range of ±20 mA. Additionally, the module includes 2 current output channels, each with a 16-bit DAC resolution. In this model, sensors can generate electrical signals to measure physical aspects like temperature, force, sound, or light.

Commonly used sensors include strain gauges, thermocouples, thermistors, angular encoders, linear encoders, and resistance temperature detectors (RTDs). The 779624-01 comes with two counter/timers with a resolution of 32 bits. It supports a variety of output applications, including pulse generation, pulse trains with dynamic updates, frequency division, and equivalent time sampling. Data transfers are handled by a dedicated scatter-gather DMA controller for each counter/timer and can also be managed through interrupts and programmed I/O.

Part Number779624-01
Model NamePXI-6238
Part TypePXI Multifunction I/O Module
Number of Analog Input Channels8 differential current inputs
ADC Resolution16-bit
Maximum Sample Rate250 kS/s
Number of Output Channels2 current outputs
Number of I/Os24
Number of Frequency Generator Channels1
Number of Counters/Timers2
