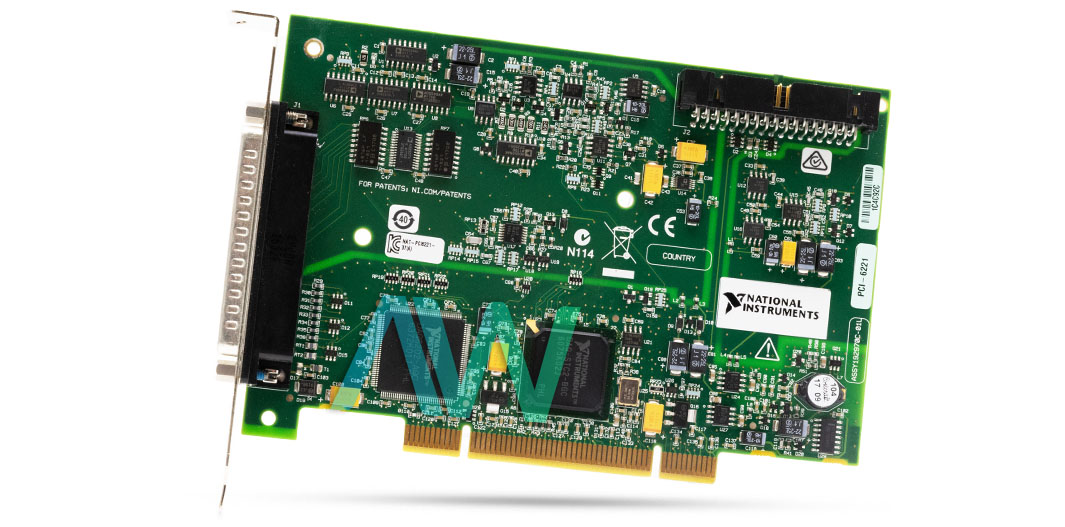

PCI-6221 National Instruments Multifunction I/O Device | Apex Waves | Image

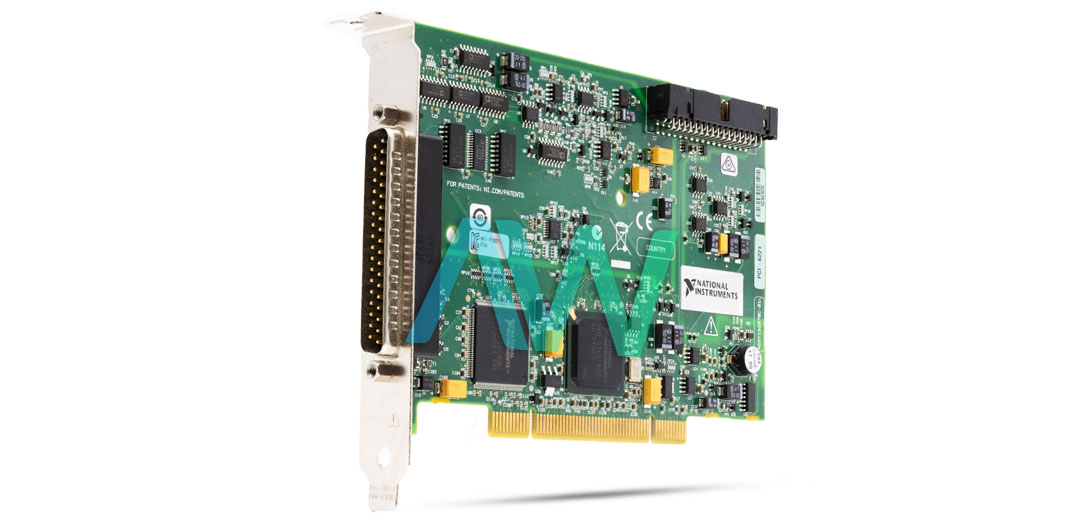

PCI-6221 National Instruments Multifunction I/O Device | Apex Waves | Image
PCI-6221 New
PCI-6221 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

PCI-6221 National Instruments Multifunction I/O Device | Apex Waves | Image
PCI-6221 National Instruments Multifunction I/O Device | Apex Waves | Image
PCI-6221 New
PCI-6221 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PCI-6221 Multifunction I/O Device

The PCI-6221 (Part Numbers: 779066-01 and 779418-01) is a reliable Multifunction I/O Device from the M Series by National Instruments. This model is valuable in a wide range of applications, such as laboratory automation, research, and manufacturing. The PCI-6221 is an ideal choice for design verification and manufacturing tests. The main difference between the two part numbers for the device is that part number 779066-01 has a 68-pin VHDCI front connector, while part number 779418-01 has a 37-pin D-SUB front connector. This device is a low-cost option with useful data acquisition (DAQ) capabilities. The PCI-6221 delivers analog I/O and correlated digital I/O. This model comes with 16 single-ended or 8 differential analog input channels, an analog input resolution of 16 bits, and a data acquisition rate of 250 kS per second. The PCI-6221 DAQ Card can be used with an NI-DAQ mx driver and configuration utility to simplify the configuration and measurement process. Asides automatically, configuration can also be carried out using the Measurement & Automation Explorer (MAX) tool.

The NI PCI-6221 Card offers two analog output (AO) channels as well. This device comes with an AO rate of 833 kS per second for a single channel and 740 kS per second for dual channels. This device is bus powered with a 3.3 V or 5 V signal environment, and has an analog input absolute accuracy of 3100 uV. It’s maximum sample rate is 250 kS per second, while it is not equipped with simultaneous sampling. The NI PCI-6221 DAQ Card also offers two 32-bit counters/timers and digital triggering. The above features ensure reliable multi-function operation.

The NI PCI 6221 is compatible with the signal conditioning platforms. These platforms are NI SCC and SCXI. They provide amplification, filtering, and power for every type of sensor, which ensures the PCI 6221 NI can perform data logging and sensor measurements. The National Instruments PCI 6221 also offers 8 correlated (clocked) Digital I/O (DIO) for the 68-pin version up to 1 MHZ and 2 correlated (clocked) DIO for the 37-pin version. It features 6 DMA channels which can be used for analog I/O, Digital I/O, counter/timer 0 and 1. The device has a weight of 3.2 oz., with the dimensions: 4.2 x 6.1 in.

The PCI-6221 is now no longer available directly from the manufacturer National Instruments, but the Multifunction I/O Device will still be available for purchase and repairs in perpetuity with Apex Waves.

ModelPCI-6221
ManufacturerNational Instruments
Part Numbers779066-01 and 779418-01
SeriesM Series
TypeMultifunction I/O Device
Analog Input Channels16 Single-Ended or 8 Differential
ADC Resolution16 Bits
Dimensions4.2 in. × 6.1 in.
Weight3.2 oz.
WarrantyThree Year Warranty
PCI-6221 ManualUser Manual and Maintenance Manual Available for Download
PriceRequest a Quote Today for Pricing Information

Associated part numbers for PCI-6221:

National Instruments PCI-6221 Frequently Asked Questions



Question: What are the differences between the two versions of the NI PCI-6221 DAQ?

Answer: The first part number, 779066-01, has 24 bidirectional digital channels, 8 correlated (clocked) DIO, and a 68-pin VHDCI front connector. The second part number, 779418-01, has 10 bidirectional digital channels, 2 correlated (clocked) DIO, and a 37-pin D-SUB front connector.



Question: How often should the NI PCI-6221 be calibrated?

Answer: National Instruments recommends that the device be calibrated once a year.



Question: What is the name of the driver used with the NI PCI-6221?

Answer: The driver used is NI-DAQmx.



Question: Is the NI PCI-6221 DAQ Card compatible with SCXI or SCC platforms?

Answer: The 68-Pin version of the PCI-6221 is compatible with SCXI or SCC platforms, while the 37-Pin version is not compatible with the platforms.
