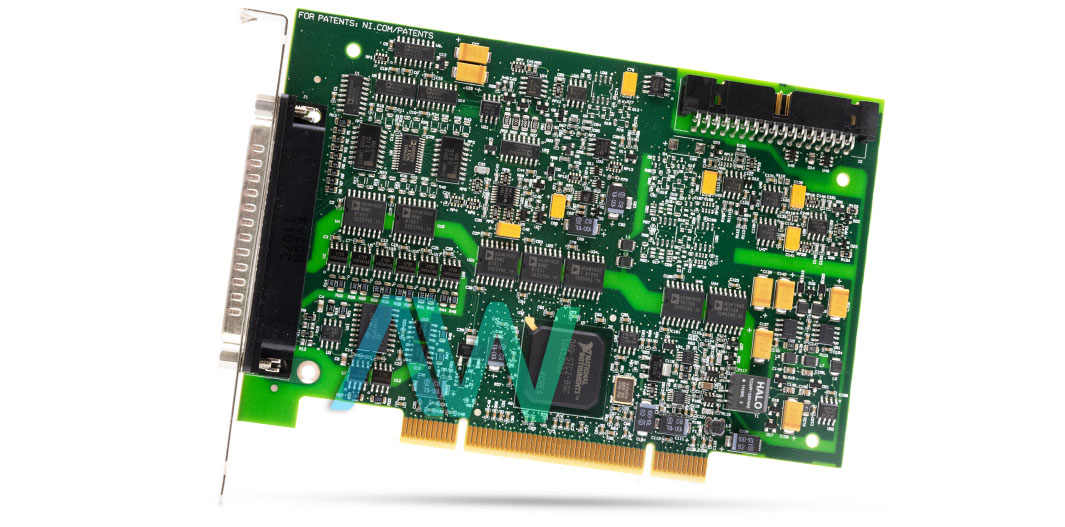

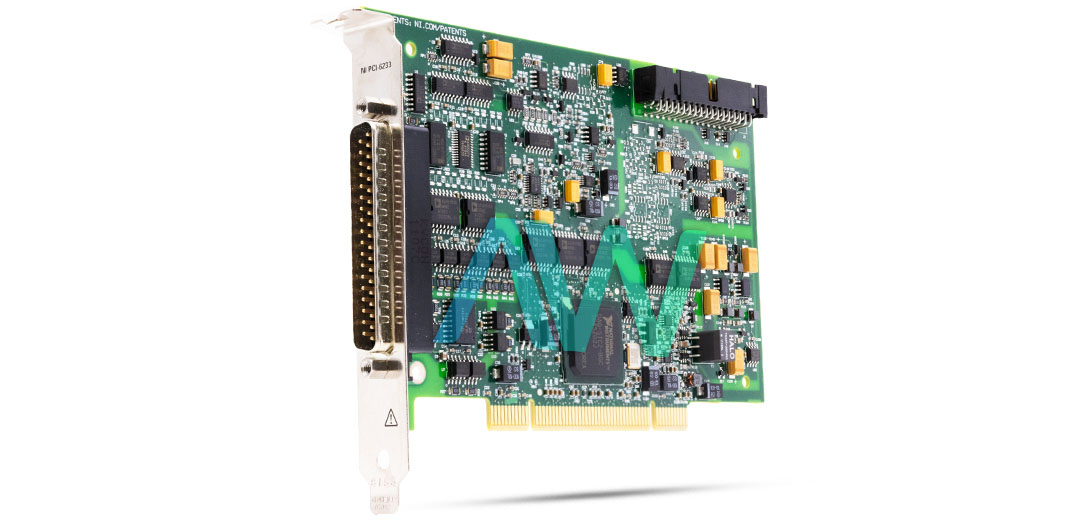

National Instruments PCI-6233 Multifunction DAQ
The National Instruments PCI-6233 (Part Number: 779619-01) is a 24 V DIO Sinking, 16 AI Multifunction, 16-Bit, 250 kS/s Data Acquisition Device. This model comes with two 0 to 20 mA Analog Outputs with up to 500 kS/s update rate. This model has 4 digital output channels as well. These digital output channels can be used for either 5 V TTL/CMOS or 24 V (sourcing or sinking) operations.
The NI PCI-6233 features a programmable input range (±10 V, ±5 V, ±1 V, ±0.2 V) per channel, as well as selectable debounce filters per-channel for programmable power-up states and digital input lines. This DAQ device is fully compatible with almost all leading software programs of the industry, including: ANSI C, Measurement Studio, LabVIEW, etc. The user can install this model in any PCI enabled computer running on Microsoft Windows 7 (maximum) or Real-Time OS. The digital isolation technology incorporated in this device offers increased signal bandwidth and prevents ground loops. Moreover, the 60 VDC bank isolation ensures safety and protects operators as well as equipment from high-voltage transients.
The National Instruments PCI-6233 Multifunction DAQ comes with programmable or user-defined power-up states- a feature that ensures safe startup operation, especially when connected to motors, relays, valves, and pumps. With this DAQ device, the user can configure each digital channel as low output or high output. The NI PCI 6233 stores the settings in an integrated nonvolatile memory and employs the power-up state immediately when power is supplied.
PCI-6233 Legacy Status has been announced by National Instruments, but will still be available for purchase and repairs by Apex Waves.
| Model | PCI-6233 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 779619-01 |
| Series | M Series |
| Type | Multifunction DAQ |
| Analog Input Channels | 16 (16-Bit, 250 kS/s) or 08 differential |
| Analog Output Channels | 2 (16-Bit, 500 kS/s) |
| Digital Inputs | 6 |
| Digital Outputs | 4 (Sink) |
| Timing I/O | 2 Counter/Timer I/O (32 bits, 80 MHz) |
| Frequency Generator Channels | 1 |
| I/O Connector | 37-pin D-SUB |
| Power Requirements | +5 V, +12 V -- 0.7 A, 20 mA |
| Dimensions | 3.8 in. × 6.1 in |
| Weight | 0.23 lb. |
| Software Driver | NI-DAQmx, NI-DAQmx Base The Measurement Hardware DDK |
| Warranty | 2-3 Year Warranty |
| PCI-6233 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PCI-6233:
National Instruments PCI-6233 Frequently Asked Questions
Question: Can SCXI signal conditioning products be used with the NI PCI-6233?
Answer: No, it is not possible to use SCXI signal conditioning products with the Multifunction DAQ.
Question: What is the digital voltage of the PCI-6233?
Answer: The digital voltage of the device is 24 V (sinking DO).
Question: What is the minimum sampling rate of the NI PCI 6233?
Answer: The minimum sampling rate is 0 S/s.
Question: What is the channel-to-earth ground maximum working voltage of the PCI-6233?
Answer: The channel-to-earth ground maximum working voltage of the DAQ is ≤30 Vrms/60 VDC Measurement Category continuous and ≤840 Vrms/1200 VDC, verified by a 5 s dielectric withstand test withstand.
