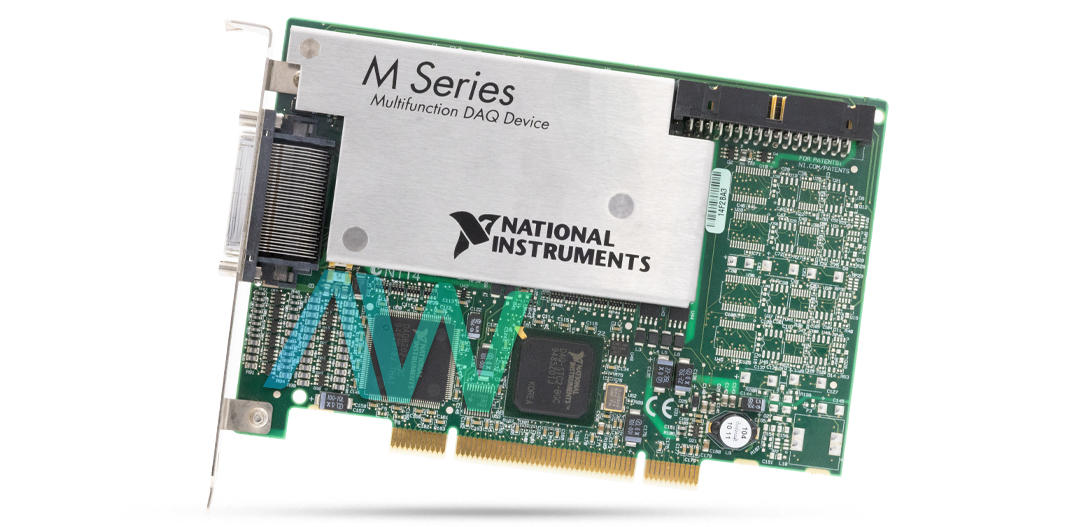

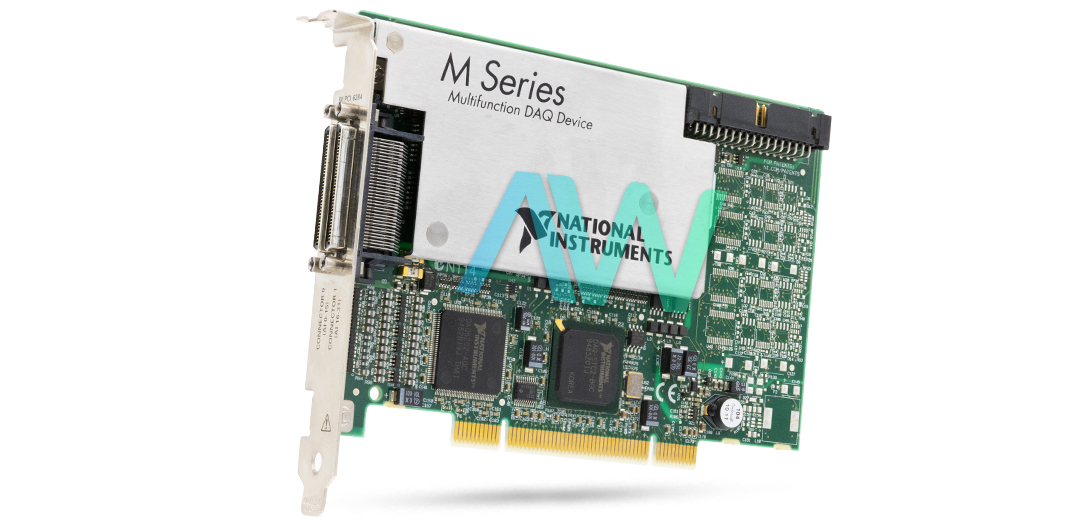

National Instruments PCI-6284 Multifunction DAQ
The National Instruments PCI-6284 (Part number: 779110-01) is an M Series Multifunction Data Acquisition Device. This model is structured with an analog and digital triggering arrangement. The NI PCI-6284 has one analog trigger. This trigger can operate at multiple analog manners. These modes include analog window triggering, analog edge triggering with hysteresis, and analog edge triggering mode. The analog trigger’s resolution is around 10 bits. The accuracy percentage of the analog trigger is ±1%. This analog trigger helps start and stop triggering. It can also be used as a reference trigger. The analog trigger can be further used for converting clocks, as well as sample clocks.
The NI PCI 6284 deals with analog inputs and associated digital I/O. This M Series Multifunction DAQ device has 2 general purpose counter/timers with 32-bit resolution. These counters/timers are used for edge counting-measurements and are also helpful to counter measure two edge separation. It is also feasible for period, semi period, and pulse counter measurements. The base clock precision is about 50 ppm. This device has an internal base clock frequency of 0.1 MHz, 20 MHz, and 80 MHz. The external base clock frequency ranges from 0 MHz to 20 MHz.
The National Instruments PCI 6284 Multifunction DAQ fulfills all requirements for electrical gear’s protection standards. These standards are used for control, measurements, and laboratory purposes. The NI PCI-6284 also meets the needs of EMC standards. National Instruments is dedicated to planning and developing products in an environment-friendly style.
Apex Waves will continue to Buy, Sell, and Repair EOL NI Hardware in perpetuity. While the PCI-6284 entered the NI Maintenance phase on March 31, 2022, it will remain available with Apex Waves. Request your quote today!
| Model | PCI-6284 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 779110-01 |
| Series | M Series |
| Type | Multifunction DAQ |
| Analog Input Channels | 32 (18-Bit, 625 kS/s) or 16 differential |
| Analog Output Channels | 0 |
| Digital Input/Output | 48 |
| Timing I/O | 2 Counter/Timer I/O (32 bits, 80 MHz) |
| Frequency Generator Channels | 1 |
| I/O Connectors | 2 68-pin VHDCI |
| Power Requirements | +5 V, +3.3 V, +12 V, -12 V -- 0.03 A, 0.78 A, 0.40 A, 0.06 A |
| Dimensions | 4.2 in. × 6.1 in. |
| Weight | 0.35 lb. |
| Driver Software | NI-DAQmx, NI-DAQmx Base |
| Warranty | 2-3 Year Warranty |
| PCI-6284 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
