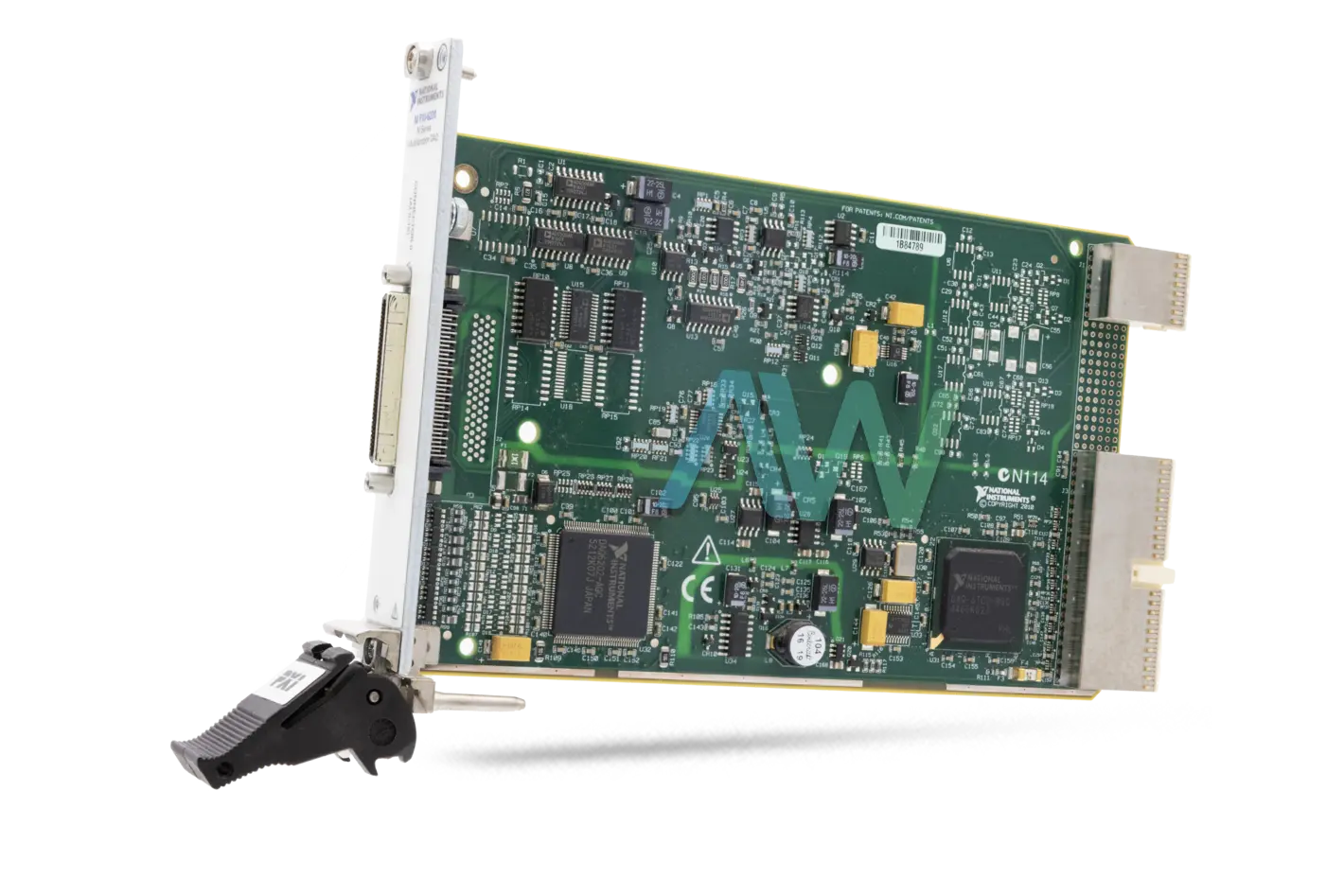

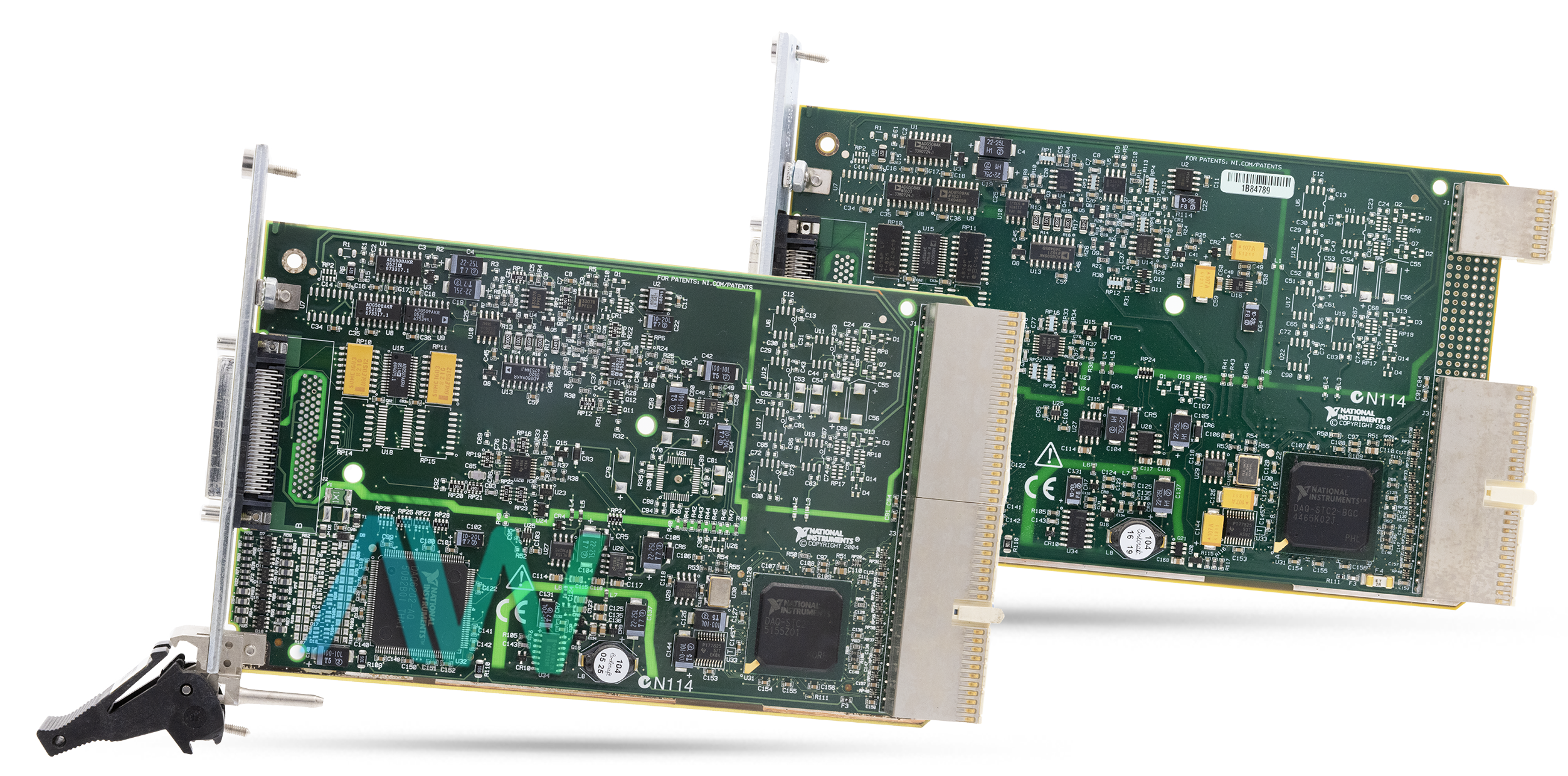

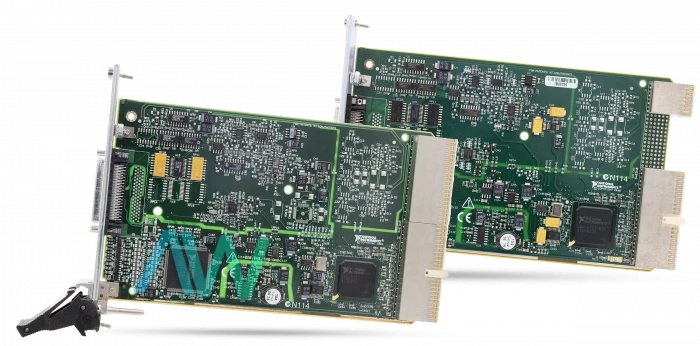

National Instruments PXI-6220 Multifunction I/O Module
The PXI-6220 Multifunction I/O Module (Part Number: 779112-01) offers two 32-bit counters/timers, analog input, correlated digital I/O, and computerized triggering. The gadget delivers low-cost, solid DAQ capacities in an extensive variety of uses from straightforward applications in lab automation, research, design verification/test, and assembling test. The user can include sensor and high-voltage estimation capacity to their gadget with SCC or SCXI signal conditioning modules. The included NI-DAQmx driver and setup utility for this model can simplify configuration and estimations. This instrument is part of the M Series modules and works with various OSs utilizing three driver programming alternatives, including NI-DAQmx, NI-DAQmx Base, and the NI Measurement Hardware DDK.
NI LabVIEW is incorporated in the PXI-6220, allowing the user to make custom data acquisition applications with the ease of graphical programming and energy of more than 500 analysis functions and advanced programming devices. LabVIEW Full and Professional development frameworks incorporate LabVIEW SignalExpress for intuitive data logging. M Series modules are compatible with the accompanying versions (or later) of NI application programming: LabVIEW 7.x, LabWindows/CVI 7.x, or Measurement Studio 7.x; LabVIEW SignalExpress 1.x; or LabVIEW with the LabVIEW Real-Time Module 7.1. The M Series modules also work with Visual Studio .NET, ANSI C/C++, and Visual Basic 6.0.
This model offers 16 SE/8 DIFF AI channels with a ±10 V to ±0.2 V input range, 245 V of rationale DIO lines (8 hardware-timed up to 1 MHz), two 32-bit, 80 MHz counter/timers, and one 68-pin female VHDCI connector.
PXI-6220 Mature Status has been announced by National Instruments, but will still be available for purchase and repairs by Apex Waves.
| Model | PXI-6220 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 779112-01 |
| Series | M Series |
| Type | Multifunction I/O Module |
| Channels | 8 differential or 16 single ended |
| Maximum Sample Rate | 250 kS/s |
| ADC Resolution | 16 bits |
| Dimensions | 4.2 in. × 6.1 in. |
| Weight | 5.5 oz. |
| Warranty | 2-3 Year Warranty |
| PXI-6220 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXI-6220:
National Instruments PXI-6220 Frequently Asked Questions
Question: How long is the calibration interval for the PXI-6220?
Answer: The PXI-6220 should be calibrated every year.
Question: Where can I find the PXI-6220 manual?
Answer: The PXI-6220 manual can be download on the apexwaves.com website.
Question: What is the timing resolution for the NI PXI-6220?
Answer: The NI PXI-6220 has a timing resolution of 50 ns.
Question: Which applications is the PXI-6220 Multifunction I/O Module best to be used in?
Answer: The PXI-6220 Multifunction I/O Module can be used in many applications, including: laboratory automation, research, design verification/test, and manufacturing test.
