Modular Systems > National Instruments > M Series

PXI-6254 In Stock | Ships in 3-5 Days

PXI-6254, 32 AI, 48 DIO, PXI Multifunction I/O Module

Rated 4.6/5 | 9 ratings

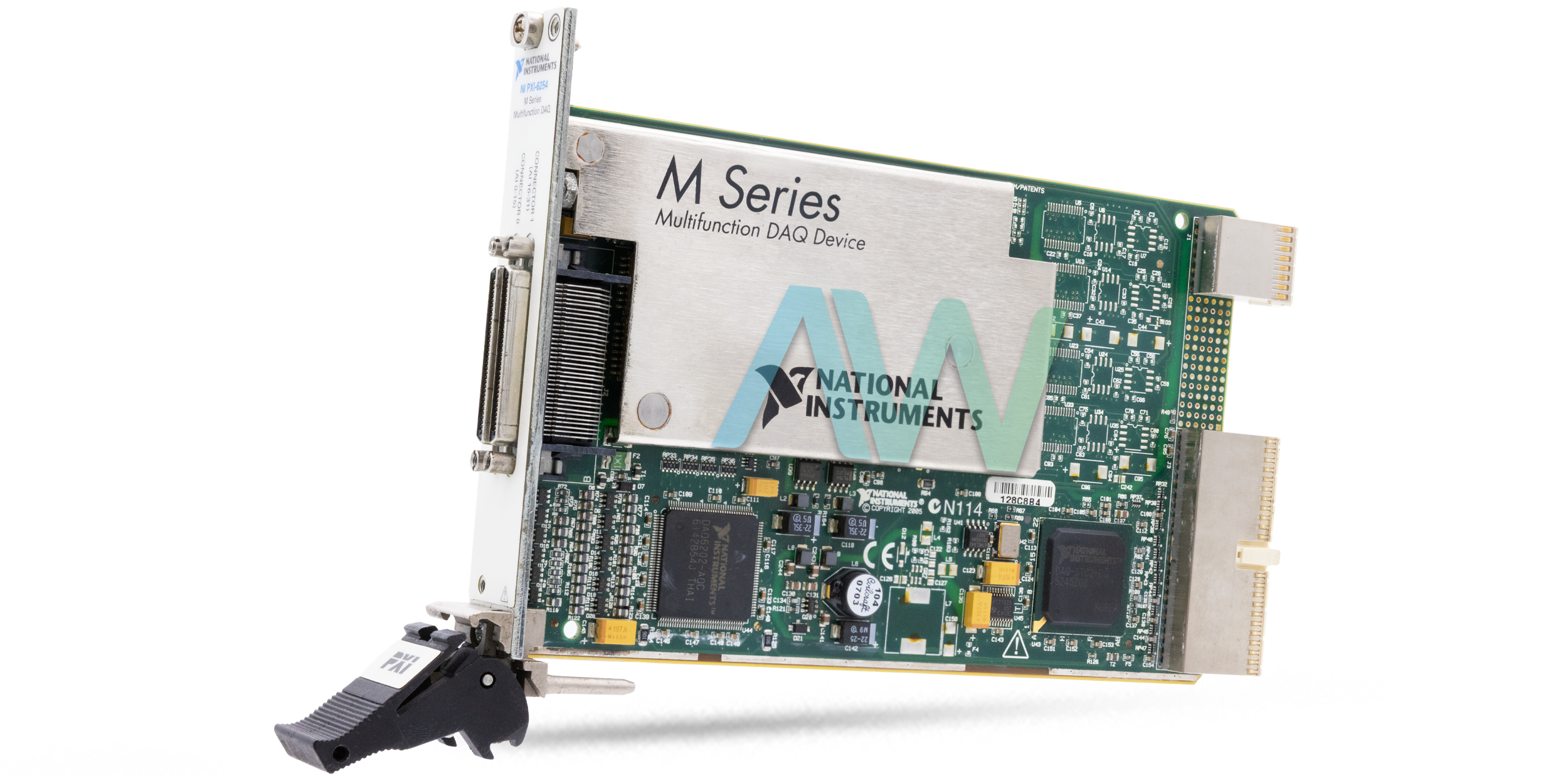

PXI-6254 National Instruments Multifunction I/O Module | Apex Waves | Image

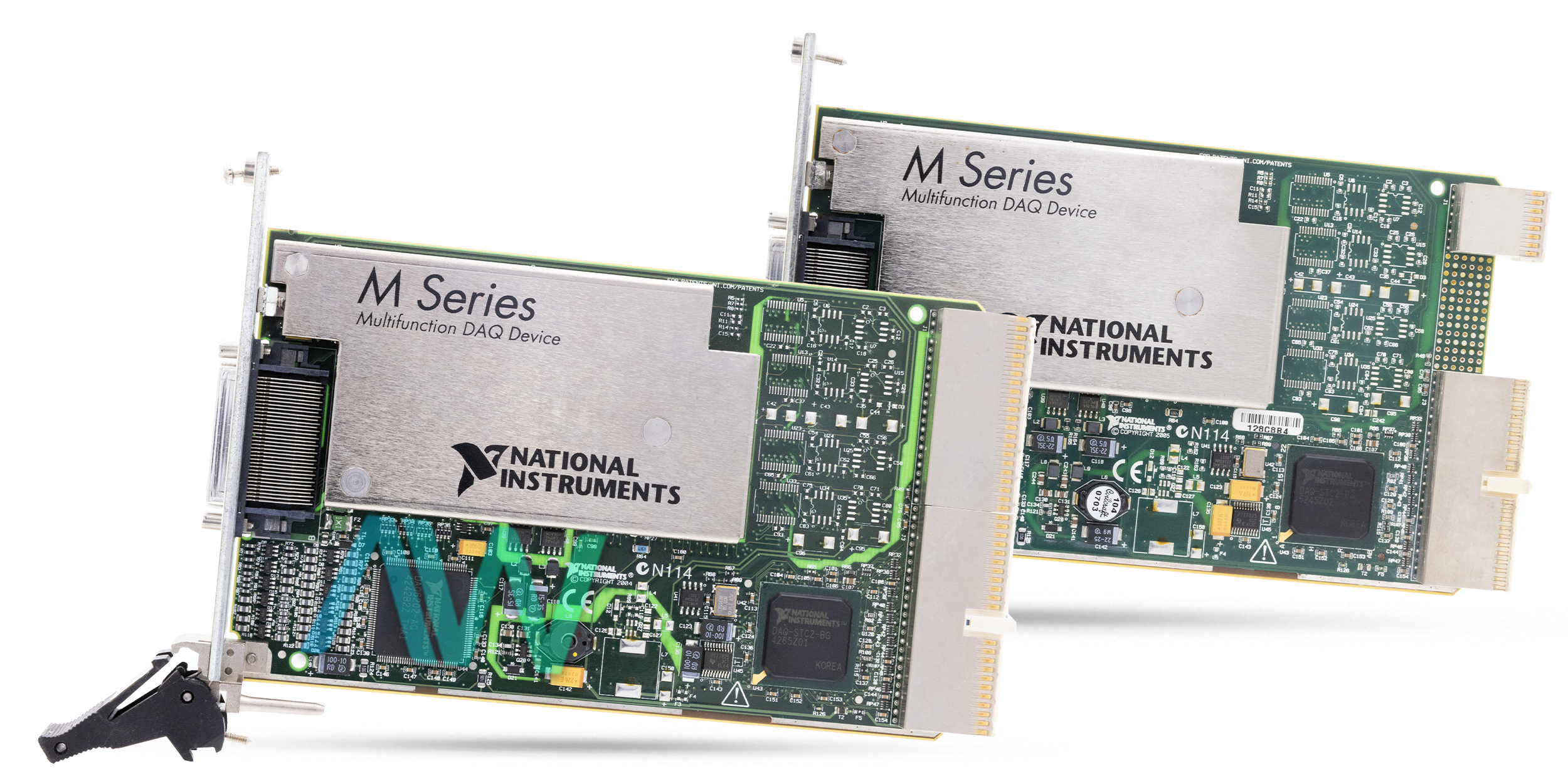

PXI-6254 National Instruments Multifunction I/O Module | Apex Waves | Image
PXI-6254 New
PXI-6254 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

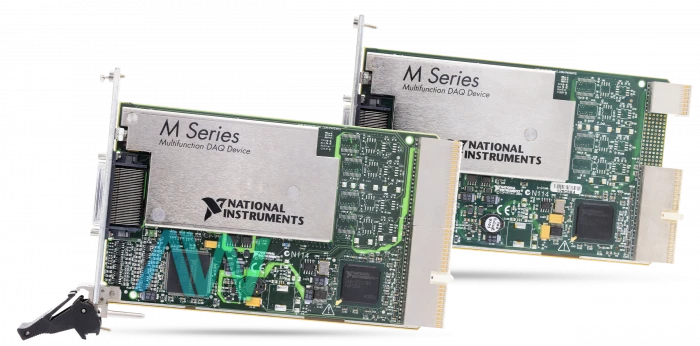

PXI-6254 National Instruments Multifunction I/O Module | Apex Waves | Image

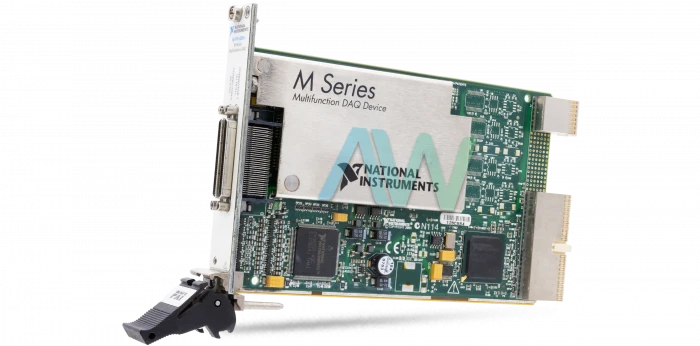

PXI-6254 National Instruments Multifunction I/O Module | Apex Waves | Image
PXI-6254 New
PXI-6254 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PXI-6254 Multifunction I/O Module

The PXI-6254 (Part number: 779118-01) is a Multifunction I/O Module with software that allows the user to control the speed at which the information is created. The software sends a different charge to the equipment to begin each DAC conversion. In NI-DAQmx, the software-timed generations are called timing on demand. Generations programmed by software are additionally called immediate or static tasks. They are typically used to write a single esteem, such as a constant direct current.

With a hardware-timed generation, a digital hardware signal controls the rate of the generation. This signal can be generated inside the NI PXI-6254 or provided externally. Continuous generation alludes to the generation of an unspecified number of samples. Rather than producing a set number of information tests and stopping, a continuous generation proceeds until the user stops the activity. There are a few distinct techniques for continuous generation that control what data is written. These techniques are regeneration, FIFO regeneration, and non-regeneration modes. With FIFO regeneration, the whole buffer is downloaded to the FIFO and recovered from that point. After the information is downloaded, new information cannot be composed to the FIFO. To utilize FIFO regeneration, the whole support must fit inside the FIFO measure. The advantage of utilizing FIFO regeneration is that it does not require communication with the main host memory after the activity has begun.

If you are interested in this model and you want to learn more about its options, specifications, and features, you can view the NI PXI-6254 manual, which is available on the ApexWaves.com website.

ModelPXI-6254
ManufacturerNational Instruments
Part Number779118-01
SeriesM Series
TypePXI Multifunction I/O Module
Analog Input Channels32
Analog Input Resolution16 bits
DimensionsStandard 3U PXI
Weight7.8 oz.
Warranty2-3 Year Warranty
PXI-6254 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PXI-6254:

National Instruments PXI-6254 Frequently Asked Questions



Question: What does the PXI-6254 require for operation?

Answer: The PXI-6254 requires two cables and two connector blocks for operation.



Question: What is the base clock accuracy of the counters/timers on the NI PXI-6254?

Answer: The base clock accuracy of the counters/timers on the NI PXI-6254 is 50 ppm.



Question: How often should the PXI-6254 be calibrated?

Answer: The PXI-6254 should be calibrated every two years.



Question: What type of I/O connectors does the PXI-6254 have?

Answer: The PXI-6254 has two 68-pin VHDCI I/O connectors.
