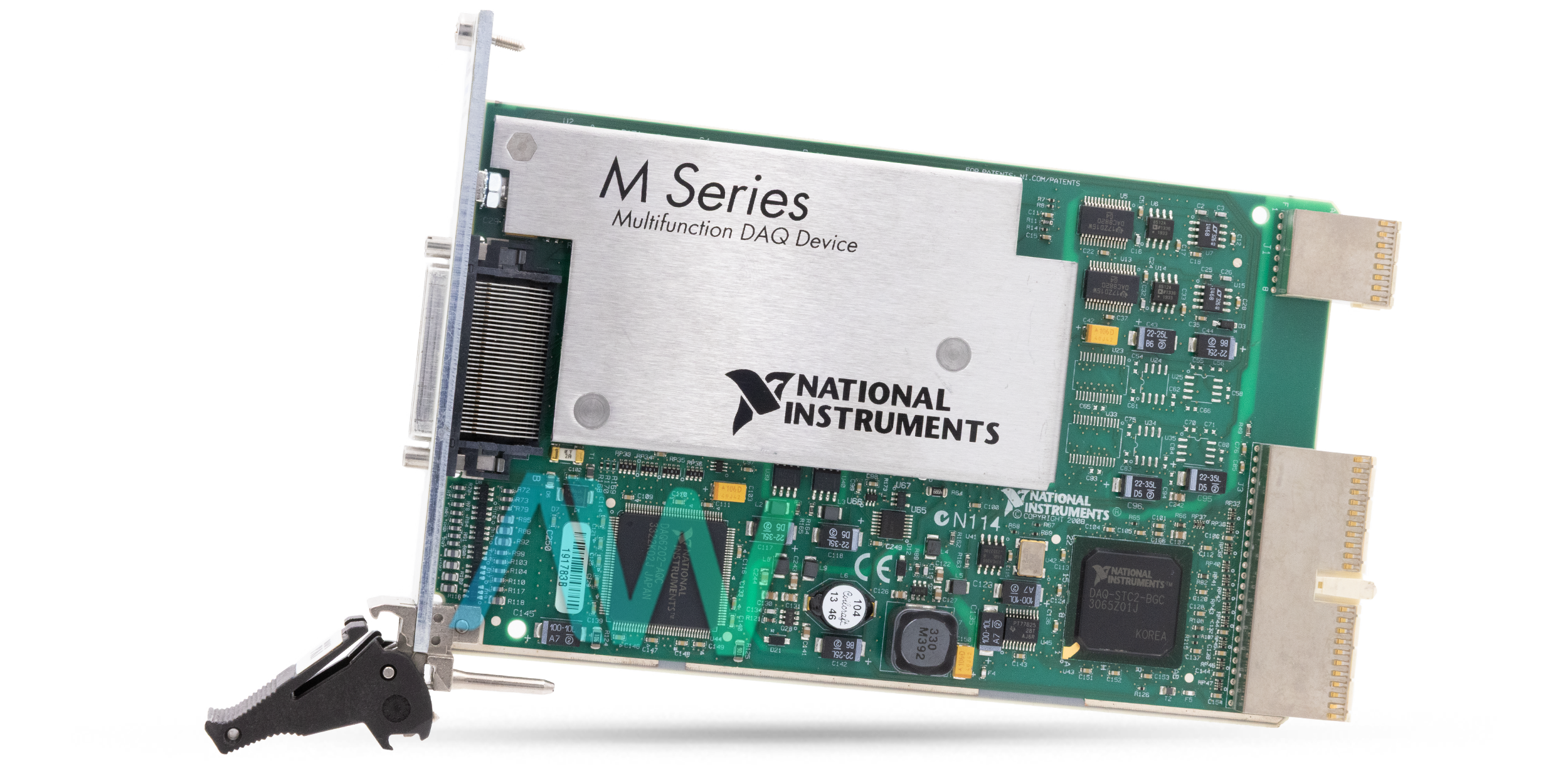

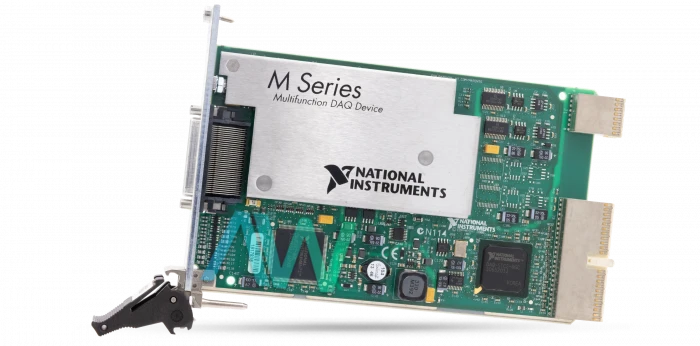

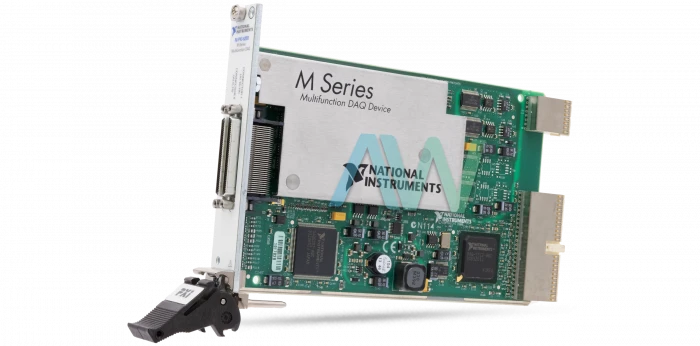

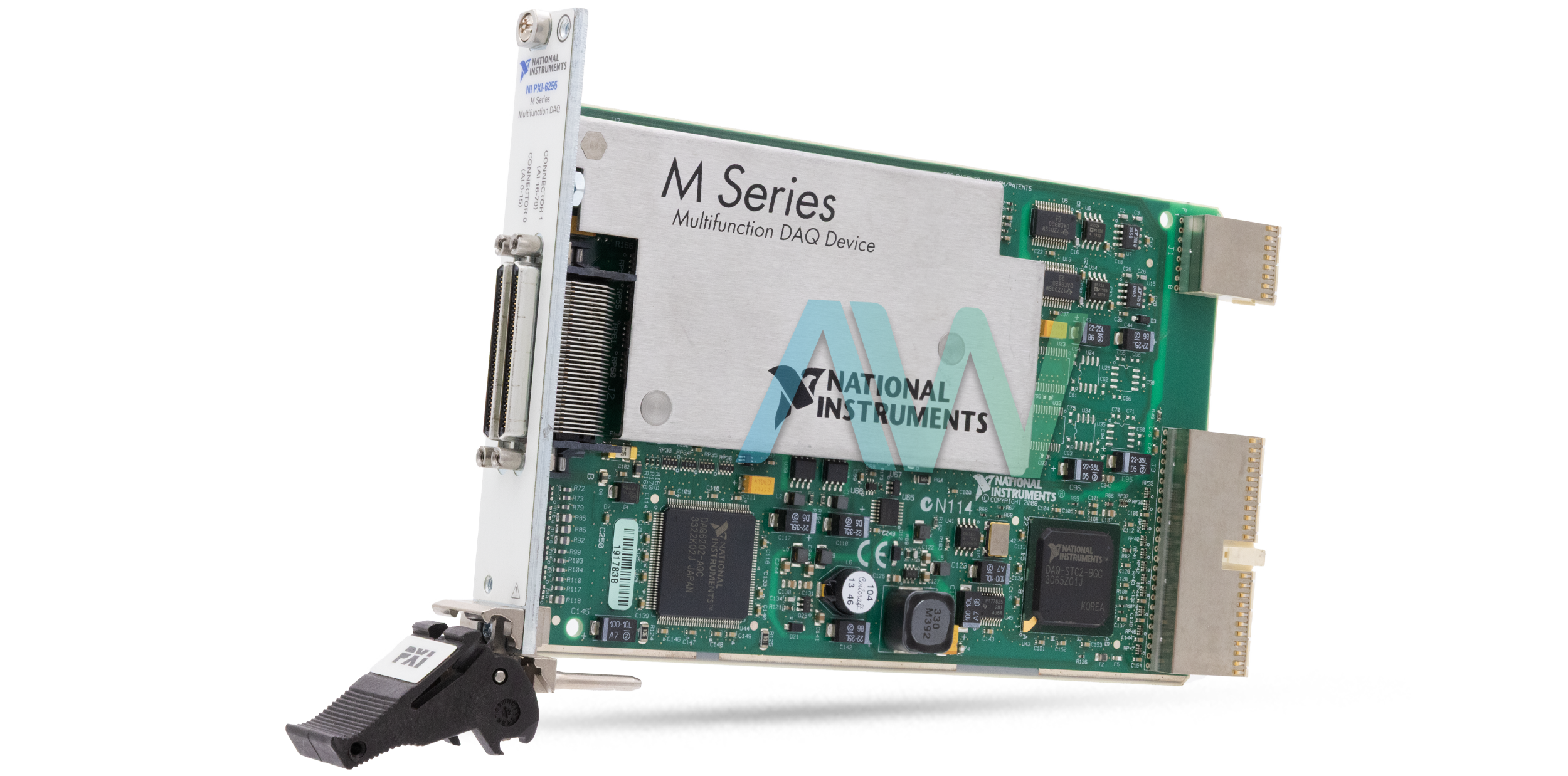

National Instruments PXI-6255 PXI Multifunction I/O Module
With the NI PXI-6255 (Part Number: 779547-01) PXI Multifunction I/O Module, the user can route an inward or outside periodic clock signal (with a known period) to the input counter source. The counter counts the quantity of rising (or falling) edges in the source signal while the pulse in the Gate Signal is inactive. In pulse width estimations, the counter measures the width of a pulse on its Gate input signal. The user can arrange the counter to quantify the width of high pulses or low pulses on the Gate signal. The device has 80 analog input channels with an input resolution of 16 bits.
The PXI-6255 Multifunction I/O Module is compatible with NI SCC and SCXI signal conditioning platforms, which provide amplification, filtering, and power for any type of sensor. It is also compatible with the SC-2350, which is a shielded SCC carrier for TEDS sensors.
The NI PXI-6255 M Series device can be used with NI LabVIEW SignalExpress interactive measurement software to deliver benchtop measurements to the PC. With LabVIEW SignalExpress interactive configuration-based steps, the user can quickly create design verification tests. The fast acquisition and generation rates of high-speed M Series devices, along with LabVIEW SignalExpress provide on-the-go design analysis. The user can convert their tested and verified LabVIEW SignalExpress projects to LabVIEW applications for immediate DAQ use, thus bridging the gap between test, control, and design applications. The device is equipped with 2 68-pin VHDCI I/O connectors. It has a recommended warm-up time of 15 minutes, and should be externally calibrated at least once in 2 years.
The standard 3U PXI device weighs 8.3 oz. It has recommended operating and storage temperature ranges of 0 ºC to 55 ºC and -20 ºC to 70 ºC respectively, a non-condensing humidity range of 10% RH to 90% RH, operating and non-operating random vibrations of 0.3 grms and 2.4 grms respectively–at a frequency range of 5 to 500 Hz.
The PXI-6255 is now Obsolete and is no longer available from National Instruments, but the PXI Multifunction I/O Module will still be available in perpetuity for purchase and repairs by Apex Waves.
| Model | PXI-6255 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 779547-01 |
| Series | M Series |
| Type | PXI Multifunction I/O Module |
| Analog Input Channels | 80 |
| Analog Input Resolution | 16 Bits |
| Analog Output Channels | 2 |
| Digital I/O Channels | 24 |
| Sampling Rate | 1.25 MS/s |
| Frequency Range | 5 to 500 Hz |
| Operating Temp Range | 0 ºC to 55 ºC |
| Storage Temp Range | -20 ºC to 70 ºC |
| Dimensions | Standard 3U PXI |
| Weight | 8.3 oz. |
| Warranty | Three Year Warranty |
| PXI-6255 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Submit a Quote Request for Pricing |
Associated part numbers for PXI-6255:
National Instruments PXI-6255 Frequently Asked Questions
Question: What is the maximum working voltage of the NI PXI-6255?
Answer: The maximum working voltage is 11 V, Measurement Category I.
Question: What is the maximum sample rate?
Answer: The PXI-6255 has a maximum sample rate of 1.25 MS/s for one channel and 750 kS/s for all channels.
Question: How many analog triggers does the module have?
Answer: The NI PXI-6255 has 1 analog trigger.
Question: What are the functions of the analog trigger on the PXI-6255 module?
Answer: The module’s analog trigger functions include: Sample Clock Timebase, Start Trigger, Pause Trigger, Convert Clock, Reference Trigger, and Sample Clock.
PXI-6255 PDF Manuals
DAQ-GETTING-STARTED-GUIDE-FOR-PXI-PXI-EXPRESS.PDF
DAQ-GETTING-STARTED-READ-ME-FIRST-NI-DAQMX-AND-DAQ-DEVICE-INSTALLATION-GUIDE.PDF
NI-6255-DEVICE-SPECIFICATIONS.PDF
NI-62XX-63XX-PINOUT-LABELS-FOR-THE-SCB-68-NOTE-TO-USERS.PDF
NI-62XX-63XX-PINOUT-LABELS-FOR-THE-SCB-68A-NOTE-TO-USERS.PDF
PCI-PXI-625X-LETTER-OF-VOLATILITY.PDF
