Modular Systems > National Instruments > M Series

USB-6255 Request for Availability

Q: Why does the USB-6255 have four part numbers?

The USB-6255 has two types of connectors available and two supported power inputs available. The first part number, 779959-01, has an SCSI front connector and United States 120 VAC supported power input. The next part number, 779958-01, has a screw terminal front connector and a United States 120 VAC supported power input. Part number 779958-04 has a screw terminal front connector and a Universal Euro 240 VAC supported power input. The last part number, 779959-04, has an SCSI front connector and a Universal Euro 240 VAC supported power input.

Q: Which type of electrical signals does the NI USB-6255 measure?

The Multifunction I/O Device measures voltage electrical signals.

Q: What is the analog input FIFO buffer size on the deviceI?

The analog input FIFO buffer size on the NI USB-6255 is 4,095 samples.

Q: What is the absolute accuracy of the analog input for the device?

The USB-6255 has an analog input absolute accuracy of 1920 uV.

USB-6255, 24 Digital I/O, Screw Terminal or SCSI Front Connector, USB Multifunction I/O Device

Rated 5/5 | 14 ratings

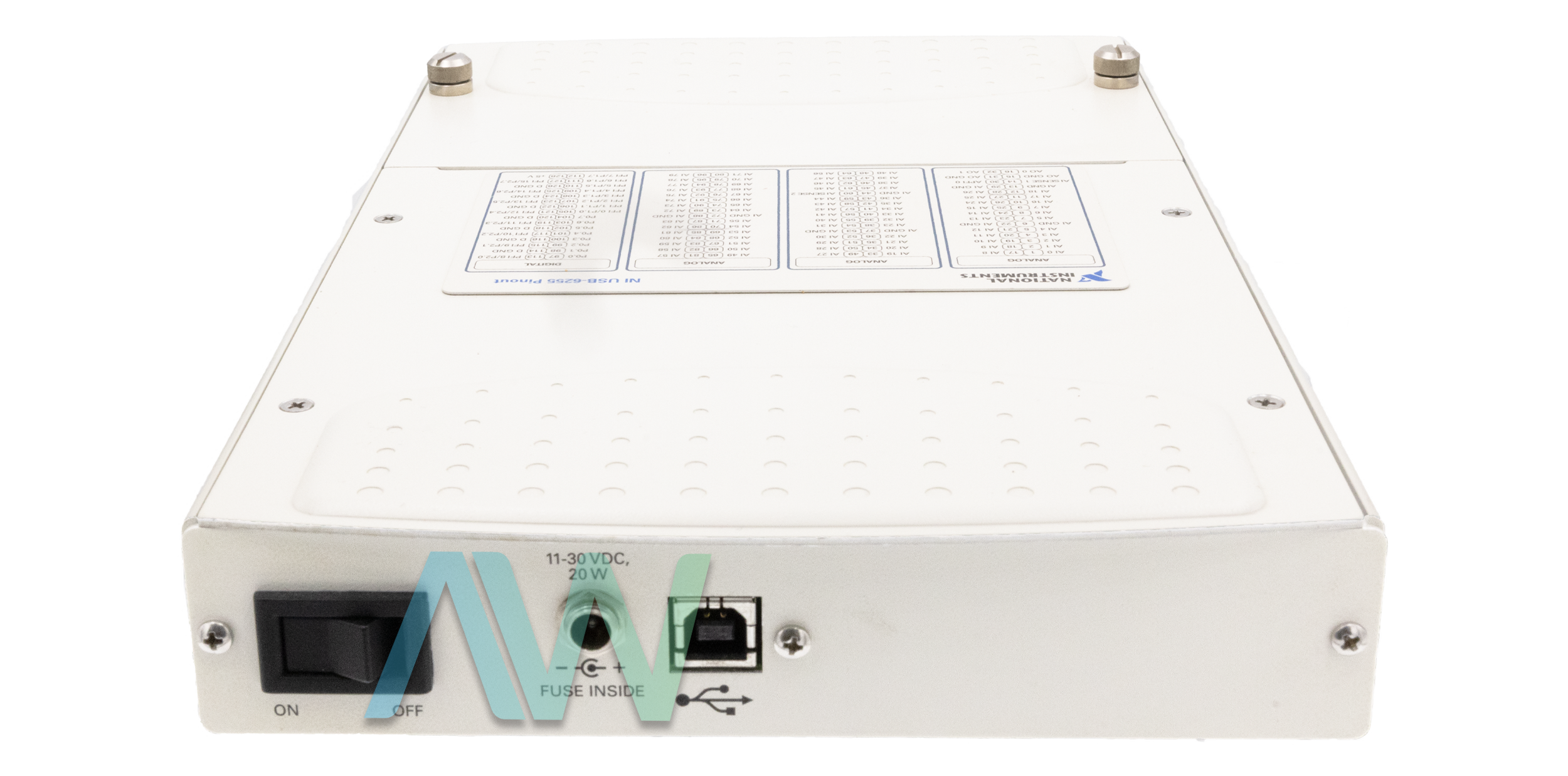

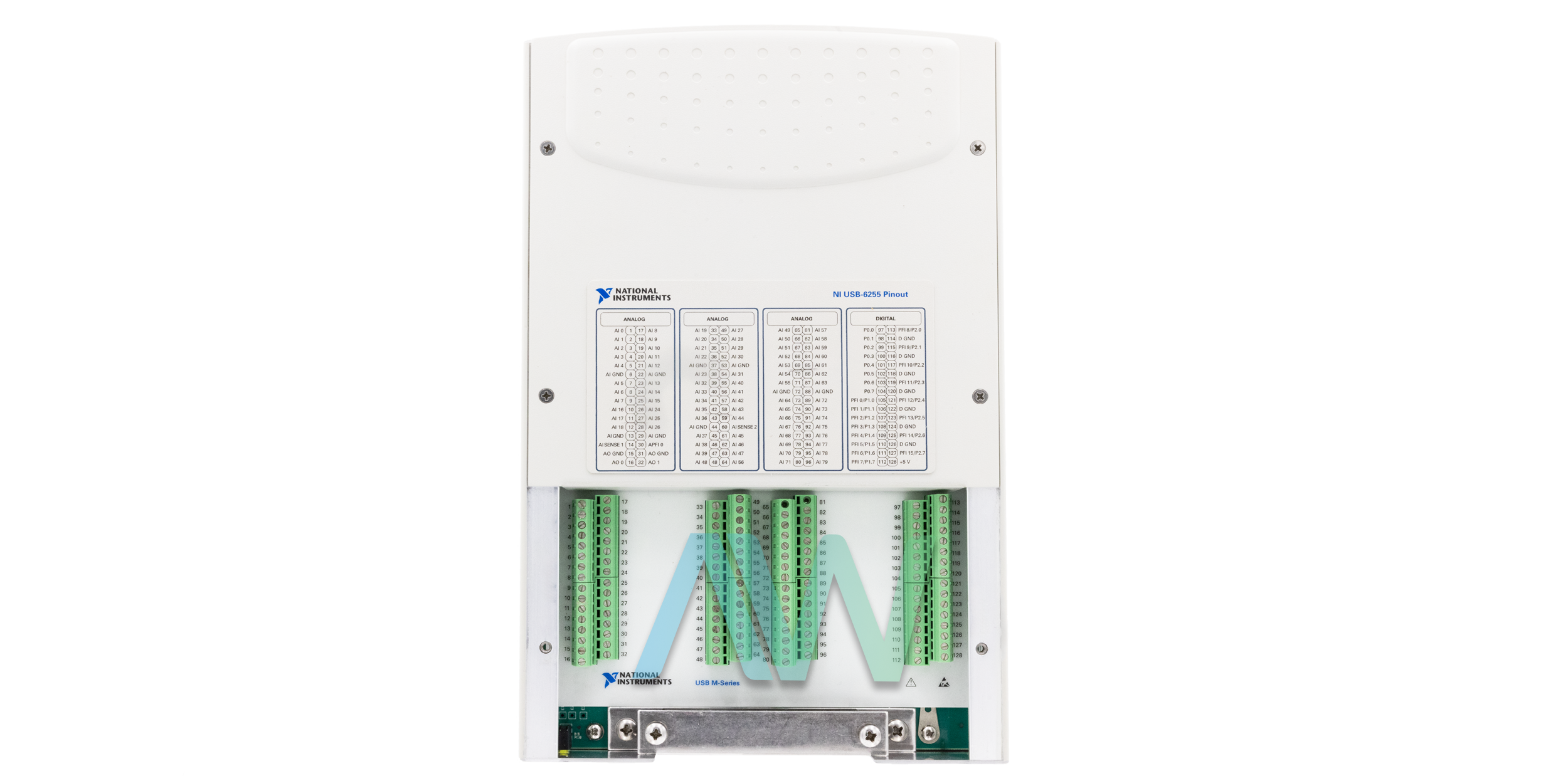

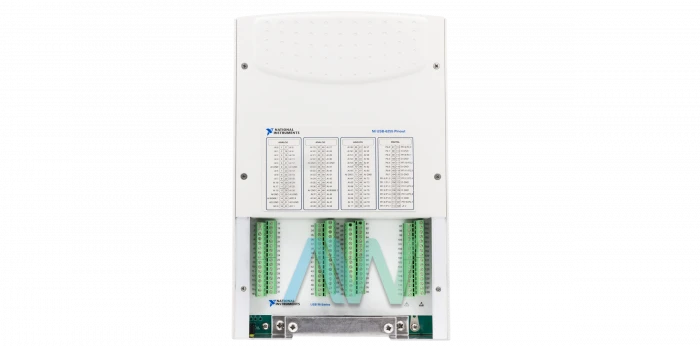

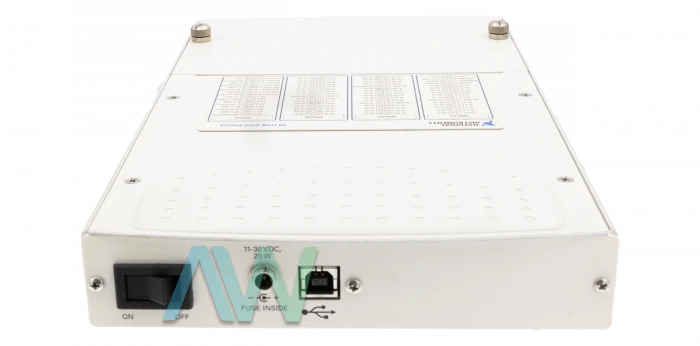

NI USB-6255 Multifunction I/O Device | In Stock Ships Today! | Image

❮ ❯

Actual item may vary if no part number is provided on quote request.

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Anonymous Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

Name*

Email Address*

Model Name

Part Number

Qty

+Add more parts

Additional Info - Calibration, Expedited Shipping or Other Notes

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to: 1-919-809-5227

Carol Zimme**** Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

National Instruments USB-6255 Multifunction I/O Device

The USB-6255 (Part Numbers: 779959-01, 779958-01, 779958-04, 779959-04) is an instrument for data acquisition from National Instruments. This useful Multifunction I/O Device has an onboard amplifier planned for settling times at high scanning rates. The NI USB-6255 has 16-bit resolution. It provides this accuracy even when the user measures all the available channels at the maximum speed. This Multifunction I/O Device have a minimum of 24 digital I/ O lines. This device also has seven programmable input ranges. This device incorporates analog and digital triggering as well.

The USB-6255 is the best device for testing and controlling many applications. This device also enables the user to design these applications. Portable data logging is one such application. This application helps users log environmental or voltage data quickly and easily. The USB-6255 additionally enables users to test, control, and design field-monitoring applications. This device also works with Embedded OEM Applications and Academic Labs. This Multifunction I/O Device has a recommended calibration interval of two years.

The NI USB-6255 has 40 differential or 80 single-ended analog input channels and an aggregate multichannel sampling rate. The single-channel sampling rate of this device is 1.25 MS/s. The input impedance of this instrument is 820Ω when it is on. This Multifunction I/O Device includes has several analog triggers. These triggers perform the functions of Start Trigger, Sample Clock Timebase, Sample Clock, Reference Trigger, Convert Clock, and Pause Trigger. These triggers provide 10-bit resolution measurements. These triggers work in Analog edge triggering mode, analog edge triggering with hysteresis, or Analog Window Triggering mode.

The USB-6255 Multifunction I/O Device is no longer available with National Instruments, but it will remain available in perpetuity with Apex Waves for both purchase and repair services.

Model	USB-6255
Manufacturer	National Instruments
Part Numbers	779959-01, 779958-01, 779958-04, 779959-04
Type	Multifunction I/O Device
Analog Input Channels	40 Differential or 80 Single Ended
Analog Output Channels	2
Resolution	16 Bits
Max Sample Rate	1.25 MS/s
Bus Connector	USB 2.0
Bidirectional Digital Channels	24
Max Update Rate	2.86 MS/s
Counter/Timers	2
FIFO Buffer Size	4,095 Samples
Input Absolute Accuracy	40
Simultaneous Sampling?	No
Enclosed?	Yes
Dimensions	10.5 in. × 6.73 in. × 1.75 in.
Weight	2 lb 11 oz.
Warranty	2-3 Year Warranty
USB-6255 Manual	User Manual and Maintenance Manual Available for Download
Price	Request a Quote for Pricing Information

Associated part numbers for USB-6255:

National Instruments USB-6255 Frequently Asked Questions

Question: Why does the USB-6255 have four part numbers?

Answer: The USB-6255 has two types of connectors available and two supported power inputs available. The first part number, 779959-01, has an SCSI front connector and United States 120 VAC supported power input. The next part number, 779958-01, has a screw terminal front connector and a United States 120 VAC supported power input. Part number 779958-04 has a screw terminal front connector and a Universal Euro 240 VAC supported power input. The last part number, 779959-04, has an SCSI front connector and a Universal Euro 240 VAC supported power input.

Question: Which type of electrical signals does the NI USB-6255 measure?

Answer: The Multifunction I/O Device measures voltage electrical signals.

Question: What is the analog input FIFO buffer size on the deviceI?

Answer: The analog input FIFO buffer size on the NI USB-6255 is 4,095 samples.

Question: What is the absolute accuracy of the analog input for the device?

Answer: The USB-6255 has an analog input absolute accuracy of 1920 uV.
