National Instruments MID-7654 Servo Motor Drive
The National Instruments MID-7654 (Part Numbers: 778005-01 and 778005-05) is a 4-axis version of the NI MID-7652. This motor drive is designed for NI-7350 and NI-7340 motion controllers. The MID-7654 is considered a completely integrated solution for challenging industrial applications. This drive utilizes high-efficiency and highly reliable PWM amplifiers configured to operate as torque blocks (transconductance amplifiers or current amplifiers).
With this model, you can have all encoders, I/O, motors, and limit switches connected directly to NI motion controllers. The NI MID-7654 comes with numerous safety features. In addition to 5VDC host bus power signal, it can also receive critical signals, such as overload and overtemperature signals to initiate a complete or partial shutdown. The host pus power interlock triggers a global shutdown if the host computer is shut down. This model has a powerful front panel that contains arrays of Status LEDs, DIP switch banks, AC Power Switch, ENABLE Switch, etc. The ENABLE switch inhibits the servo amplifiers instantly when turned OFF.

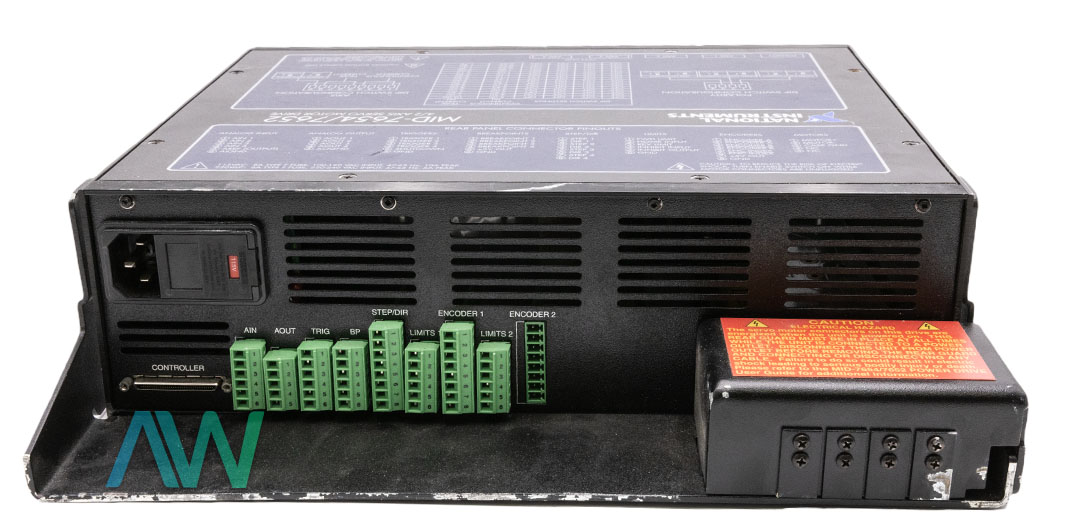

In its default configuration, the amplifier continuous and peak current limits are set for 10 A peak current output and 5 A continuous current output. However, the user can adjust the peak and continuous current limit for each axis by manipulating relevant DIP switches. The NI MID-7654 has all the connectors available on its back panel. These connectors include; motion controller connector, trigger connector, analog input/output connector, AC power connector, step/direction connector, and breakpoint connector. In addition to this, dedicated Encoder, Limit, and Motor connectors are provided for each axis.
| Model | MID-7654 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 778005-01 and 778005-05 |
| Type | Servo Motor Drive |
| Axes | 4 |
| Servo Amplifier Type | Elmo Motion Control VIO 10/100 |
| Peak Current Limit (2.7 s) | 1.7–10 A (default 1.7 A) |
| Continuous Current Limit | 0.85–5 A (default 0.85 A) |
| Continuous Power Output Rating (all axes combined) | 400 W at 25% duty cycle |
| Encoder Differential Input Threshold | ± 0.3 V (typical) |
| Analog Inputs Noise filter (RC time constant) | 10 μs |
| User 5 V Supply Voltage range @ 0.5 A | 4.7 to 5.2 V |
| Power Supply Input Voltage | 90–132 VAC / 198–264 VAC, 47–63 Hz |
| Installation Category | II |
| Operating Temperature | 32 to 122 °F |
| Dimensions | 10 in. × 3.5 in. × 12.0 in. |
| Weight | 22.5 lb. |
| Warranty | 2-3 Year Warranty |
| MID-7654 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for MID-7654:
National Instruments MID-7654 Frequently Asked Questions
Question: Which type of cable connects the MID-7654 to NI Motion Controllers?
Answer: The cable type is a high-density, 68-pin interconnect cable..
Question: In which configurations can the NI MID-7654 be arranged?
Answer: The Servo Motor Drive can be rack-mounted with a regular 19-inch rack kit, utilized as a benchtop unit, or panel mounted with a panel mount kit.
Question: What is the part number for the strain-relief bar that can be used with the MID-7654?
Answer: The part number of the the strain-relief bar compatible with the drive is 187407-01.
Question: What is the PWM frequency of the amplifier on the NI MID-7654?
Answer: The PWM frequency of the amplifier on the Motor Drive is 32 kHz.
MID-7654 PDF Manuals
MID-7654-7652-SERVO-POWER-MOTOR-DRIVE-USER-GUIDE-AND-SPECIFICATIONS.PDF
