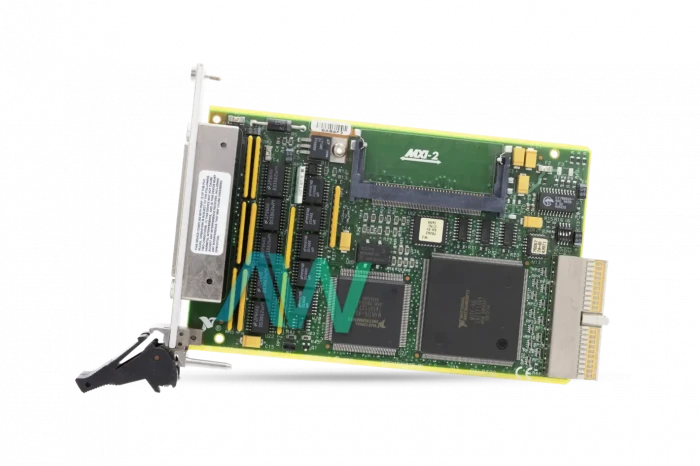

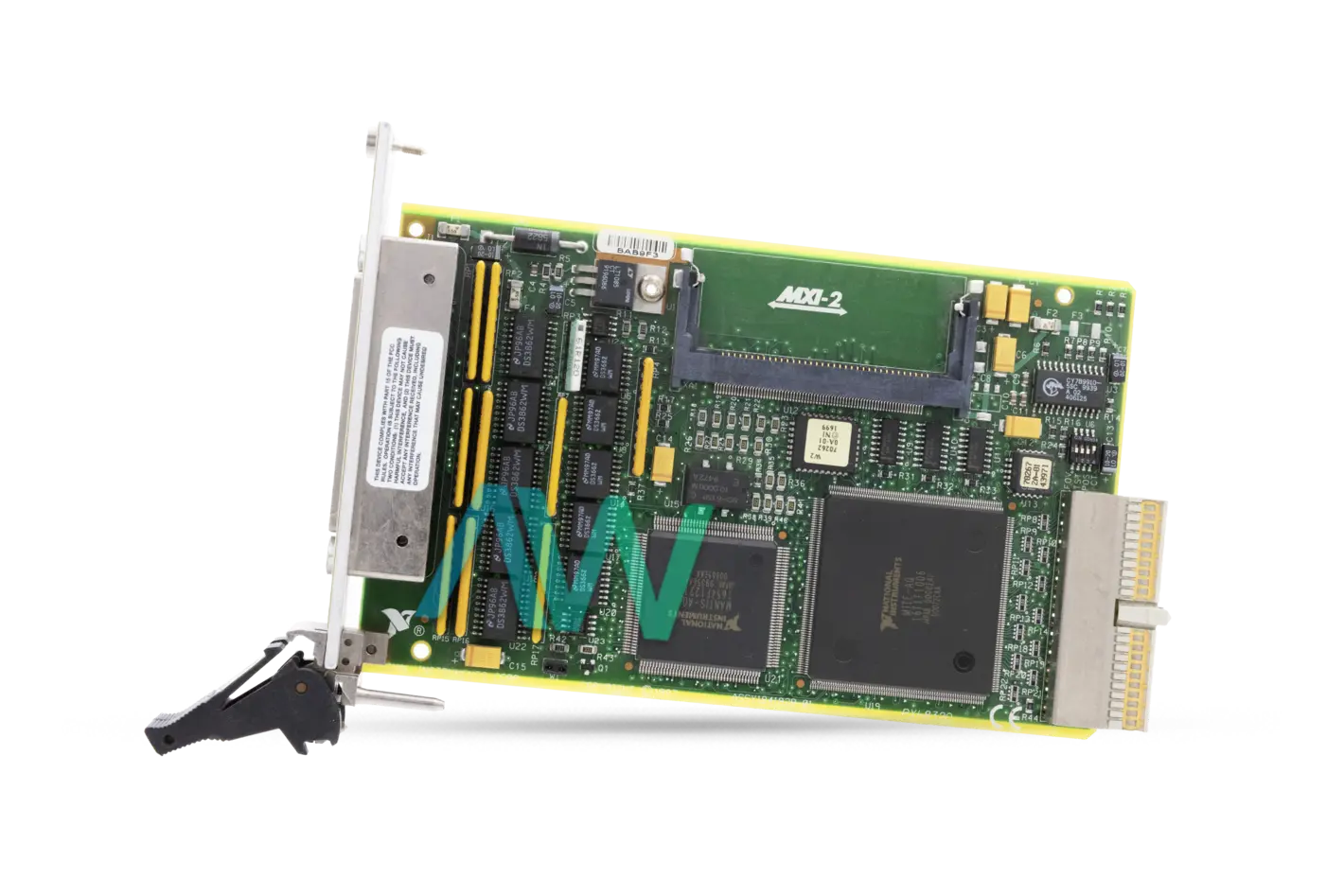

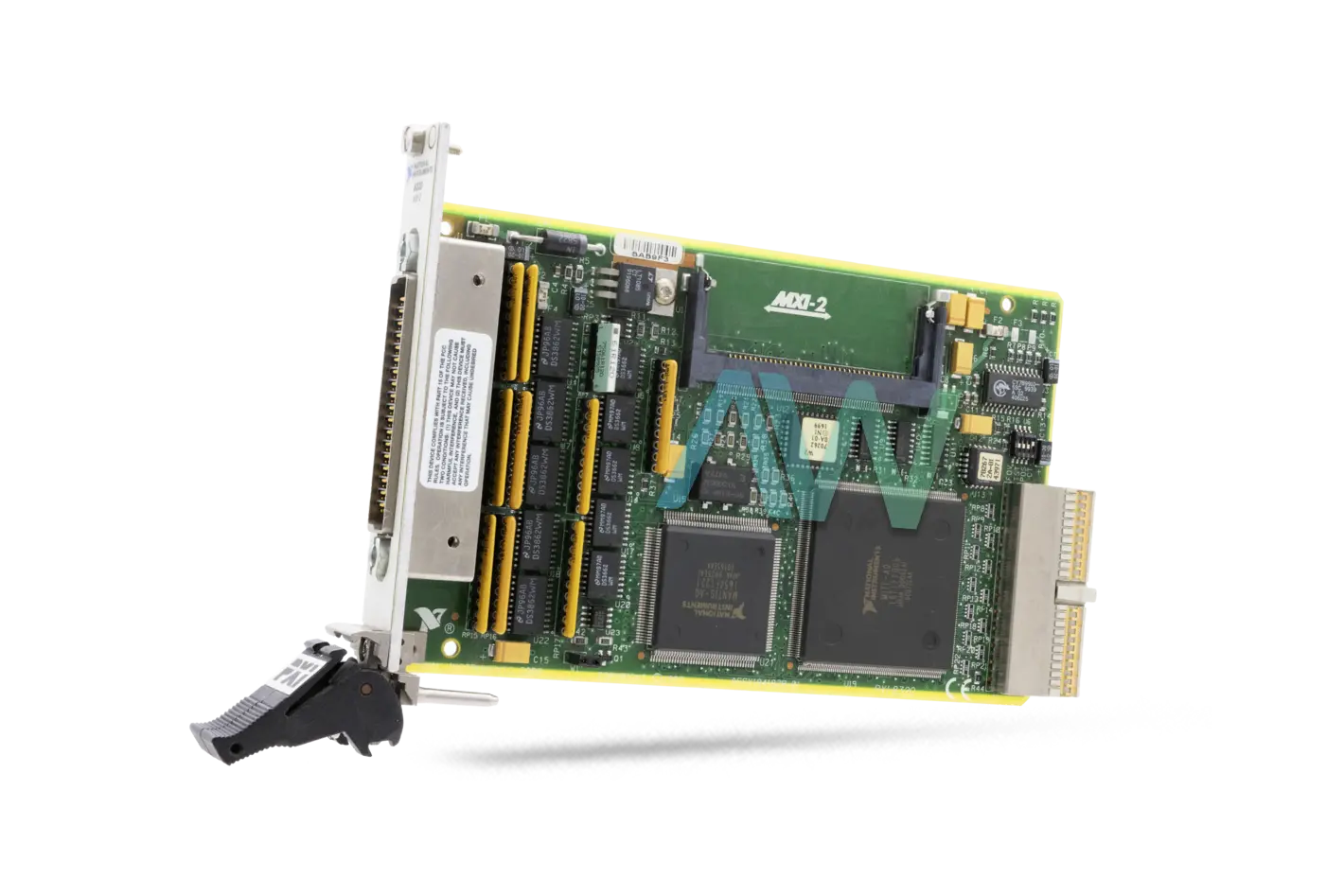

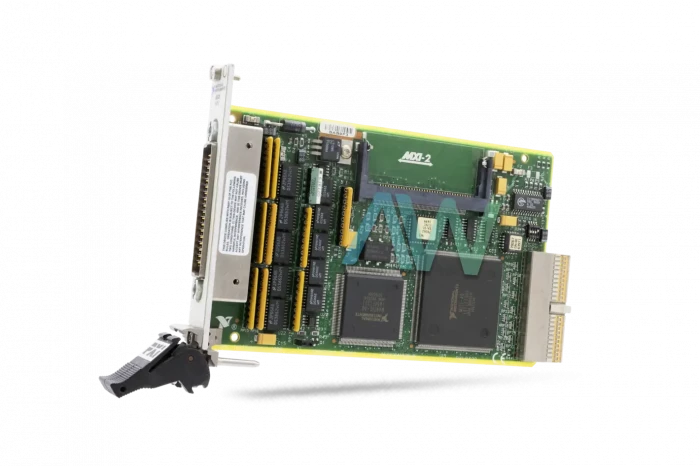

National Instruments PXI-8320 Circuit Board
The PXI-8320 (Part number: 777573-01) is a member of the MXI-2 Series. This 32-bit 3U style CompactPCI compatible module Circuit Board plugs into one of the peripheral slots of either a PXI or CompactPCI frame. It connects the user’s PXI/CompactPCI-based PC specifically to the MXIbus and the other way around. The board can also work as the MXIbus System Controller, and can end the MXIbus signals specifically on the PXI-8320. In addition, the user can introduce up to 16 MB of locally available DRAM that the board can either impart to the MXIbus and VXI/VMEbus or use as a committed information support.
The PXI-8320 Circuit Board has a locally available EEPROM, which stores default register esteems that are stored at power-on. The EEPROM is divided into two parts: a factory configuration half and a user configuration half, so the user can adjust the client configurable half, while the industrial factory arranged half stores a backup of the default client settings. The factory configuration arrangement is a minimal configuration that can boot the PXI-8320, regardless of the changes made to the client setup.
The MXIbus requires that the first and last gadgets in the daisy-chain have an end arrangement. The NI PXI-8320 can end the MXIbus signals on the interface board by utilizing ending resistor networks in single inline packages (SIPs). The user should end the first and last gadgets in the MXIbus daisy-chain.
The locally available termination option offered by this model gives the user a chance to introduce or expel ending resistor systems from their sockets on the PXI-8320 board. If the PXI-8320 is supposed to be the first or last gadget in the MXIbus daisy-chain, the user should leave these interior resistor terminators in place.
National Instruments has announced the PXI-8320 to be Obsolete, but the Circuit Board will still be available for purchase and repairs in perpetuity with Apex Waves.
| Model | PXI-8320 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 777573-01 |
| Series | MXI-2 Series |
| Type | MXI-2 System Extender/Circuit Board |
| Data Path | 32 Bits |
| MXI Transfer Rate | 33 MB/s (peak) |
| Slot Requirements | One CompactPCI/PXI peripheral slot |
| Physical Connectors | 1 MXI-2 Connector (Fully Implemented) |
| Operating Temp Range | 0° to 55° C |
| Storage Temp Range | –40° C to 85° C |
| Dimensions | 6.3 x 3.94 in. |
| Weight | 0.41 lb. (without DRAM) |
| Warranty | 2-3 Year Warranty |
| PXI-8320 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXI-8320:
National Instruments PXI-8320 Frequently Asked Questions
Question: What type of connector does the PXI-8320 have?
Answer: The PXI-8320 has an MXI-2 completely implemented connector.
Question: What is the memory space requirement for the NI PXI-8320?
Answer: The memory space requirement for the NI PXI-8320 is 32 KB minimum.
Question: Is resource locking supported on the PXI-8320?
Answer: Yes, resource locking is supported on the PXI-8320 as a master and slave.
Question: What is the sustained MXI transfer rate for the NI PXI-8320?
Answer: The NI PXI-8320 has a sustained MXI transfer rate of 23 MB/s.
PXI-8320 PDF Manuals
ARCHIVED--GETTING-STARTED-WITH-YOUR-PC-BASED-MXI-2-INTERFACE-FOR-WINDOWS.PDF
ARCHIVED--GETTING-STARTED-WITH-YOUR-PCI-BASED-MXI-2-INTERFACE-FOR-WINDOWS-2000-NT-ME-98.PDF
ARCHIVED--MXI-2-CONFIGURATION-REFERENCE-MANUAL-AND-SPECIFICATIONS.PDF
ARCHIVED--PXI-8320-USER-MANUAL.PDF
LETTER-OF-VOLATILITY-FOR-NI-PCI-PXI-MXI-2-AND-PCI-MXI-2-UNIVERSAL.PDF
NOTE-TO-USERS--MXI-EXPRESS-SERIES-USER-MANUAL.PDF
PXI-REMOTE-CONTROL-AND-SYSTEM-EXPANSION-PRODUCT-FLYER.PDF
