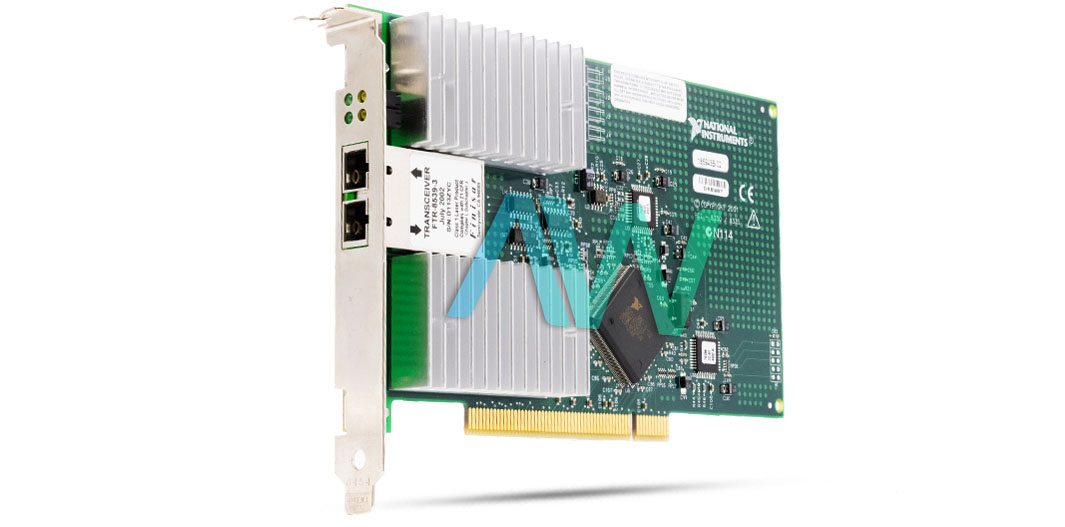

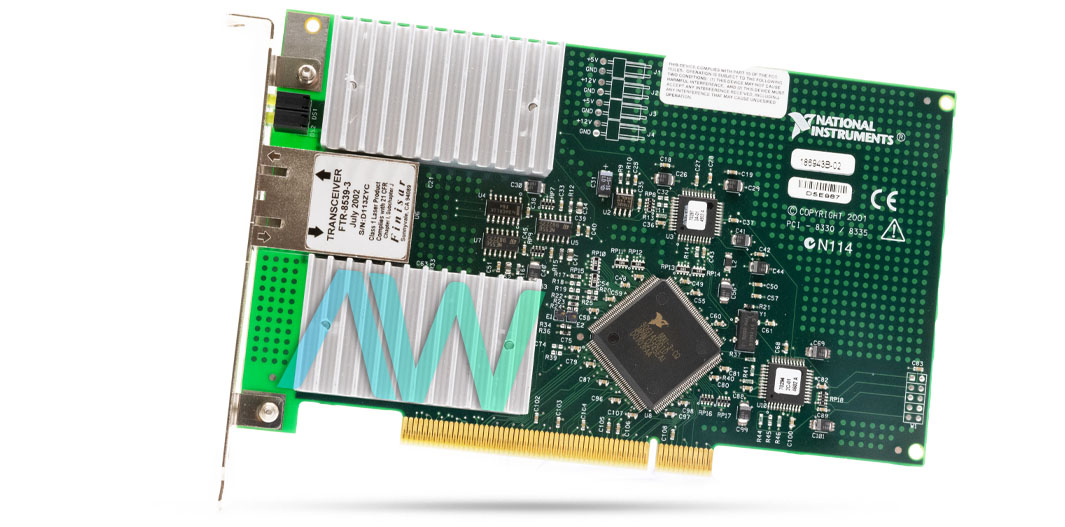

National Instruments PCI-8335 MXI-3 Interface Board
The NI PCI-8335 (Part number: 777946-01) is a PCI master/slave gadget that uses the PCI-PCI connect registry set. MXI-3 utilizes information lines to store information for transmission and furthermore utilizes line information to store information received while waiting for access to the goal PCI bus. MXI-3 ASIC transmits information to the parallel-to-arrangement converters and gets information from the arrangement to parallel converters. The serial transmitter is a parallel-to-serial information converter. The parallel-to-serial converter serializes the 20-bit wide parallel from the MXI-3 ASIC and sends it to the handset. MXI-3 expands on the standard PCI-to-PCI connect engineering by viably splitting the extension into two parts associated to a 1.5 Gb/s serial connection.
The PCI-8335 MXI-3 Interface Board works precisely as a solitary, standard PCI-to-PCI connect. Exchanges between the two PCI transports happen as indicated by the windowing rules given in the PCI-to-PCI Bridge Architecture Specification variant 1.0 and the PCI Specification Revision 2.1. MXI-3 benefits completely from every one of the highlights of PCI-to-PCI connecting because it agrees to the point by point prerequisites characterized in the crossing over determination.
National Instruments built up the MXI-3 ASIC to give a quick, productive connection between the PCI bus and a 1.5 Gb/s serial interface. The MXI-3 ASIC consolidates a total PCI bus interface and works at the full frequency of the 32-bit PCI bus at 33 MHz. The ASIC additionally incorporates the institutionalized PCI-to-PCI connect enlist set to guarantee finished programming straightforwardness for gadget drivers and application code.
PCI-8335 Obsolete Status has been announced by National Instruments, but will still be available for purchase and repairs by Apex Waves.
| Model | PCI-8335 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 777946-01 |
| Type | MXI-3 Interface Board |
| Maximum Number of Links | 254 (depends on BIOS) |
| Maximum Distance | 200 m (Fiber-Optic Cable) |
| Peak Performance | 132 Mbytes/s |
| Sustained Performance | 84 Mbytes/s |
| Mean Time Between Failures (MTBF) | 1,120,000 hours |
| Power Requirements | +5 VDC -- 1.5 A |
| Dimensions | 4.2 in. × 6.9 in. |
| Weight | 0.33 lb. |
| Driver Software | NI-VXI, NI-VISA |
| Warranty | 2-3 Year Warranty |
| PCI-8335 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PCI-8335:
National Instruments PCI-8335 Frequently Asked Questions
Question: What is the operating temperature of the PCI-8335?
Answer: The PCI-8335 has an operating temperature of 0 to 50 °C
Question: What is the maximum cable length of the PCI-8335?
Answer: The PCI-8335 has a fiber optic cable with a maximum length of 200 meters
Question: What is the serial data rate of the PCI-8335?
Answer: The fiber optic cable of the PCI-8335 enables a serial data rate of 1.5 Gbit/s
