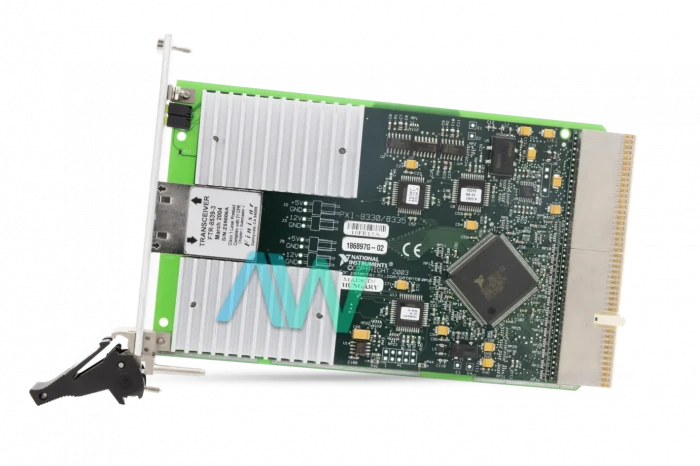

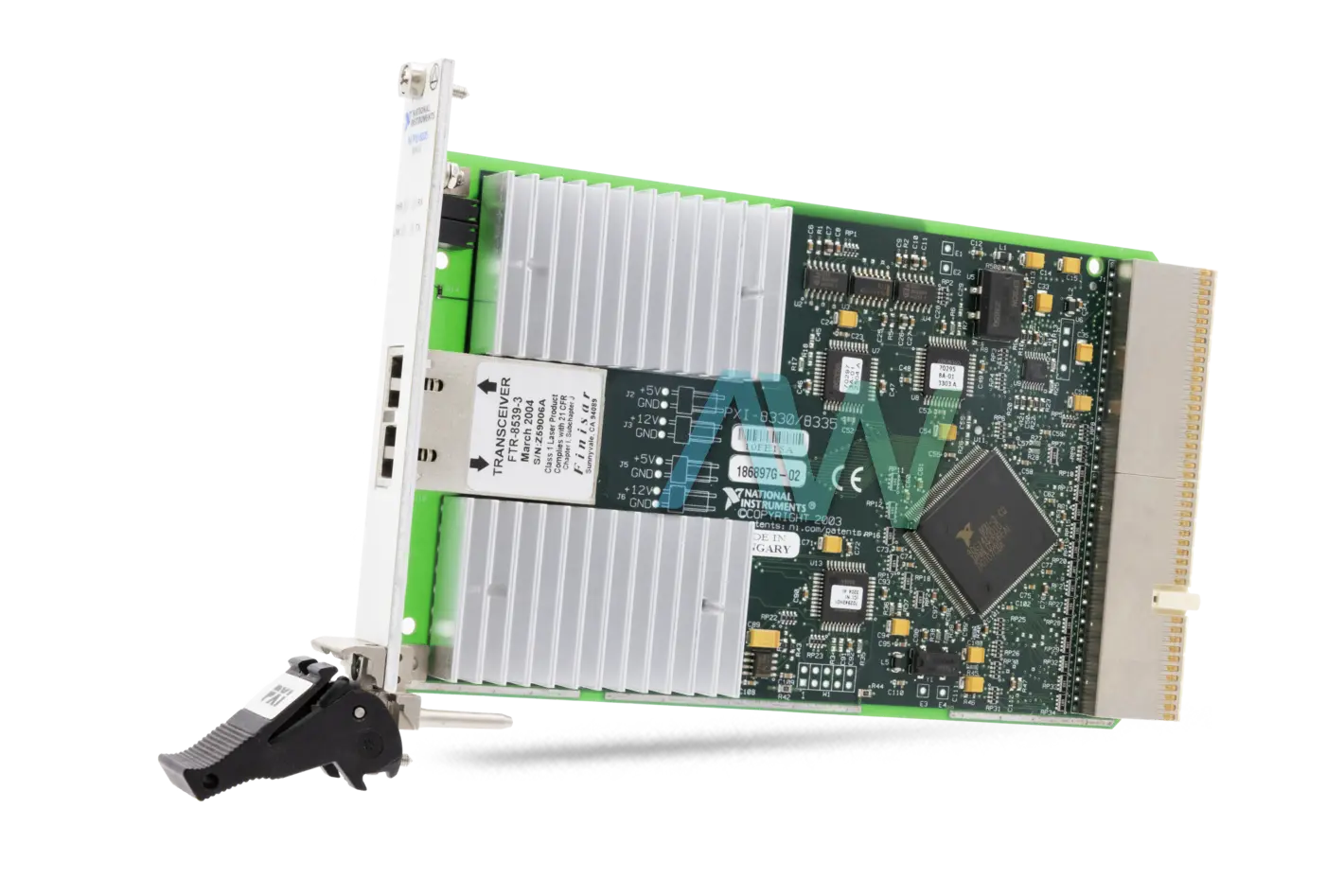

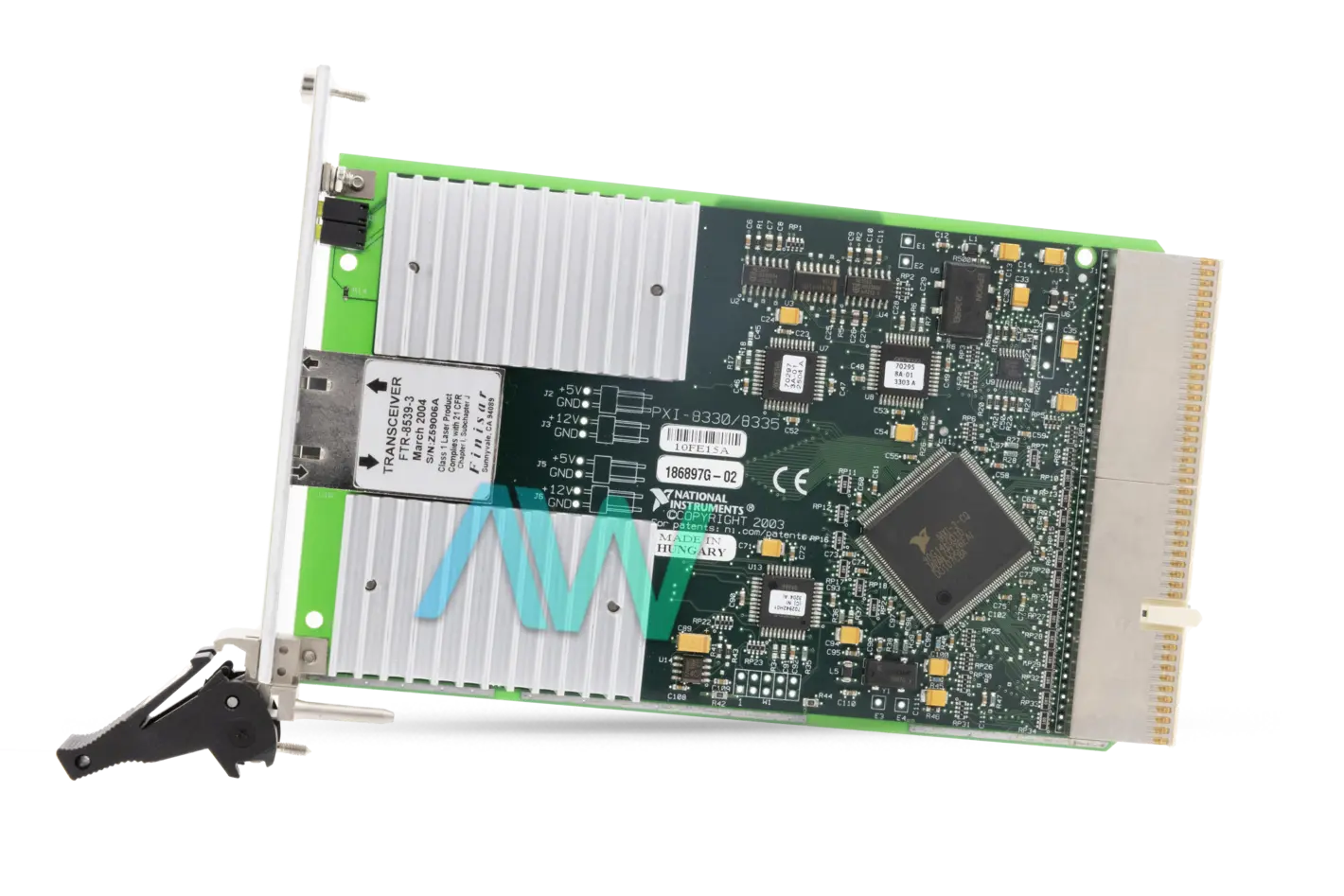

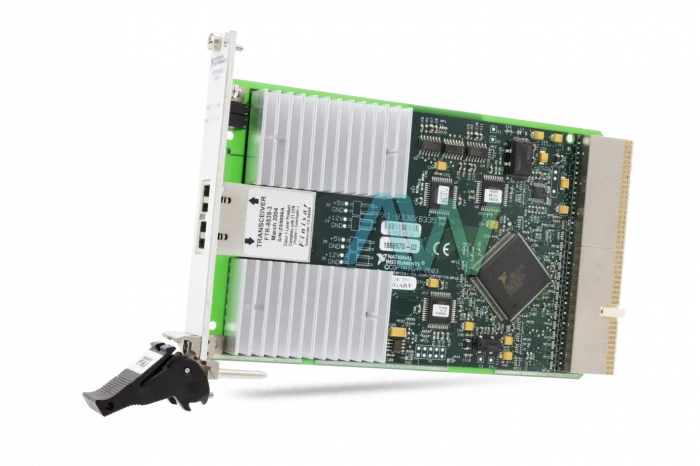

National Instruments PXI-8335 Interface Module
The National Instruments PXI-8335 (Part Number: 777947-01) is an Interface Module with MXI-3 technology. The MXI-3 is a master/slave system that couples two physically apart buses with the help of a fiber-optic or copper-based data link. The NI PXI-8335 supports fiber-optic data linking and can offer up to 1.5 Gbit/s data transfer rate. With this MXI-3 enabled module, the user will be able to control a CompactPCI or PXI backplane through a PXI/CompactPCI host system. It also enables the user to increase the available number of PXI slots for their applications.
The NI PXI-8335 is considered a viable device for physical separation of automation and measurement system form the host PC. Moreover, this module can be used for the combining of PCI, PXI, and CompactPCI devices in the one, single system. The MXI-3 allows the user to control PXI-PCI devices on up to 255 busses through any PCI-based system, provided that the BIOS installed supports that configuration.
The National Instruments PXI-8335 offers the user with multiple-chassis expansion capabilities as well. The user can expand one chassis to two by merely plugging a PXI-8335 into any available peripheral slot of one chassis and another similar PXI-8335 module in slot 1 of another PXI chassis. This module can configure itself as primary or secondary by detecting its host slot. This model is similar to the NI PXI-8330 in specifications, but it comes with a fiber optic port, whereas the PXI-8330 uses a copper cable. With this module, the user will be able to achieve a total link length of 30 m.
PXI-8335 Obsolete Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.
| Model | PXI-8335 |
|---|---|
| Part Number | 777947-01 |
| Manufacturer | National Instruments |
| Type | Interface Module |
| Series | MXI-3 |
| Supported Cable | Fiber-optic |
| Maximum Cable Length | 30 m |
| Dimensions | 6.3 x 3.9 in. |
| Data Transfer Rate | 84 Mbytes/s |
| Warranty | 2-3 Year Warranty |
| PXI-8335 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXI-8335:
National Instruments PXI-8335 Frequently Asked Questions
Question: What is the peak performance for the PXI-8335?
Answer: The peak performance for the PXI-8335 is 132 Mbytes/s.
Question: How much does the PXI 8335 weigh?
Answer: The PXI 8335 weighs 8 oz.
Question: What is the Mean Time Between Failures for the NI PXI 8335?
Answer: The Mean Time Between Failures for the NI PXI 8335 is 850,000 hours.
Question: Which application software can be used with the NI PXI-8335?
Answer: The application software that can be used with the NI PXI-8335 is LabVIEW and Measurement Studio.
