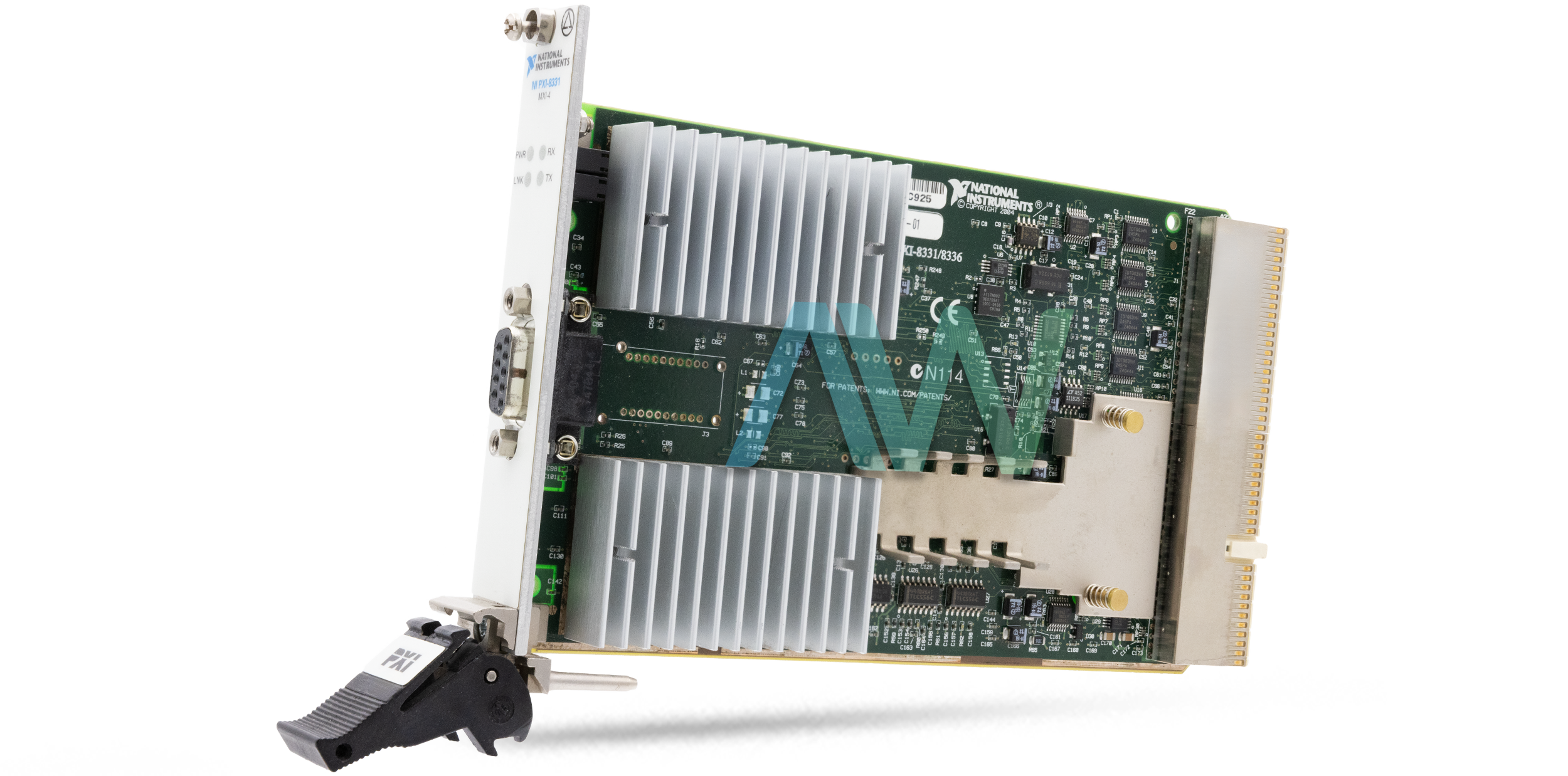

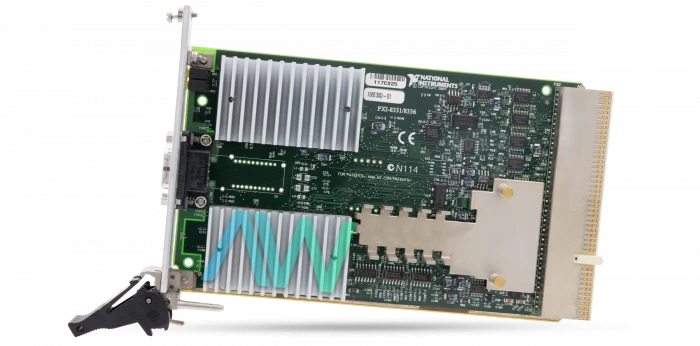

PXI-8331 National Instruments Interface Module | Apex Waves | Image
PXI-8331 National Instruments Interface Module | Apex Waves | Image
PXI-8331 New
PXI-8331 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

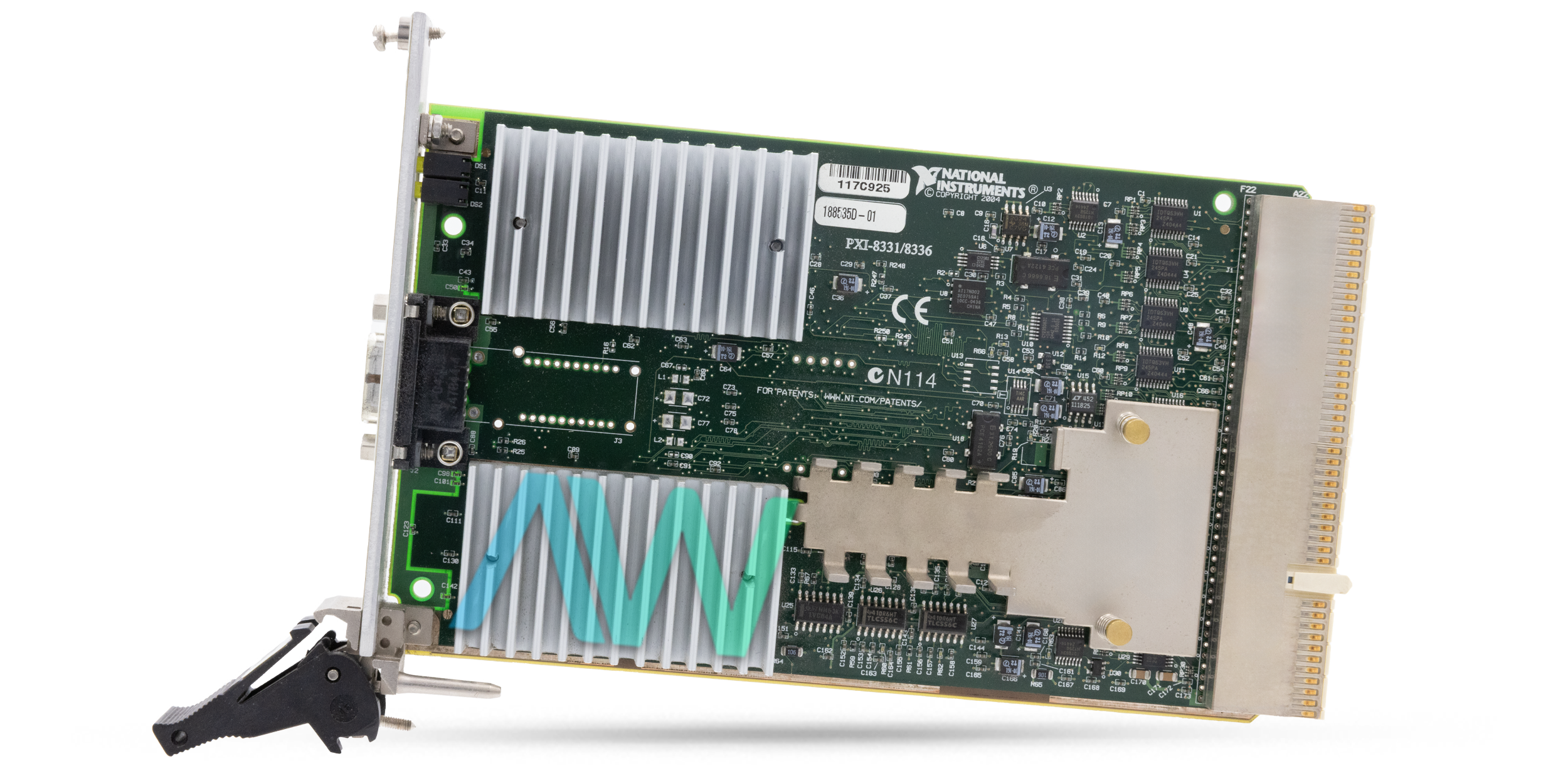

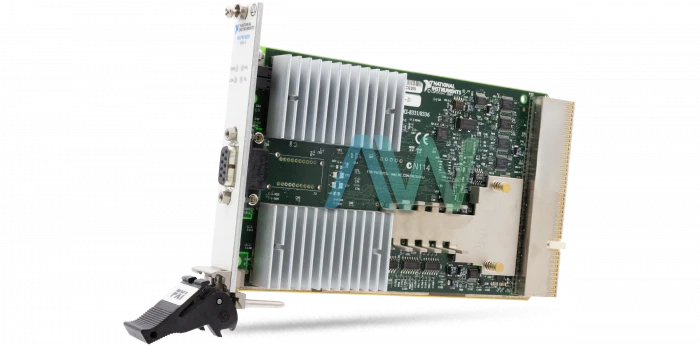

PXI-8331 National Instruments Interface Module | Apex Waves | Image
PXI-8331 National Instruments Interface Module | Apex Waves | Image
PXI-8331 New
PXI-8331 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PXI-8331 Interface Module

The NI PXI-8331 (Part Number: 778955-01, 778955-02) Interface Module gives PCs direct control of PXI frameworks by utilizing MXI-4 innovation. This module can be utilized to connect numerous PXI chassis in a daisy-chain or star arrangement in one system. This interface couples to physically isolate buses with a copper data link capable (Sold Separately) for 1.5 Gbit/s serial data rates. The MXI-4 innovation enables the PXI-8331 module to be utilized as though it is a PCI module straightforwardly introduced to a PC. This Interface Module can be paired with a PCI-8331 or with another PXI-8331. Part number 778955-01 has connections for copper cables, while part number 778955-02 has a copper interface (3.3V or 5V).

Compatibility with the NI PXI 8331 is greatly dependent on the motherboard of the PC. Therefore, if the client is utilizing a similar hardware PC and upgrading only the operating system, it is expected to work. Notwithstanding, to utilize the PXI-8331 with Windows 10 64-bit, the user should have PXI Platform Services 15.0 or higher installed on their PC. A few useful features of this module are error checking and retransmission, as well as support for 3.3 V and 5 V PCI. Additionally, it has a peak data transfer rate of 132 Mb per second.

Since working frameworks and drivers usually assume the PXI-8331 Interface Module will be available in the framework from control up to shut down, it is imperative not to power off the expansion chassis until the host PC or embedded controller is powered off. Powering the expansion chassis off while the host is still on can cause crashes or hangs. The request in which development chassis are turned off, in respect to each other, is not critical.

The PXI-8331 specification places a limit on the quantity of PXI-8331 MXI-4 Interface Modules that can be set on one PXI-8331 bus segment to ensure the electrical attributes and timing of the bus. The NI device weighs 0.55 lb, and measures 3.9 x 6.3 in. in physical dimensions. It has a recommended operating temperature range of 0 to 55 °C, and a storage temperature range of –20 to 70 °C.

The status of the PXI-8331 has been declared Obsolete by National Instruments, but the MXI-4 Interface Module will still be available for purchase and repairs with Apex Waves in perpetuity!

ModelPXI-8331
ManufacturerNational Instruments
Part Numbers778955-01, 778955-02
SeriesMXI-4 Series
TypeInterface Module
Copper Cable Length10 m
Peak Transfer Rate132 Mbytes/s
Operating Temperature0 to 55 °C
Storage Temperature–20 to 70 °C
Dimensions3.9 × 6.3 in. (10.0 × 16.0 cm)
Weight.55 lb (.25 Kg)
WarrantyThree Year Warranty
PXI-8331 ManualUser Manual and Maintenance Manual Available for Download
PriceSubmit a Quote Request for Up-to-Date Pricing

Associated part numbers for PXI-8331:

National Instruments PXI-8331 Frequently Asked Questions



Question: What are the differences between the fiber and copper cable variations of the MXI-4 Series?

Answer: Copper cables are meant to be used for short distances, while fiber cables are recommended for greater distances.



Question: Can an MXI-4 board such as the PXI-8331 be used directly with an MXI-3 board?

Answer: No, the PXI-8331 cannot be used with an MXI-3 board because they have different cable connectors, which are not compatible.



Question: Does the PXI-8331 need optimization software?

Answer: No, the MXI-4 Interface does not need optimization software.



Question: Which operating systems can the PXI-8331 work with?

Answer: The Interface Module should work with many commonly used systems, such as Windows, Linux, Macintosh OS X, and Solaris.
