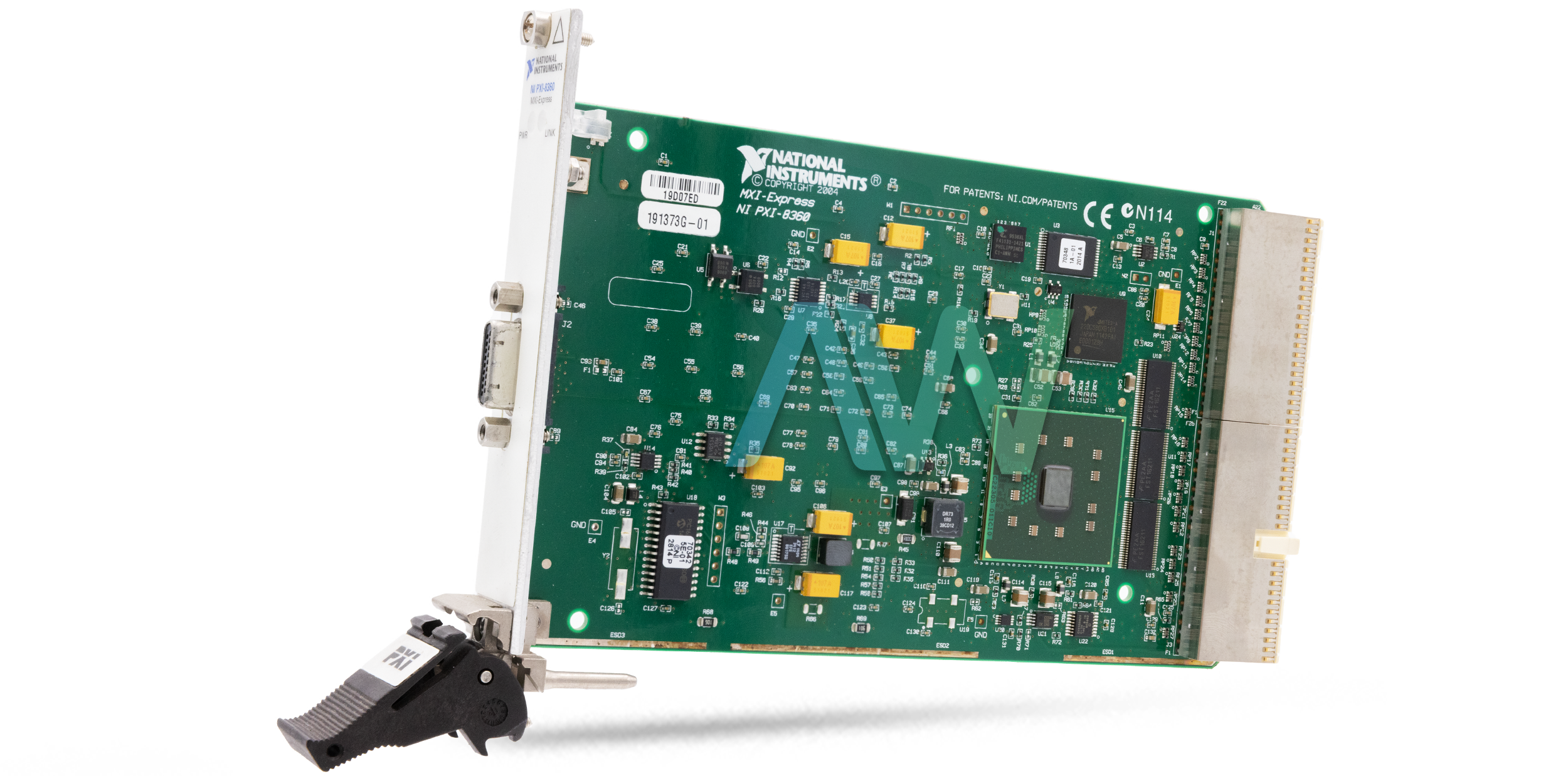

PXI-8360 National Instruments PXI Remote Control Module | Apex Waves | Image

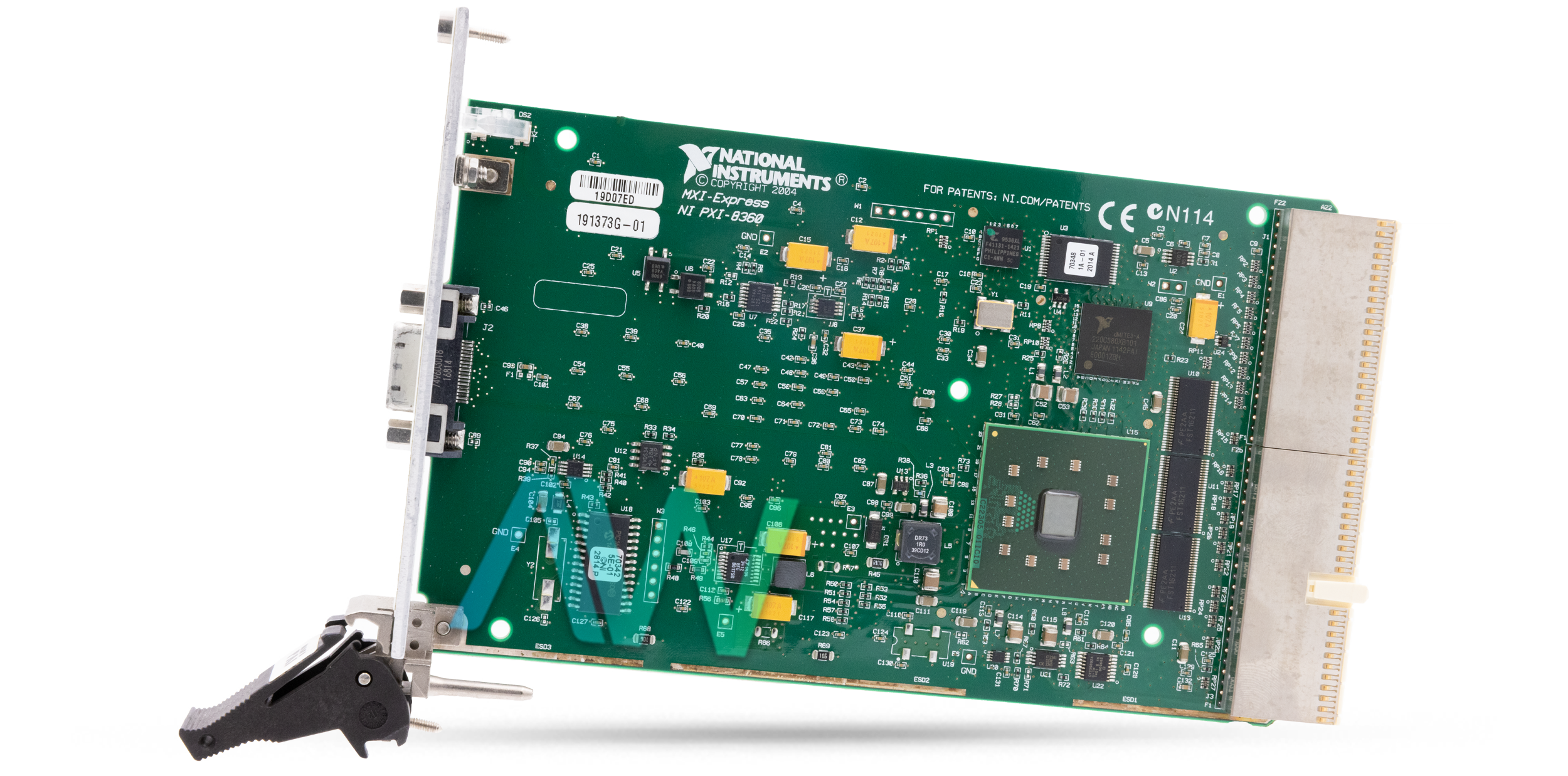

PXI-8360 National Instruments PXI Remote Control Module | Apex Waves | Image
PXI-8360 New
PXI-8360 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

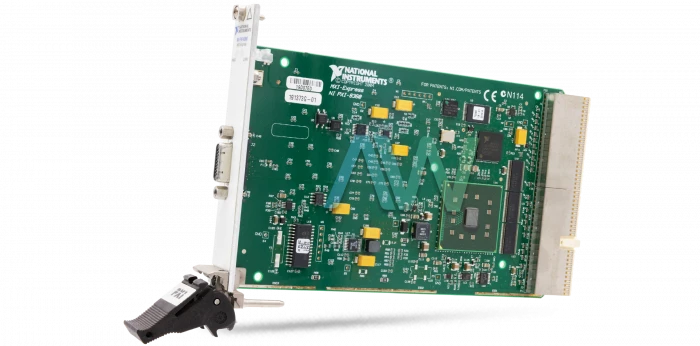

PXI-8360 National Instruments PXI Remote Control Module | Apex Waves | Image

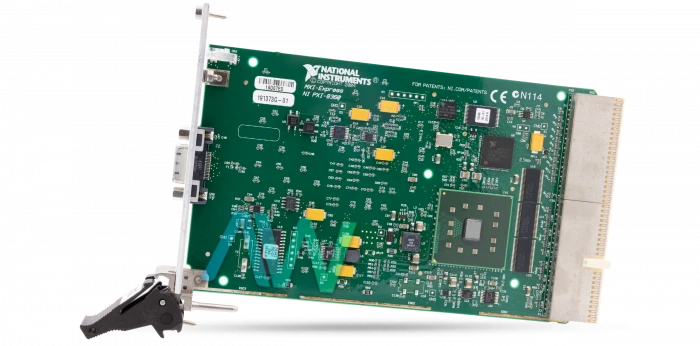

PXI-8360 National Instruments PXI Remote Control Module | Apex Waves | Image
PXI-8360 New
PXI-8360 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PXI-8360 PXI Remote Control Module

The Remote Control Module, PXI-8360 (Part Number: 779501-01), enables the user to control the PXI and CompactPCI frameworks from the user’s PC by utilizing a completely straightforward MXI-Express connection. It is introduced in a PXI frame and uses a PCI Express to PCI extension to build up an interface with a PCI-8360 installed by means of a x1 MXI-Express copper link. The device is compatible with a copper cable, with a maximum length of 7 m. It has a MXI bandwidth of 132 MB per second.

The fast cable connector function offered by this model gives the essential signals to interface a NI ExpressCard-8360 and an NI PXI-8360 or NI PXIe-8360. These signals incorporate the PCI Express transmit and receive the framework clock, a reset, and a presence-detect signal. The NI device can be configured using the PXI Platform Services software and the Measurement & Automation Explorer (MAX) tool.

The PXI-8360 MXI-Express x1 Series module offers a MXIbus Slave State Machine. This state machine screens the output of the address decoders and reacts to MXIbus cycles planned for the PXI 8360 NI. Cycles that guide to the Logical Address decoder get to the NI PXI-8360 registers, while cycles that guide to the A24/A32 decoder get to either the PXI-8360 registers or the locally available DRAM SODIMM. The PXI-8360 can acknowledge D32, D16, and D08 (EO) single and RMW MXIbus cycles in A32, A24, and A16 slot. The NI PXI-8360 MXI-Express module can also acknowledge synchronous and piece MXIbus cycles in A32 and A24 slot. The MXIbus slave state machine checks for MXIbus equality blunders. If the module recognizes an equality mistake amid the address period of a cycle, the PXI-8360 disregards the cycle.

The NI device weighs 0.33 lb, and measures 6.3 x 3.9 in. in physical dimensions. It has a recommended operating temperature range of 0 to 55 °C, a storage temperature range of –40 to 70 °C, an operating and storage humidity of 10 to 90% and 5 to 95% respectively, and an operating and non-operating random vibration of 0.3 grms and 2.4 grms respectively–all at a frequency range of 5 to 500 Hz.

While the PXI-8360 is no longer available directly from the manufacturer National Instruments, the PXI Remote Control Module will remain available in perpetuity for either purchase or repair services with Apex Waves!

ModelPXI-8360
ManufacturerNational Instruments
Part Number779501-01
SeriesMXI-Express x1 Series
TypePXI Remote Control Module
MXI Bandwidth132 MB/s
Supported Cable TypeCopper
Maximum Cable Length7 m
Slot RequirementsOne PXI Express System Slot
Max Altitude2,000 m
Pollution Degree2
Operating Temperature0 to 55 °C
Storage Temperature-40 to 71 °C
Dimensions3.9 × 6.3 in. (10.0 × 16.0 cm)
Weight0.37 lb. (0.17 kg)
WarrantyThree Year Warranty
PXI-8360 ManualUser Manual and Maintenance Manual Available for Download
PriceRequest a Quote Today for Pricing Info

Associated part numbers for PXI-8360:

National Instruments PXI-8360 Frequently Asked Questions



Question: What are the slot requirements for the PXI-8360?

Answer: The MXI-Express module requires one controller slot.



Question: What are the recommended drivers for the NI PXI-8360?

Answer: The interface's drivers are NI-DAQmx and NI-VISA.



Question: Does the MXI-Express Interface support daisy chaining?

Answer: No, the NI PXI-8360 does not support daisy chaining.



Question: Which controller slot should the NI PXI-8360 be installed in?

Answer: The device should be installed in Slot 1.
