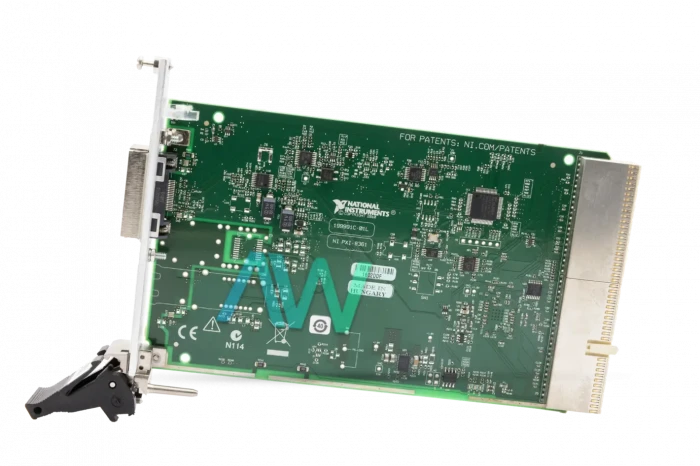

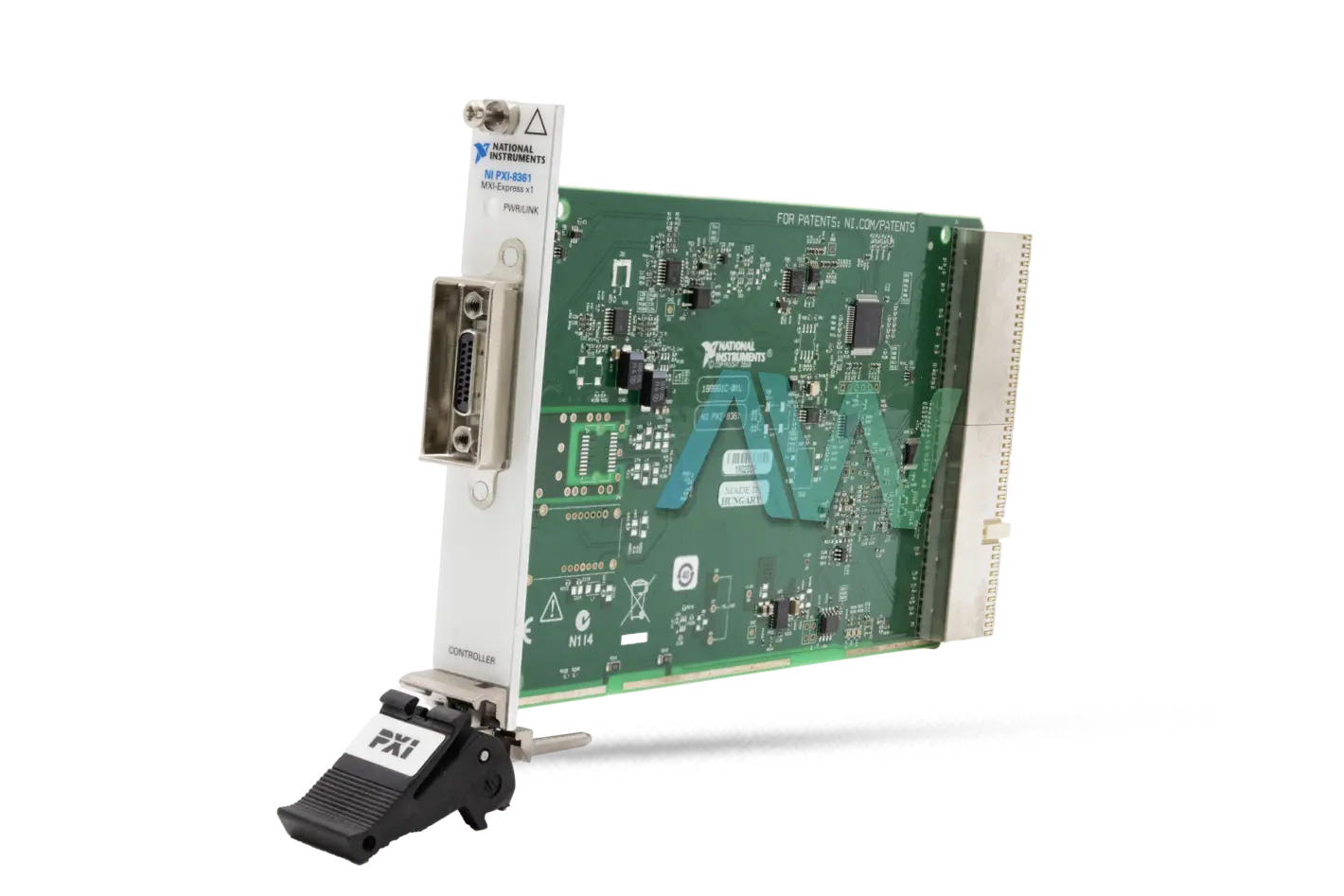

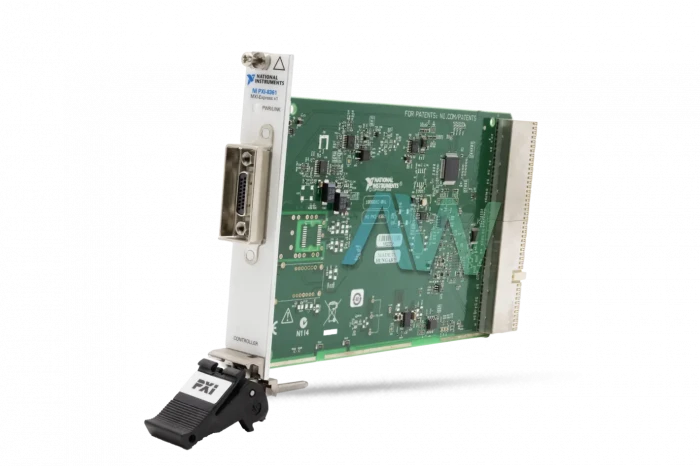

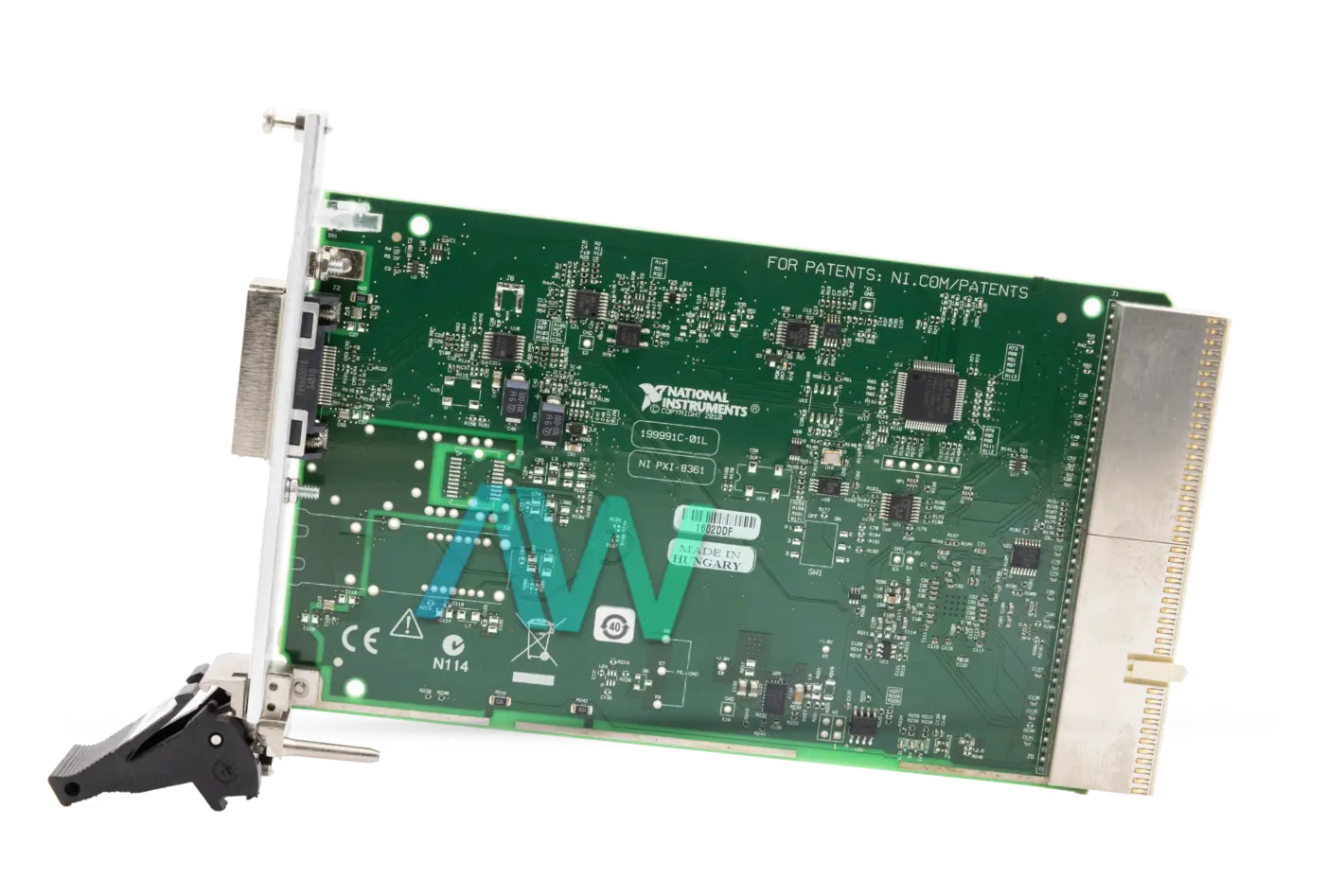

National Instruments PXI-8361 PXI Remote Controller
The National Instruments PXI-8361 is a multi-system extension interface for PXI bus computers. This module requires one PXI controller slot and is compatible with the PXI Hardware Specification Rev 2.1. The PXI-8361 is a product from the MXI-Express x1 Series, which functions as a cable-based PCI Express x1 link that allows the controlling of components installed in a PXI chassis by using laptops, workstations, desktop computers, or any other host controllers.
With the help of this model, the user can control a PXI backplane and achieve physical separation between the automation and measurement system from a host laptop or PC. In addition, the NI PXI-8361 is used for combining different PXI devices into the same system. This is built on PCI Express technology and comes incorporated with a PCIe-to-PCI bridge- a device that expands the PCI bus on a computer motherboard transparently to another bus segment.
The NI PXI-8361 offers an x1 cabled PCI Express link between the host machine and the PXI chassis. This link provides a dual-simplex communication channel consisting of a low-voltage and gives a differentially driven signal pair. In addition, it can transmit data at a rate of 2.5 Gigabits per second, simultaneously in each direction. As far as its physical characteristics are concerned, the NI PXI-8361 weighs around 0.14 kg and is 10.0 × 16.0 cm.
This module supports the MXI-Express x1 Copper cable up to the maximum length of 7 meters. If the user has multiple PCI or PCI express slots available, then they can also consider a daisy-chain arrangement for connecting another PXI chassis by using an additional NI PXI-8361.
PXI-8361 Obsolete Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.
| Model | PXI-8361 |
|---|---|
| Manufacturer | National Instruments |
| Series | MXI-Express x1 Series |
| Type | PXI Remote Controller |
| Maximum Cable Length | 7 m |
| Slot Requirements | 1 PXI controller slot |
| Dimensions | 3.9 x 6.3 in. |
| Weight | 0.31 lb. |
| Warranty | 2-3 Year Warranty |
| PXI-8361 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXI-8361:
National Instruments PXI-8361 Frequently Asked Questions
Question: Where can I locate the PXI-8361 manual?
Answer: The PXI-8361 manual can be downloaded from the apexwaves.com website.
Question: How much does the PXI-8361 weigh?
Answer: The PXI-8361 weighs around 0.31 lb.
Question: What does it mean when the LED indicators are blinking red on the NI PXI-8361?
Answer: The LED indicators blink red when the power is out of spec on the NI PXI-8361.
Question: What is the price of the NI PXI-8361?
Answer: For a quotation for the NI PXI-8361, call or email Apex Waves.
