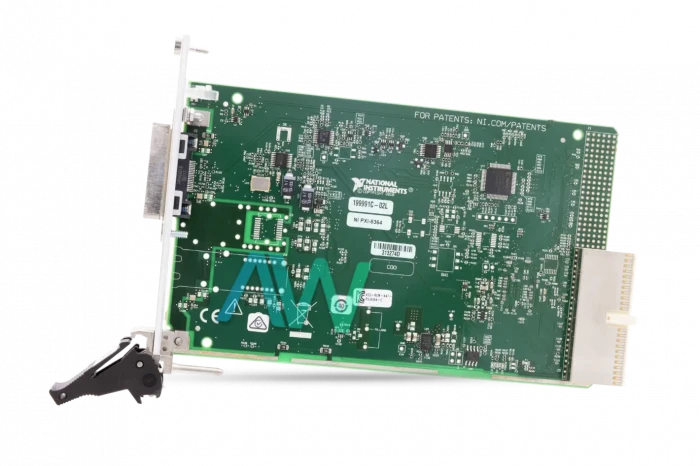

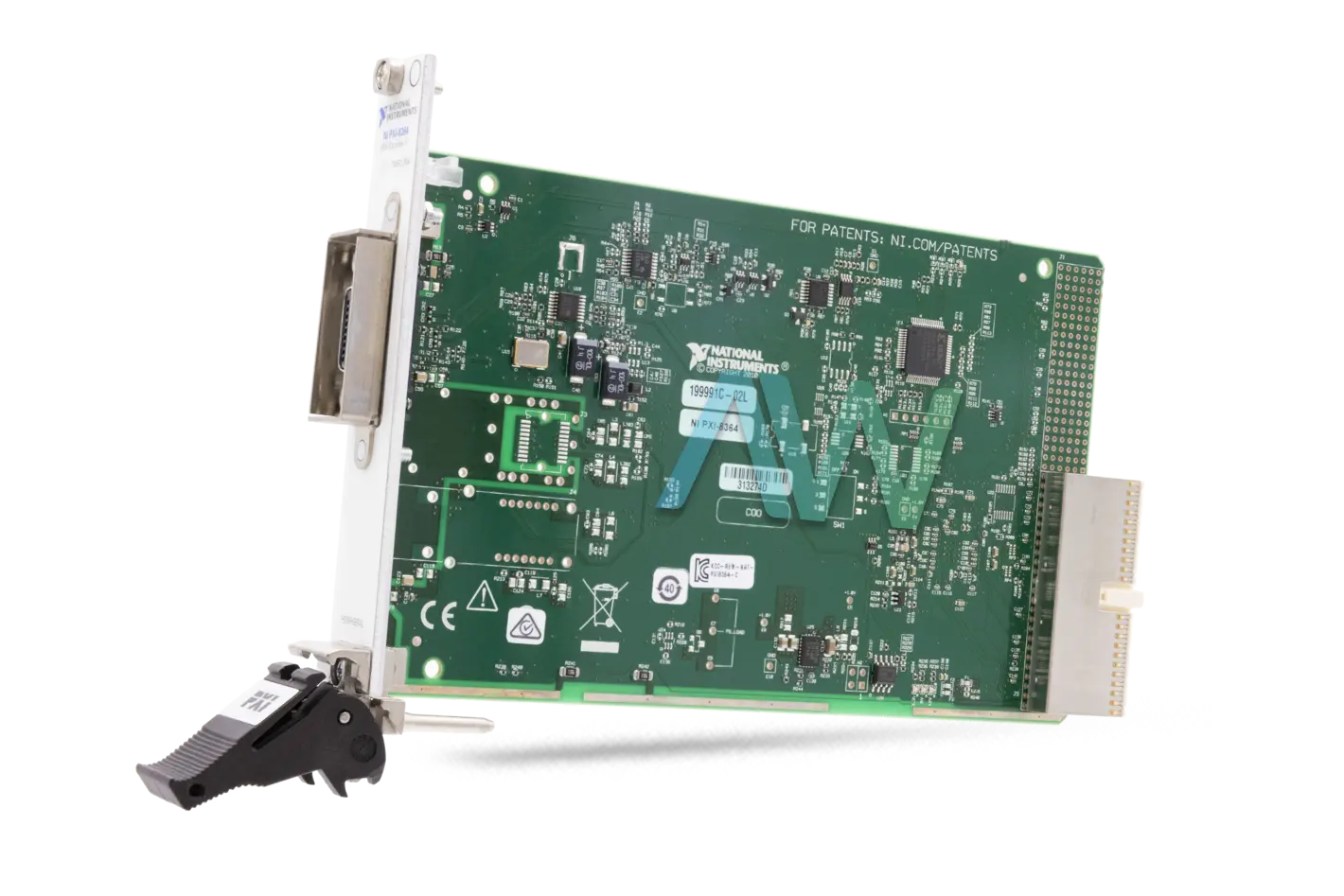

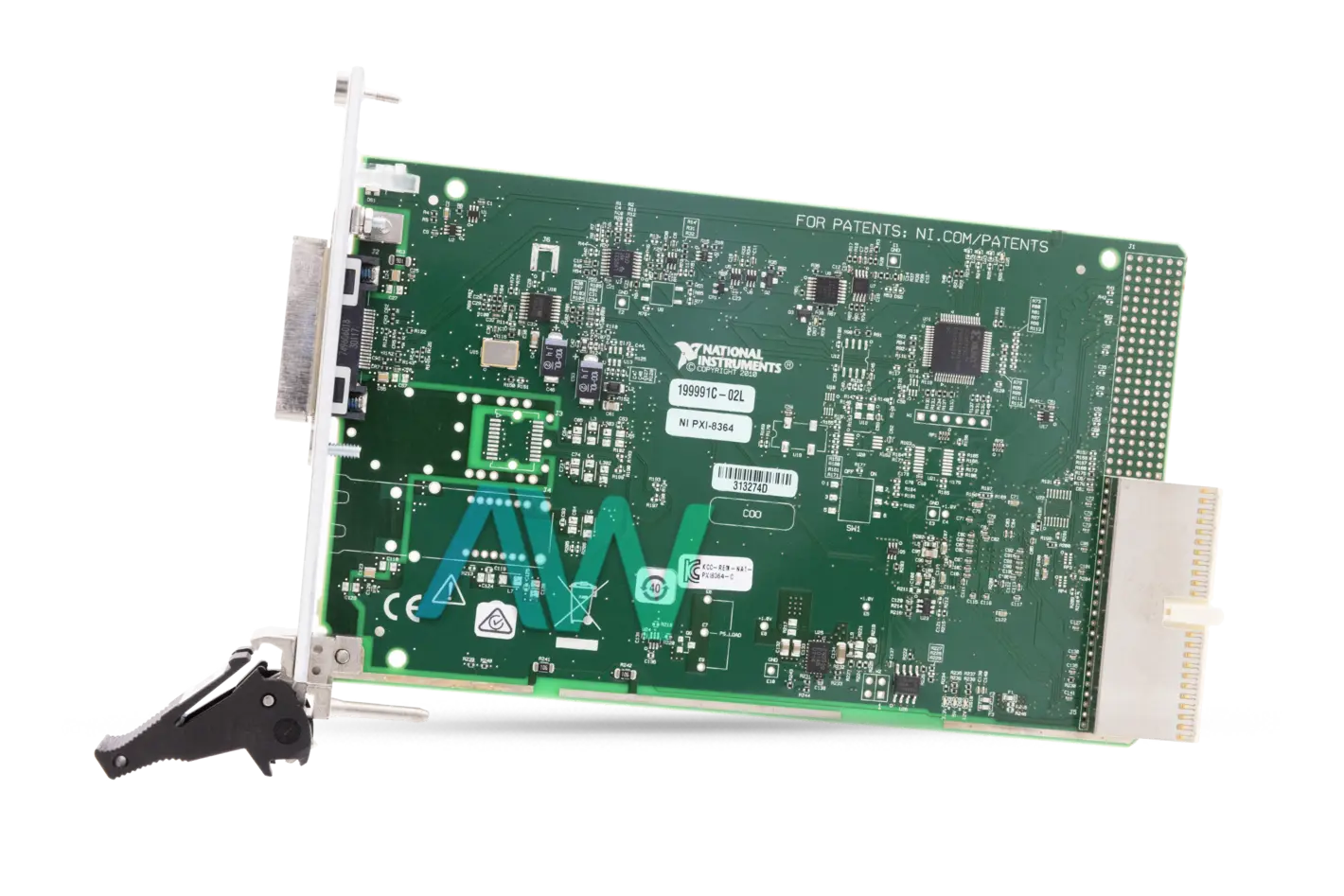

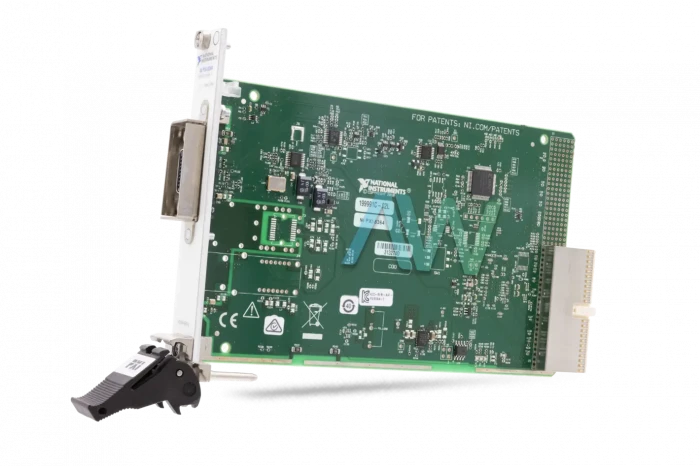

National Instruments PXI-8364 PXI Bus Extension Module
The PXI-8364 (Part number: 781395-01) MXI-Express x1 Series PXI Bus Extension Module enables the user to make multi-chassis PXI frameworks that build up interfaces on a similar PC. The user can utilize the PXI-8364 to serially interface up to eight PXI chassis to a similar PC framework, which can be an installed NI controller or a PC associated with a remote controller.
Since MXI links are software transparent, they do not require any programming. All PXI modules in the slave/downstream chassis show up as nearby gadgets in the master chassis. Since the hidden communication innovation for most National Instruments Remote Controllers is cabled PCI Express, these controllers offer an amazingly high transfer speed and low inactivity rate. These highlights simplify the process toward growing PXI frameworks to incorporate different chassis while offering high performance.
The NI PXI 8364 offers an NI Measurement and Automation Explorer (MAX) programming that gives a graphical perspective of the framework hierarchy, making it simple to distinguish and design the PXI modules present in chassis. To help multi-chassis arrangements, PXI implanted and rack-mount controllers from National Instruments have custom fundamental I/O frameworks that permit finished gadget lists. NI suggests using either a NI implanted controller or a rack-mount controller as the framework PC for the ace PXI chassis. To work with work area PC’s and PC’s that do not have this capacity, NI offers MXI-Express Compatibility Software.
| Model | PXI-8364 |
|---|---|
| Part Number | 781395-01 |
| Manufacturer | National Instruments |
| Type | PXI Bus Extension Module |
| MXI Communication Level | MXI-Express x1 |
| MXI Bandwidth | 132 MB/s |
| Supported Cable | Copper |
| Dimensions | 6.3 x 3.9 in. |
| Weight | 0.28 lb. |
| Warranty | 2-3 Year Warranty |
| PXI-8364 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXI-8364:
National Instruments PXI-8364 Frequently Asked Questions
Question: What is the maximum cable length for the PXI-8364?
Answer: The PXI-8364 has a maximum cable length of 7 m.
Question: What are the slot requirements for the NI PXI-8364?
Answer: The slot requirements for the NI PXI-8364 are one PXI or PXI hybrid peripheral slot.
Question: How many ports does the PXI-8364 have?
Answer: The PXI-8364 has 1 port.
Question: What type of LED indicators are on the NI PXI-8364?
Answer: The NI PXI-8364 has one tri-color LED, which specifies the power and link status.
