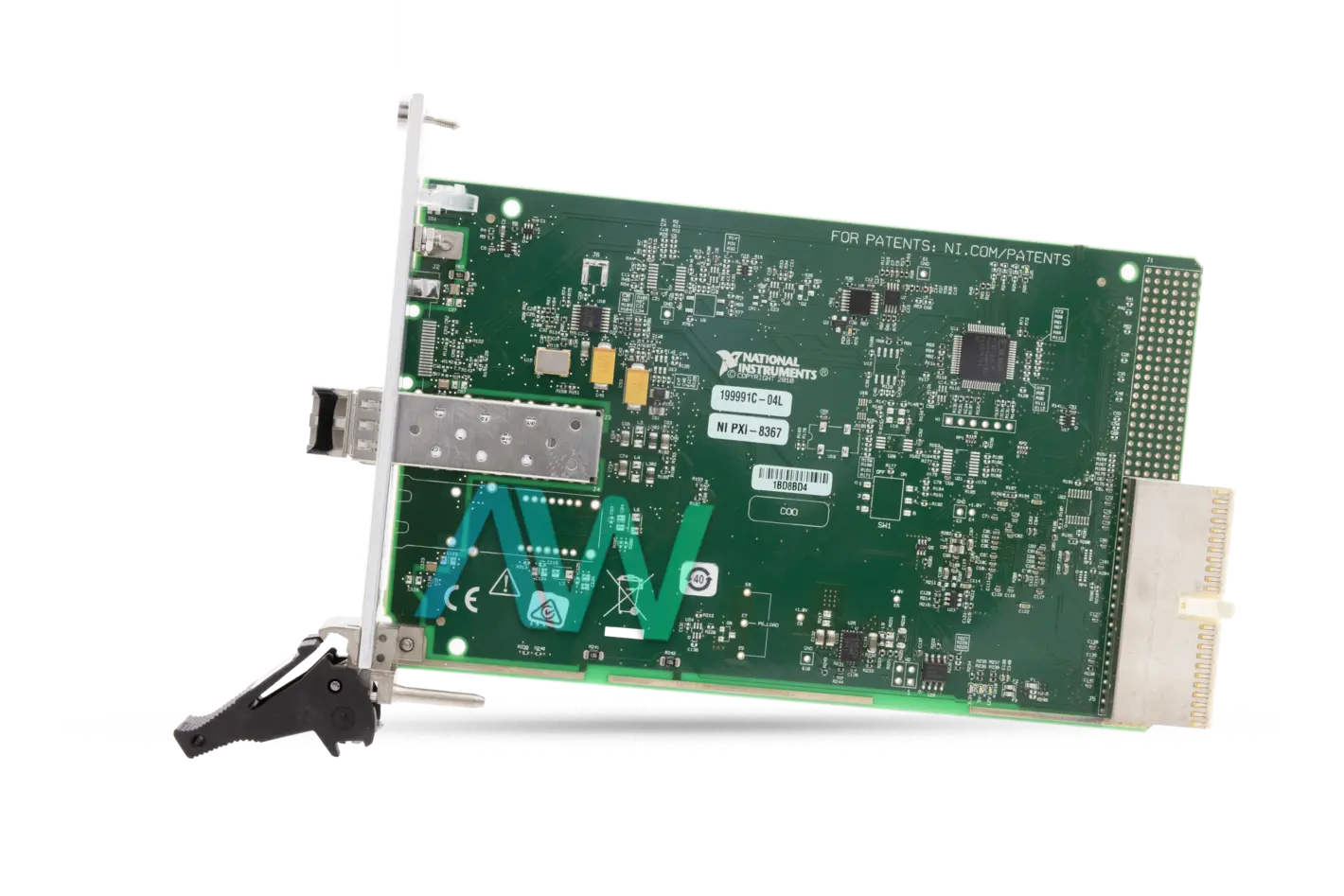

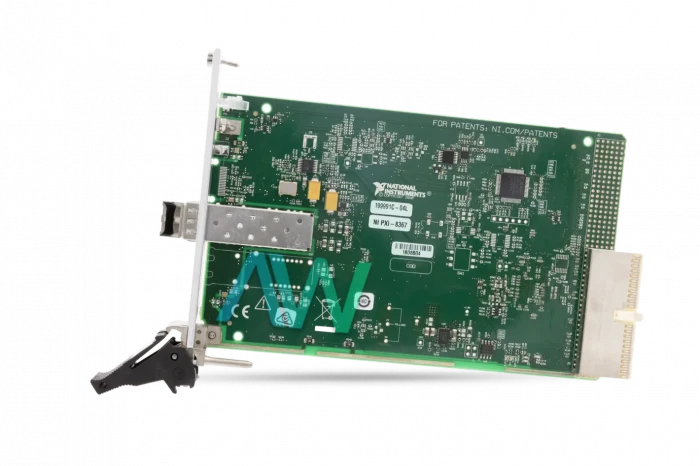

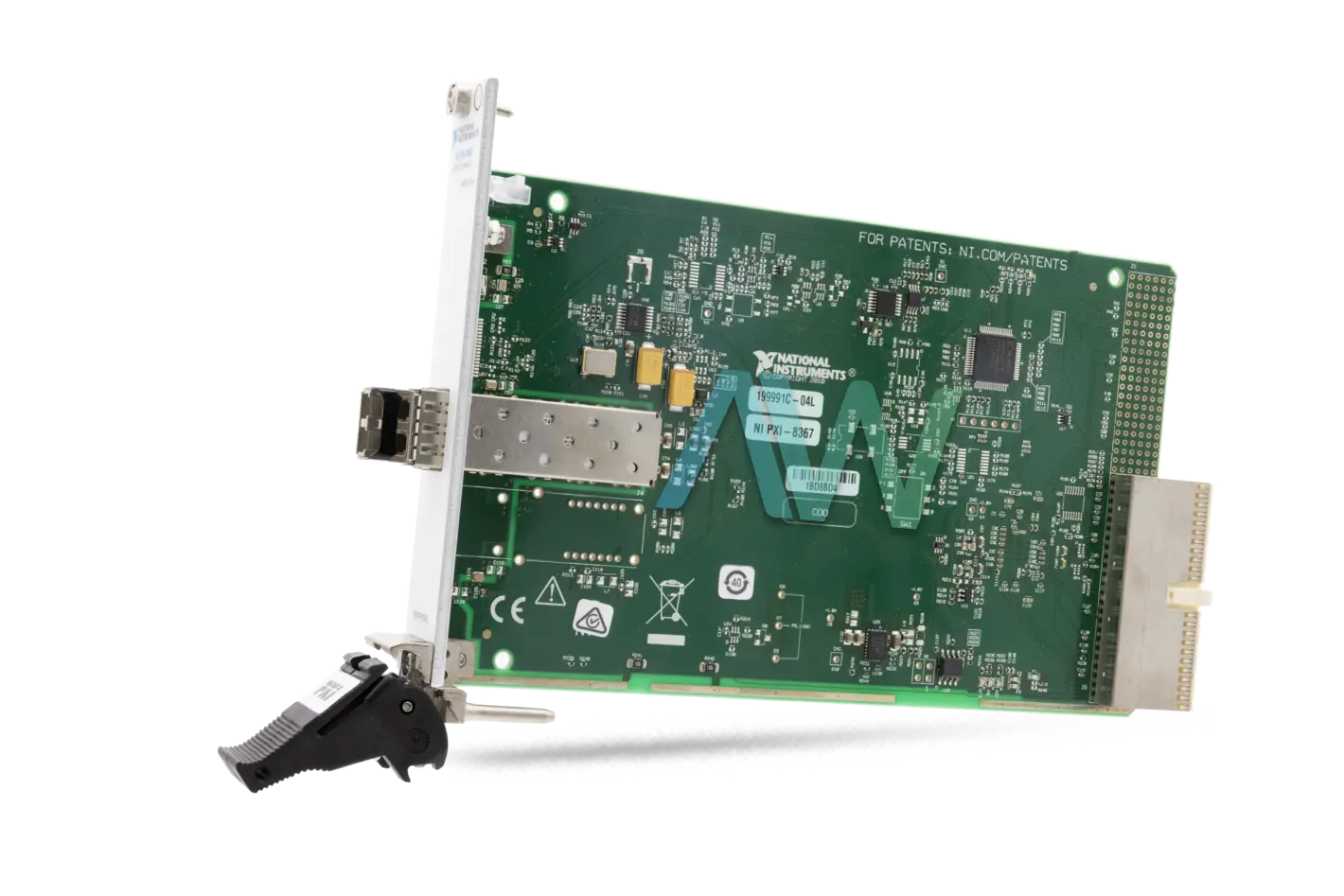

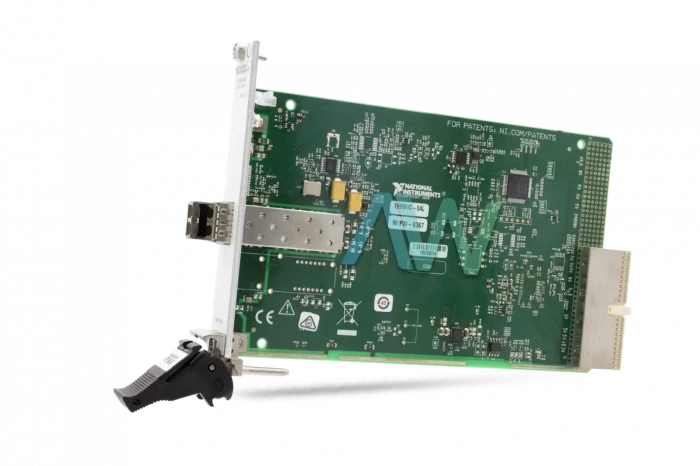

National Instruments PXI-8367 PXI Bus Extension Module
The PXI-8367 (Part Number: 781401-01) MXI-Express x1 Series, Fiber Optic Interface for Windows and LabVIEW RT, has a required programming incorporated as a feature of the most recent rendition of NI PXI Platform Services. The product for the MXI-Express x1 driver enhances the item, enabling the user to see data about the association of the PXI framework, gain admittance to the PXI triggering directing abilities or Chassis PXI Express, and recuperate information on the suspension automatically and modules that have been introduced. The least difficult MXI-Express x1 framework can be comprised of a host board associated with an objective board introduced in the controller space of a chassis or incorporated port of a suspension. The user can daisy-chain from a chassis that is controlled by an inserted controller or a PC to by utilizing MXI-Express x1 items.
The NI PXI-8367 PXI Bus Extension Module offers execution and advantages, while empowering frame control through work area PCs, rackmount controllers, PCs, or other PXI-8367 frameworks. Through MXIExpress innovation, the PXI-8367 Bus Extension Module gives a straightforward, perfect association between the host machine and the PXI-8367 suspension and instruments. NI offers an assortment of remote control alternatives to suit application prerequisites, such as rapid information throughput, long-separate cabling, and host shape factors. MXI-Express innovation additionally permits information storage and communication between different PXI-8367 frames. Multi-chassis frameworks bolster either daisy-chain or star topologies and can exploit effective highlights, such as synchronization and shared storage between suspension isolated instruments.
| Model | PXI-8367 |
|---|---|
| Part Number | 781401-01 |
| Manufacturer | National Instruments |
| Type | PXI Bus Extension Module |
| MXI Communication Level | MXI-Express x1 |
| MXI Bandwidth | 132 MB/s |
| Supported Cable | Fiber Optic |
| Dimensions | 6.3 x 3.9 in. |
| Weight | 0.31 lb. |
| Warranty | 2-3 Year Warranty |
| PXI-8367 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXI-8367:
National Instruments PXI-8367 Frequently Asked Questions
Question: What is the maximum cable length for the PXI-8367?
Answer: The maximum cable length for the Bus Extension Module is 200 m.
Question: What specifications is the NI PXI-8367 compatible with?
Answer: The module is compatible with the PXI Hardware Specification, Revision 2.1.
Question: How many PXI chassis can be daisy-chained to a single computer with the PXI-8367?
Answer: The maximum number of PXI chassis that can be daisy-chained is eight.
