National Instruments PXI-PCIe8362 MXI-Express Kit
The National Instruments PXI-PCIe8362 (Part Number: 779503-03) is a kit that allows the user to control CompactPCI and PXI systems from their PCI Express-equipped and enabled desktop computers or server PCs. This kit utilizes a high-bandwidth, completely transparent, cable-based MXI-Express link comprising of a PCI Express board (available on the host machine) connected through an MXI-Express cable to a PXI module installed in slot 1 of any compatible PXI chassis. This kit comes equipped with the PCI Express board that has 2 x 1 PCI Express links. This model is superior to its predecessor model, the NI PXI-PCIe8361, where a single PCI Express link is provided. With this model, the user can utilize both links to separate PXI chassis. Thus, a net of 160 MB/s stable throughput can be achieved.

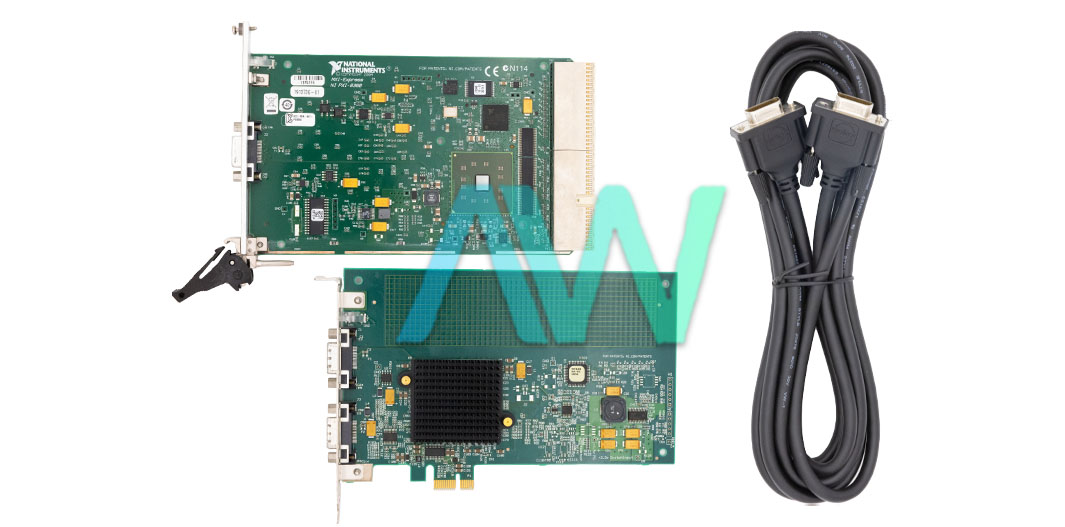

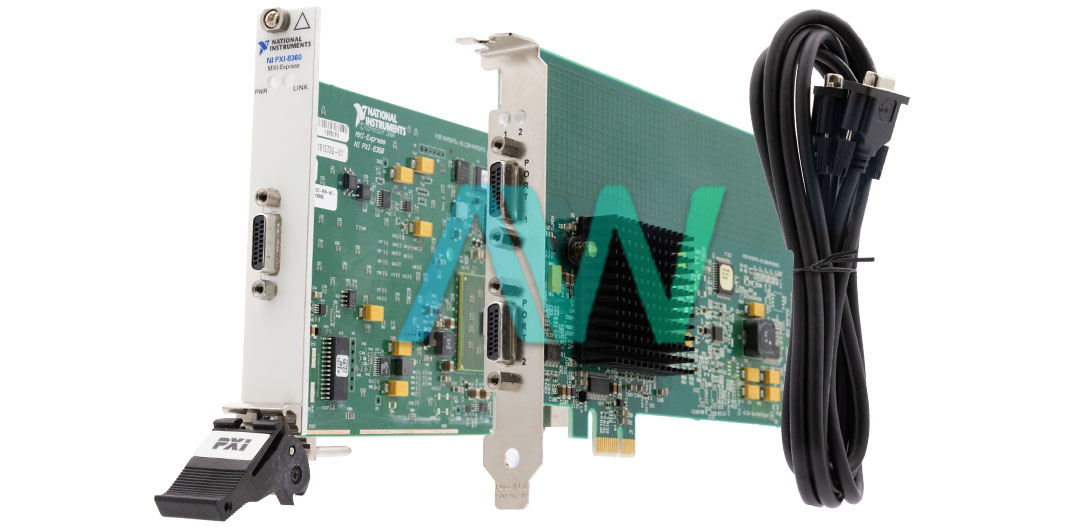

This model comes with an integrated PXI-8360 module, which incorporates a PCI Express-to-PCI bridge. By utilizing the MXI-Express link, the user can access PXI modules as if they are PCI boards, installed directly on the user’s PC. The NI PXI-PCIe8362 MXI-Express Kit allows up to 7 m cable length with screw-in connectors. This kit requires one compatible slot and is fully compatible with Microsoft Windows. In its standard configuration, the NI PXI-PCIe8362 will bring one PCI Express Board (NI PCIe-8362), one PXI Module (PXI-8360), and one 3 m cable. This system allows the user transparent controlling of a PXI system as within the host machine (PC, Server, etc.), where each of the PXI modules will appear as an independent PCI board.
| Model | PXI-PCIe8362 |
|---|---|
| Part Number | 779503-03 |
| Manufacturer | National Instruments |
| Series | MXI-Express x1 Series |
| Type | MXI-Express Kit |
| Slot Requirement | 1 |
| Maximum Cable Lngth | 7 m |
| Board Dimensions | 16 x 10 cm. |
| Operating System | Windows |
| Warranty | 2-3 Year Warranty |
| PXI-PCIe8362 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXI-PCIe8362:
National Instruments PXI-PCIe8362 Frequently Asked Questions
Question: What type of controller does the PXI-PCIe8362 have?
Answer: The PXI-PCIe8362 has a remote controller.
Question: What is the maximum throughput that can be maintained for the NI PXI-PCIe8362?
Answer: When the NI PXI-PCIe8362 is used with one chassis, the maximum throughput that can be maintained is 110 MB/s. For two chassis, the maximum throughput is 160 MB/s.
Question: What type of cable comes with the PXI-PCIe8362 MXI-Express kit?
Answer: The PXI-PCIe8362 MXI-Express kit comes with a 3 m copper cable.
Question: How many ports does the PXI-PCIe8362 have?
Answer: The PXI-PCIe8362 has a 2 port PCIe.
| Part Number | Kit Type | Modules Used | Cable Type |
|---|---|---|---|
| 779503-03 | 2 Port MXI-Express Kit | - PCIe-8362 MXI-Express PXI Remote Control Device - PXI-8360 PXI Remote Control Module | 3 Meter, MXI-Express Copper Cable |
