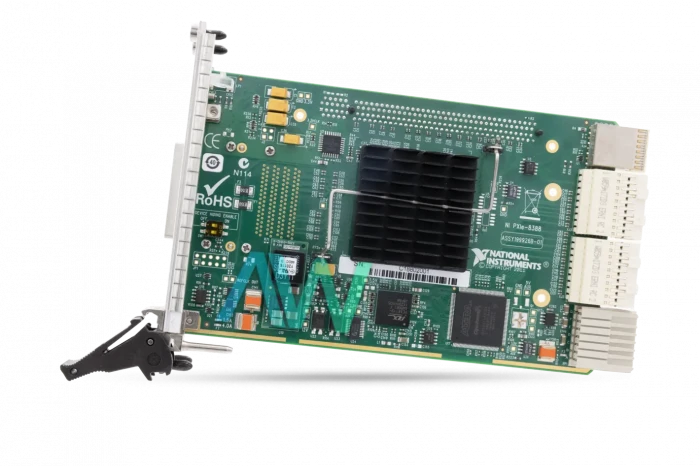

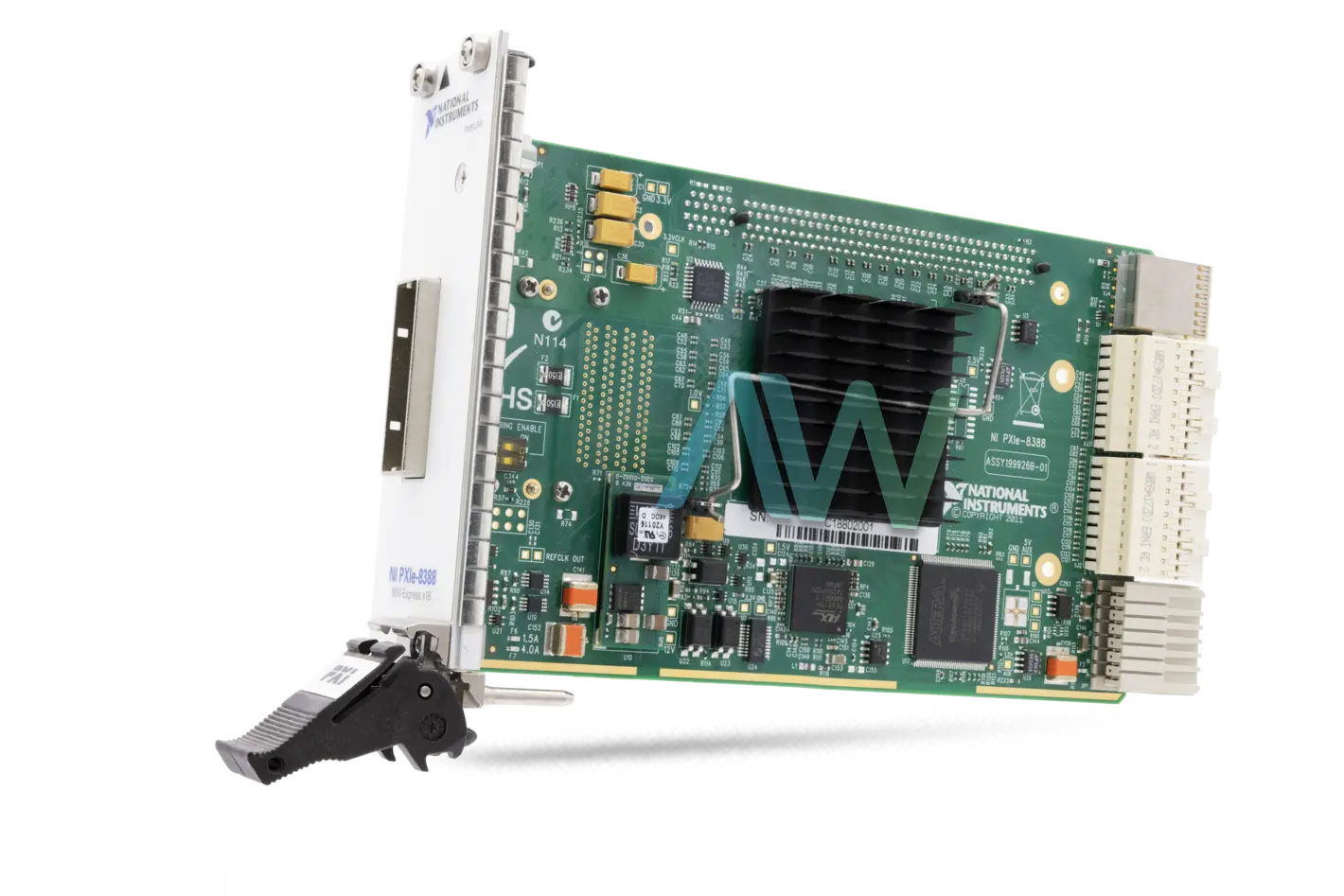

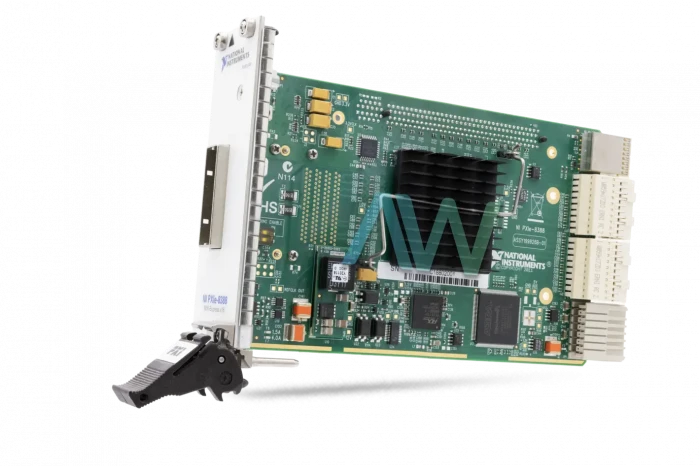

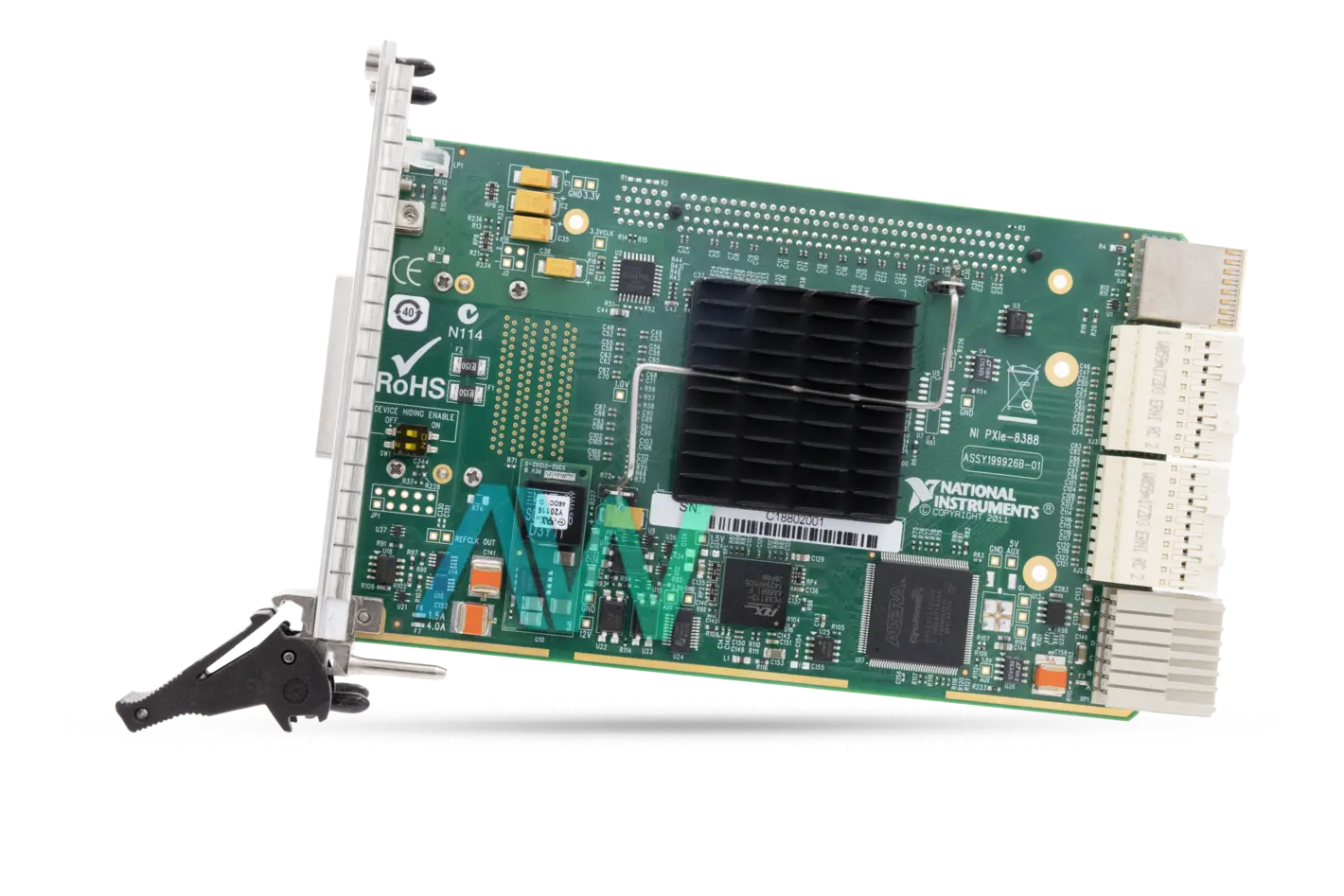

National Instruments PXIe-8388 PXI Remote Control Module
The PXIe-8388 (Part Number: 781760-01) is a Remote Control Module designed by National Instruments. This module is an x16 Gen 2 PXI Express module This module is capable of sustained throughput ranged up to 5.6 GB/s unidirectional and can also sustain throughput up to 2.8 GB/s bidirectional. The NI PXIe-8388 also features multi-chassis configuration for PXI Express Systems. This Remote Control Module is installed in a PXI Chassis.
The PXIe-8388 module has a high-lane-count PCI Express switch, which enables peer-to-peer data transfers from one PXI Express slot to any other slot. There is a downstream port in this module to allow peer-to-peer data transfers between all the daisy-chained chassis. It helps the user control PXI and Compact PCI systems from a PC. There is no additional software required for this module. The NI PXIe-8388 Remote Control Module uses a completely transparent MXI-Express link. It also installs the PCIe-8388 through a copper, x16 MXI-Express cable. The cable length is 3 m maximum.
The NI PXIe-8388 module has physical dimensions of 3.9 x 6.3 inches. The module weighs 9.2 oz. (261 g). This module is a one slot system and can expand up to two controllers. This module is fully attuned with the PXI Express Hardware Specification. The pollution degree is 2. The PXIe-8388 has a random vibration range from 5 Hz up to 500 Hz and fulfills the IEC 61010-1 and UL 61010-1 standards of safety for IT equipment. This module also meets the EMC standards for electrical equipment. This module can be utilized for measurement, control, and laboratory use.
National Instruments (NI) has declared the PXIe-8388 as Obsolete, but the PXI Remote Control Module will still be available for purchase and repairs with Apex Waves in perpetuity.
| Model | PXIe-8388 |
|---|---|
| Part Number | 781760-01 |
| Manufacturer | National Instruments |
| Type | PXI Remote Control Module |
| MXI Communication Level | MXI-Express Gen2 x16 |
| Supported Cable Type | Copper |
| MXI Bandwidth | 8 GB/s |
| Max Cable Length | 3 m |
| Slot Requirements | 1 System Slot, 1 or 2 Controller Expansion Slots |
| Operating Ambient Temp Range | 0 °C to 55 °C |
| Storage Ambient Temp Range | – 40 °Cto 71 °C |
| Dimensions | 3.9 x 6.3 in. (10.0 x 16.0 cm) |
| Weight | 9.2 oz. (261 g) |
| Warranty | 2-3 Year Warranty |
| PXIe-8388 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXIe-8388:
National Instruments PXIe-8388 Frequently Asked Questions
Question: Does the PXIe-8388 support daisy chaining?
Answer: No, the Remote Control Module does not support daisy chaining.
Question: What are the slot requirements for the PXIe-8388 module?
Answer: The module requires one system slot and one or two controller expansion slots (PXI Express of CompactPCI Express).
Question: What does a basic MXI-Express x16 system with the NI PXIe-8388 contain?
Answer: A basic MXI-Express x16 system involves a PCIe-8388 in a compatible PC linked to a PXIe-8388 in the controller slot of a PXI Express or CompactPCI Express Chassis.
Question: How many LEDs are on the front panel of the device?
Answer: The PXIe-8388 has one tri-color LED on the front panel.
