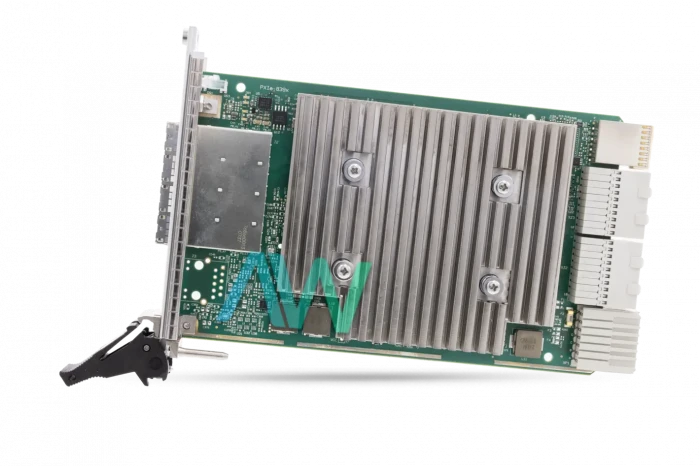

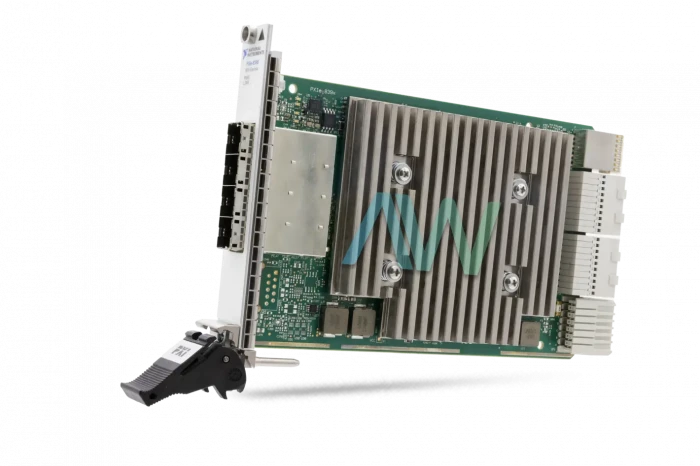

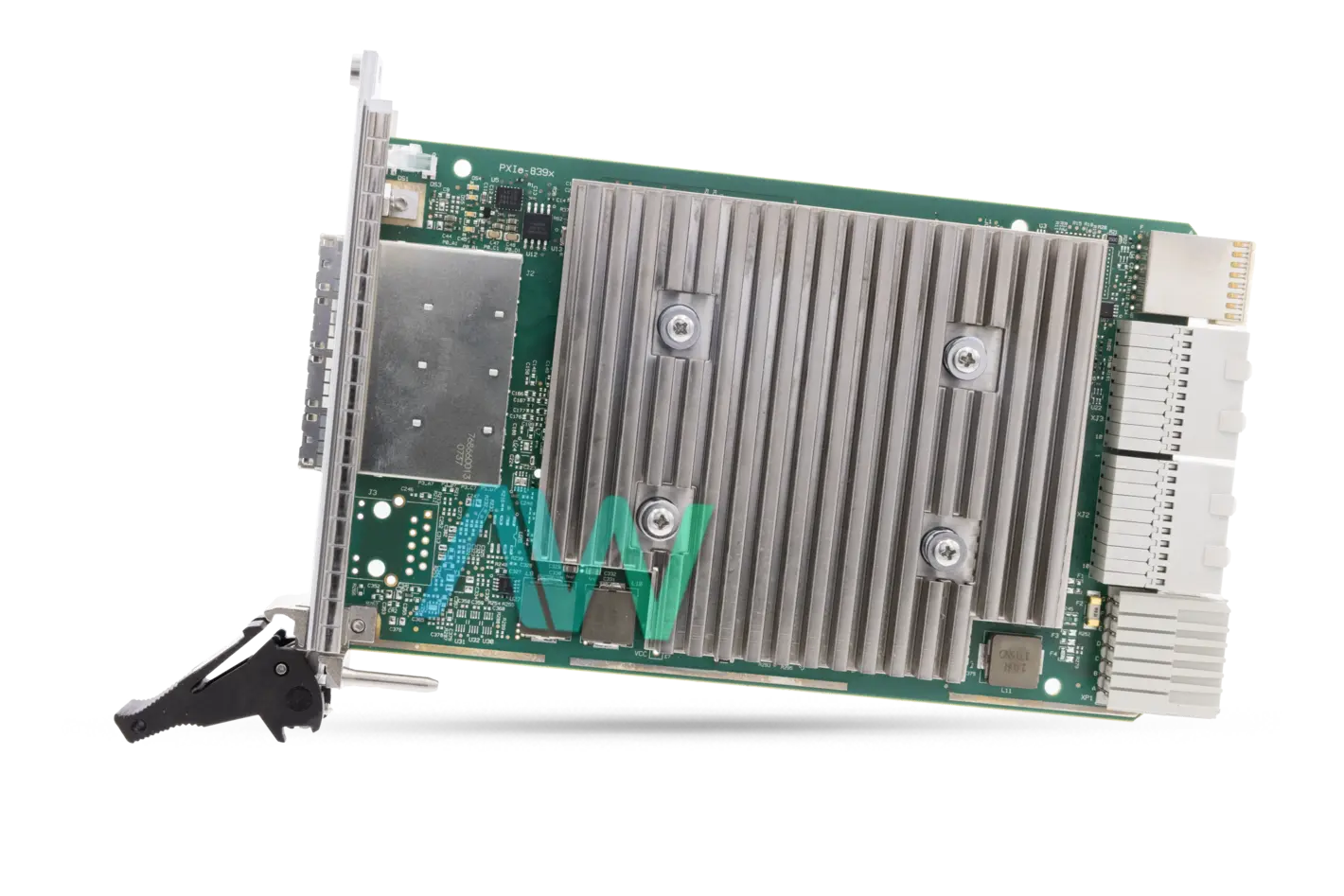

National Instruments PXIe-8398 PXI Remote Control Module
The PXIe-8398 (Part Number: 784178-01) is a 3rd generation Remote Control Module from National Instruments. This module offers the communication level of MXI-Express Gen3 x16. The NI PXIe-8398 Remote Control Module supports connectivity through copper cables. It allows implementing the communication mechanism for various testing requirements. The instrument also comes with the capability to support daisy chaining, which helps enhance the operational efficiency of the device. It also offers the exceptional bandwidth for MXI operations, which is 16 GB per second per lane. The PXIe-8398 Remote Control Module has a bit rate after encoding of 7.88 GB/s/lane.
The National Instruments PXIe-8398 module can operate in a two or four link chassis. It enables the user to optimize the performance of the backplane lines of the module for different modes of configuration. The instrument offers a modular connection feature, so it can cable the instrument using several schemes. The NI PXIe-8398 is compatible with a PXI Express controller board slot. It also incorporates a tri-color LED on the front panel to check the power status and link state of the module. The PXIe-8398 enables quick and accurate measurements.
The NI PXIe-8398 module weighs 0.325 pounds. The dimensions are 2.71 x 6.60 inches. The maximum value of altitude to maintain the operational accuracy of the module is 2000 meters. This module comes with the pollution degree of 2 for indoor use. The PXIe-8398 Remote Control Module also complies to safety standards and adheres to the electromagnetic compatibility requirements.
| Model | PXIe-8398 |
|---|---|
| Part Number | 784178-01 |
| Manufacturer | National Instruments |
| Type | PXI Remote Control Module |
| Slot Requirements | 1 System Slot |
| MXI Communication Level | MXI-Express Gen3 x16 |
| Supported Cable Type | Copper |
| Max Cable Length | 3 m |
| MXI Bandwidth | 16 GB/s |
| Operating Temp Range | 0 °C to 55 °C |
| Storage Temp Range | -40 °C to 71 °C |
| Dimensions | 4.4 x 6.9 in. (10.7 cm × 17.5 cm) |
| Weight | 0.81 lb. (0.36 kg) |
| Warranty | 2-3 Year Warranty |
| PXIe-8398 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXIe-8398:
National Instruments PXIe-8398 Frequently Asked Questions
Question: What are the slot requirements for the PXIe-8398 module?
Answer: The PXIe-8398 module requires one PXI Express or CompactPCI Express system slot.
Question: What is the cable support for the NI PXIe-8398?
Answer: The cable support for the NI PXIe-8398 is for MXI-Express x8 and MXI-Express x4.
Question: What instruments are needed to connect a PC to an Expansion Chassis while using the PXIe-8398?
Answer: While using the PXIe-8398, for the user to be able to connect a PC to an Expansion Chassis they would need a host PC with an open PCI Express Gen-3 x16 slot, a PXI Express chassis, two Gen 3 MXI-Express x8 cables, a PCIe-8398, and a PXIe-8398.
Question: What does it mean when the LED on the NI PXIe-8398 is blinking red?
Answer: When the LED on the NI PXIe-8398 is blinking red, it means that the power is not in spec.
